ID: 841352
Код товара: GP-UD1000GMPG5
В наличии 16 шт. / В офисе 1 шт.
Гарантия: 3 лет
Gigabyte UD1000GM PG5, 1000W, 80PLUS Gold, PCIe 5.0
Изображение может отличаться от реального товара, могут быть аксессуары и детали, не поставляемые с реальным товаром.
Варианты доставки О доставке
- Доставка на Smartpost бесплатно: в понедельник, 25.11.2024
- Доставка на пакомат Omniva бесплатно: в в понедельник, 25.11.2024
- Доставка в DPD Pickup Packet Locker бесплатно: в понедельник, 25.11.2024
- Доставка в почтовое отделение Латвии, камеру хранения посылок или Circle K бесплатно: в понедельник, 25.11.2024.
- Доставка по Риге 3,99 €: в в понедельник, 25.11.2024
- Доставка по Латвии 6,99 €: в в понедельник, 25.11.2024
- Доставка в пункт выдачи посылок Dateks.lv на улице Земитана, 9: сегодня, 21.11.2024 сразу после подтверждения заказа
Основные параметры продукции Все параметры
- Производитель: Gigabyte
- Пиковая мощность: 1000W
- 80 PLUS certification: 80 PLUS Gold
- Размер вентилятора: 120 mm
- Модульные кабели: Fully-Modular
- Подключаемый процессор: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Описание
Этот блок питания марки Gigabyte имеет сертификат энергоэффективности 80 PLUS Gold и выходную мощность 1000W.
Этот блок питания мощностью 1000W сможет запустить лучший игровой компьютер. У него достаточно мощности для работы нескольких высокопроизводительных видеокарт, большой системы водяного охлаждения, разогнанного высокопроизводительного процессора и нескольких жестких дисков.

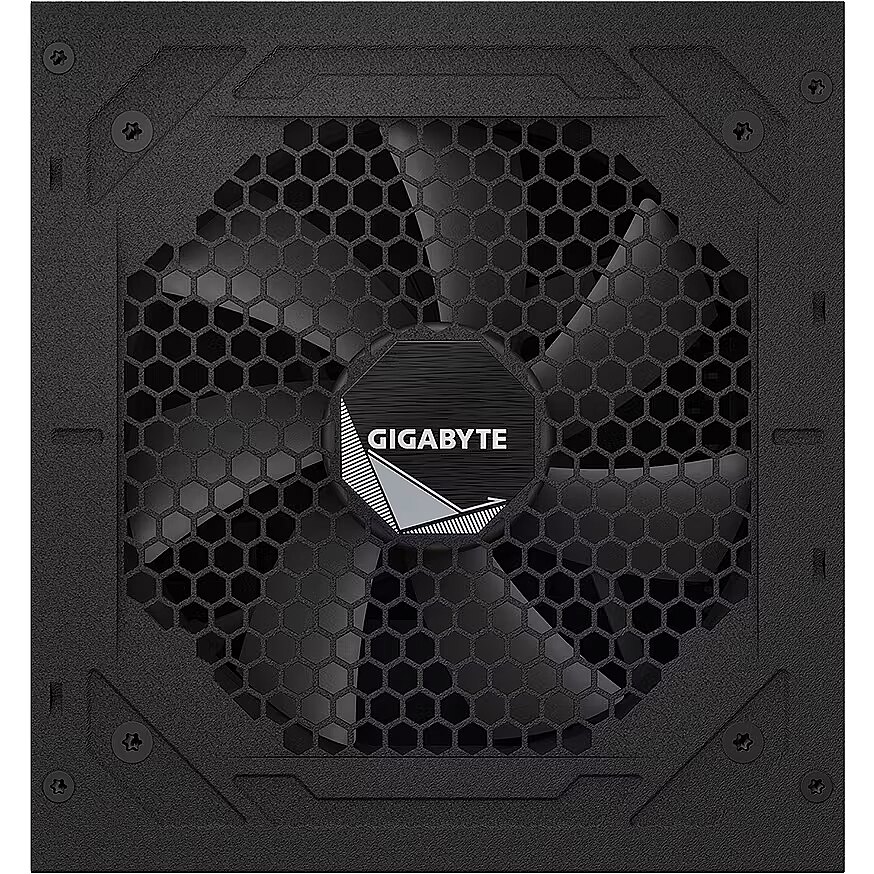

Диаметр вентилятора этого блока питания составляет 120 mm, что обеспечит тихую работу в компьютерах среднего класса. Для особенно тихой работы блока питания мы рекомендуем выбрать вентилятор с диаметром 135 мм или 140 мм.
80 PLUS Gold сертификат энергоэффективности, полученный этим блоком питания, гарантирует как минимум 90% эффективности при нагрузке в 50%. Другими словами, из каждых 100 Вт энергии, которые блок питания получает от электросети, как минимум 90 Вт идет на компоненты вашего компьютера, а оставшиеся 10 Вт теряются в виде тепла.
Блок питания содержит разъем, предназначенный для современных видеокарт, таких как Nvidia GeForce RTX 4070 или более мощных, 1 x 600W 12VHPWR. Видеокартам более низкого уровня (например, RTX 4060) будет достаточно стандартного 8-контактного разъема.
Цвет этого блока питания Melna. Цвет кабеля Melna, и они плоские.
Этот блок питания соответствует стандарту ATX 3.0. Это означает, что устройство имеет 16-контактный (12VHPWR) разъем, обеспечивающий до 600 Вт мощности для новейшего поколения (серии RTX 30 и 40) графических карт PCIe 5.0. Кроме того, стандарт ATX 3.0 поддерживает увеличение мощности на 200% в течение
Уровень шума этого блока питания составляет 35-40 дБ, и он имеет сертификацию уровня шума Cybenetics Standard +.
Этот блок питания имеет модульные кабели, что предоставляет возможность добавлять кабели для видеокарты, жесткого диска и т. д. по мере необходимости из поставляемого диапазона. Таким образом, беспорядок проводов в компьютере уменьшается, улучшая вентиляцию и эстетический фактор (особенно важно для тех, кто приобретает частично прозрачный корпус).
Производителем блока питания является Gigabyte. Все блоки питания, произведенные Gigabyte, можно посмотреть здесь.
Основная информация
Сертификация уровня шума Cybenetics
: Cybenetics Standard +
Сертификация эффективности Cybenetics
: Cybenetics Platinum
Тип блока питания
: ATX
Пиковая мощность
1000W
Мощность блока в ватах. Большая мощность означает лучшую стабильность работы компьютера. В современном компьютере желательная мощность блока 500W или больше. Если используете несколько жестких дисков, мощную видеокарту и процессор, то желательно приобрести блок питания с мощностью 600W или больше.
80 PLUS certification
: 80 PLUS Gold
Общая сила тока (+12 В)
: 83.3A
Размер вентилятора
: 120 mm
Функциональность
Цвет кабеля
: Черный
Освещение
: Nav
Цвет
: Черный
Модульные кабели
: Fully-Modular

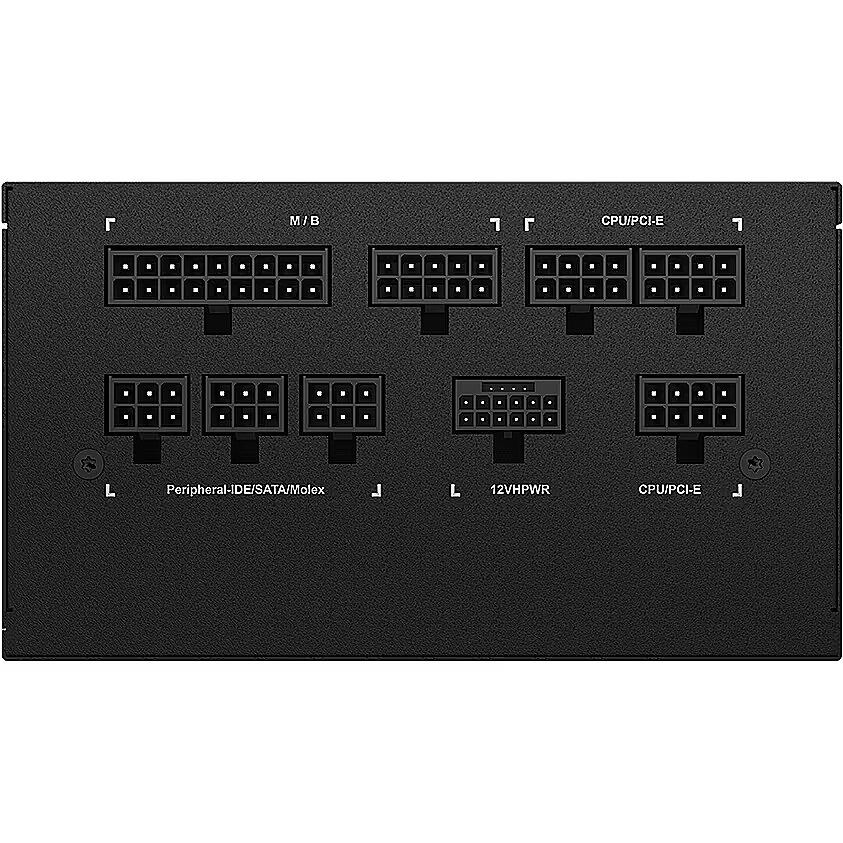

Места подключения и оснащение
PCI-E 5.0
: 1 x 600W 12VHPWR
Подключаемый процессор
: 2 x 8-pin(4+4) EPS
Штепсель системной платы
: 20+4pin
PCI-E
: 4 X 6+2pin
Штепсели SATA
: 8
Штепсель Molex PATA
: 3
Более подробная спецификация
Дополнительная информация на сайте производителя Gigabyte UD1000GM PG5, 1000W, 80PLUS Gold, PCIe 5.0
Brand - GIGABYTE
BrandPartCode - GP-UD1000GM PG5
BrandPartCode - UD1000GM PG5
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates > Certification - GOLD
Code - GP-UD1000GM PG5
code - GP-UD1000GM PG5 2.0
Colour - Black
Cooling System - 12cm fan
Description - GIGABYTE UD1000GM PG5 ???? ???????? GIGABYTE UD1000GM PCIE 5.0 ??? 16-?????????? ???'?? ? ???????????? ? ????????????? 16-?????????? ???????, ???? ??? ????? ????????? ? ??????????? PCIe Gen 5.0. ??? ?????? ???? ???????????? ??????????, ?????????? ?? 600 ??. + ?????? ???????? - ??????? ???????? ???????????? - ????????? ??????? ??????? - 120-?? ?????????? ? ???????? ???????????? ??????????? (HYB) - ?????? OVP/OPP/SCP/UVP/OCP/OTP + ????????? ????????? PCIe Gen 5.0 - ????????????? 16-?????????? ?????? ????????? ??????? ?????????? 600 ?? - ???????????? 80 PLUS Gold - ???????? ???????? ??????????? - ?????????? ?????? ????????? ????????? PCIe Gen 5.0 D1000GM PCIE 5.0 ??? 16-?????????? ???'?? ? ???????????? ? ????????????? 16-?????????? ???????, ???? ???????? ??????????????? ???? ???????? ? ??????????? PCIe Gen 5.0. ??? ?????? ???? ???????????? ?????????? ???????? ?????????? ?? 600 ??. ??????????????? ?????????? ??? ??????? ????????? GIGABYTE Ultra Durable, ?? ???????????? ???????????? ???????????? ????????? ?? ???????????. Ultra Durable ??????? ? ???? ???????????? ??????? ???????? ????????????, ????????? ??????? ???????, 120-?? ?????????? ? ??????????????? ???????????? ??????????? (HYB) ? ????? ???? ???????. ??? ?????????? ?????????? ??????? ?? ?????????? ???????????????? ? ???? ????????????????? ???????? ????????? ????. ???????????? ??????? ??????? ? ?????????? ?? ??????????? ???????? ????????, ?? ????????? ???????? ????????? ?? 200% ??? ?????? ?? ???????????? ?????????? ?????. ???????????? ??????????? ????? ??????????? ????? ??? ?? 10%, ?? ????????? ?????? ?????? ???????????. 120-???????????? ?????????? ? ???????????? ??????????? ????????? ??????????? ??????????? ?????????? ?? ????????????? ?????????? ?????????? ? ???????????, ???? ??????? ?? ?????? ??? ??????????? ??? ??????? ????????????? (????? 20% ????????????). ?????????? ?? ????????????? ?????????? ?????????? ?????? ? ???????????? ?????? ??????. ?????? ??? ????, ??? ??????????? ????????? ?????? ????? ????'??????? ??????? ?? ????-???? ????, ?? ?? ?????? ?????? ??????? ???????????, ???? ?? OCP, OTP, OVP, OPP, UVP ? SCP, ??? ? ??????????? ????????? ?????? ????? ??????? ??????? ???????????? ??????? ? ?????? ???????. ???????? ???????? ??????????? ??? ????? ?????? ?????? ????? ???????? ???????????. ???????????? ???? ?????????? ??????? ??????? ?????????????, ???????? ????? ??????? ?? ???????? ??????? ?????????????? ???????. ??????? ??????? ???????? +12VHPWR ? +12V ?????? ??????????? ??????? ??????? ?????????? 1000 ??. ???? ???????? +12VHPWR ???? ??????????? ?? 600 ?? ??? ?????????? ?????????? PCIe Gen 5.0. ?????????? ?????? ?????? ??????? ???????????????? ??????????? ????????? ? ??????????? ?????????? ????? ?? ?????? ????????? ?????????, ? ????? ???????????? ????????????? ??????????, GIGABYTE ??????? ???????? ??????? ????? ???????? ?? ?????????? 140 ??, ??????? ???? ???? ????? ????? ?????????? ? ????-???? ?????? ??? ???????? ? ????????.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1200
Dimensions - 150 x 140 x 86 мм
EAN - 4719331552275
ean - 4719331553234
EAN - 4719331553234
Eans - 4719331553234
EAN_code - 4719331553234
Efficiency - 80 PLUS GOLD
Full Description Line - UD1000GM PG5|ATX 3.0|1000 Watts|Cooling System 12cm fan|80 PLUS GOLD|PFC Active|MTBF 100000 hours|Colour Black
GTIN - 4719331552275
GTIN - 4719331552282
GTIN - 4719331552930
GTIN - 4719331553234
Link - https://www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5#kf
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - Support PCIe Gen 5.0 graphics cardThe UD1000GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.ULTRA DURABLEInherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.HIGH QUALITYJAPANESE CAPACITORSThe main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.ENHANCED THERMALSOLUTIONCompared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.120MM SMART HYDRAULICBEARING (HYB) FANThe fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.PROTECTIONIn order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.80 PLUS GOLD CERTIFIED80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.PLENTIFUL POWER SUPPLYThe +12VHPWR and the +12V can provide a total of 1000W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.OMPACT DESIGNWith the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.
LongDesc - Support PCIe Gen 5.0 graphics cardThe UD1000GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.ULTRA DURABLEInherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.HIGH QUALITYJAPANESE CAPACITORSThe main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.ENHANCED THERMALSOLUTIONCompared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.120MM SMART HYDRAULICBEARING (HYB) FANThe fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.PROTECTIONIn order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.FULLY MODULAR DESIGNAll the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.80 PLUS GOLD CERTIFIED80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.PLENTIFUL POWER SUPPLYThe +12VHPWR and the +12V can provide a total of 1000W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.COMPACT DESIGNWith the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.
LongProductName - 1000 W, Fan Size 120 mm, Intel ATX 12 V, 80 PLUS Gold, Black
LongProductName - 1000W, Active PFC, 120mm Hydraulic bearing fan, 80 PLUS Gold
LongSummaryDescription - GIGABYTE GP-UD1000GM PG5. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, CPU power cable length: 60 cm. Purpose: PC, 80 PLUS certification: 80 PLUS Gold, Bearing technology: HDB. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Cables included: CPU, PCIe, Peripheral (Molex), SATA
LongSummaryDescription - GIGABYTE UD1000GM PG5. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 86 mm, Height: 140 mm
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - GP-UD1000GM PG5 2.0
Manufacturer_code - GP-UD1000GM PG5 GEU
Model name - UD1000GM PG5
MPN - GP-UD1000GM PG5
MTBF - 100000 hours
Name - 1000W Gigabyte UD1000GM PG5 2.0 | 80+ Gold ATX 3.0
Name - Gigabyte GP-UD1000GM PG5 (rev. 2.0)
Name - GIGABYTE GP-UD1000GM PG5 1000W, PC power supply (black, 1000 watts)
Name - GIGABYTE GP-UD1000GM PG5 1000W rev.2.0, PC power supply (black, 5x PCIe, cable management, 1000 watts)
name - Gigabyte UD1000GM PG5 2.0 Netzteil, 80 PLUS Gold, vollmodular, ATX 3.0, PCIe 5.0 - 1000 Watt
Name - Gigabyte | PSU | GP-UD1000GM PG5 | 1000 W
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 120 mm
Package features > Gross depth master carton - 610 mm
Package features > Gross height (mm) - 200 mm
Package features > Gross height master carton - 285 mm
Package features > Gross width (mm) - 255 mm
Package features > Gross width master carton - 220 mm
Package features > Net weight master carton - 14.27 kg
Package features > Packing quantity - 5 pc(s)
Package features > Palette Qty - 225 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Tare weight master carton - 0.65 kg
Package features > Volume (m3) - 0.00612 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Bearing technology - HDB
Performance - Bearing technology - HYB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > Bearing technology - Hydraulic Bearing
Performance > Form factor - ATX 12V
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - Cabling type - Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power cable length - 80 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power cable length - 70 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (6+2 pin) - 6
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 120
Ports & interfaces - Peripheral (Molex) power cable length - 120,150,500 mm
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 500
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,600 mm
Ports & interfaces - SATA power cable length - 600
Power - AC input frequency - 50 - 60 Hz
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 125 W
Power - Combined power (+5V) - 125 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 999.6 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 6.5 - 15 A
Power - Input current - 15 - 6.5 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.3 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Short circuit, Under voltage
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1000 W
Power > Nominal power - 1000 W
Producer - Gigabyte
ProducerCode - GP-UD1000GM PG5 (rev. 2.0)
producerCode - GP-UD1000GM PG5 Rev 2.0
Producer product family - PSU
Producer product name - GP-UD1000GM PG5
productName - Gigabyte UD1000GM PG5 power supply unit 1000 W 20+4 pin ATX ATX Black
ProductName - GP-UD1000GM PG5
ProductName - UD1000GM PG5
productSize - Normal
PSU - ATX 3.0
PSU Output Power - 1000 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 25.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 12 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.85 kg
Shipping Box Width Shipping/Package Box Dimensions - 21 cm
ShortDescription - 1000 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | modularny | 80 PLUS Gold
ShortSummaryDescription - GIGABYTE GP-UD1000GM PG5, 1000 W, 100 - 240 V, 50 - 60 Hz, 15 - 6.5 A, Active, 125 W
ShortSummaryDescription - GIGABYTE UD1000GM PG5, 1000 W, 100 - 240 V, 50 - 60 Hz, 6.5 - 15 A, Active, 16 ms
sizeX - 250
sizeY - 200
sizeZ - 120
Technical details > Gross weight - 2.854 kg
Technical details > Net weight - 2.654 kg
Technical details > Other features - Fan size 120mm; Protection OVP/OPP/SCP/UVP/OCP/OTP
Technical details > Producer - Gigabyte
Technical_details - GP-UD1000GM PG5 1000W, PC power supply The GIGABYTE GP-UD1000GM PG5 1000W PC power supply with fully modular cables is 80 PLUS Gold certified for better energy efficiency. Lower power consumption reduces heat generation and fan noise. The power supply can reach up to 90% efficiency , providing the best solution for system builds. The modular cables reduce clutter and improve airflow within the case. The single +12V rail offers the best output power, stability and compatibility for the hardware. The 120mm silent fan optimizes noise reduction and thermal performance. The fan speed is adjusted according to the automatic power detection. The fan offers a longer and more stable service life thanks to intelligent hydraulic bearing. Type: PC power supply Color: Black EAN: 4719331552275 Manufacturer No.: GP-UD1000GM PG5 GEU Performance: Total | 1000W Power: +12V total | 1,000W Power: +3.3V/+5V total | 125W Performance: Efficiency | up to 90% Performance: input voltage range | 100-240 volts Power: input current | 6.5 A at 230 volts / 50 Hz, 15 A at 110 volts / 60 Hz Default: ATX12V 2.3 Design: ATX Certification: 80 PLUS Gold Amperages: +3.3 V | 25A Amperages: +5 V | 25A Currents: +5 Vsb | 3 A Amperages: -12 V | 0.3A Amperages: +12 V total | 83.3A Amperages: +12 V1 | 83.3A Power Factor Correction: Active PFC Connectors: 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 1x 4-pin 3.5", 4x 4-pin 5.25", 4x 6+2-pin graphics , 8x 15-pin SATA Cables: Cable Management | Yes Cooling: number of fans | 1x 120mm fan Cooling: Regulation | Temperature controlled Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Load Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP) Dimensions: Width: 150mm x Height: 70mm x Depth/Length: 140mm
Title - GIGABYTE GP-UD1000GM PG5 power supply unit 1000 W 20+4 pin ATX Black
Title - GIGABYTE UD1000GM PG5 power supply unit 1000 W 20+4 pin ATX ATX Black
Unit Box Height - 0.12
Unit Box Length - 0.255
Unit Box Width - 0.21
Unit Brutto Volume - 0.006426 cubm
Unit Gross Weight - 2.85 kg
Unit Net Weight - 2.2 kg
URL - https://www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5#kf
Vendor Homepage - www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5#kf
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
WarrantyInfo - 10 Years
warrantyLength - 120
warrantyType - G
Weight - 2,79
Weight - 2,85
Weight - 2.82
weight - 2830
Weight & dimensions - Depth - 86 mm
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Height - 140 mm
Weight & dimensions - Width - 140 mm
Weight & dimensions - Width - 150 mm
BrandPartCode - GP-UD1000GM PG5
BrandPartCode - UD1000GM PG5
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates > Certification - GOLD
Code - GP-UD1000GM PG5
code - GP-UD1000GM PG5 2.0
Colour - Black
Cooling System - 12cm fan
Description - GIGABYTE UD1000GM PG5 ???? ???????? GIGABYTE UD1000GM PCIE 5.0 ??? 16-?????????? ???'?? ? ???????????? ? ????????????? 16-?????????? ???????, ???? ??? ????? ????????? ? ??????????? PCIe Gen 5.0. ??? ?????? ???? ???????????? ??????????, ?????????? ?? 600 ??. + ?????? ???????? - ??????? ???????? ???????????? - ????????? ??????? ??????? - 120-?? ?????????? ? ???????? ???????????? ??????????? (HYB) - ?????? OVP/OPP/SCP/UVP/OCP/OTP + ????????? ????????? PCIe Gen 5.0 - ????????????? 16-?????????? ?????? ????????? ??????? ?????????? 600 ?? - ???????????? 80 PLUS Gold - ???????? ???????? ??????????? - ?????????? ?????? ????????? ????????? PCIe Gen 5.0 D1000GM PCIE 5.0 ??? 16-?????????? ???'?? ? ???????????? ? ????????????? 16-?????????? ???????, ???? ???????? ??????????????? ???? ???????? ? ??????????? PCIe Gen 5.0. ??? ?????? ???? ???????????? ?????????? ???????? ?????????? ?? 600 ??. ??????????????? ?????????? ??? ??????? ????????? GIGABYTE Ultra Durable, ?? ???????????? ???????????? ???????????? ????????? ?? ???????????. Ultra Durable ??????? ? ???? ???????????? ??????? ???????? ????????????, ????????? ??????? ???????, 120-?? ?????????? ? ??????????????? ???????????? ??????????? (HYB) ? ????? ???? ???????. ??? ?????????? ?????????? ??????? ?? ?????????? ???????????????? ? ???? ????????????????? ???????? ????????? ????. ???????????? ??????? ??????? ? ?????????? ?? ??????????? ???????? ????????, ?? ????????? ???????? ????????? ?? 200% ??? ?????? ?? ???????????? ?????????? ?????. ???????????? ??????????? ????? ??????????? ????? ??? ?? 10%, ?? ????????? ?????? ?????? ???????????. 120-???????????? ?????????? ? ???????????? ??????????? ????????? ??????????? ??????????? ?????????? ?? ????????????? ?????????? ?????????? ? ???????????, ???? ??????? ?? ?????? ??? ??????????? ??? ??????? ????????????? (????? 20% ????????????). ?????????? ?? ????????????? ?????????? ?????????? ?????? ? ???????????? ?????? ??????. ?????? ??? ????, ??? ??????????? ????????? ?????? ????? ????'??????? ??????? ?? ????-???? ????, ?? ?? ?????? ?????? ??????? ???????????, ???? ?? OCP, OTP, OVP, OPP, UVP ? SCP, ??? ? ??????????? ????????? ?????? ????? ??????? ??????? ???????????? ??????? ? ?????? ???????. ???????? ???????? ??????????? ??? ????? ?????? ?????? ????? ???????? ???????????. ???????????? ???? ?????????? ??????? ??????? ?????????????, ???????? ????? ??????? ?? ???????? ??????? ?????????????? ???????. ??????? ??????? ???????? +12VHPWR ? +12V ?????? ??????????? ??????? ??????? ?????????? 1000 ??. ???? ???????? +12VHPWR ???? ??????????? ?? 600 ?? ??? ?????????? ?????????? PCIe Gen 5.0. ?????????? ?????? ?????? ??????? ???????????????? ??????????? ????????? ? ??????????? ?????????? ????? ?? ?????? ????????? ?????????, ? ????? ???????????? ????????????? ??????????, GIGABYTE ??????? ???????? ??????? ????? ???????? ?? ?????????? 140 ??, ??????? ???? ???? ????? ????? ?????????? ? ????-???? ?????? ??? ???????? ? ????????.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1200
Dimensions - 150 x 140 x 86 мм
EAN - 4719331552275
ean - 4719331553234
EAN - 4719331553234
Eans - 4719331553234
EAN_code - 4719331553234
Efficiency - 80 PLUS GOLD
Full Description Line - UD1000GM PG5|ATX 3.0|1000 Watts|Cooling System 12cm fan|80 PLUS GOLD|PFC Active|MTBF 100000 hours|Colour Black
GTIN - 4719331552275
GTIN - 4719331552282
GTIN - 4719331552930
GTIN - 4719331553234
Link - https://www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5#kf
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - Support PCIe Gen 5.0 graphics cardThe UD1000GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.ULTRA DURABLEInherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.HIGH QUALITYJAPANESE CAPACITORSThe main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.ENHANCED THERMALSOLUTIONCompared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.120MM SMART HYDRAULICBEARING (HYB) FANThe fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.PROTECTIONIn order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.80 PLUS GOLD CERTIFIED80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.PLENTIFUL POWER SUPPLYThe +12VHPWR and the +12V can provide a total of 1000W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.OMPACT DESIGNWith the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.
LongDesc - Support PCIe Gen 5.0 graphics cardThe UD1000GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card.ULTRA DURABLEInherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.HIGH QUALITYJAPANESE CAPACITORSThe main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability.ENHANCED THERMALSOLUTIONCompared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.120MM SMART HYDRAULICBEARING (HYB) FANThe fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.PROTECTIONIn order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.FULLY MODULAR DESIGNAll the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.80 PLUS GOLD CERTIFIED80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.PLENTIFUL POWER SUPPLYThe +12VHPWR and the +12V can provide a total of 1000W power output. The +12VHPWR can provide up to 600W for the latest PCIe Gen 5.0 graphics card.COMPACT DESIGNWith the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.
LongProductName - 1000 W, Fan Size 120 mm, Intel ATX 12 V, 80 PLUS Gold, Black
LongProductName - 1000W, Active PFC, 120mm Hydraulic bearing fan, 80 PLUS Gold
LongSummaryDescription - GIGABYTE GP-UD1000GM PG5. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, CPU power cable length: 60 cm. Purpose: PC, 80 PLUS certification: 80 PLUS Gold, Bearing technology: HDB. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Cables included: CPU, PCIe, Peripheral (Molex), SATA
LongSummaryDescription - GIGABYTE UD1000GM PG5. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 86 mm, Height: 140 mm
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - GP-UD1000GM PG5 2.0
Manufacturer_code - GP-UD1000GM PG5 GEU
Model name - UD1000GM PG5
MPN - GP-UD1000GM PG5
MTBF - 100000 hours
Name - 1000W Gigabyte UD1000GM PG5 2.0 | 80+ Gold ATX 3.0
Name - Gigabyte GP-UD1000GM PG5 (rev. 2.0)
Name - GIGABYTE GP-UD1000GM PG5 1000W, PC power supply (black, 1000 watts)
Name - GIGABYTE GP-UD1000GM PG5 1000W rev.2.0, PC power supply (black, 5x PCIe, cable management, 1000 watts)
name - Gigabyte UD1000GM PG5 2.0 Netzteil, 80 PLUS Gold, vollmodular, ATX 3.0, PCIe 5.0 - 1000 Watt
Name - Gigabyte | PSU | GP-UD1000GM PG5 | 1000 W
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 120 mm
Package features > Gross depth master carton - 610 mm
Package features > Gross height (mm) - 200 mm
Package features > Gross height master carton - 285 mm
Package features > Gross width (mm) - 255 mm
Package features > Gross width master carton - 220 mm
Package features > Net weight master carton - 14.27 kg
Package features > Packing quantity - 5 pc(s)
Package features > Palette Qty - 225 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Tare weight master carton - 0.65 kg
Package features > Volume (m3) - 0.00612 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Bearing technology - HDB
Performance - Bearing technology - HYB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > Bearing technology - Hydraulic Bearing
Performance > Form factor - ATX 12V
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - Cabling type - Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power cable length - 80 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power cable length - 70 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (6+2 pin) - 6
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 120
Ports & interfaces - Peripheral (Molex) power cable length - 120,150,500 mm
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 500
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,600 mm
Ports & interfaces - SATA power cable length - 600
Power - AC input frequency - 50 - 60 Hz
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 125 W
Power - Combined power (+5V) - 125 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 999.6 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 6.5 - 15 A
Power - Input current - 15 - 6.5 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.3 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Short circuit, Under voltage
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1000 W
Power > Nominal power - 1000 W
Producer - Gigabyte
ProducerCode - GP-UD1000GM PG5 (rev. 2.0)
producerCode - GP-UD1000GM PG5 Rev 2.0
Producer product family - PSU
Producer product name - GP-UD1000GM PG5
productName - Gigabyte UD1000GM PG5 power supply unit 1000 W 20+4 pin ATX ATX Black
ProductName - GP-UD1000GM PG5
ProductName - UD1000GM PG5
productSize - Normal
PSU - ATX 3.0
PSU Output Power - 1000 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 25.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 12 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.85 kg
Shipping Box Width Shipping/Package Box Dimensions - 21 cm
ShortDescription - 1000 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | modularny | 80 PLUS Gold
ShortSummaryDescription - GIGABYTE GP-UD1000GM PG5, 1000 W, 100 - 240 V, 50 - 60 Hz, 15 - 6.5 A, Active, 125 W
ShortSummaryDescription - GIGABYTE UD1000GM PG5, 1000 W, 100 - 240 V, 50 - 60 Hz, 6.5 - 15 A, Active, 16 ms
sizeX - 250
sizeY - 200
sizeZ - 120
Technical details > Gross weight - 2.854 kg
Technical details > Net weight - 2.654 kg
Technical details > Other features - Fan size 120mm; Protection OVP/OPP/SCP/UVP/OCP/OTP
Technical details > Producer - Gigabyte
Technical_details - GP-UD1000GM PG5 1000W, PC power supply The GIGABYTE GP-UD1000GM PG5 1000W PC power supply with fully modular cables is 80 PLUS Gold certified for better energy efficiency. Lower power consumption reduces heat generation and fan noise. The power supply can reach up to 90% efficiency , providing the best solution for system builds. The modular cables reduce clutter and improve airflow within the case. The single +12V rail offers the best output power, stability and compatibility for the hardware. The 120mm silent fan optimizes noise reduction and thermal performance. The fan speed is adjusted according to the automatic power detection. The fan offers a longer and more stable service life thanks to intelligent hydraulic bearing. Type: PC power supply Color: Black EAN: 4719331552275 Manufacturer No.: GP-UD1000GM PG5 GEU Performance: Total | 1000W Power: +12V total | 1,000W Power: +3.3V/+5V total | 125W Performance: Efficiency | up to 90% Performance: input voltage range | 100-240 volts Power: input current | 6.5 A at 230 volts / 50 Hz, 15 A at 110 volts / 60 Hz Default: ATX12V 2.3 Design: ATX Certification: 80 PLUS Gold Amperages: +3.3 V | 25A Amperages: +5 V | 25A Currents: +5 Vsb | 3 A Amperages: -12 V | 0.3A Amperages: +12 V total | 83.3A Amperages: +12 V1 | 83.3A Power Factor Correction: Active PFC Connectors: 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 1x 4-pin 3.5", 4x 4-pin 5.25", 4x 6+2-pin graphics , 8x 15-pin SATA Cables: Cable Management | Yes Cooling: number of fans | 1x 120mm fan Cooling: Regulation | Temperature controlled Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Load Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP) Dimensions: Width: 150mm x Height: 70mm x Depth/Length: 140mm
Title - GIGABYTE GP-UD1000GM PG5 power supply unit 1000 W 20+4 pin ATX Black
Title - GIGABYTE UD1000GM PG5 power supply unit 1000 W 20+4 pin ATX ATX Black
Unit Box Height - 0.12
Unit Box Length - 0.255
Unit Box Width - 0.21
Unit Brutto Volume - 0.006426 cubm
Unit Gross Weight - 2.85 kg
Unit Net Weight - 2.2 kg
URL - https://www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5#kf
Vendor Homepage - www.gigabyte.com/Power-Supply/GP-UD1000GM-PG5#kf
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
WarrantyInfo - 10 Years
warrantyLength - 120
warrantyType - G
Weight - 2,79
Weight - 2,85
Weight - 2.82
weight - 2830
Weight & dimensions - Depth - 86 mm
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Height - 140 mm
Weight & dimensions - Width - 140 mm
Weight & dimensions - Width - 150 mm
