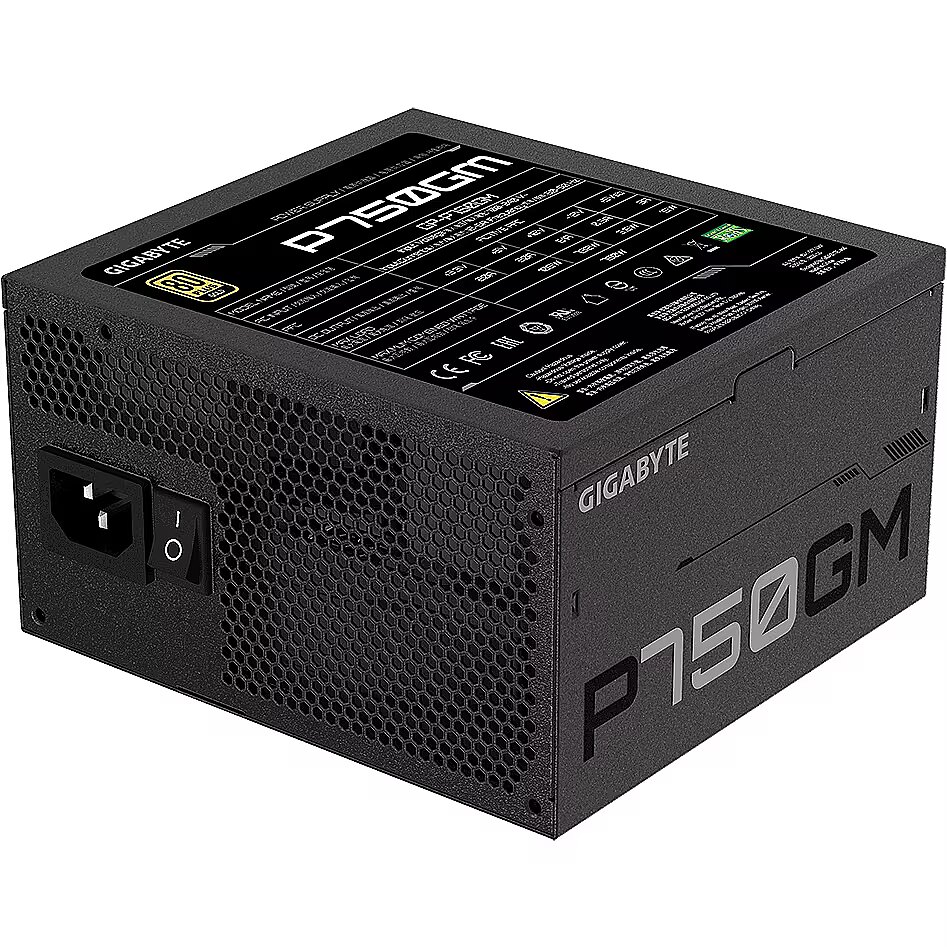

Gigabyte P750GM, 750W, 80PLUS Gold

Accessories included -
Brand - GIGABYTE
BrandPartCode - GP-P750GM
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Certificates 80+ - 80 PLUS Gold
CnCode CnCode - 85044095
Code - GP-P750GM
Colour - Black
Cooling System - 12cm fan
Desc - Jauda: 750W, Energoefektivitāte: 80 Plus Gold, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 8, MOLEX PATA pieslēgumi: 4, PCI-E: 4 x 6 + 2 PIN, Garantija: 2 gadi
Description -
Description - GIGABYTE P750GM Power Supply + 80 PLUS Gold certified + Fully modular design + 120mm Smart Hydraulic Bearing (HYB) Fan + Main Japanese capacitors + Powerful single +12V rail + OVP/OPP/SCP/UVP/OCP/OTP protection + Compact size Connectors: + ATX/MB 20+4 Pin x 1 + CPU/EPS 4+4 Pin x 2 + PCI-e 6+2 Pin x 4 + SATA x 8 + 4 Pin Peripheral x 3 + 4-Pin floppy x 1 FULLY MODULAR DESIGN All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance. 80 PLUS GOLD CERTIFIED 80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money. HIGH QUALITY JAPANESE CAPACITORS The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability. 120MM SMART HYDRAULIC BEARING (HYB) FAN The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 1254
dimension depth - 205 mm
dimension height - 115 mm
Dimensions - 1‎50 x 140 x 86 mm
Dimensions - 150 x 140 x 86 mm
dimension weight - 2460 g
dimension width - 255 mm
ean - 813567028710
EAN - 4719331551759
Eans - 4719331551759
Efficiency - 80 PLUS GOLD
Fan - 12 cm
Floppy power connectors - 1
Full Description Line - GP-P750GM|ATX 2.31|750 Watts|Cooling System 12cm fan|80 PLUS GOLD|PFC Active|MTBF 100000 hours|Colour Black
GTIN - 813567028710
GTIN - 0813567028710
GTIN - 4719331551759
guarantee - 60
guarantee_type - normal
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_66251_1.jpg
LargeDescHTML -
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - FULLY MODULAR DESIGNAll the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.80 PLUS GOLD CERTIFIED80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.HIGH QUALITY JAPANESE CAPACITORSThe main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.120MM SMART HYDRAULIC BEARING (HYB) FANThe fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.SINGLE +12V RAILSingle +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.PROTECTIONIn order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
LongProductName - P750GM, 80 PLUS Gold, 7‎50W, Active PFC, 1‎20mm
LongSummaryDescription - GIGABYTE P750GM. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
MB power connector - 20 + 4 pin
Model name - GP-P750GM
Modular power supply - Yes
MOLEX power connectors - 3
MTBF - 100000 hours
Name - Gigabyte GP-P750GM
Name - Gigabyte P750GM
name - P750GM 750W PFC 120mm hydraulic fan ATX
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features - Ochrona: OVP/OPP/SCP/UVP/OCP/OTP
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.31
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive cable length - 12 cm
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 120
Ports & interfaces - Peripheral (Molex) power cable length - 120,500 mm
Ports & interfaces - Peripheral (Molex) power cable length - 500
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,600 mm
Ports & interfaces - SATA power cable length - 600
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 12-6 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
Power supply - 750 W
producer - Gigabyte
Producer - Gigabyte
producerCode - GP-P750GM
ProducerCode - GP-P750GM
productName - Gigabyte | GP-P750GM | 750 W
ProductName - P750GM
productSize - Normal
PSU - ATX 2.31
PSU Output Power - 750 Watts
SATA power connectors - 8
Shipping Box Depth Shipping/Package Box Dimensions - 61 cm
Shipping Box Height Shipping/Package Box Dimensions - 29 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 13.16 kg
Shipping Box Width Shipping/Package Box Dimensions - 23 cm
ShortDescription - 750 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | modularny | 80 PLUS Gold
ShortSummaryDescription - GIGABYTE P750GM, 750 W, 100 - 240 V, 50 - 60 Hz, 12-6 A, Active, 16 ms
sizeX - 255
sizeY - 205
sizeZ - 120
Title - GIGABYTE P750GM power supply unit 750 W 20+4 pin ATX ATX Black
Unit Box Height - 0.21
Unit Box Length - 0.255
Unit Box Width - 0.12
Unit Brutto Volume - 0.008137 cubm
Unit Gross Weight - 2.63 kg
Unit Net Weight - 2 kg
URL - https://www.gigabyte.com/Power-Supply/GP-P750GM#kf
Vendor Homepage - www.gigabyte.com/Power-Supply/GP-P750GM#kf
vendpn - GP-P750GM
Warranty - 36 months
WarrantyInfo - 5 years warranty
warrantyLength - 24
warrantyType - G
weight - 2460
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
