8-pin 12V power connectors - 1
Accessories included -
Brand - be quiet!
BrandPartCode - BP003EU
category - PC Components|Power Supplies|PSUs up to 800 Watts
Category - Power Supply Units
Category 1 - Netzteile
Certificates 80+ - 80 PLUS Gold
code - BP003EU

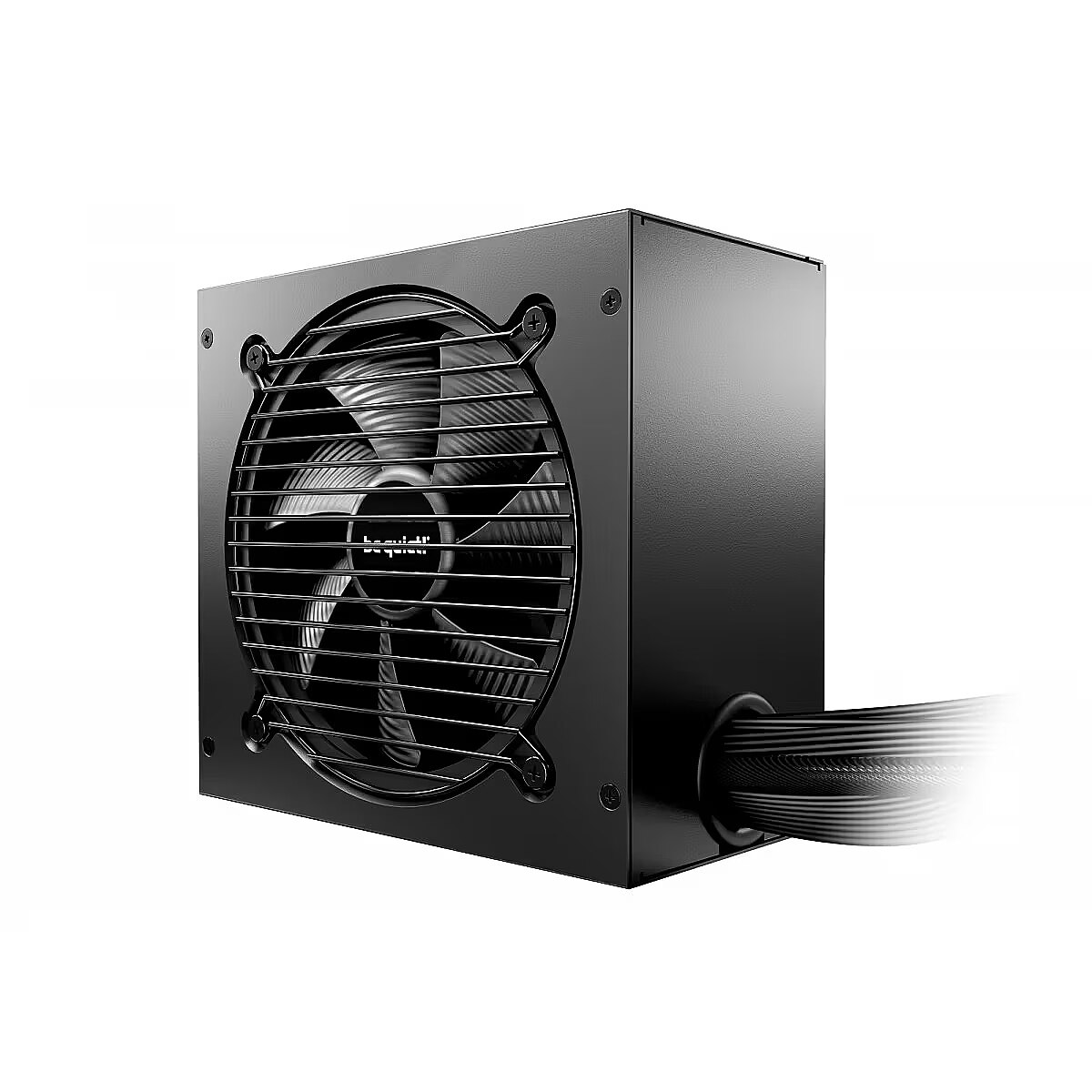

Description - PURE POWER 12 750W
Wyjątkowa cisza, najlepsze funkcje
Pure Power 12 750W jest zgodny ze standardem ATX 3.1 i PCIe 5.1 oraz oferuje niezrównaną niezawodność i najlepsze w swojej klasie funkcje. Pure Power 12 750W zapewnia niezwykłą wygodę i najlepsze połączenie funkcji z wyjątkową kompatybilnością. Sprawność 80 PLUS Gold (do 92,8%) Zasilacz ATX 3.1 z pełną obsługą kart graficznych PCIe 5.1 i tych ze złączami 6+2-pin Wyjątkowo cichy wentylator be quiet! 120 mm! Zaawansowana stabilność i regulacja napięć dzięki technologii LLC Jedna masywna, wysokowydajna linia 12 V Jedno złącze PCIe 5.1 12V-2x6 600W i 3 złącza PCIe 6+2 dla podkręconych procesorów graficznych klasy high-end 10-letnia gwarancja producenta
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1342
dimension depth - 140 mm
dimension height - 320 mm
Dimensions - 160 x 86 x 150 mm
dimension weight - 3170 g
dimension width - 200 mm
ean - 4260052191187
EAN - 4260052191187
Fan - 12 cm
Fan speed (max) - 1800 rpm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
GTIN - 4260052191187
guarantee - 120
guarantee_type - normal
Logistics data - Products per shipping (inner) case - 6 pc(s)
Logistics data - Shipping (inner) case height - 41.8 cm
Logistics data - Shipping (inner) case length - 44 cm
Logistics data - Shipping (inner) case net weight - 19.2 kg
Logistics data - Shipping (inner) case width - 34.5 cm
LongDesc - Exceptional quiet, superior featuresPure Power 12 750W is ATX 3.1 compliant and PCIe 5.1 compatible and offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers remarkable convenience and outstanding compatibility.
LongProductName - 750W, 80 PLUS Gold, ATX 3.1, PCIe 5.1, 160 x 86 x 150mm
LongSummaryDescription - be quiet! PURE POWER 12 750W. Total power: 750 W, AC input voltage: 100 - 240 V, Peak power: 820 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC
Manufacturer - Be Quiet!
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 0
MPN - BP003EU
Name - 750W be quiet! PURE POWER 12
name - be quiet! Pure Power 12 Netzteil 80 PLUS Gold, ATX 3.1, PCIe 5.1 - 750 Watt
name - Pure Power 12 750W ATX 3.1 80PLUS GOLD
Number of connectors PATA - 1
Number of power connectors 12VHPWR - 1
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 3
Number of USB 10p connectors - 0
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other features -
Other features - Screws included - Yes
Packaging content - Cables included - AC
Packaging content - Cable tie(s) included - Yes
Packaging data - Package depth - 320 mm
Packaging data - Package height - 210 mm
Packaging data - Package weight - 3 kg
Packaging data - Package width - 133 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - Rifle
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 22.5 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (12-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 800 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 500,650,800,950 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90.7%
Power - Hold time - 17.04 ms
Power - Maximum input current (@110V) - 10 A
Power - Maximum input current (@220V) - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Number of +12V rail(s) - 1
Power - Peak power - 820 W
Power - Power factor - 0.98
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Power - Total power - 750 W
Power supply - 750 W
producer - Be quiet!
producerCode - BP003EU
ProductName - PURE POWER 12 750W
productName - ZASILACZ BE QUIET! PURE POWER 12 750W
productSize - Normal
SATA power connectors - 6
ShortSummaryDescription - be quiet! PURE POWER 12 750W, 750 W, 100 - 240 V, 820 W, 50/60 Hz, 10 A, 5 A
sizeX - 142
sizeY - 223
sizeZ - 212
Technical details - Compliance certificates - CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus
Technical details - Sustainability certificates - ENERGY STAR, ErP, Triman
Technical details - Warranty period - 10 year(s)
Title - be quiet! PURE POWER 12 750W power supply unit 20+4 pin ATX ATX Black
URL - https://www.bequiet.com/en/powersupply/5252
vendpn - BP003EU
WarrantyInfo - 10-year manufacturer’s warranty
warrantyLength - 12
warrantyType - G
Weight - 2.6 kg
Weight - 3.2
weight - 3212
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 150 mm
Weight & dimensions - Weight - 2.6 kg
Weight & dimensions - Width - 86 mm
