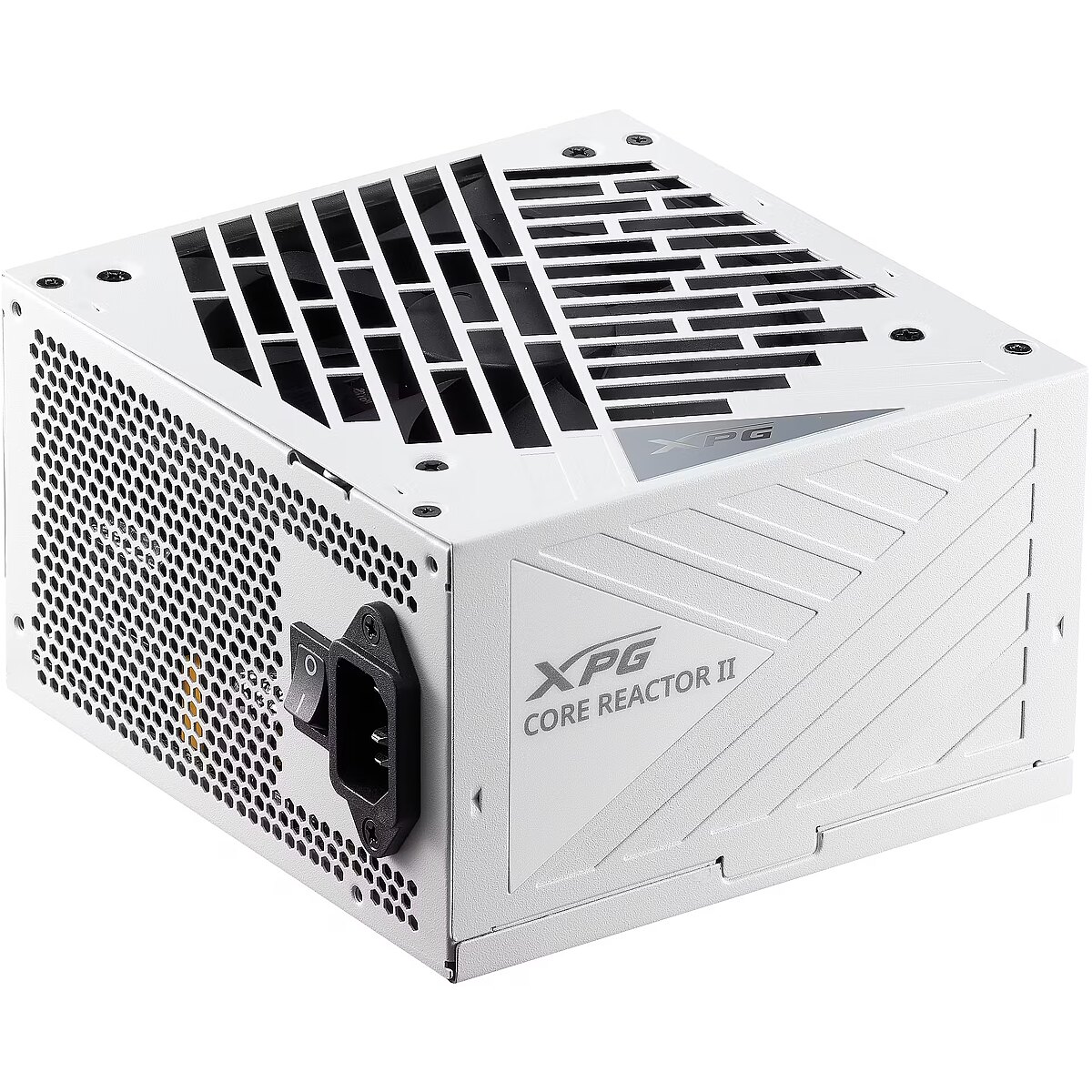

ADATA CORE REACTOR II White, 850W, 80PLUS Gold, PCIe 5.0

Brand - XPG
BrandPartCode - 75261350
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Colour - White
Cooling System - 12cm fan
Description - CORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - White
Dimensions - 140 x 150 x 86mm
Eans - 4711085944702
Efficiency - 80 PLUS GOLD
Full Description Line - XPG CORE REACTOR II|For gaming|ATX 3.0|850 Watts|Cooling System 12cm fan|80 PLUS GOLD|Colour White
GTIN - 0842243031041
GTIN - 842243031041
GTIN - 4711085944702
LongDesc - CORE REACTOR IIIMPROVE YOUR CORE, ENHANCE YOUR PERFORMANCECORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 & ATX 3.1 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.Next-Gen Ready - ATX 3.0 & ATX 3.1 COMPLIANTCORE REACTOR II series power supply units meet Intel ATX 3.0 & ATX 3.1 design guide specifications and feature a 12VHPWR connector. By upgrading to an ATX 3.0 & ATX 3.1-compliant power supply, you'll be fully equipped for the upcoming wave of high-performance components. A must for the modern gamer, creator, or AI developer. Stay ahead of the curve by upgrading to an ATX 3.0 & ATX 3.1 PSU, the new standard in PC hardware.Certified GOLD EfficiencyCORE REACTOR II units recieved 80 PLUS GOLD certifications for efficiency, achieving up to 91.40% (115V) efficiency at 50% load. It comes in 1200W, 1000W, 850W, 750W, and 650W models for varying user needs and scenarios. It's the perfect PSU for mid-to-high level components, including the latest CPUs and GPUs.Intelligent Fan-Curve DesignThe intelligent fan curve ensures quiet operation, even under full power load. By starting the fan at a low RPM, fan performance is both enhanced and extended, thereby increasing the power supply unit's lifespan.Premium all 105°C Japanese CapacitorsCORE REACTOR II features top-tier 105°C Japanese capacitors, ensuring exceptional stability and reliability of the PSU for many years of dependable performance.PEAK PERFORMANCE AND RELIABILITYAll XPG ATX 3.0 and ATX 3.1 power supplies are designed to support up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability, and preventing crashes during intense workloads like gaming, rendering, and data processing.
LongProductName - 850 W, PLATINUM, GOLD, ATX 12V v3.0 EPS v2.92, 0.99 PFC, 2400 RPM
LongSummaryDescription - XPG COREREACTOR II 850W Power Supply. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 86 mm
Model - COREREACTORII850G-WHCEU
Model name - XPG CORE REACTOR II
Name - XPG CORE REACTOR II 850W White
Packaging data - Package weight - 3.1 kg
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - Certification - CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Zeichen | NOM | BSMI | UKCA | EAC | CCC | RCM
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (12+4 pin) - Yes
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 6
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 12 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.99
Power - Power protection features - Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage
Power - Total power - 850 W
Producer - XPG
ProducerCode - COREREACTORII850G-WHCEU
ProductName - XPG COREREACTOR II 850W Power Supply
PSU - ATX 3.0
PSU features - For gaming
PSU Output Power - 850 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 50 cm
Shipping Box Height Shipping/Package Box Dimensions - 37 cm
Shipping box quantity - 6
Shipping Box Weight Shipping/Package Box Dimensions - 22 kg
Shipping Box Width Shipping/Package Box Dimensions - 45 cm
ShortDescription - 850 | ATX | biały | 120 mm | 20 + 4 pin |140 x 150 x 86 mm| 80 Plus Gold |
ShortSummaryDescription - XPG COREREACTOR II 850W Power Supply, 850 W, 100 - 240 V, 47 - 63 Hz, 12 A, 22 A, 62.5 A
Title - XPG COREREACTOR II 850W Power Supply
Unit Box Height - 0.16
Unit Box Length - 0.34
Unit Box Width - 0.21
Unit Brutto Volume - 0.01388 cubm
Unit Gross Weight - 3.67 kg
Unit Net Weight - 2.85 kg
URL - https://www.xpg.com/en/xpg/pc-components-core-reactor-ii
Vendor Homepage - www.xpg.com/us/xpg/pc-components-core-reactor-ii?tab=desc
Warranty - 36 months
WarrantyInfo - 10 years
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.6 kg
Weight & dimensions - Width - 140 mm
