8-pin 12V power connectors - 0

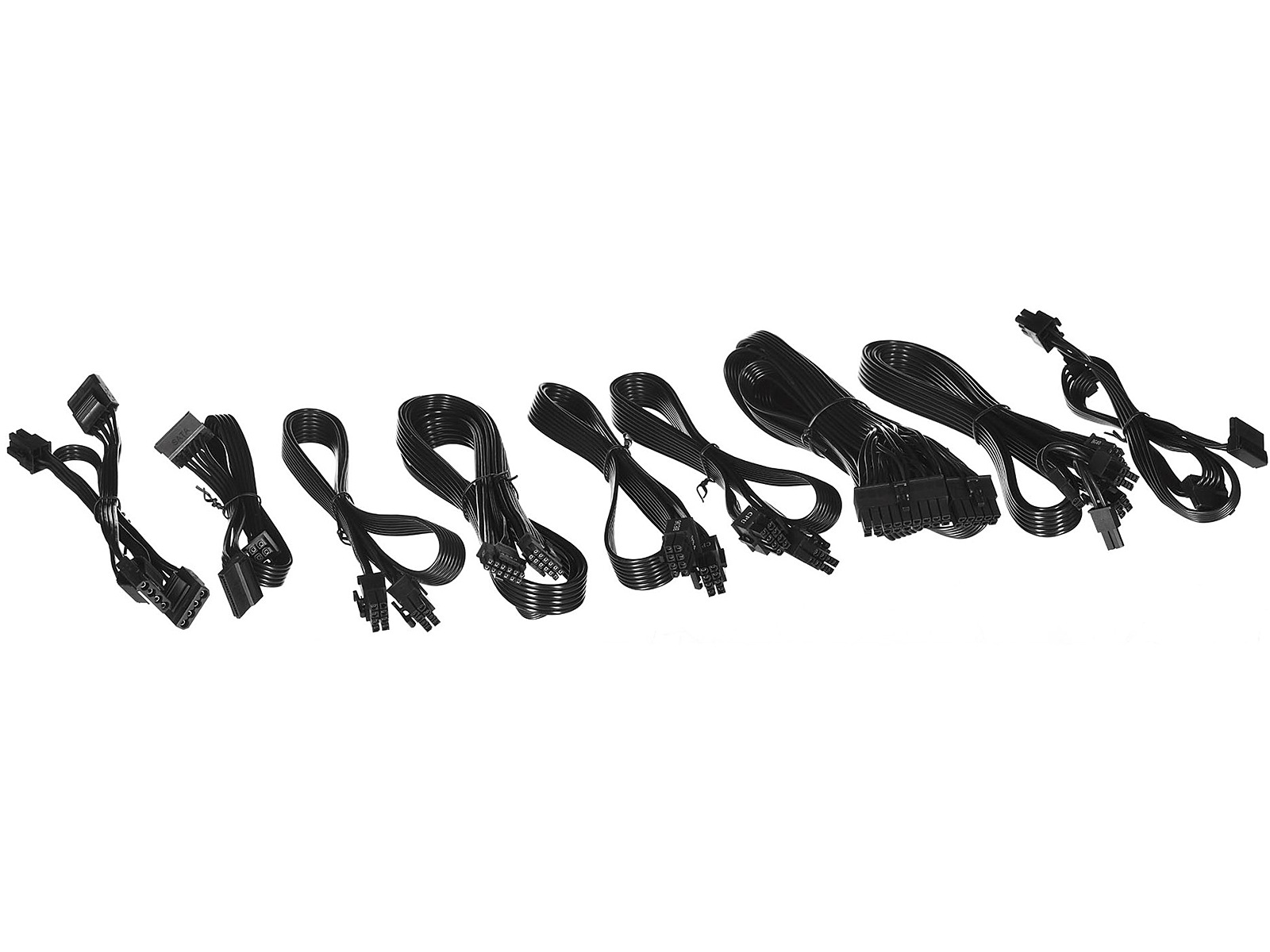

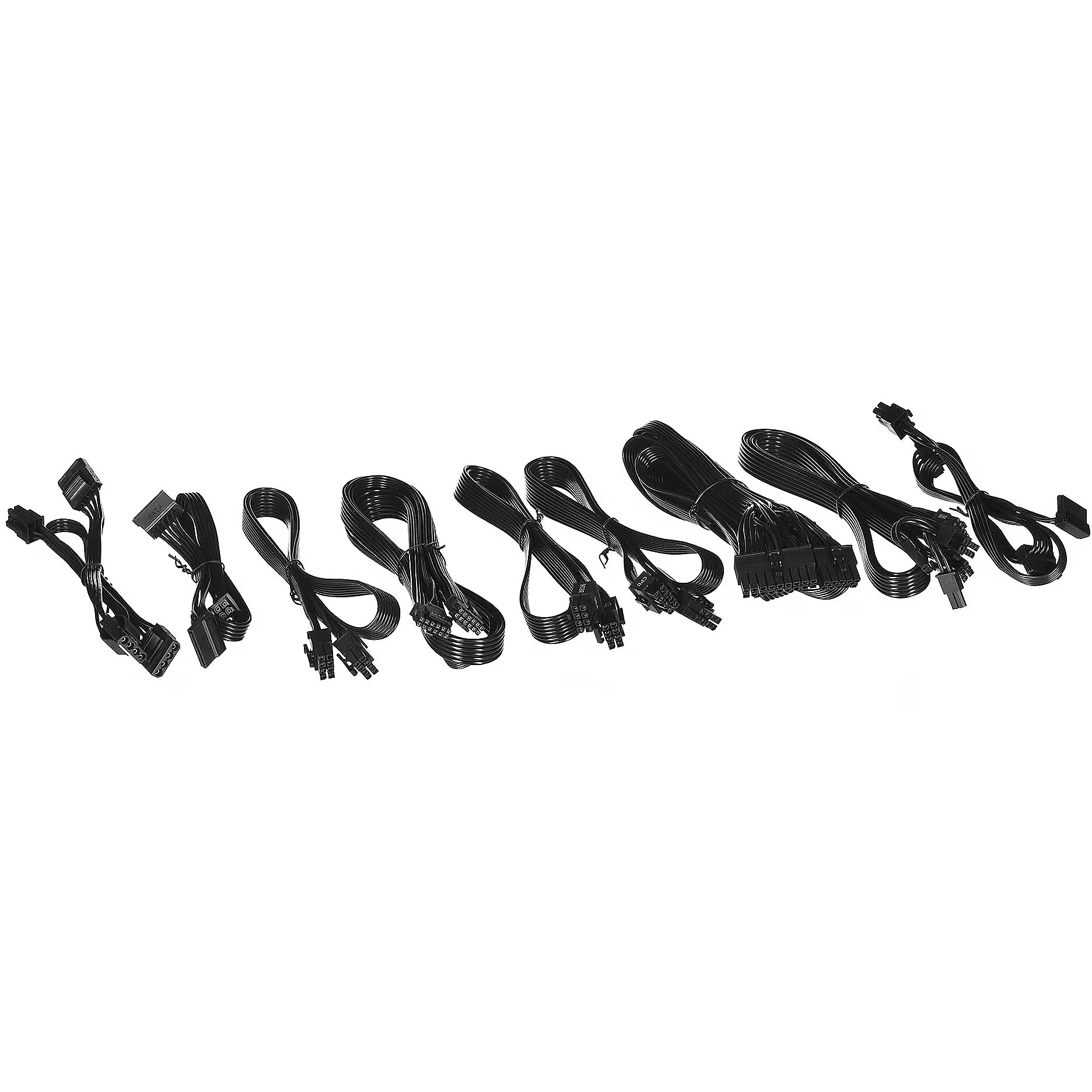

Accessories included - Przewód zasilający Kabel zasilający płyty głównej (610 mm) 2 x Kabel CPU(650 mm) Kabel PCI-E Gen 5 16-pin (675 mm) Kabel PCI-E (16-pin na 8-pin-8-pin)(675mm) Kabel PCI-E 1 do 1 (675 mm) Kabel SATA 1 do 2 (400+120 mm) Kabel SATA 1 do 3 (400+120+120 mm) Kabel peryferyjny 1 do 3 (400+150+150mm) Instrukcja obsługi
Brand - ASUS
BrandPartCode - 90YE00U1-B0NA00
BrandPartCode - 90YE00U1-B0NB00
category - Cases & Modding|Power Supplies
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - 80 PLUS Gold
code - 90YE00U1-B0NB00
Description - Zasilacz PRIME Gold 750W biały Jednostka zasilająca ASUS Prime 750W Gold to wydajne i trwałe rozwiązanie do zasilania zarówno komputerów do zadań uniwersalnych, jak i systemów gamingowych. Wentylatory z podwójnym łożyskiem kulkowym, które mogą zapewnić dwukrotnie dłuższą żywotność w porównaniu do rozwiązań z łożyskiem kołnierzowym. Certyfikacja 80 Plus Gold została uzyskana dzięki zastosowaniu kondensatorów typu low ESR i innych komponentów najwyższej klasy. Kompatybilność z ATX 3.0: Jednostka zasilająca ASUS Prime Gold jest zgodna z kryteriami standardu ATX 3.0 i oferowana wraz z 16-pinowym kablem PCIe, który jest kompatybilny z kartami graficznymi pracującymi na interfejsie PCIe Gen 5.0. 8-letnia gwarancja w pakiecie.
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Fan location - Top
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black, White
Designation - CE+WEEE
dimension depth - 145 mm
dimension height - 340 mm
Dimensions - 86 x 150 x 150 mm
dimension weight - 3060 g
dimension width - 210 mm
ean - 4711387192962
ean - 4711387193150
Eans - 4711387193150
Fan - 13.5 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overheating
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
GTIN - 4711387192962
GTIN - 4711387193150
guarantee - 96
guarantee_type - external
LongDesc - Prime PerformanceWith 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.Dual Ball Fan BearingsDual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. Ensuring long-lasting, reliable cooling with minimal noise for ASUS Prime Gold series.80 Plus Gold CertificationThe ASUS Prime 750W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.ATX 3.0 CompatibleThe latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 750W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.Choose Your StyleTwo sides of the housing are painted white, and two sides are painted black, allowing you to orient the PSU to match your preferred build theme.8-year WarrantyWe're so sure about the reliability of the ASUS Prime 750W Gold that we back it with an 8-year warranty.
LongDesc - PRIME PERFORMANCEWith 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.DUAL BALL FAN BEARINGSExemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.80 PLUS GOLD CERTIFICATIONThe ASUS Prime 750W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
LongProductName - Prime 750W Gold Netzteil ohne Originalverpackung (750 Watt, für Allround-PCs und Gaming-PCs, 80 PLUS Gold Zertifizierung, ATX 3.0 kompatibel, Lüfter mit Doppelkugellagern, schwarz / weiß)
LongProductName - Prime 750W Gold PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs
LongSummaryDescription - ASUS Prime 750W Gold ( AP-750G ). Total power: 750 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, White, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: CPU, PCIe, SATA, Peripheral (Molex)
LongSummaryDescription - ASUS Prime AP-750G. Total power: 750 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, White, Cooling type: Active. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 3
name - ASUS Prime 750W Gold 80 PLUS Gold Netzteil, modular - 750 Watt - bulk
Name - ASUS Prime 750W White BULK
name - Power supply PRIME Gold 750W 90YE00U1-B0NB00 white
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 0
Other features -
Packaging content - Cables included - AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging content - Cables included - CPU, PCIe, SATA, Peripheral (Molex)
Packaging data - Package depth - 208 mm
Packaging data - Package height - 144 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.72 kg
Packaging data - Package weight - 2.88 kg
Packaging data - Package width - 346 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 3
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - Bearing technology - Ball bearing
Performance - Bearing technology - DBB
Performance - Mean time between failures (MTBF) - 120000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 2
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power cable length - 67.5 cm
Ports & interfaces - PCI Express power connectors (8-pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 150,400 mm
Ports & interfaces - Peripheral (Molex) power cable length - 400,150 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 120,400 mm
Ports & interfaces - SATA power cable length - 400,120 mm
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 744 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92%
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 62 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
Power - Total power - 750 W
Power supply - 750 W
producer - Asus
Producer - Asus
ProducerCode - 90YE00U1-B0NB00
ProductName - AP-750G
ProductName - Prime 750W Gold ( AP-750G )
SATA power connectors - 5
ShortDescription - 750 | ATX | 135mm | 20 + 4 pin |150 x 150 x 86 mm | 80 PLUS GOLD | Bulk|
ShortSummaryDescription - ASUS Prime 750W Gold ( AP-750G ), 750 W, 100 - 240 V, Active, 110 W, 744 W, 110 W
ShortSummaryDescription - ASUS Prime AP-750G, 750 W, 100 - 240 V, Active, 110 W, 744 W, 110 W
Technical details - Compliance certificates - RoHS
Title - ASUS Prime 750W Gold ( AP-750G ) power supply unit 20+4 pin ATX ATX Black, White
Title - ASUS Prime AP-750G power supply unit 750 W 20+4 pin ATX ATX Black, White
URL - https://www.asus.com/motherboards-components/power-supply-units/prime/ap-750g/
vendpn - 90YE00U1-B0NA00
WarrantyInfo - 8 years
WarrantyInfo - 8-year warranty included
Weight - 1.466 kg
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.47 kg
Weight & dimensions - Width - 150 mm
