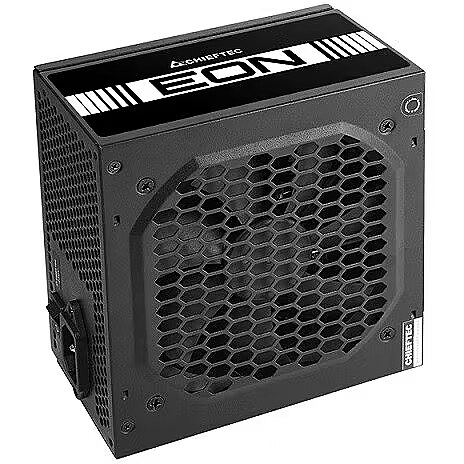

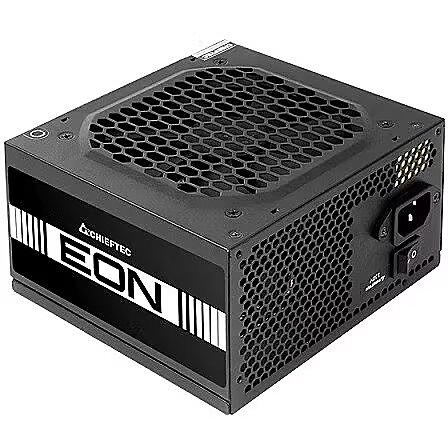

Chieftec ZPU-700S, 700W, EON Series, 80 PLUS

8-pin 12V power connectors - 0

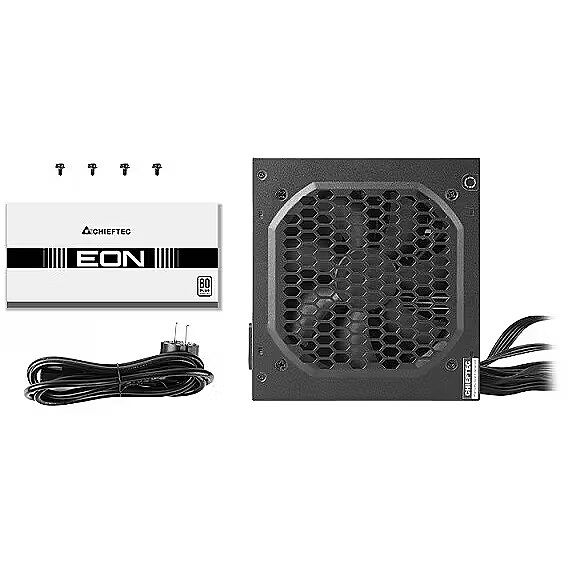

Accessories included -
Brand - Chieftec
BrandPartCode - ZPU-700S
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS
CnCode CnCode - 85044095
Cooling System - 12cm fan
Description - The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly competitive pricing, equipped with silent 120mm fans. The power supplies are fully built from steel, coated in elegant black, and equipped with extra-long native cables. The EON Series runs quietly and provides its power with all essential protection and safety features.
Description - ZPU-700S 700W EON Series 80 PLUS power supply The EON series offers high quality and performance 80 PLUS 230 V EU at a high level of competitive prices, equipped with quiet 120 mm fans. The power supplies are entirely made of steel, covered with an elegant black coating, equipped with extra-long native cables. The EON series operates quietly and delivers its power with all the necessary protection and safety features.
Design - Fan diameter - 12 cm
Design - On/off switch - Yes
Design - Product colour - Black
dimension depth - 100 mm
dimension height - 250 mm
Dimensions - 140 x 150 x 86 mm
Dimensions - 140mm x 150mm x 86mm
dimension weight - 1689 g
dimension width - 180 mm
ean - 753263078445
Eans - 753263078445
EAN_code - 0753263078445
Efficiency - 80 PLUS
Fan - 12 cm
Floppy power connectors - 0
Full Description Line - ZPU-700S|ATX 2.3|700 Watts|Cooling System 12cm fan|80 PLUS|PFC Active
GTIN - 753263078445
GTIN - 0753263078445
guarantee - 24
guarantee_type - normal
LongDesc - The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highlycompetitive pricing, equipped with silent 120mm fans.The power supplies are fully built from steel, coated in elegant black, andequipped with extra-long native cables. The EON Series runs quietly and providesits power with all essential protection and safety features.
LongProductName - Chieftec Eon Series ZPU-700S 80PLUS 230V EU
LongSummaryDescription - Chieftec EON . Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 450,600,750 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Manufacturer - Chieftec
Manufacturer_code - ZPU-700S
MB power connector - 20 + 4 pin
Model - EON 700W
Model name - ZPU-700S
Modular power supply - No
MOLEX power connectors - 2
Name - Chieftec ZPU-700S
Name - Chieftec ZPU-700S, PC power supply (black, 700 watts)
name - Power supply ZPU-700S 700W EON Series 80 PLUS
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features - AFC (automatic fan speed control) OPP (overload protection) OVP (overvoltage protection) SCP (Short Circuit Protection) SIP (surge and surge protection) UVP (undervoltage protection)
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC/Server
Performance - Supported motherboard form factors - ATX
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 65 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 450,600,750 mm
Ports & interfaces - SATA power cable length - 450,600,750 mm
Power - AC input frequency - 50 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (-12V) - 4.8 W
Power - Input current - 5.5 A
Power - Maximum input current (@220V) - 5.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V1) - 53 A
Power - Max output current (-12V) - 0.4 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Surge and inrush, Surge protection, Short circuit
Power - Total power - 700 W
Power supply - 700 W
producer - Chieftec
Producer - Chieftec
ProducerCode - ZPU-700S
ProductName - EON
PSU - ATX 2.3
PSU Output Power - 700 Watts
SATA power connectors - 4
Shipping Box Depth Shipping/Package Box Dimensions - 25.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 18 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.706 kg
Shipping Box Width Shipping/Package Box Dimensions - 10 cm
ShortDescription - 700 | ATX | 120 mm | 20 + 4 pin | 150mm x 85mm x 140mm | 80 PLUS |
ShortSummaryDescription - Chieftec EON , 700 W, 200 - 240 V, 50 Hz, 5.5 A, 5.5 A, Active
Technical details - Warranty period - 2 year(s)
Title - Chieftec EON power supply unit 700 W 20+4 pin ATX ATX Black
Unit Box Height - 0.18
Unit Box Length - 0.255
Unit Box Width - 0.1
Unit Brutto Volume - 0.00459 cubm
Unit Gross Weight - 1.71 kg
Unit Net Weight - 1.4 kg
URL - https://www.chieftec.eu/products-detail/566/EON_Series/568/ZPU-700S
Vendor Homepage - www.chieftec.eu/products-detail/566/EON_Series/568/ZPU-700S
vendpn - ZPU-700S
Warranty - 24 months
WarrantyInfo - 24 Months
Weight - 1,69
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.4 kg
Weight & dimensions - Width - 150 mm
