Benq MW560

Accessories included - Pilot zdalnego sterowania z baterią Kabel VGA (D-sub) Kabel zasilający Karta gwarancyjna
ARTIKEL1 - MW560 DLP WXGA 16:19
ARTIKEL2 - 4000 ANSI 20000:1
Aspect ratio - 16:9
AspectRatio - 16:10
Audio - Yes
AudioFeatures - 10W
Brand - BenQ
BrandCode - BENQ
BrandPartCode - 9H.JNF77.13E
Breite - 0.36
Brightness - 4000 ANSI Lumen
Category - Data Projectors
Category - Root/Electronics/PC peripherals/Projectors and screens/Projectors
Code - 9H.JNF77.13E
Color - White
Compatibility with computer standards -
Compatibility with video standards - NTSC, PAL, SECAM, SDTV (480i/576i), EDTV (480p/576p, HDTV (720p, 1080i/p 60Hz).
CompressedResolution - -
ComputerCompatibility - VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
ContrastRatio - 20,000:1
Depth - 221 mm
Description - Projektor biznesowy WXGA do małych sal konferencyjnych BENQ MW560
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Market positioning - Portable
Design - Placement - Desktop, Ceiling
Design - Product colour - White
Design - Product type - Standard throw projector
Design > Colour of product - White
Design > Producer product family - Business Projector
dimensionalWeight - 4600
dimension depth - 340 mm
dimension height - 460 mm
Dimensions - 296 x 120 x 221 mm
Dimensions - depth - 22.1
Dimensions - height - 12
Dimensions - weight - 2.3
Dimensions - width - 29.6
dimension weight - 3508 g
dimension width - 170 mm
Display - Built-in display - No
Display technology - DLP
DisplayType - DLP
EAN - 4718755084225
ean - 4718755084225
EANCode - 4718755084225
Eans - 4718755084225
Features - Noise level - 34 dB
Features - Noise level (economic mode) - 29 dB
Features - On Screen Display (OSD) - Yes
Frequency - -
Frequency, horizontal max. - 102 kHz
Frequency, horizontal min. - 15 kHz
Frequency, vertical max. - 120 Hz
Frequency, vertical min. - 23 Hz
FrequencyVertical - -
General parameters - colour - white
General parameters - manufacturer - BenQ
Gewicht - 3.59
GrossWeight - 3.700 kg
GrossWeight - 3.5700
Group - IT > PROJECTORS > PROJECTORS
GRUPPE1 - Projector/Plasma
GRUPPE2 - Projector Wxga
GTIN - 4718755084225
guarantee - 36
guarantee_type - external
Height - 0.3400
Height - 120 mm
HERSTELLER - BENQ
Hoehe - 0.17
HSTNUMMER - 9H.JNF77.13E

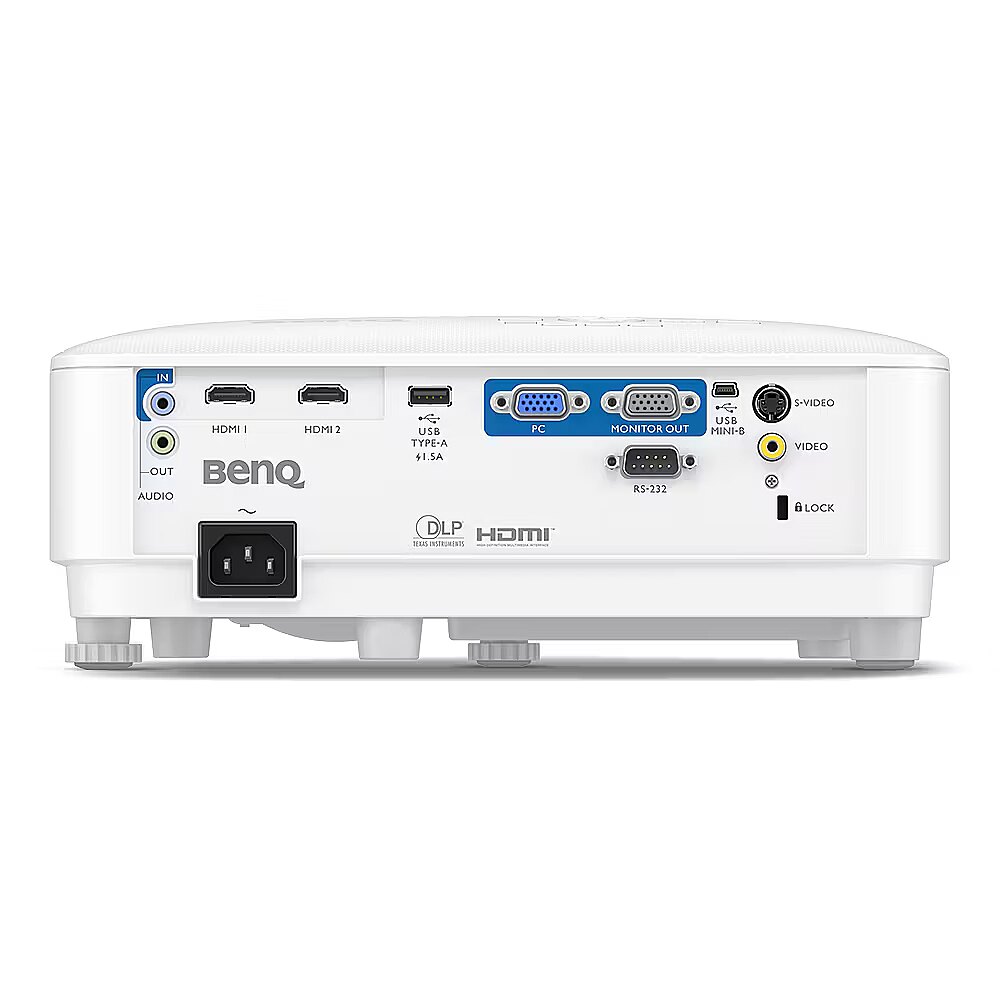

I/O connectors - 1 x mini USB (Type B)
I/O connectors - 1 x RCA in
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x S-Video
I/O connectors - 1 x USB 2.0
I/O connectors - 2 x 3,5 mm minijack
I/O connectors - 2 x 15-pin D-Sub
I/O connectors - 2 x HDMI
InputOutput -

2x D-sub

RCA

S-video

2x HDMI

USB

USB mini B

RS-232

Audio in

Audio out

Interfaces - 3,5 mm stereo audio jack
Interfaces - component
Interfaces - composite
Interfaces - HDMI
Interfaces - USB-A
Interfaces - VGA
Laenge - 0.41
LampLife -

Normal: 6,000 hours

Economic: 10,000 hours

SmartEco: 10,000 hours

LampSave: 15,000 hours

LampWarranty - -
Length - 0.1700
Lens -
Lens - F = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
Lens system - Offset - 100%
Lens system - Throw ratio - 1.55 - 1.7
Lens system - Zoom capability - Yes
Lens system - Zoom ratio - 1.1:1
Lens system > Throw ratio - 1.55-1.7
light life time - 6000 h
light life time (ECO mode) - 10000 h
Light source - Light source type - Lamp
Light source - Service life of light source - 6000 h
Light source - Service life of light source (economic mode) - 10000 h
Link - https://www.benq.com/en-ap/projector/meeting-room/mw560/specifications.html
Logistics data - Harmonized System (HS) code - 85286200
LongDesc -
LongDesc - Transformative TechnologyHDMI for Fast TransmissionHDMI connectivity provides faster data transmission to digital devicesDual Connectivity,Dual ConvenienceDual HDMI offers more flexible connectivity between devicesTime-Saving ConvenienceAutomatically turns on the projector once the HDMI input signal is detected4000 Lumens,20000: 1 ContrastHigh brightness & contrast images, even in well-lit meeting roomsCrystal-Clear ImagesAll glass lenses for image quality in brilliant clarityClear Data ReviewData Review Mode shows every letter and digit clearlyDetailed InfographicsExclusive Infographic Mode displays detailed text and graphicsClear User InterfaceIntuitive windows design to display the contents clearlyAuto Vertical Keystone for Perfect AlignmentProject the image from any angle with a perfectly squared image with Auto Vertical Keystone.Lamp Life up to 15,000 hrsSmartEco Mode saves up to 70% lamp powerPower-Saving, Energy-SavingAuto Power Off shuts down when no input signal is detected for 20 minutes. (Also accessed via OSD)Easy SetupErgonomic retractable feet for easy setup and adjustmentGet Instant ONTurn on the projector again within 90 secs after power off without long delaysEnhanced SecurityKensington Lock for physical security to discourage theftAll-in-One SolutionNo more fuzzy text and figuresPerfect Combination: Stunning Clarity and Crafted ColorsFinest Precision Glass Lenses for Crystal-Sharp ClarityBenQ only uses high-quality glass lenses to minimize chromatic aberration, ensuring long-term image quality in brilliant clarity.Presentation ModeDesigned for presentations with vivid colors. In this mode, boosted brightness matches PC and notebook display.Infographic ModeGreat for showcasing detailed infographic text and graphics with high brightness and better color gradation.Data Review ModeData Review Mode displays reports with improved contrast and clarity for added efficiency and collaboration.Low Maintenance & Energy EfficientSave Power, Save ManpowerDetails That Make a Difference
LongProductName - DLP, 0.65", WXGA, 1280 x 800, 4000 ANSI Lum, 20000:1, 1.55~1.7, 1 x 10W, 100-240V, VGA, 34 /29 dBA, 23000 g
LongSummaryDescription - BenQ MW560. Projector brightness: 4000 ANSI lumens, Projection technology: DLP, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 6000 h, Service life of light source (economic mode): 10000 h. Zoom ratio: 1.1:1, Throw ratio: 1.55 - 1.7, Offset: 100%. Analog signal format system: NTSC, PAL, SECAM, Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1200 (WUXGA), Supported video modes: 480i, 480p, 576i, 720p, 1080i, 1080p. Noise level: 34 dB, Noise level (economic mode): 29 dB
Lumens - 4000 ANSI lumens
MANUFDATASHEET - https://www.benq.com/en-us/business/projector/mw560/specifications.html#tab-anchor
Maximum image diagonal - 150 ''
MediumDescription EN - 4000 ANSI Lumen High brightness and 20,000:1 High ContrastExclusive Data Review Mode Showcases Text and Charts in DetailSmartEco Mode Saves Lamp Power Up To 70%
MediumDescription ET - 4000lm eredus ja 20 000:1 kõrge kontrastData Review Mode aitab kuvada teksti ja tabeleid detailseltSmartEco säästab lampidel 70% energiat
Minimum image diagonal - 60 ''
Model - MW560
MountingCapability - Yes
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of built-in speakers - 1
Multimedia - RMS rated power - 10 W
Name - BenQ MW560
Name - Benq | MW560 | WXGA (1280x800) | 4000 ANSI lumens | White | Lamp warranty 12 month(s)
name - MW560 Projector WXGA DLP 4000/20000:1/HDMI
Name EN - Projector BenQ MW560 WXGA, HDReady, white
Name ET - Projektor BenQ MW560 WXGA, HDReady, valge
NameInWeb EN - BenQ MW560, WXGA, 4000 lm, white - Projector
NameInWeb ET - BenQ MW560, WXGA, 4000 lm, valge - Projektor
NativeResolution - 1280 x 800
NetWeight - 2.3000
Networking > Wi-Fi connection - No
Noise - 34 dB
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features -
Other features > Aspect ratio - 16:10
PackageContents -

Remote Control w/ Battery: RCX016

Power Cord (1.8m)

VGA(D-sub 15pin) Cable (1.5m)

User Manual CD

Quick Start Guide

Warranty Card

Package features > Classification of battery - CL126:NE:2016-12-09, CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09, CL127:KT:2016-12-09
Package features > Embeeded battery - Yes, Yes
Package features > Gross depth (mm) - 405, 405 mm
Package features > Gross height (mm) - 335, 335 mm
Package features > Gross width (mm) - 165, 165 mm
Package features > Packing quantity - 1.00, 1.00 pc(s)
Package features > Palette Qty - 39, 39 pc(s)
Package features > Paper/Pasteboard - 500.00, 500.00 g
Package features > Plastic (No PET) - 50.00, 50.00 g
Package features > Tare weight (kg) - 0.55, 0.55 kg
Package features > TI weight (kg) - 0.02, 0.02 kg
Package features > Type of battery - Battery, Battery
Package features > Volume (m3) - 0.022386375, 0.022386375 m³
Package features > WEE classification - CL109:5:2017-04-01, CL109:5:2017-04-01
Package features > WEEE tax - Yes, Yes
Packaging content - Batteries included - Yes
Packaging content - Cables included - AC
Packaging content - Cables included - AC, VGA
Packaging content - Cables included - VGA
Packaging content - Manual - Yes
Packaging content - Mounting brackets included - Yes
Packaging content - Packaging content - Warranty Card
Packaging content - Remote control included - Yes
Ports & interfaces - Audio (L/R) in - 1
Ports & interfaces - Component video (YPbPr/YCbCr) in - 1
Ports & interfaces - Composite video in - 1
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - Mobile High-Definition Link (MHL) - Yes
Ports & interfaces - PC Audio in - Yes
Ports & interfaces - PC Audio out - Yes
Ports & interfaces - S-Video inputs quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Ports & interfaces > HDMI ports quantity - 2
Power - AC input frequency - 50 / 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (economy mode) - 215 W
Power - Power consumption (max) - 280 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 260 W
Power - Power source - AC
Power consumption - 260 W
ProdDesc - BenQ MW560 - DLP projector - portable - 3D - 4000 ANSI lumens - WXGA (1280 x 800) - 16:10 - 720p
producer - Benq
Producer - BenQ
producerCode - 9H.JNF77.13E
ProducerCode - 9H.JNF77.13E
Producer product name - MW560
ProductCode - 9H.JNF77.13E
ProductionCountry - CN
productName - BenQ MW560 - DLP-projektor - barbar -
ProductName - MW560
ProductPicture - http://www.tdbaltic.ee/images/ds4/9H.JNF77.13E-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/9H.JNF77.13E-02.jpg
ProductPicture3 - http://www.tdbaltic.ee/images/ds4/9H.JNF77.13E-03.jpg
ProductPicture4 -
productSize - Normal
Projection - Long throw
Projection ratio (max) - 1,70:1
Projection ratio (min) - 1,55:1
ProjectionSize - -
ProjectionSizeMax - -
Projector - remote control
Projector - brightness - 4000
Projector - Contrast ratio (typical) - 20000:1
Projector - Horizontal scan range - 15 - 102 kHz
Projector - Native aspect ratio - 16:9
Projector - noise level - 34
Projector - Number of colours - 1.073 billion colours
Projector - Projection technology - DLP
Projector - Projector brightness - 4000 ANSI lumens
Projector - Projector native resolution - WXGA (1280x800)
Projector - Screen size compatibility - 1524 - 3810 mm (60 - 150")
Projector - type - DLP
Projector - Vertical scan range - 23 - 120 Hz
Resolution - 1280 x 800 (WXGA)
SalesUnitOfMeasureCode - tk
ShortDescription - 1280 x 800 | DLP | 4000 lm | 2 x HDMI | contrast 20 000:1 | Długoogniskowa |
ShortSummaryDescription - BenQ MW560, 4000 ANSI lumens, DLP, WXGA (1280x800), 20000:1, 16:9, 1524 - 3810 mm (60 - 150")
sizeX - 410
sizeY - 340
sizeZ - 165
Static contrast - 20 000:1
Stck_Kart - 1
Stck_Pal - 23
Storage - Card reader integrated - No
Storno - Y
TariffNo - 85286200
Technical details > Brightness - 4000 ANSI lumens
Technical details > Contrast ratio - 20000:1
Technical details > Gross weight - 3.6 kg
Technical details > Lamp warranty - 12 month(s)
Technical details > Maximum resolution - WXGA (1280x800)
Technical details > Net weight - 3.05 kg
Technical details > Other features - Pure Clarity with Crystal Glass Lenses, Smart Eco
Technical details > Producer - Benq, Benq
ThrowDistance - -
ThrowDistanceMax - -
Title - BenQ MW560 data projector Standard throw projector 4000 ANSI lumens DLP WXGA (1280x800) 3D White
UnitOfMeasureCode - tk
UnitsPerPackage - 1
URL - https://www.benq.com/en-ap/projector/meeting-room/mw560.html
UserControls - -
vendpn - 9H.JNF77.13E
Video - 3D - Yes
Video - Analog signal format system - NTSC
Video - Analog signal format system - NTSC, PAL, SECAM
Video - Analog signal format system - PAL
Video - Analog signal format system - SECAM
Video - Supported graphics resolutions - 640 x 480 (VGA)
Video - Supported graphics resolutions - 640 x 480 (VGA), 1920 x 1200 (WUXGA)
Video - Supported graphics resolutions - 1920 x 1200 (WUXGA)
Video - Supported video modes - 480i
Video - Supported video modes - 480i, 480p, 576i, 720p, 1080i, 1080p
Video - Supported video modes - 480p
Video - Supported video modes - 576i
Video - Supported video modes - 720p
Video - Supported video modes - 1080i
Video - Supported video modes - 1080p
VideoCompatibility - -
Volume - 0.02369800
Warranty -
Warranty - 3 years
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
warrantyLength - 24
warrantyType - F
Weight - 2.3 kg
Weight - 2.300 kg
weight - 3600
Weight & dimensions - Depth - 221 mm
Weight & dimensions - Height - 120 mm
Weight & dimensions - Weight - 2.3 kg
Weight & dimensions - Width - 296 mm
Weight & dimensions > Weight - 2300 g
Width - 0.4100
Width - 296 mm
Wireless - No
WirelessInterface - -
Zoom - 1,1x
