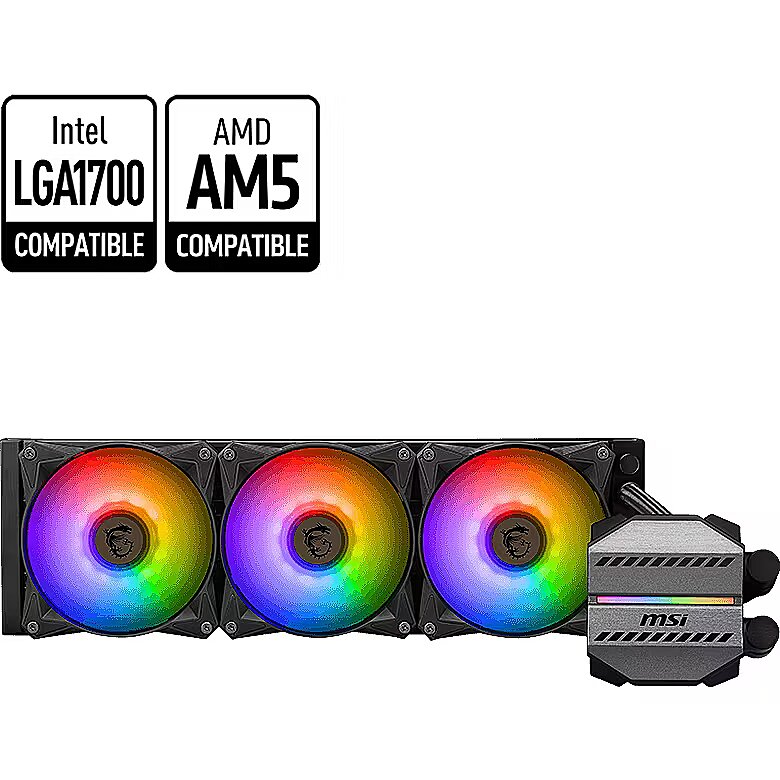

MSI MAG CoreLiquid M360

Air flow - 78.73 cfm
Air flow rates - 78.73 cfm
Bearing type - Ball
Brand - MSI
BrandPartCode - MAG CORELIQUID M360
Category - Computer Cooling Systems
category - Liquid Cooling|Sets & Bundles|AIO Liquid Coolers|360 mm AiOs
Category - Root/Electronics/PC parts/Cooling/Processor fans
Category Code - COC
code - 306-7ZW4R24-813
Cooler type - Liquid
Cooling technology - Liquid
CPU socket - LGA1150
CPU socket - LGA1151
CPU socket - LGA1155
CPU socket - LGA1156
CPU socket - LGA1200
CPU socket - LGA1700
CPU socket - LGA2011
CPU socket - LGA2011-3
CPU socket - LGA2066
CPU socket - Socket AM4
CPU socket - Socket AM5
CPU socket - Socket TR4
Description - MAG CoreLiquid M360 The unique curved copper plate is designed to completely cover the CPU while ensuring rapid heat dissipation. Constructed of three layers of mesh plastic tube and reinforced outer mesh. The radiator has 12 paths designed to help dissipate heat quickly. Compatible Sockets and Processor: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200, 1700, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM5, AM4, TR4
Description - MAG CORELIQUID M360.
Design - Fan connector - 3-pin
Design - Fan connector - 4-pin
Design - Illumination colour - Blue, Green, Red
Design - Illumination LED - Yes
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design - Radiator material - Aluminum
dimensionalWeight - 2424
dimension depth - 150 mm
dimension height - 440 mm
Dimensions - RADIATOR: 397 x 120 x 27mm, FAN: 120 x 120 x 25mm, BLOCK: 67.26 x 59.95 x 55.9mm
Dimensions - Radiator dimensions: 397 x 120 x 27 mm Fan dimensions: 120 x 120 x 25 mm Cable length (PWM cable): 350 mm Block dimensions: 67.26 x 59.95 x 55.9 mm
dimension weight - 2468 g
dimension width - 190 mm
ean - 4711377027939
Eans - 4711377027939
Fan - 12 cm
Fan light - Yes
Full Description Line - MAG CORELIQUID M360|Liquid|LGA1150/LGA1151/LGA1155/LGA1156/LGA1200/LGA1700/LGA2011/LGA2011-3/LGA2066/SAM4/SAM5|Air flow 78.73 cfm|Fan light|Dimensions RADIATOR: 397 x 120 x 27mm, FAN: 120 x 120 x 25mm, BLOCK: 67.26 x 59.95 x 55.9mm|Weight 2 kg
GTIN - 4711377027939
guarantee - 36
guarantee_type - normal
LongDesc - The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.ELEVATED COPPER PLATEThe unique curved copper plate is designed to fully cover the CPU while offering rapid heat dissipation.PUMP MOTOR RESONANCE ELIMINATIONA durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.HIGH THERMAL DISSIPATIONThe radiator has a 12 pathway designed to help rapidly dissipate heat.EVAPORATION PROOF TUBINGConstructed with three layers of netted plastic tubing and a reinforced mesh exterior.MYSTIC LIGHT COMPATIBLEShow off your colors with full ARGB customization on the fans and cooling block.EXTENSIVE COMPATIBILITYStylish yet built for flexibility, the MAG CORELIQUID M360 has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.Intel SocketLGA 1150/1151/1155/1156/1200/1700LGA 2011/2011-3/2066AMD SocketAM5/AM4/TR4
LongProductName - 360 mm, 21.63 ~ 78.73 CFM, 0.35 A, 4.2 W, 3100 RPM, AM5/AM4/TR4
LongSummaryDescription - MSI MAG CORELIQUID P360. Type: All-in-one liquid cooler, Maximum airflow: 78.73 cfm. Width: 67.3 mm, Depth: 60 mm, Height: 55.9 mm. Product colour: Black
Mainboard connection - 3-pin
Model name - MAG CORELIQUID M360
name - MAG CORELIQUID M360 360mm 3xARGB FAN
Name - MSI MAG CORELIQUID M360
name - MSI MAG Coreliquid M360 Kompett-Wasserkühlung - 360 mm
Noise - 20 dB
Number of fans - 3
Other features - Fan bearing: two ball bearings Fan life expectancy: 70,000 hours Fan rated current: 0.35 A Pump life: 100,000 hours Pump speed: 3100 rpm 10% Block (material): copper + plastic
Performance - Fan's mean time to failure (MTTF) - 70000 h
Performance - Fan bearing technology - Ball bearing
Performance - Fan diameter - 12 cm
Performance - Fan diameter 2 - 12 cm
Performance - Fan noise level (max) - 34.3 dB
Performance - Fan speed (max) - 2000 RPM
Performance - Maximum airflow - 78.73 cfm
Performance - Minimum airflow (imperial) - 21.63 cfm
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Pump's mean time to failure (MTTF) - 100000 h
Performance - Pump connector - 3-pin
Performance - Pump motor speed - 3100 RPM
Performance - Pump noise level - 20 dB
Performance - Suitable location - Computer case
Performance - Suitable location - Motherboard, Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2066, Socket AM4, Socket AM5, Socket TR4
Performance - Supported processor sockets - Socket AM4
Performance - Supported processor sockets - Socket AM5
Performance - Supported processor sockets - Socket TR4
Performance - Type - All-in-one liquid cooler
Performance - Type - Liquid сooling kit
Power - Fan current - 0.35 A
Power - Fan power consumption - 4.2 W
Power - Fan power consumption - 4.56 W
Power - Pump power consumption - 4.56 W
producer - MSI
Producer - MSI
producerCode - 306-7ZW4R24-813
ProducerCode - 306-7ZW4R24-813
ProductName - MAG CORELIQUID P360
productName - MSI MAG CORELIQUID M360 ARGB Water Cooler
productSize - Normal
Radiator material - Aluminum
Shipping Box Depth Shipping/Package Box Dimensions - 48.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 46 cm
Shipping box quantity - 6
Shipping Box Weight Shipping/Package Box Dimensions - 16.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 40.5 cm
ShortDescription - wentylator CPU - chłodzenie wodne |
ShortSummaryDescription - MSI MAG CORELIQUID P360, All-in-one liquid cooler, 78.73 cfm, Black
sizeX - 440
sizeY - 190
sizeZ - 145
Socket - LGA1150/LGA1151/LGA1155/LGA1156/LGA1200/LGA1700/LGA2011/LGA2011-3/LGA2066/SAM4/SAM5
Title - MSI MAG CORELIQUID P360 Computer case All-in-one liquid cooler Black
Type of cooling - Active
Unit Box Height - 0.19
Unit Box Length - 0.44
Unit Box Width - 0.15
Unit Brutto Volume - 0.01506 cubm
Unit Gross Weight - 2.68 kg
Unit Net Weight - 2 kg
URL - https://www.msi.com/Liquid-Cooling/MAG-CORELIQUID-M360
Vendor Homepage - www.msi.com/Liquid-Cooling/MAG-CORELIQUID-M360
vendpn - MAG CORELIQUID M360
Warranty - 24 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 262 g
weight - 2420
Weight & dimensions - Depth - 60 mm
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Height - 55.9 mm
Weight & dimensions - Radiator height - 2.7 cm
Weight & dimensions - Radiator width - 12 cm
Weight & dimensions - Width - 67.3 mm
