Air flow rates - 60.98 cfm
Brand - Zalman
BrandPartCode - CNPS9X OPTIMA RGB
Category - Computer Cooling Systems
Cooling technology - Air
Description -
Design - Material - Aluminium, Copper
Design - Number of heat pipes - 4
Design - Product colour - Black
dimension depth - 125 mm
dimension height - 200 mm
Dimensions - 123 x 72 x 156 mm
dimension weight - 726 g
dimension width - 175 mm
ean - 8809213762703
Fan - 12 cm
Fan speed (max) - 600 rpm
Fan speed (min) - 1500 rpm
GTIN - 8809213762703
guarantee - 24
guarantee_type - normal
LongDesc - Zalman CNPS9X Optima RGB ultra quiet CPU coolerReady for Intel 12th generation processorsIt is fully compatible with the latest Intel processors and AMD Ryzen. The power management technology for each processor is seamless, so you don't have to worry about compatibility issues.Automatic RGB LED (15 dots)120mm RGB fan provides higher cooling efficiency and various customization effects.DTH technology (Direct Touch Heat pipe)DTH technology transfers heat from the CPU directly to heat pipes and maximizes cooling performance.Powerful cooling performancePWM fan efficiently controls the fan speed based on the temperature of the CPU.Convenient installation designSupports convenient user experience.4ea HeatpipeTDP is up to 180W, which gives greatly improved heat dissipation performance.shark fin bladeThe shark fin blade reduces noise and vibration while increasing airflow.Long Life Rifle BearingA rifle bearing with low noise and high durability is used to ensure stable use of the product for a long period of time.Optimal user experience PWM controlPWM automatically adjusts fan speed based on the user's ambient noise level to provide optimal performance.120mm Automatic RGB LED PWM Fan15 high lumen RGB LEDs provide different and stunning lighting effects.Low noise environment of 26 dbA 120mm PWM RGB LED fan is used, providing both powerful cooling performance and a low noise environment of 26 db(A).Excellent cooling performanceAn optimally designed aluminum radiant fin and 4 heat pipes are used to effectively dissipate the heat from the CPU.SpecificationsModel: CNPS9X OPTIMA RGBDimensions: 123 x 72 x 156 (H) mmMaterials: Pure copper, pure aluminumWeight: 530gHeat dissipation area: 6.418 cm²Heat Pipe: 4TDP: 180WFan dimensions: 120 x 120 x 25 (H) mmFan Bearing Type: Rifle BearingFan speed: 600 1,500 RPM ± 10%Maximum fan noise level: 26.0dB (A) ± 10%Maximum fan airflow 60.89CFMmax. air pressure fan: 1.6 mm H²OFan life: 40,000 hoursFan connector type: 4-pinFan Control Method: PWM ControlRated voltage: 12V DCRated current: 0.2APower consumption: 2.4 WSocket Compatibility: Intel LGA 1700/1200/115X CPUs, AMD AM4 CPUs
LongProductName - Zalman CNPS9X OPTIMA RGB (Ultra Quiet CPU Cooler) / - 120mm PWM White LED Fan / - 600 ~ 1500RPM plm10%, Intel LGA 115x, 1200, AMD AM4, AM3+, AM3, FM2+, FM2
LongSummaryDescription - Zalman CNPS9X OPTIMA RGB - processor-k. Type: Air cooler, Fan diameter: 12 cm, Rotational speed (min): 600 RPM, Rotational speed (max): 1500 RPM, Noise level (high speed): 26 dB, Maximum airflow: 60.89 cfm, Maximum air pressure: 1.6 mmH2O, Bearing type: Rifle bearing. Width: 123 mm, Depth: 72 mm, Height: 156 mm. Product colour: Black

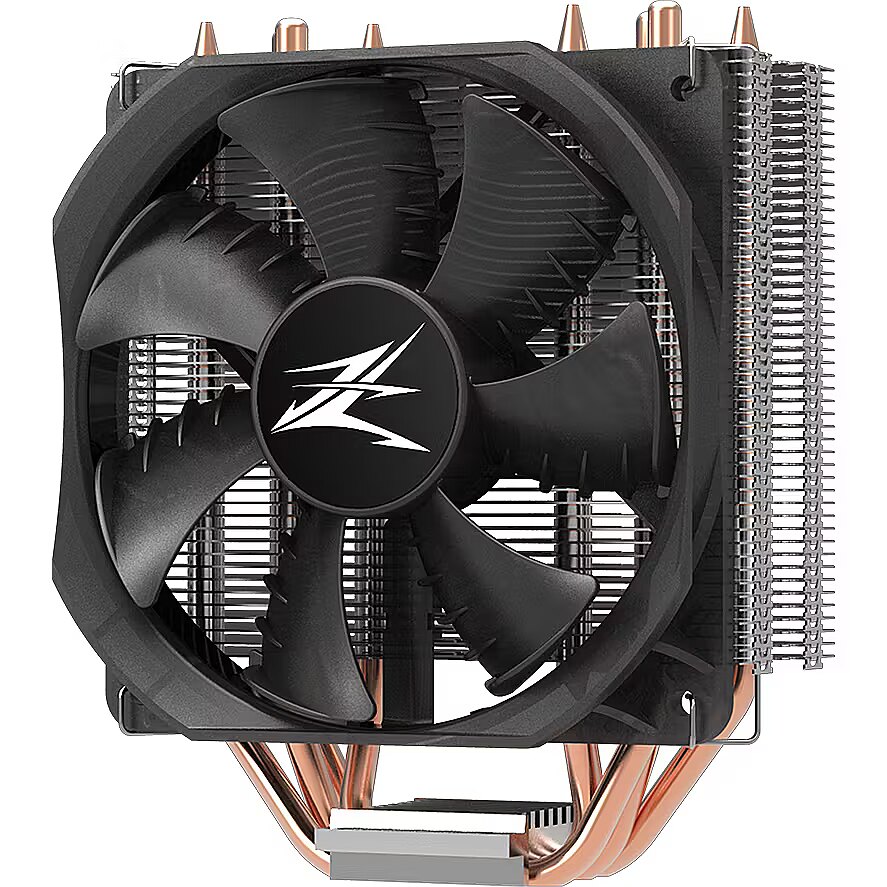

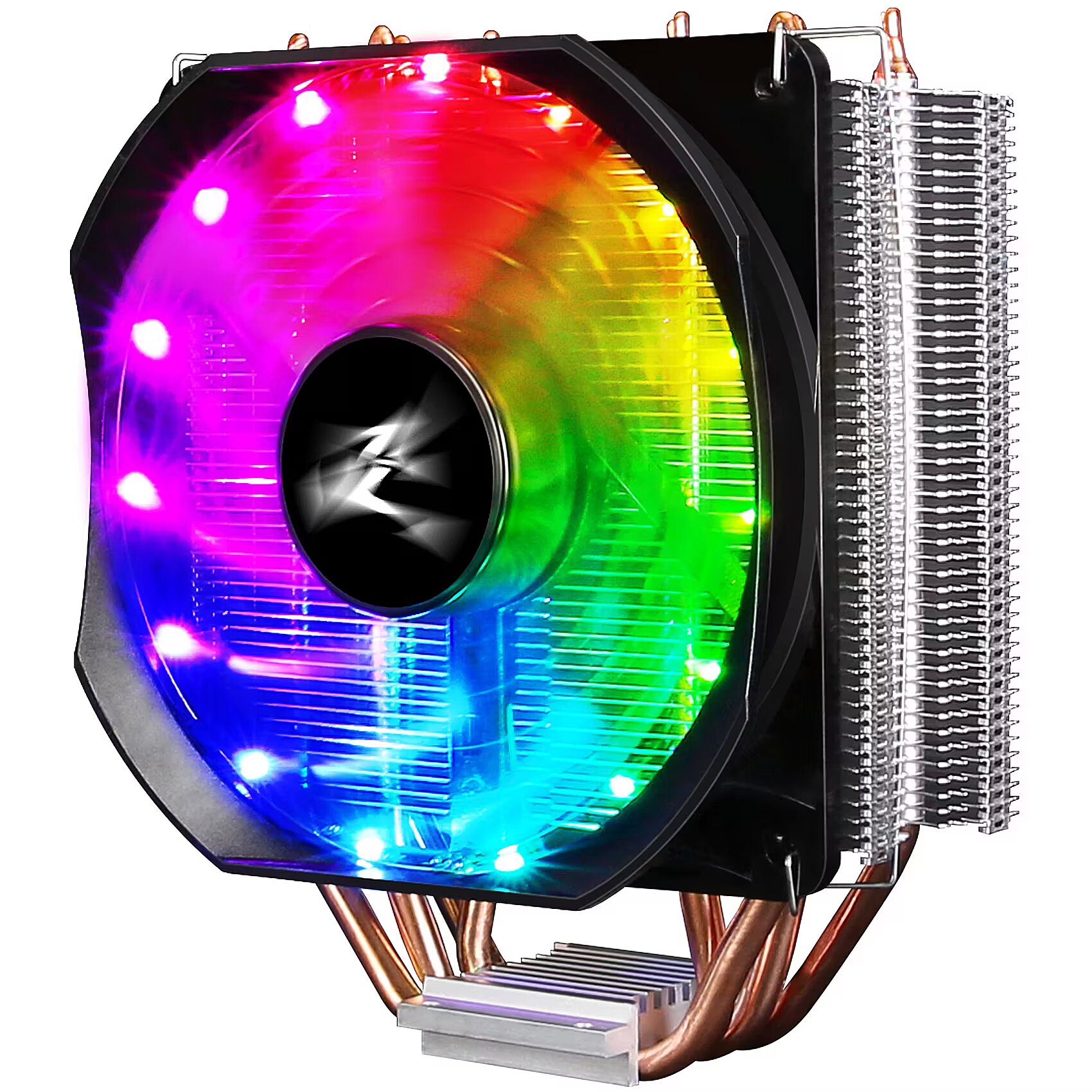

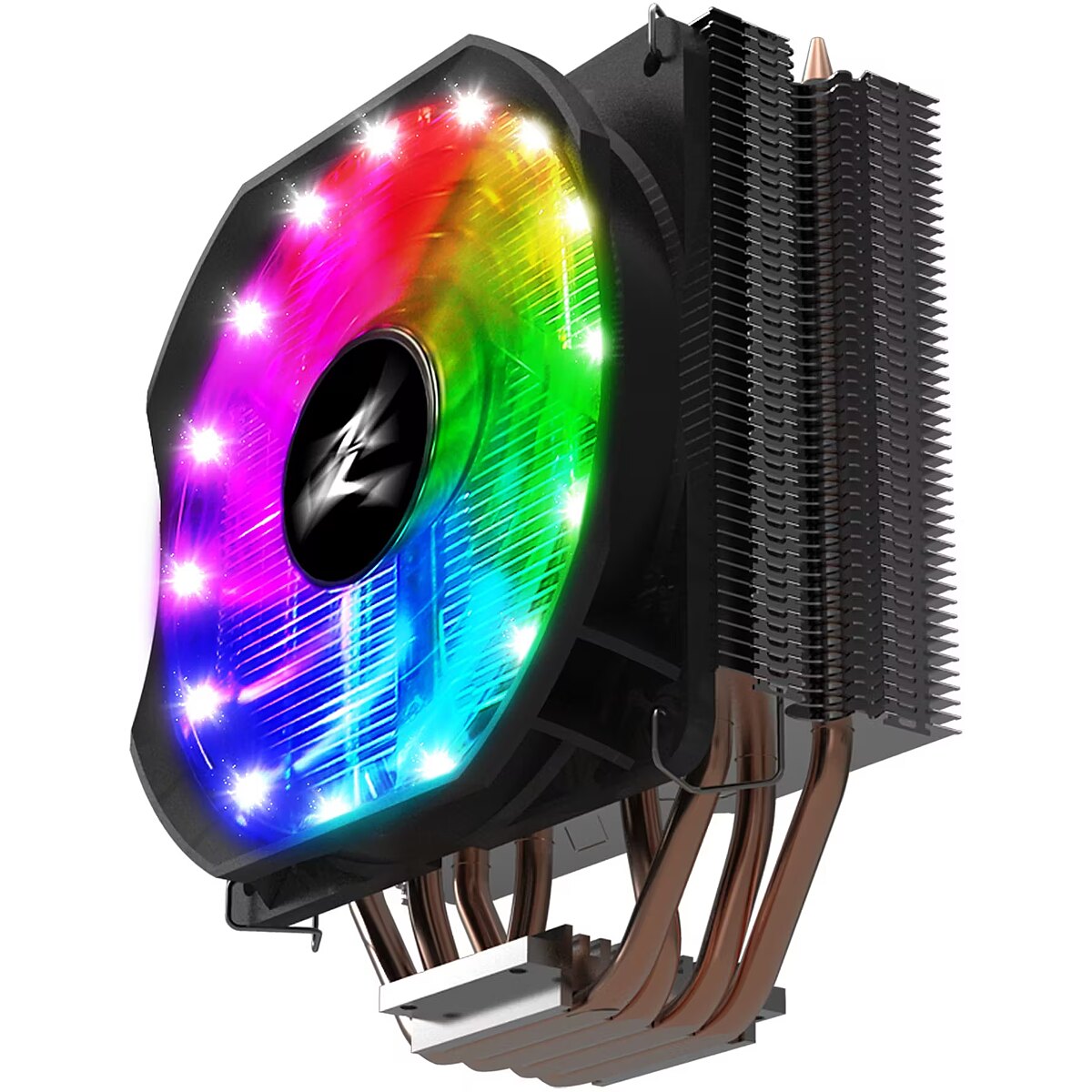

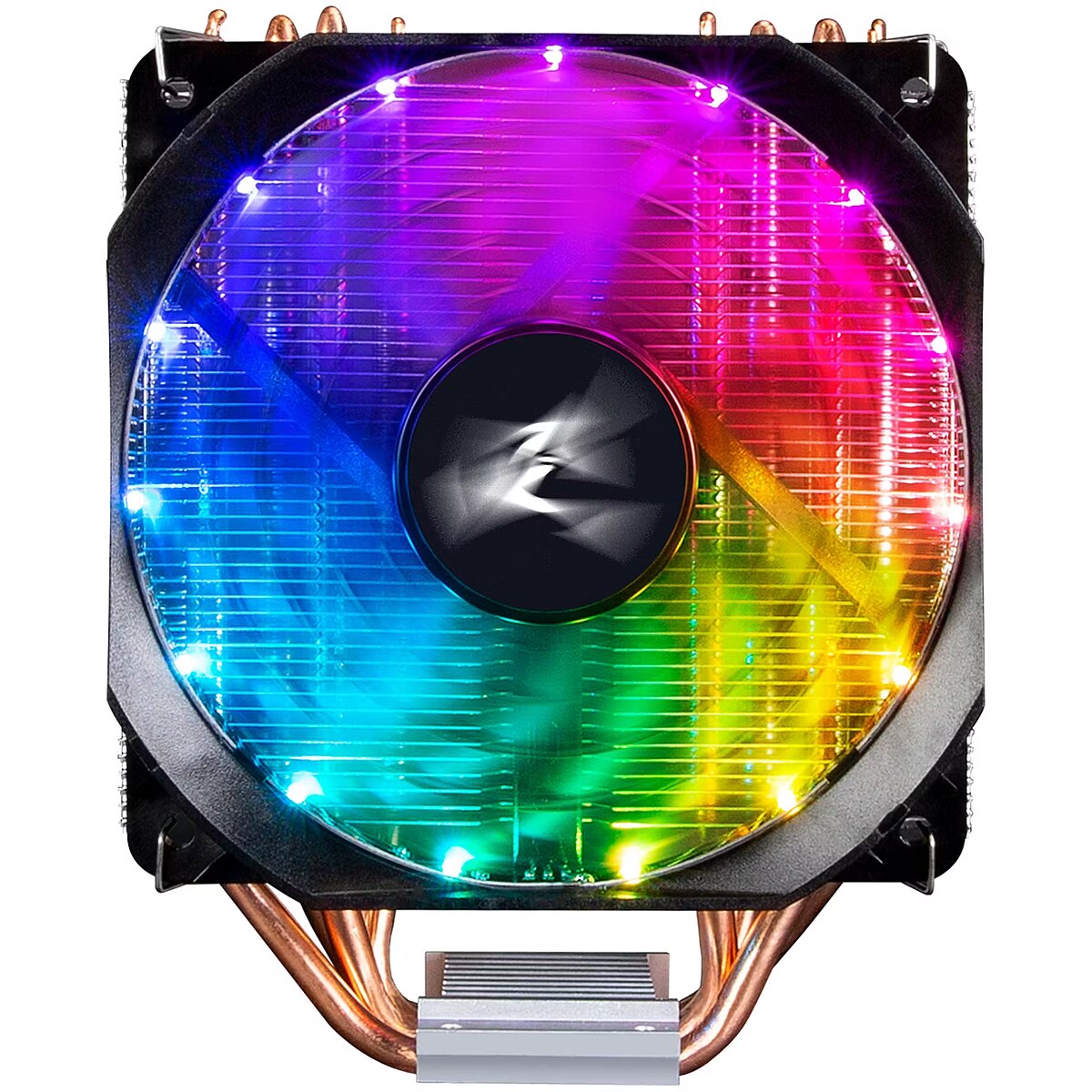

name - ZALMAN CNPS9X OPTIMA RG B CPU Cooler 120mm
Noise - 26 dB
Number of fans - 1
Other features - Gniazda:
Intel Socket- LGA115X/ 775 CPUs/LGA1200 AMD Socket- AM4/ AM3+/ AM3/ FM2+/ FM2 CPU&APUs
Performance - Bearing type - Rifle bearing
Performance - Fan's mean time to failure (MTTF) - 40000 h
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 60.89 cfm
Performance - Maximum air pressure - 1.6 mmH2O
Performance - Noise level (high speed) - 26 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Pump connector - 4-pin
Performance - Rotational speed (max) - 1500 RPM
Performance - Rotational speed (min) - 600 RPM
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4
Performance - Type - Air cooler
Power - Power consumption (typical) - 2.4 W
Power - Rated voltage - 12 V
Power - Thermal Design Power (TDP) - 180 W
producer - Zalman
ProductName - CNPS9X OPTIMA RGB - processor-k
ShortSummaryDescription - Zalman CNPS9X OPTIMA RGB - processor-k, Air cooler, 12 cm, 600 RPM, 1500 RPM, 26 dB, 60.89 cfm
Stand / CPU block - Aluminum-Copper
Title - Zalman CNPS9X OPTIMA RGB - processor-k Air cooler 12 cm Black
Type of cooling - Active
URL -
vendpn - CNPS9X OPTIMA RGB
WarrantyInfo -
Weight - 594 g
Weight & dimensions - Depth - 72 mm
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Height - 156 mm
Weight & dimensions - Weight - 530 g
Weight & dimensions - Width - 123 mm
