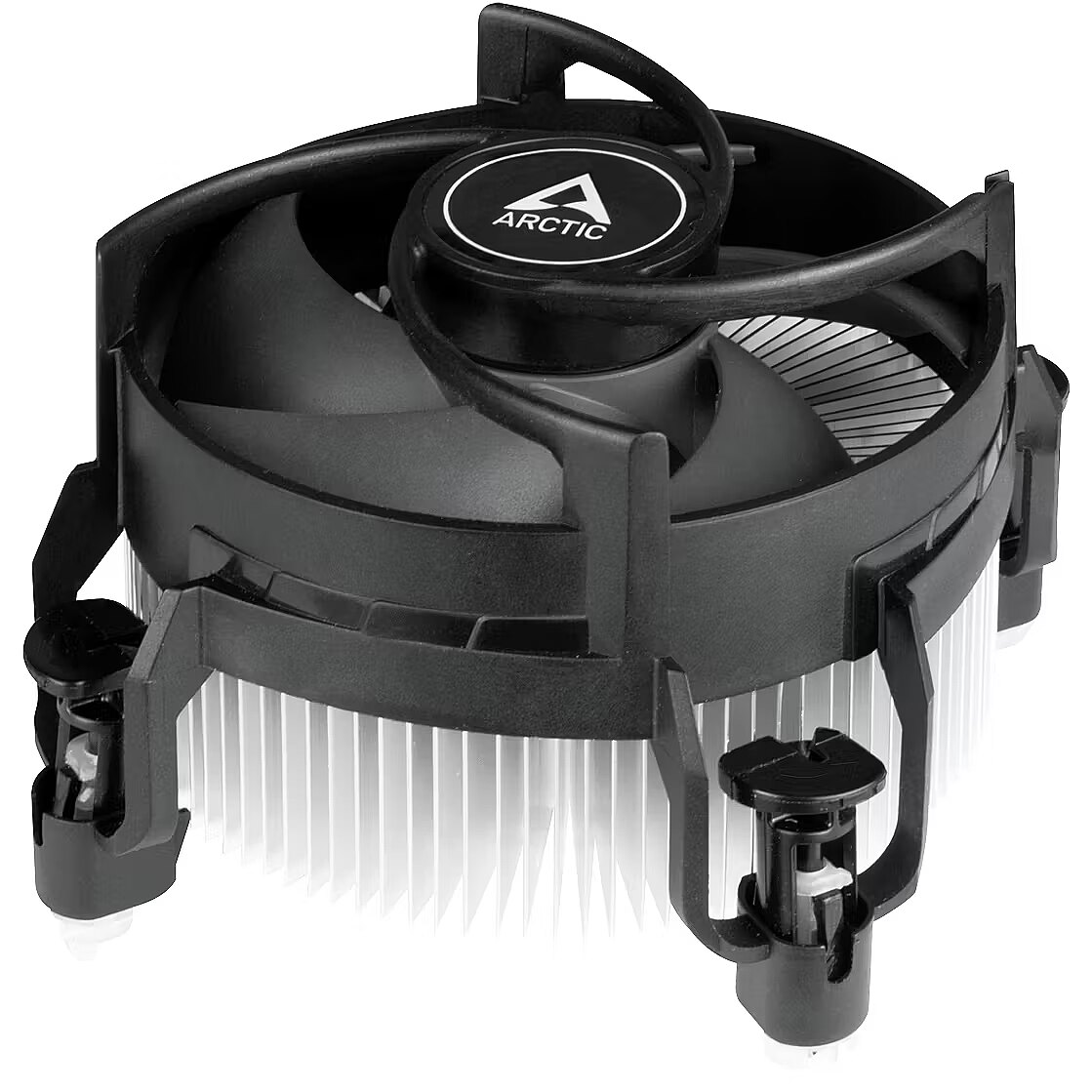

Arctic Alpine 17 CO

Bearing type - Ball
Brand - ARCTIC
BrandPartCode - ACALP00041A
Category - Computer Cooling Systems
Category - Datortehnika :: Datoru komponentes :: CPU Dzesētāji
Category 1 - CPUs
Category 2 - CPU Kühler & Zubehör
Category Code - COC
Code - ACALP00041A
Colour - Black
Cooler type - Air
Desc - Dzesētāja tips: CPU, Ligzda (socket): LGA 1700, Ventilatora diametrs: 92 mm, Ventilatora ātrums (apgr.min.): 2700 apgr. min., Garantija: 2 gadi
Description - Alpine 17 CO Compact Intel Alder Lake CPU-Cooler for Continuous Operation
Design - Fan connector - 4-pin
Design - Material - Aluminium
Design - Number of fans - 1 fan(s)
Design - Product colour - Black, Silver
Design - Radiator material - Aluminum
Dimensions - 95x95x77mm
EAN - 4895213703901
Fan size group - 92mm
Fan speed - 250 - 2700 rpm
Full Description Line - Alpine 17 CO|Air|LGA1700|Fan speed 250 - 2700 rpm|Dimensions 95x95x77mm|Colour Black|Weight 0.288 kg
GTIN - 0840033401715
GTIN - 840033401715
GTIN - 4895213703901
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_94913_1.jpg
LargeDescHTML - DESIGNED FOR INTEL ALDER LAKEThe Alpine 17 is exclusively compatible with Socket LGA1700 and Intel's latest Alder Lake CPUs.DESIGNED FOR CONTINUOUS OPERATIONThe premium quality of the two ball bearings allows 24/7 continuous operation without compromising performance. Contamination and high temperatures affect this bearing much less than ordinary plain or magnetic bearings. Therefore, the double ball bearing is the perfect choice in working environments where you want to ensure continuous operation with a low failure rate.EASY AND TOOL-FREE INSTALLATIONWith the MX-4 already pre-applied, the Alpine 17 can be mounted directly. Thanks to the push pins, installation is a breeze. Additional tools are not needed to mount the cooler.FULL CONTROL WITH WIDE RPM RANGEThe Alpine 17 features a very wide PWM-controlled speed range. This reduces noise to the minimum while also guaranteeing the highest cooling performance.IMPROVED COOLING PERFORMANCE THROUGH INNOVATIVE HEAT SINK DESIGNThe extra fine cooling fins of the new Alpine are fanned out in a Y-shape. The high thermal conductivity of the aluminum is fully retained in the type of extrusion used. This novel production process makes it possible to produce a high-performance yet very compact radial heat sink. This results in an increase in the surface area of the heat sink, optimization of the airflow and thus an increase in cooling performance.
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - CPU Air CoolerARCTIC has CPU coolers for all areas of application. Whether for high-end gaming or silent PCs, our large range includes everything from high-performance tower coolers to compact and inexpensive alternatives; to boxed coolers to completely silent passive radiators. Broad compatibility and innovative features are part of our standard repertoire.
LongProductName - Intel, 92 mm, 250-2700 RPM, 0.09 A / 12 V, 288 g
LongSummaryDescription - ARCTIC Alpine 17 CO. Type: Air cooler, Fan diameter: 9.2 cm, Rotational speed (min): 250 RPM, Rotational speed (max): 2700 RPM, Noise level: 0.3 sone, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 95 mm, Depth: 95 mm, Height: 77 mm. Product colour: Black, Silver
Mainboard connection - 4-pin
Manufacturer - ARCTIC
Model - ACALP00041A
Model name - Alpine 17 CO
MPN - ACALP00041A
Name - Arctic Alpine 17 CO
Name - K Cooler Intel Arctic CPC Intel Alpine 17 CO | 1700
Number of fans - 1
Packaging content - Package type - Box
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Fan bearing technology - Fluid Dynamic Bearing (FDB)
Performance - Fan diameter - 9.2 cm
Performance - Noise level - 0.3 sone
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 2700 RPM
Performance - Rotational speed (min) - 250 RPM
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 1700
Performance - Type - Air cooler
Power - Power supply - 0.72 W
Power - Rated current - 0.09 A
Power - Voltage - 12 V
ProductName - Alpine 17 CO
Radiator material - Aluminum
Shipping Box Depth Shipping/Package Box Dimensions - 35 cm
Shipping Box Height Shipping/Package Box Dimensions - 32 cm
Shipping box quantity - 36
Shipping Box Weight Shipping/Package Box Dimensions - 12.4 kg
Shipping Box Width Shipping/Package Box Dimensions - 32 cm
ShortSummaryDescription - ARCTIC Alpine 17 CO, Air cooler, 9.2 cm, 250 RPM, 2700 RPM, 0.3 sone, Black, Silver
Socket - LGA1700
Title - ARCTIC Alpine 17 CO Processor Air cooler 9.2 cm Black, Silver 1 pc(s)
Unit Brutto Volume - 0.0009956 cubm
Unit Gross Weight - 0.344 kg
Unit Net Weight - 0.288 kg
URL - https://www.arctic.de/en/Alpine-17-CO/ACALP00041A
Vendor Homepage - www.arctic.de/en/Alpine-17-CO/ACALP00041A
Warranty - 24 months
WarrantyInfo - 6 years
Weight - 0.32
Weight & dimensions - Cable length - 0.2 m
Weight & dimensions - Depth - 95 mm
Weight & dimensions - Height - 77 mm
Weight & dimensions - Package depth - 99 mm
Weight & dimensions - Package height - 82 mm
Weight & dimensions - Package weight - 319 g
Weight & dimensions - Package width - 99 mm
Weight & dimensions - Radiator height - 3.27 cm
Weight & dimensions - Weight - 288 g
Weight & dimensions - Width - 95 mm
