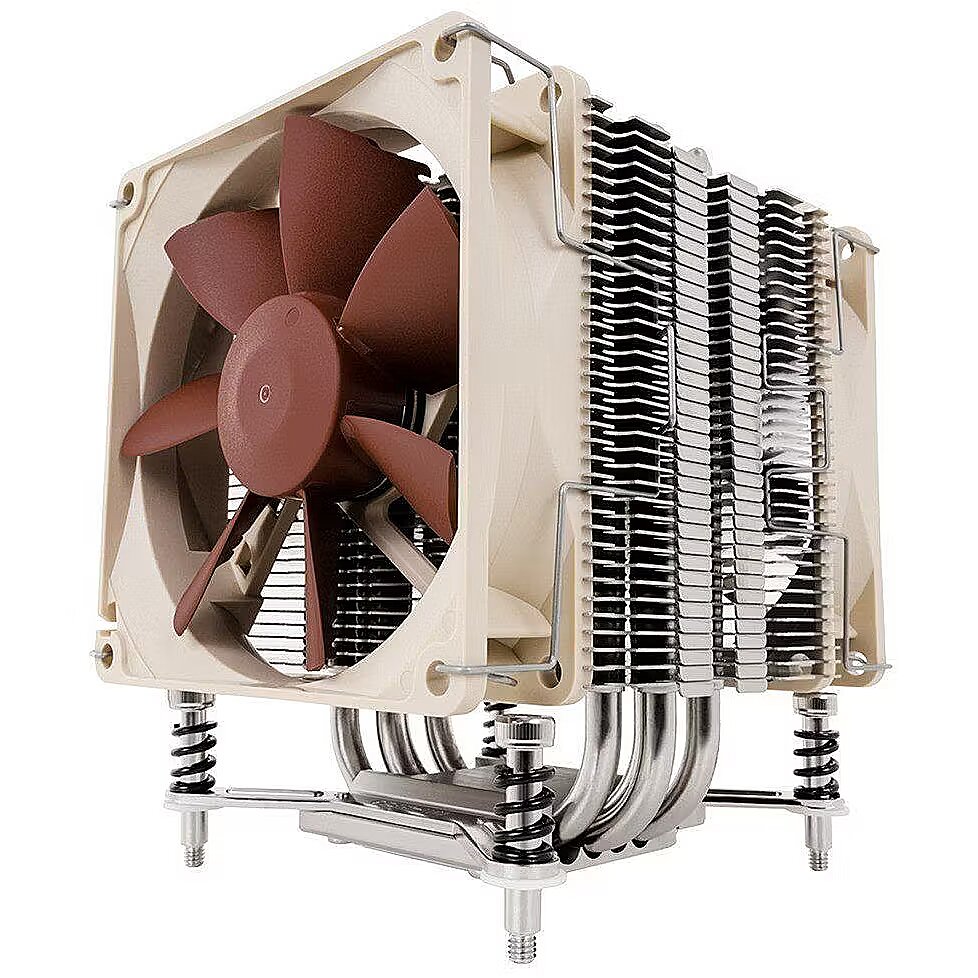

Noctua NH-U9DXi4

Category_1 - Computer Cases and Cooling
Category_2 - Coolers for CPU
Design - Material - Aluminium
Design - Material - Copper
Design - Number of fans - 2 fan(s)
dimensionalWeight - 982
EAN_code - 4716123314967
Manufacturer - Noctua
Manufacturer_code - NH-U9DX i4
Name - Noctua NH-U9DX i4
Performance - Airflow - 64.3 m³/h
Performance - Fan diameter - 9.2 cm
Performance - Mean time between failures (MTBF) - 150000 h
Performance - Noise level (high speed) - 17.6 dB
Performance - Noise level (low speed) - 13.1 dB
Performance - Rotational speed (max) - 1600 RPM
Performance - Rotational speed (min) - 300 RPM
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 1356 (Socket B2)
Performance - Supported processor sockets - LGA 1366 (Socket B)
Performance - Supported processor sockets - LGA 2011 (Socket R)
Performance - Supported processor sockets - LGA 2011-v3 (Socket R)
Performance - Supported processor sockets - LGA 2066
Performance - Type - Cooler
Power - Power supply - 0.96 W
Power - Voltage - 12 V
producerCode - NH-U9DXI4
productName - NOCTUA NH-U9DXI4 CPU COOLING
productSize - Normal
sizeX - 180
sizeY - 130
sizeZ - 210
Technical_details - Noctua's DX line of coolers has become a default choice in high performance quiet cooling solutions for Intel Xeon CPUs. The latest i4 revision supports LGA2011 (both Square ILM and Narrow ILM), LGA1356 and LGA1366 based Xeon platforms and the 9cm model NH-U9DX i4 comes equipped with two of Noctua’s award-winning NF-B9 premium fans with PWM for automatic speed control. Standing 125mm tall, the NH-U9DX i4 combines outstanding quiet cooling efficiency with full 4U compatibility. Fitted with the professional SecuFirm2™ mounting system and bundled with Noctua's industrial-grade NT-H1 thermal compound, the NH-U9DX i4 forms a complete premium quality package for quietly cooling Xeon based workstations and servers. Attachment for ATX-Mainboards, screwed Socket suitable 1366, 2011, 1356, 2011-3 Material Aluminum Yes Cooper Yes Power Connection PWM fan connector Fan Bearing SSO Power Input 0 - 0.96 watt(s) Voltage Range 0 - 12 V Number of Revolutions 300 - 1600 rpm Volume 13.1 - 17.6 dB(A) Volumetric Flow 52.6 - 64.3 m3/h, 31 - 37.8 cfm Dimensions Fans Fan 1 92 x 92 x 25 mm Cooler 95 x 122 x 65 mm Total 95 x 122 x 90 mm Weight Cooler 640 grams Features including Thermal Paste/Pad Yes
warrantyLength - 72
warrantyType - F
Weight - 1,15
weight - 1120
Weight & dimensions - Depth - 95 mm
Weight & dimensions - Fan dimensions (W x D x H) - 92 x 92 x 25 mm
Weight & dimensions - Height - 125 mm
Weight & dimensions - Weight - 640 g
Weight & dimensions - Width - 95 mm
