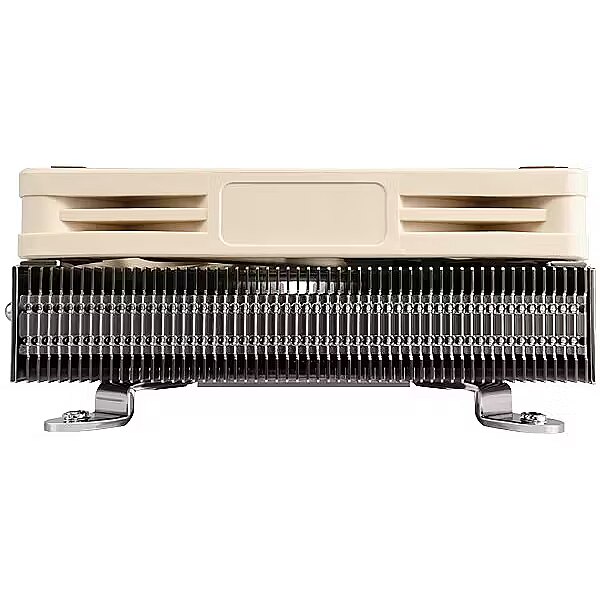

Noctua NH-L9i

Additional fan mounting - no
Approved for - active air flow
category - Aircooling|Coolers|CPU Coolers|Low Profile
Category - Root/Electronics/PC parts/Cooling/Processor fans
Category_1 - Computer Cases and Cooling
Category_2 - Coolers for CPU
code - NH-L9I
CPU cooler depth - 90 to 99 mm
CPU cooler depth (accurate) - 92 mm
CPU cooler fan(s) included - 1x 92 mm
CPU cooler height - up to 50 mm
CPU cooler height (accurate) - 37 mm
CPU cooler type - Top Blower
CPU cooler width - 110 to 119 mm
CPU cooler width (accurate) - 114 mm
CPU socket - 1156, 1155, 1151, 1150
Design - Product colour - Beige
Design - Product colour - Bronze
Design - Product colour - Silver
dimensionalWeight - 322
ean - 4716123314875
Eans - 4716123314875
EAN_code - 4716123314875
Fan colour - beige, brown
Fan connector - 4 Pin (PWM)
Heat sink colour - silver
Lighting - no
Logistics data - Harmonized System (HS) code - 84733080
Manufacturer - Noctua
Manufacturer_code - NH-L9i
Material base plate - nickel-plated copper
Material heat sink - aluminium
max. Air volume - 50 - 74 m³/h
max. Air volume (exact) - 57,5 m³/h
max. Noise level - 20 - 24 dB(A)
max. Noise level (exact) - 14,8 dB(A)
max. RPM - 2,500 - 2,999 rpm
max. RPM (exact) - 2.500 U/min
Name - Noctua NH-L9i
name - Noctua NH-L9i CPU-Kühler - 92mm
No. of Heatpipes - 2
Other features - Connector(s) - 4-pin PWM
Other features - Dimensions (WxDxH) - 95 x 95 x 23 mm
Other features - Power - 2.52 W
Performance - Airflow - 57.5 m³/h
Performance - Compatible processor series - Intel® Pentium®
Performance - Fan diameter - 9.2 cm
Performance - Maximum air pressure - 2.11 mmH2O
Performance - Mean time between failures (MTBF) - 150000 h
Performance - Noise level (high speed) - 23.6 dB
Performance - Rotational speed (max) - 2500 RPM
Performance - Rotational speed (min) - 300 RPM
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3)
Performance - Supported processor sockets - LGA 1155 (Socket H2)
Performance - Supported processor sockets - LGA 1156 (Socket H)
Performance - Type - Cooler
Power - Voltage - 12 V
Producer - Noctua
producerCode - NH-L9I
ProducerCode - NH-L9i
productName - Noctua NH-L9i Processor Cooler 9.2 cm Beige, Brown, Silver
productSize - Normal
ShortDescription - Chłodzenie CPU|92 PWM|
sizeX - 215
sizeY - 150
sizeZ - 50
TDP - keine Angabe
Technical details - Bearing technology - SSO2
Technical_details - The NH-L9i is a premium quality quiet CPU cooler for Intel LGA115x based HTPCs and Small Form Factor systems. At a super-low profile of only 37mm, the NH-L9i is ideal for extremely slim cases and due to its 95x95mm footprint, it provides full compatibility with tall RAM modules and VGA cards on mini-ITX mainboards. The custom designed SecuFirm2™ mounting system for LGA115x makes installation a child’s play and thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9i runs remarkably quiet. Topped off with Noctua’s renowned NT-H1 thermal compound, the NH-L9i fuses everything users have come to expect from Noctua’s larger coolers into a super-compact package for slim HTPC systems. Caution: The NH-L9i is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not Suitable for overclocking and should be used with care on CPUs with more than 65W TDP (Thermal Design Power). Please consult our TDP guidelines to find out whether the NH-L9i is recommended for your CPU. Attachment for ATX-Mainboards, screwed Socket suitable 1156, 1155, 1150 Material Aluminum Yes Cooper Yes Power Connection PWM fan connector Fan Bearing SSO Power Input 0 - 2.52 watt(s) Voltage Range 0 - 12 V Number of Revolutions 300 - 2500 rpm Volume 0 - 23.6 dB(A) Volumetric Flow 0 - 57.5 m3/h, 0 - 33.8 cfm Cabel Length 20 m Dimensions Fans Fan 1 92 x 14 x 92 mm Cooler 95 x 23 x 95 mm Total 95 x 37 x 95 mm Weight Cooler 420 grams Features including Thermal Paste/Pad Yes Cooling Performance 65 watt(s)
warrantyLength - 72
warrantyType - F
Weight - 0,62
weight - 620
Weight & dimensions - Depth - 95 mm
Weight & dimensions - Height - 23 mm
Weight & dimensions - Weight - 345 g
Weight & dimensions - Width - 95 mm
Weight in g - 400 - 500 g
Weight in g (exact) - 465
