10/100/1000M LAN Ports - 1
Brand - TP-Link
BrandPartCode - TL-WPA7517 KIT
Category - PowerLine Network Adapters
Category Code - WRE
Code - TL-WPA7517 KIT
Data transmission speed - 1000 Mbps
Description - TL-WPA7517 KIT AV1000 Gigabit Powerline ac Wi-Fi Kit Homeplug AV2 standard compliant - Provides users with stable, high-speed data transfer rates of up to 1000 Mbps on a line length of up to 300 meters Dual band 802.11ac Wi-Fi - AC750 dual band Wi-Fi (433Mbps on 5GHz & 300Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home Wi-Fi Auto-Sync - Simply copy your router‘s Wi-Fi settings and apply any changes across the secure powerline network with Wi-Fi Clone and Wi-Fi Move Gigabit Ethernet Port - Provide reliable high-speed wired connections for game consoles, smart TVs, and NAS Plug, Pair and Play - Quickly set up a secured Powerline network
Design - Antenna type - Internal
Design - Certification - CE, RoHS
Design - LED indicators - LAN, PLC, Power, Wi-Fi
Design - Product colour - White
Design > Rack mounting - Wall Plugged
Dimensions - 69.5 × 35 × 124.1 mm / 52 × 28.5 × 65 mm
EAN - 6935364052584
Full Description Line - Data transmission speed 1000 Mbps|1x10/100/1000M|Wireless Frequency Range 2.4 and 5GHz|Dimensions 69.5 × 35 × 124.1 mm / 52 × 28.5 × 65 mm
GTIN - 0845973099688
GTIN - 845973099688
GTIN - 6935364052584
GTIN - 6935364072230
Logistics data - Harmonized System (HS) code - 85171800

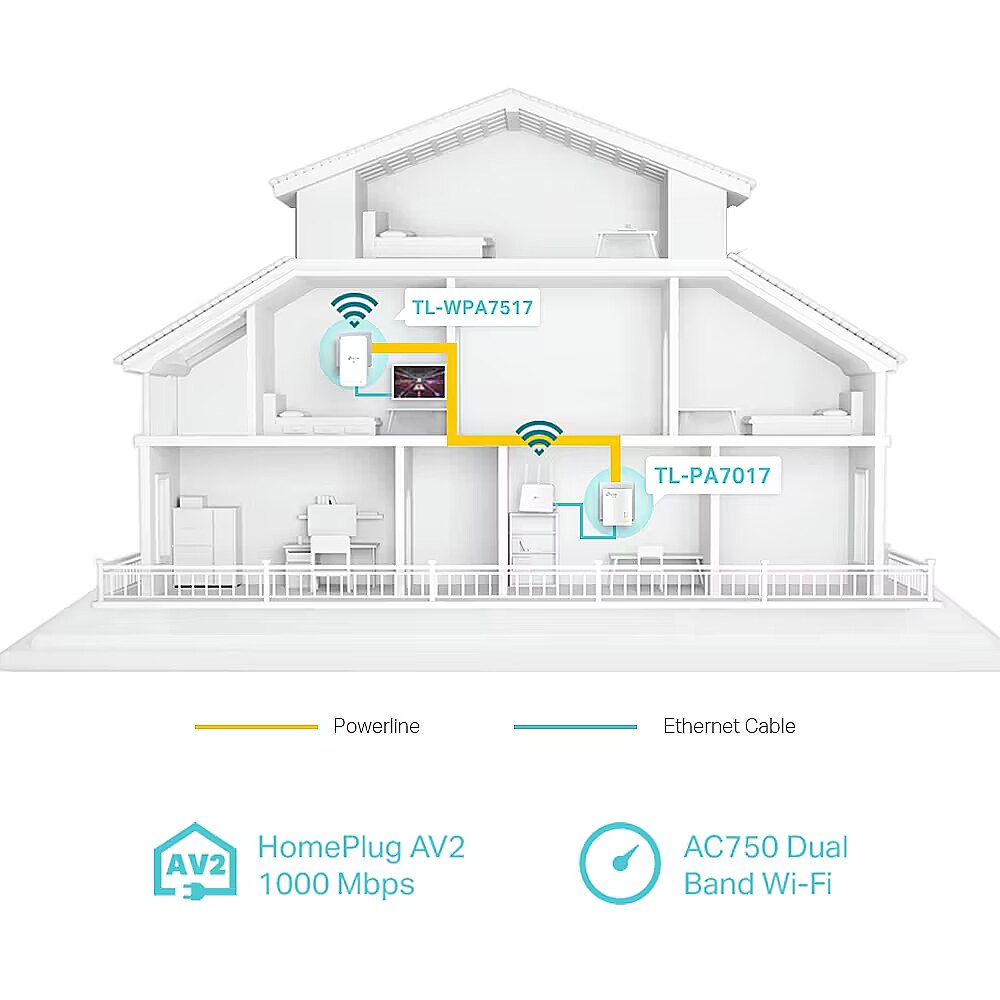

LongDesc - Extend AC750 Wi-Fi to Every Room Using Existing Electrical SystemAV1000 Gigabit Powerline ac Wi-Fi KitExtend Wired and Wireless Network Using Electrical SystemTL-WPA7517 KIT transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet.- > No need for drilling or wire installation- > Network passes through walls and floors- > Expand coverage by adding more extenders- > Powerline adapters must be deployed in sets of two or more and be connected to the same electrical circuitAV1000 Speeds and 300 Meters RangeUsing advanced HomePlug AV2 technology, TL-WPA7517 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.AC750 Wi-Fi for an Advanced Online ExperienceWith the 802.11ac Wi-Fi technology, the TL-WPA7517 operates a dual band Wi-Fi network (simultaneous 300 Mbps on 2.4 GHz and 433 Mbps on 5 GHz) with more bandwidth and less interference, maximizing the performance of your powerline network.One Tap for a Unified NetworkOne-Touch Wi-Fi ConfigurationInstantly copies your network name and password from your router for easy setup.Gigabit Ethernet for Fast Wired ConnectionsOne Gigabit Ethernet port provides reliable high-speed wired connection for a bandwidth intensive device, such as game consoles, smart TVs, STB and more, or connects multiple devices by adding a switch. Two Ethernet cables are included in the box.Powerline Management on Your SmartphoneManage your powerline Wi-Fi through tpPLC app from your smartphone (Android, iOS), or download new tpPLC Utility on PCs to manage the powerline network.- View real-time powerline speed- LED control (also controlled by LED On/Off button)- Guest network
LongProductName - TL-WPA7517 + TL-PA7017, Gigabit Ethernet, Up to 300 m, OFDM (PLC)
LongSummaryDescription - TP-Link AV1000 Gigabit Powerline ac Wi-Fi Kit. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE..., Power plug: Type E. Power consumption (typical): 6.5 W. Product colour: White, Antenna type: Internal, LED indicators: LAN, PLC, Power, Wi-Fi. Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1. Width: 69.5 mm, Depth: 35 mm, Height: 124.1 mm
Name - TP-Link TL-WPA7517 KIT Powerline Kit 1x10/100/1000 port, 2.4GHz&5GHz, 1000Mbps, Wall Plugged | TP-LINK | Gigabit Powerline Kit | TL-WPA7517 | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 1+1 | 802.11ac | 2GHz/5GHz | Wi-Fi data rate (max) 300+433 Mbit/s
Networking > Frequency band - 2GHz/5GHz
Networking > Wi-Fi data rate (max) - 300+433 Mbit/s
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 230.00 mm
Package features > Gross depth master carton - 480 mm
Package features > Gross height (mm) - 190 mm
Package features > Gross height master carton - 420 mm
Package features > Gross width (mm) - 100 mm
Package features > Gross width master carton - 400 mm
Package features > Net weight master carton - 9.696 kg
Package features > Packing quantity - 16 pc(s)
Package features > Palette Qty - 336 pc(s)
Package features > Paper/Pasteboard - 136.00 g
Package features > Plastic (No PET) - 34.00 g
Package features > Tare weight (kg) - 0.17 kg
Package features > Tare weight master carton - 1.371 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Quick installation guide - Yes
Performance - Built-in power socket - No
Performance - Encryption button - Yes
Performance - Ethernet LAN - Yes
Performance - Ethernet LAN (RJ-45) ports - 2
Performance - Ethernet LAN data rates - 10,100,1000 Mbit/s
Performance - Ethernet LAN interface type - Gigabit Ethernet
Performance - Maximum data transfer rate - 1000 Mbit/s
Performance - Maximum operating distance - 300 m
Performance - Modulation - OFDM
Performance - Networking standards - IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Performance - Plug and Play - Yes
Performance - PowerLine standard - HomePlug AV2
Performance - Power plug - Type E
Performance - Security algorithms - WEP, WPA-PSK, WPA2-PSK
Performance - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Performance - Wi-Fi - Yes
Performance - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Performance - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Performance - WLAN data transfer rates supported - 300,433 Mbit/s
Ports & interfaces > Ethernet LAN (RJ-45) ports - 1+1
Power - Power consumption (typical) - 6.5 W
Producer product family - Gigabit Powerline Kit
Producer product name - TL-WPA7517

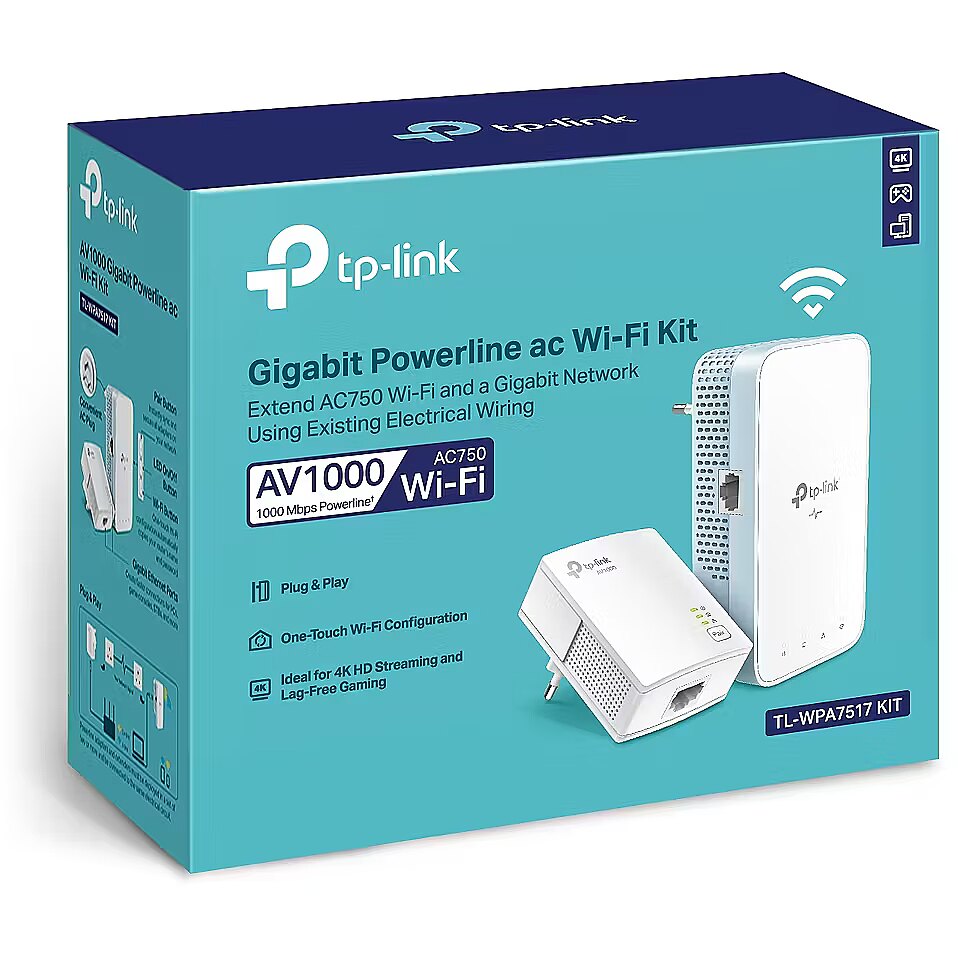

ProductName - AV1000 Gigabit Powerline ac Wi-Fi Kit
Shipping Box Depth Shipping/Package Box Dimensions - 23 cm
Shipping Box Height Shipping/Package Box Dimensions - 10 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.605 kg
Shipping Box Width Shipping/Package Box Dimensions - 19 cm
ShortSummaryDescription - TP-Link AV1000 Gigabit Powerline ac Wi-Fi Kit, 1000 Mbit/s, IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE..., Type E, Gigabit Ethernet, 10,100,1000 Mbit/s, Wi-Fi 5 (802.11ac)
System requirements - Linux operating systems supported - Yes
System requirements - Mac compatibility - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Windows operating systems supported - Windows 10, Windows 7, Windows 8, Windows 8.1
Technical details > Ethernet LAN data rates - 10/100/1000 Mbit/s
Technical details > Extra socket - No
Technical details > Gross weight - 0.606 kg
Technical details > Net weight - 0.436 kg
Technical details > Other features - Powerline data transfer speed 1000Mbps
Technical details > Producer - TP-LINK
Title - TP-Link AV1000 Gigabit Powerline ac Wi-Fi Kit
Unit Box Height - 0.1
Unit Box Length - 0.23
Unit Box Width - 0.19
Unit Brutto Volume - 0.00437 cubm
Unit Gross Weight - 0.605 kg
Unit Net Weight - 0.39 kg
URL - https://www.tp-link.com/uk/home-networking/powerline/tl-wpa7517-kit/
Vendor Homepage - www.tp-link.com/bg/home-networking/powerline/tl-wpa7517-kit/
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 35 mm
Weight & dimensions - Height - 124.1 mm
Weight & dimensions - Package depth - 190 mm
Weight & dimensions - Package height - 100 mm
Weight & dimensions - Package weight - 560 g
Weight & dimensions - Package width - 230 mm
Weight & dimensions - Width - 69.5 mm
Wireless Frequency Range - 2.4 and 5GHz
Wireless LAN features > Wi-Fi band - 802.11ac
