Accessories included -
Brand - ICY BOX
BrandPartCode - 60790
Category - Laptop Docks & Port Replicators
Category_1 - Computers and Laptops
Category_2 - Laptop - Accessories
Color - Black
Color - Gray
Compatible with -
Description - 7-in-1
USB4 DockingStation with dual video output IB-DK408-C41 Multi-Monitor Support: The IB-DK408-C41 supports output to up to two monitors simultaneously, extending the available workspace of your setup massively, and making multitasking easier High-Resolution Display: The DockingStation supports 8K resolution on one additional single or 4K resolution on two monitors, offering you great visual quality for media and gaming as well as the best basis for creative tasks USB4 and Thunderbolt 4: The IB-DK408-C31 is at the forefront of USB4 connection technology, supporting upstream up to 40 Gbit/s, and supporting both Thunderbolt 3-/4 and USB Type-C 3.2 devices on compatible systems Fast Charging: Simply attach the IB-DK408-C41 to the USB Type-C charging port of your device and the USB Type-C power supply unit (PSU) to the DockingStation for USB Type-C Power Delivery pass-through with up to 100 W (PSU not included) Gigabit Ethernet Connection: The DockingStation is equipped with a Gigabit Ethernet port. This feature offers a reliable network connection with up to 1000 Mbit/s which is essential for application areas that require a fast internet performance Portable and Convenient: With its compact and lightweight design, the IB-DK408-C41 is highly portable. It is perfect for users who frequently travel or work from different locations
dimension depth - 200 mm
dimension height - 200 mm
Dimensions - 100x100x28 mm
dimension weight - 279 g
dimension width - 140 mm
Docking connector - No
ean - 4250078171263
EAN_code - 4250078171263
GTIN - 4250078171263
guarantee - 24
guarantee_type - normal
I/O ports - 1 x 3,5 mm minijack (Combo)

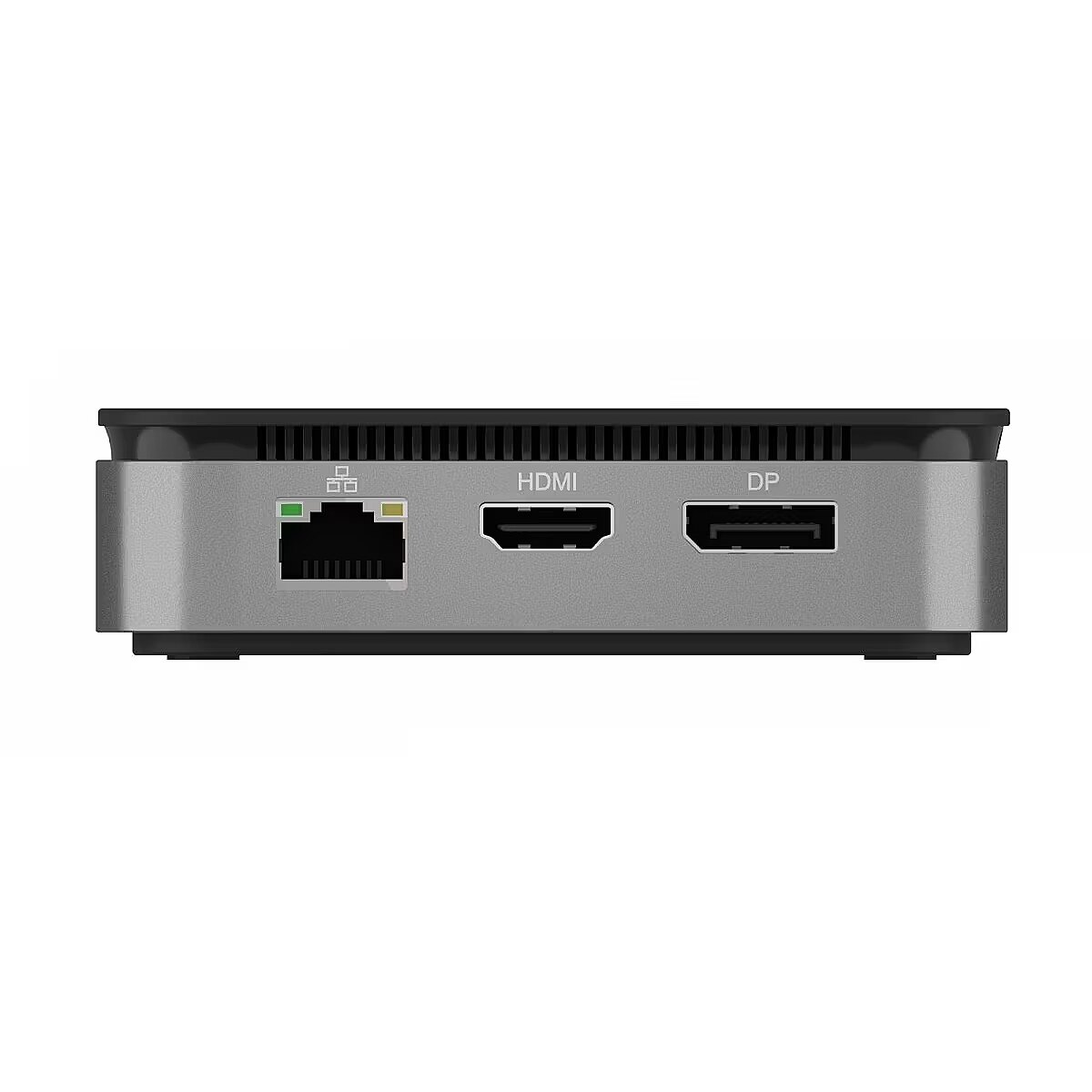

I/O ports - 1 x DisplayPort
I/O ports - 1 x HDMI Type A
I/O ports - 1 x RJ-45 (LAN)
I/O ports - 1 x USB 3.1 Type C
I/O ports - 1 x USB power
I/O ports - 2 x USB 3.1 Type A
Logistics data - Master (outer) case gross weight - 6.18 kg
Logistics data - Master (outer) case height - 160 mm
Logistics data - Master (outer) case length - 430 mm
Logistics data - Master (outer) case width - 355 mm
Logistics data - Products per master (outer) case - 20 pc(s)
LongDesc - USB4® – Connectivity evolvedStep into the future with USB4® technology. Experience top-tier data transfer and power delivery, matching Thunderbolt™ 4 performance. Transform your workflow with USB-C designed for speed, versatility, and peak performance.One connection, seven devicesHarness the power of connectivity with our DockingStation. Connect up to seven devices via one USB4® connection, offering unrivalled transfer speeds. Benefit from an array of ports and the convenience of Plug & Play and HotSwap, ensuring optimal productivity.Power-packed mobilityPower up your mobility with our DockingStation, equipped with USB4® tech for rapid data transfers. Simultaneously charge devices via USB Type-C® PD 3.0. Expand to dual 4K or a single 8K display, all in a compact, lightweight design ideal for any mobile workspace.
LongProductName - 7-in-1 USB4 DockingStation with dual video output
LongSummaryDescription - ICY BOX 7-in-1 USB4® DockingStation with dual video output. Connectivity technology: Wired, Host interface: USB4, USB Power Delivery up to: 60 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Anthracite, Data transfer rate: 40 Gbit/s, Maximum digital resolution: 7680 x 4320 pixels. Power source type: USB, Output voltage: 5-20 V. Width: 100 mm, Depth: 100 mm, Height: 28 mm
Manufacturer - Icy Box
Manufacturer_code - IB-DK408-C41
name - ICY BOX IB-DK408-C41 7in1,HDMI,DP,USB,LAN
Name - ICY BOX IB-DK408-C41, docking station (anthracite, USB-C, USB-A, HDMI, DisplayPort, RJ-45)
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Other features -
Packaging content - Manual - Yes
Packaging data - Package depth - 167 mm
Packaging data - Package height - 40 mm
Packaging data - Package weight - 278 g
Packaging data - Package width - 136 mm
Packaging data - Quantity per pack - 1 pc(s)
Performance - Card reader integrated - No
Performance - Country of origin - Taiwan
Performance - Data transfer rate - 40 Gbit/s
Performance - Housing material - Acrylonitrile butadiene styrene (ABS)
Performance - LED indicators - Access, Power
Performance - Maximum digital resolution - 7680 x 4320 pixels
Performance - Maximum refresh rate - 144 Hz
Performance - Number of displays supported - 2
Performance - Product colour - Anthracite
Performance - UASP support - Yes
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.4
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Host interface - USB4
Ports & interfaces - Microphone in - No
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Ports & interfaces - USB Power Delivery - Yes
Ports & interfaces - USB Power Delivery revision - 3.0
Ports & interfaces - USB Power Delivery up to - 60 W
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Power - Output voltage - 5-20 V
Power - Power source type - USB
producer - IcyBox
ProductName - 7-in-1 USB4® DockingStation with dual video output
ShortSummaryDescription - ICY BOX 7-in-1 USB4® DockingStation with dual video output, Wired, USB4, 60 W, 3.5 mm, 10,100,1000 Mbit/s, Anthracite
Software - Mac operating systems supported - Yes
Software - Windows operating systems supported - Yes
System Requirements - USB4 Type-C / Thunderbolt 3/4 Type-C DisplayPort (Alt Mode) and Power Delivery support required
Title - ICY BOX 7-in-1 USB4® DockingStation with dual video output
URL - https://icybox.de/en/dockingstation/IB-DK408-C41
vendpn - IB-DK408-C41
WarrantyInfo -
Weight - 0,28
Weight - 0.172 kg
Weight & dimensions - Depth - 100 mm
Weight & dimensions - Height - 28 mm
Weight & dimensions - Weight - 172 g
Weight & dimensions - Width - 100 mm
