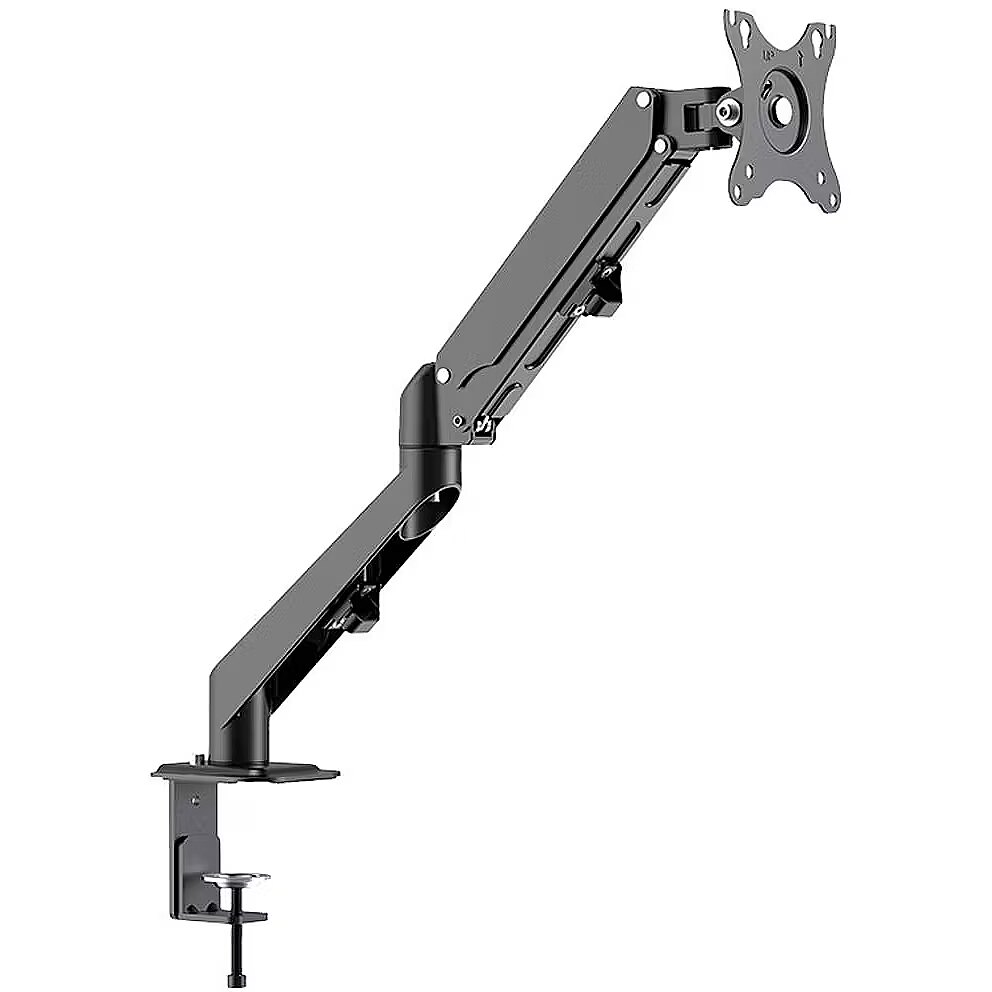

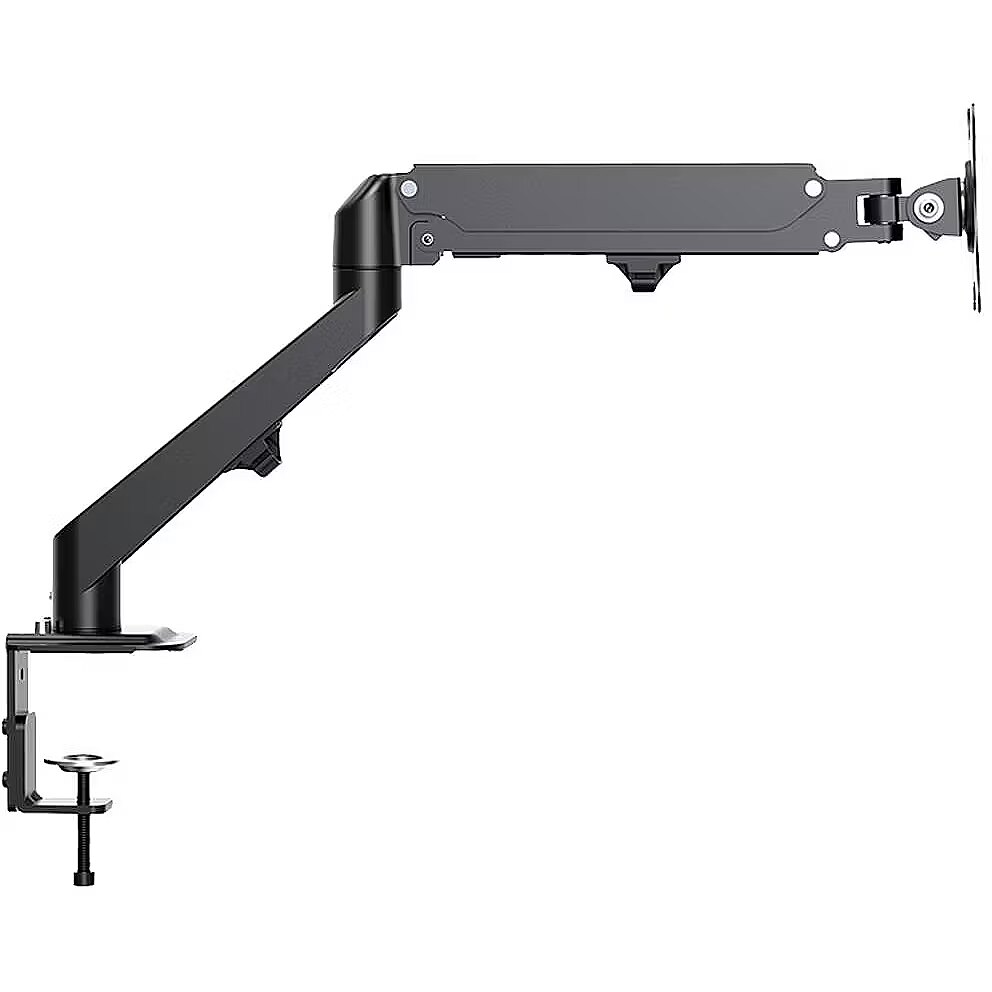

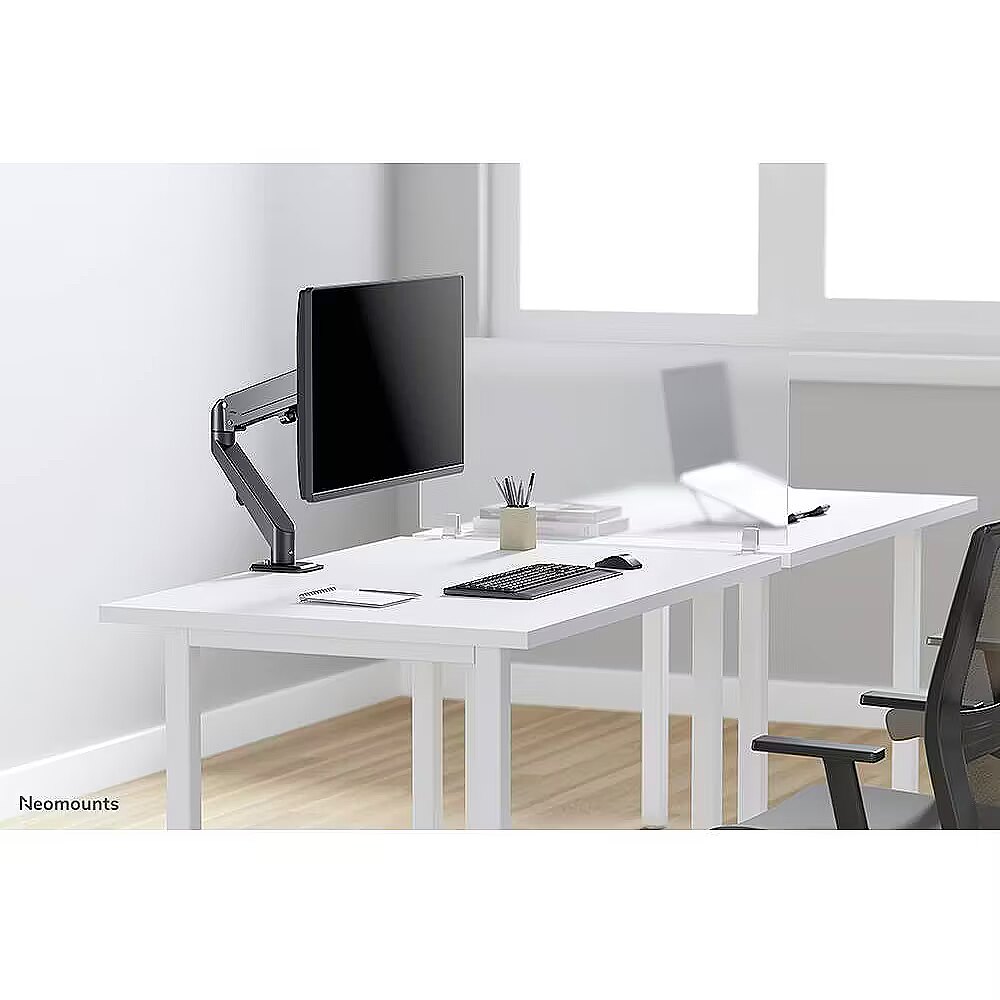

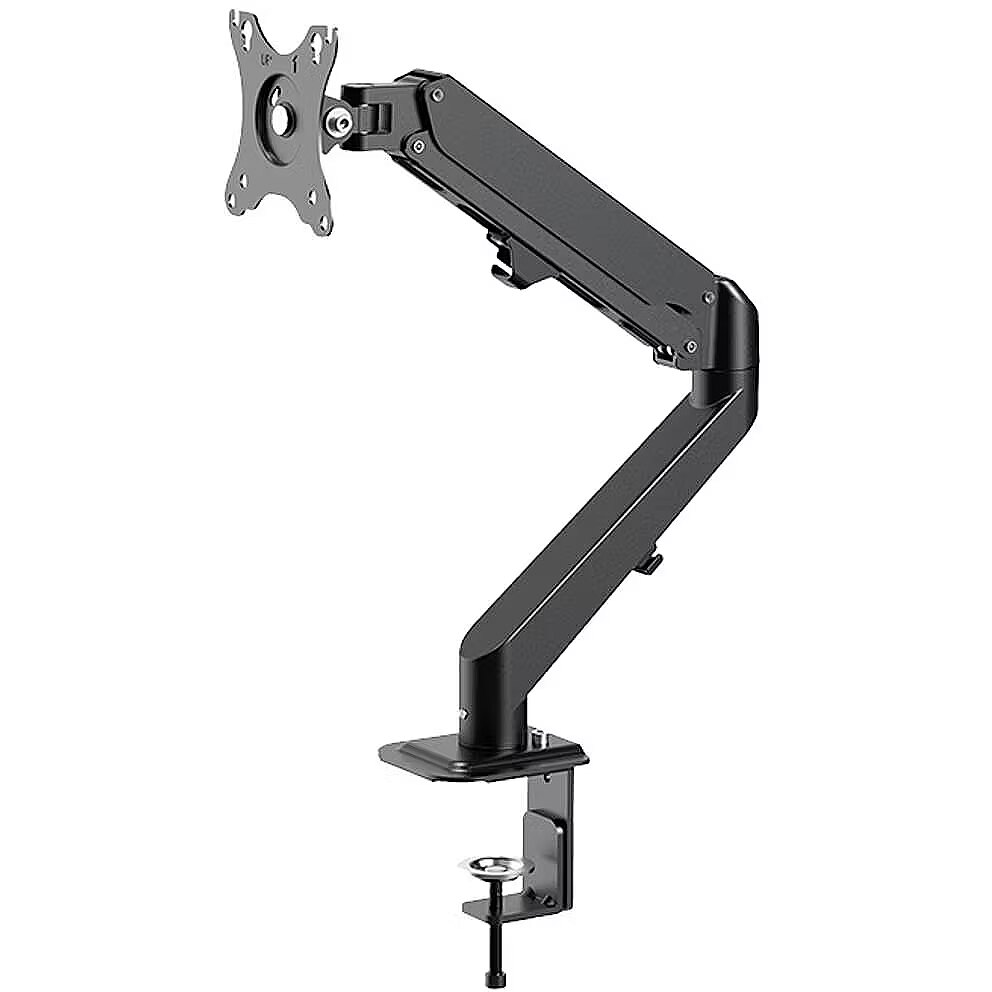

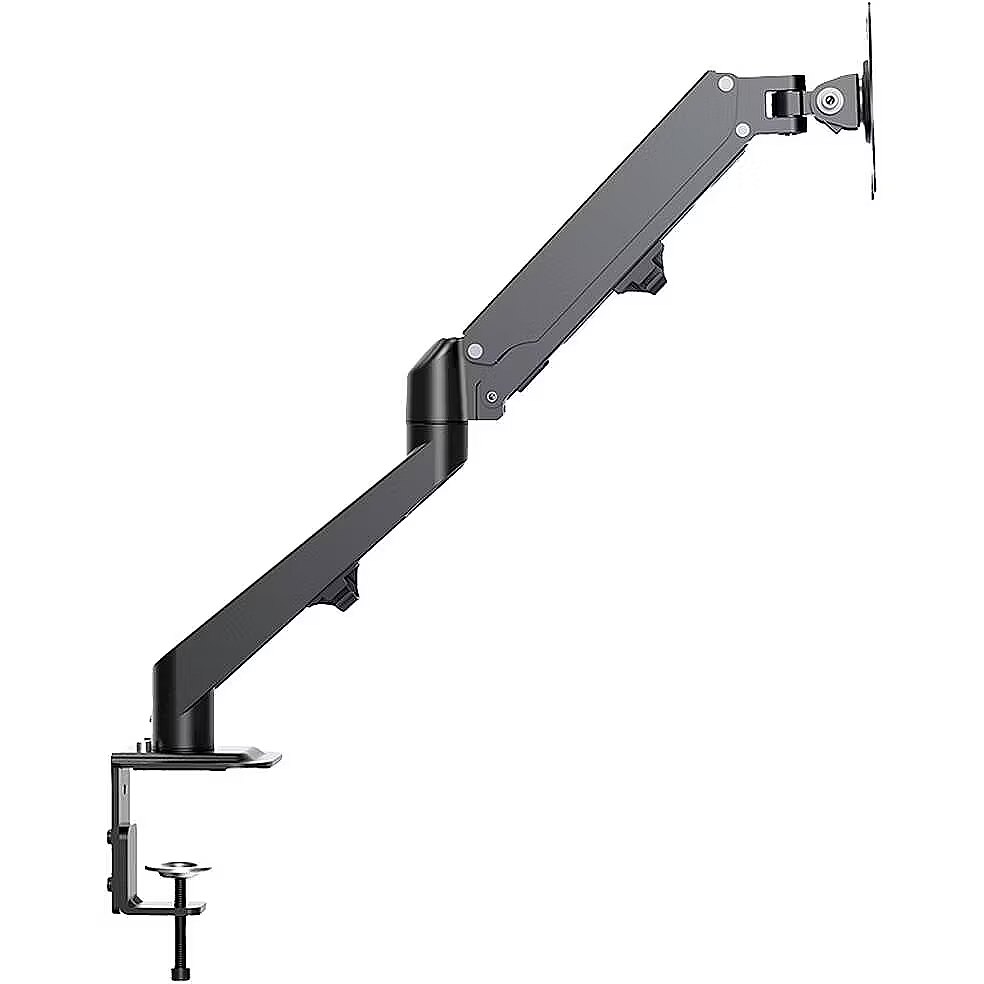

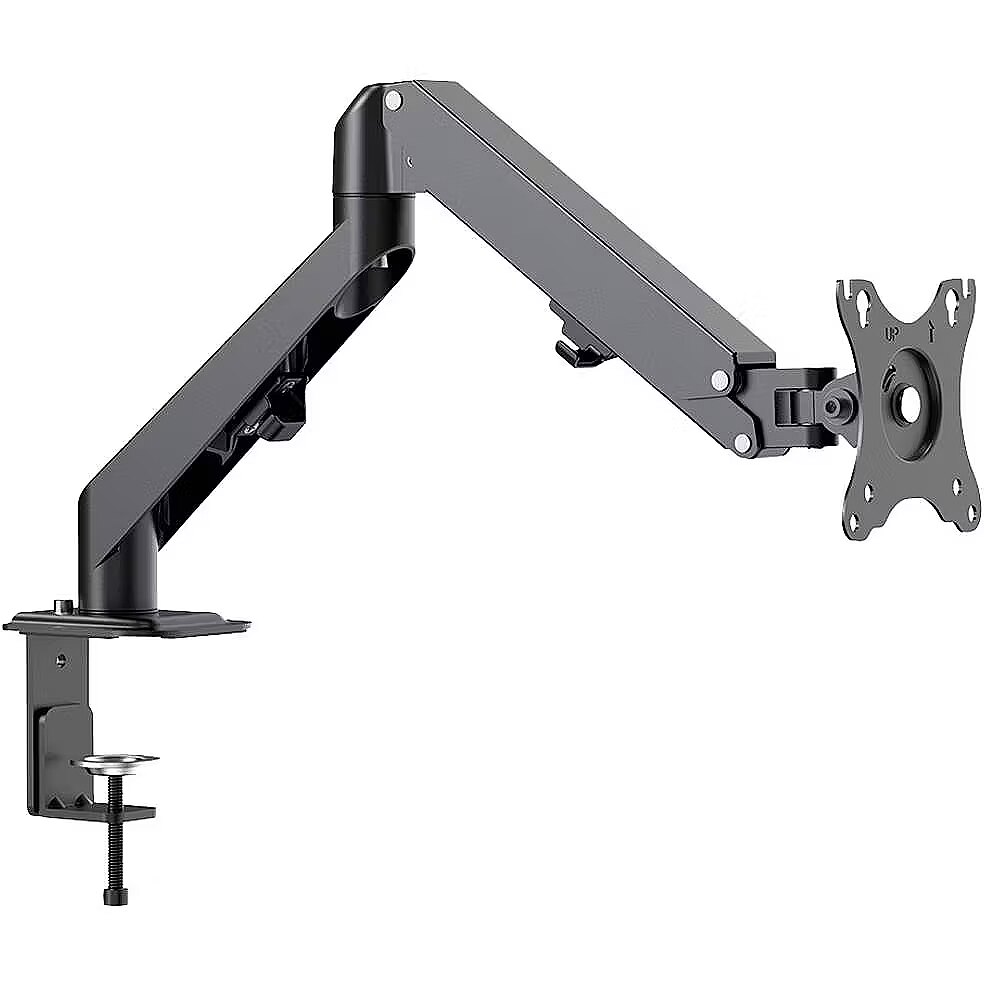

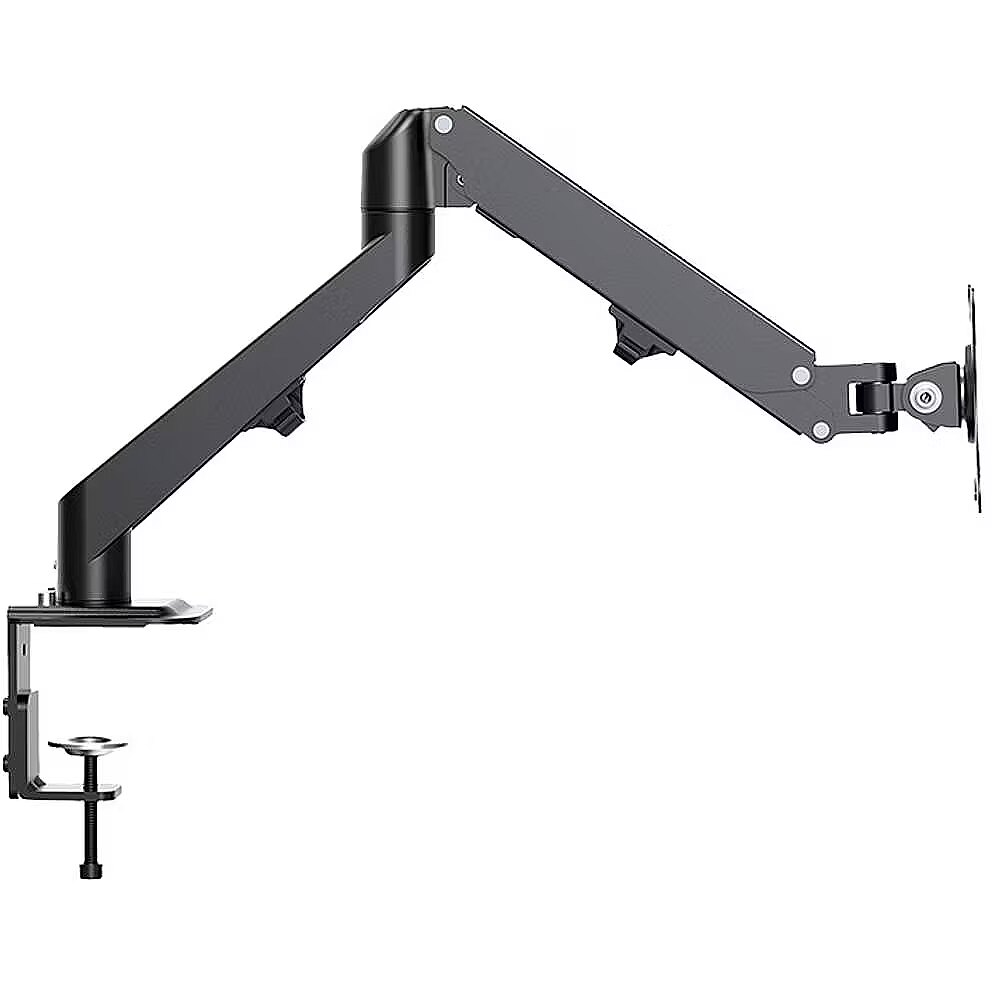

Newstar Full motion desk monitor arm, 17-27"

75 mm x 75 mm VESA mounting interface - Yes
100 mm x 100 mm VESA mounting interface - Yes
Brand - Neomounts
BrandPartCode - DS70-700BL1
Category - Monitor Mounts & Stands
Category Code - MAS
Colour - Black
Description - DS70-700BL1 Neomounts by Newstar monitor desk mount Neomounts by Newstar DS70-700BL1 full motion monitor desk mount for 17-27" screens - Black
Description - NEOMOUNTS BY NEWSTAR GAS SPRING DESK MOUNT (CLAMP/GROMMET)
Design - Housing material - Steel
Design - Orientation - Landscape/Portrait
Design - Product colour - Black
Ergonomics - Adjustable depth - Yes
Ergonomics - Angle of rotation - 360°
Ergonomics - Cable management - Yes
Ergonomics - Depth adjustment range - 0 - 480 mm
Ergonomics - Height adjustment - Yes

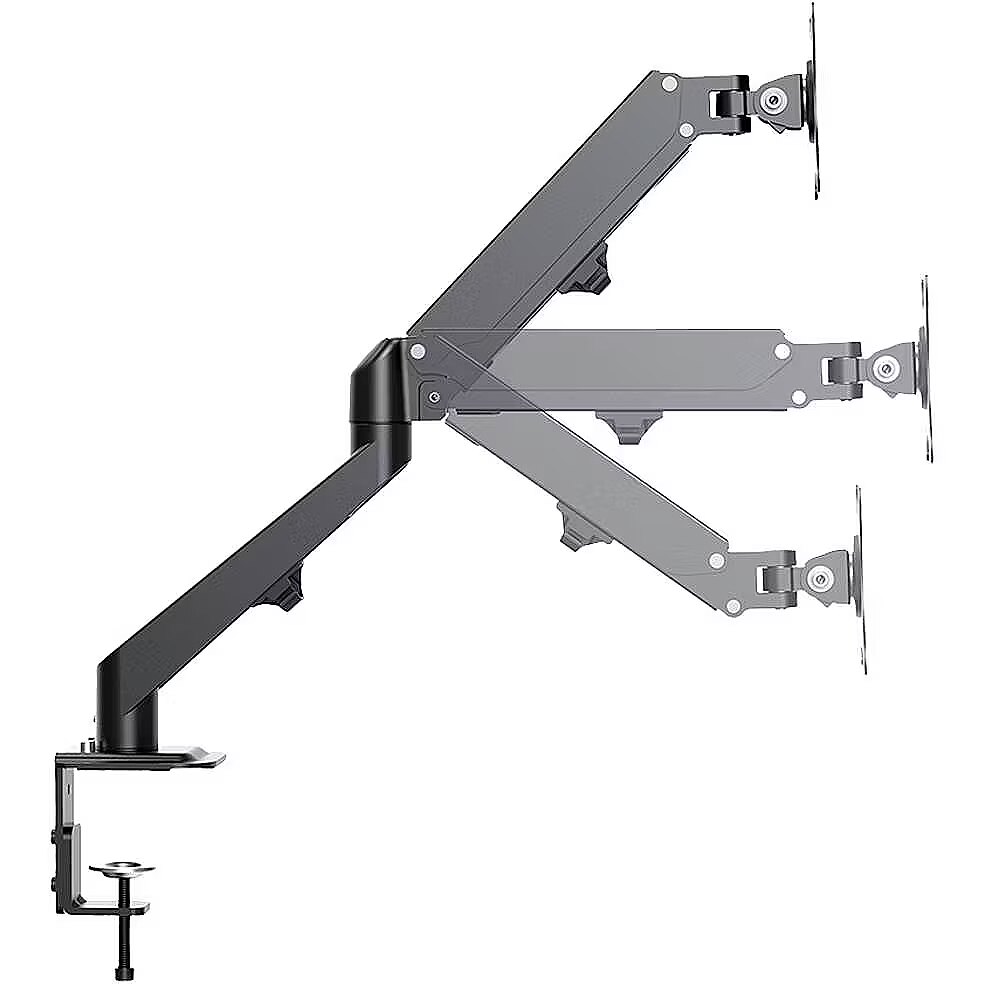

Ergonomics - Height adjustment range - 152 - 402 mm
Ergonomics - Height adjustment type - Gas spring
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle range - -90 - 90°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -45 - 90°
Fits screens sized - 17-27"
Full Description Line - Max. weight 7 kg|Fits screens sized 17-27"|75 mm x 75 mm|100 mm x 100 mm|Colour Black
GTIN - 8717371449261
Height - 95.000000
Length - 408.000000
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 2.5 kg
Logistics data - Master (outer) case height - 90 mm
Logistics data - Master (outer) case length - 270 mm
Logistics data - Master (outer) case net weight - 2.1 kg
Logistics data - Master (outer) case width - 405 mm
Logistics data - Products per master (outer) case - 1 pc(s)
Logistics data - Products per pallet (EU) - 135 pc(s)

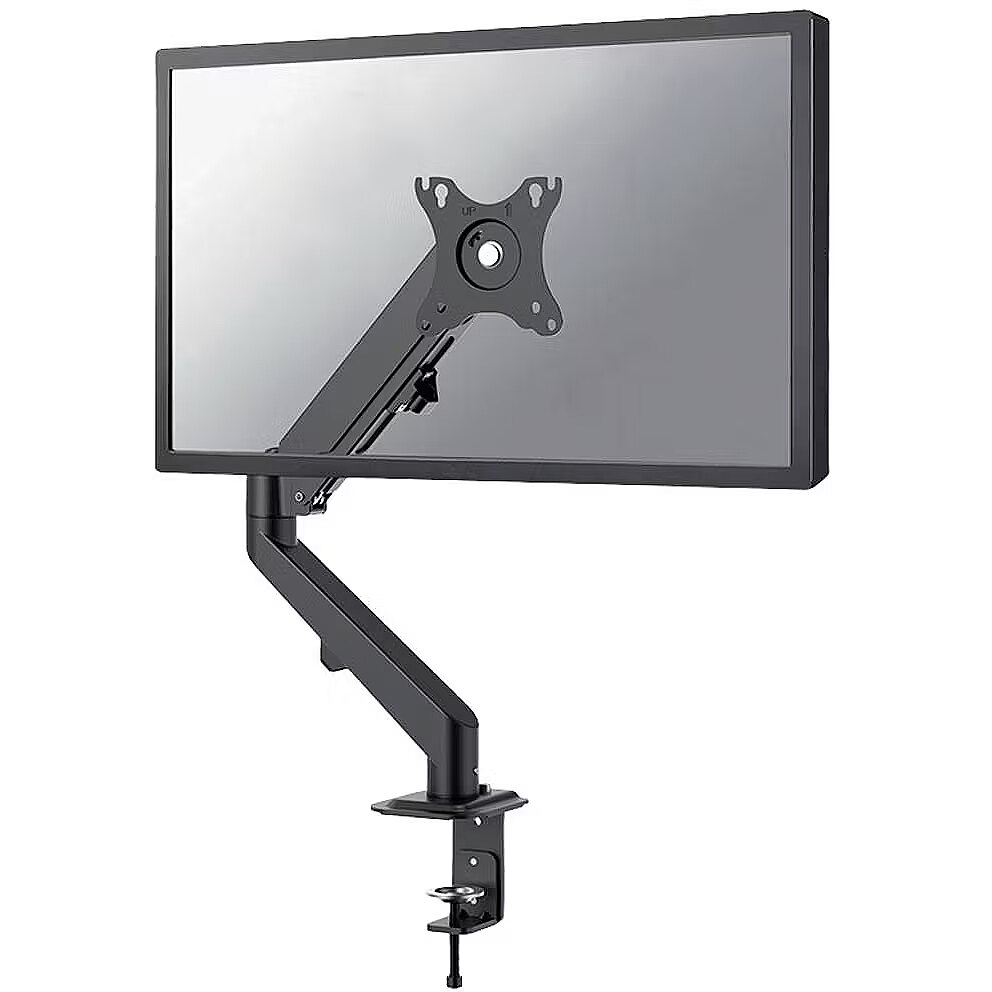

LongDesc - The Neomounts DS70-700BL1 is a full motion desk mount for one flat screen up to 27" with a maximum weight capacity of 7 kg. The versatile tilt (135°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screen. Additionally, the mount features gas spring height adjustment (15,2-40,2 cm) and depth adjustment (0-48 cm), to create the perfect working position. The DS70-700BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates.
LongProductName - Neomounts DS70-700BL1 full motion desk monitor arm for 17-27" screens - Black
LongSummaryDescription - Neomounts desk monitor arm. Mounting: Clamp, Maximum weight capacity: 7 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 90°. Product colour: Black
Manufacturer - NEOMOUNTS
ManufacturerPartNumber - DS70-700BL1
Max. weight - 7 kg
Mounting - Desk thickness (max) - 8 cm
Mounting - Desk thickness (min) - 1 cm
Mounting - Maximum screen size - 68.6 cm (27")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 7 kg
Mounting - Maximum weight capacity (per curved/ultra-wide display) - 7 kg
Mounting - Minimum screen size - 43.2 cm (17")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting - Clamp
Mounting - Mounting type - Desk
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 75 x 75,100 x 100 mm
Number of screens - 1
Other features - Minimum weight - 2 kg
Packaging data - Package depth - 270 mm
Packaging data - Package height - 90 mm
Packaging data - Package net weight - 2.5 kg
Packaging data - Package width - 405 mm
Packaging data - Quantity per pack - 1 pc(s)
PeriodofWarranty - 5 Y
ProductName - Neomounts desk monitor arm
Shipping Box Depth Shipping/Package Box Dimensions - 41 cm
Shipping Box Height Shipping/Package Box Dimensions - 10 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.48 kg
Shipping Box Width Shipping/Package Box Dimensions - 28 cm
Short summary - Neomounts by Newstar DS70-700BL1 full motion monitor desk mount for 17-27" screens - Black
ShortSummaryDescription - Neomounts desk monitor arm, Clamp, 7 kg, 43.2 cm (17"), 68.6 cm (27"), 100 x 100 mm, Black
Stand/mount type - Table
Title - Neomounts desk monitor arm
Unit Box Height - 0.1
Unit Box Length - 0.41
Unit Box Width - 0.28
Unit Brutto Volume - 0.01148 cubm
Unit Gross Weight - 2.48 kg
Unit Net Weight - 2.3 kg
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-700BL1
Vendor Homepage - www.neomounts.com/home-office-solutions/monitor-desk-mounts/ds70-700bl1-neomounts-by-newstar-monitor-desk-mount/
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 2.460000

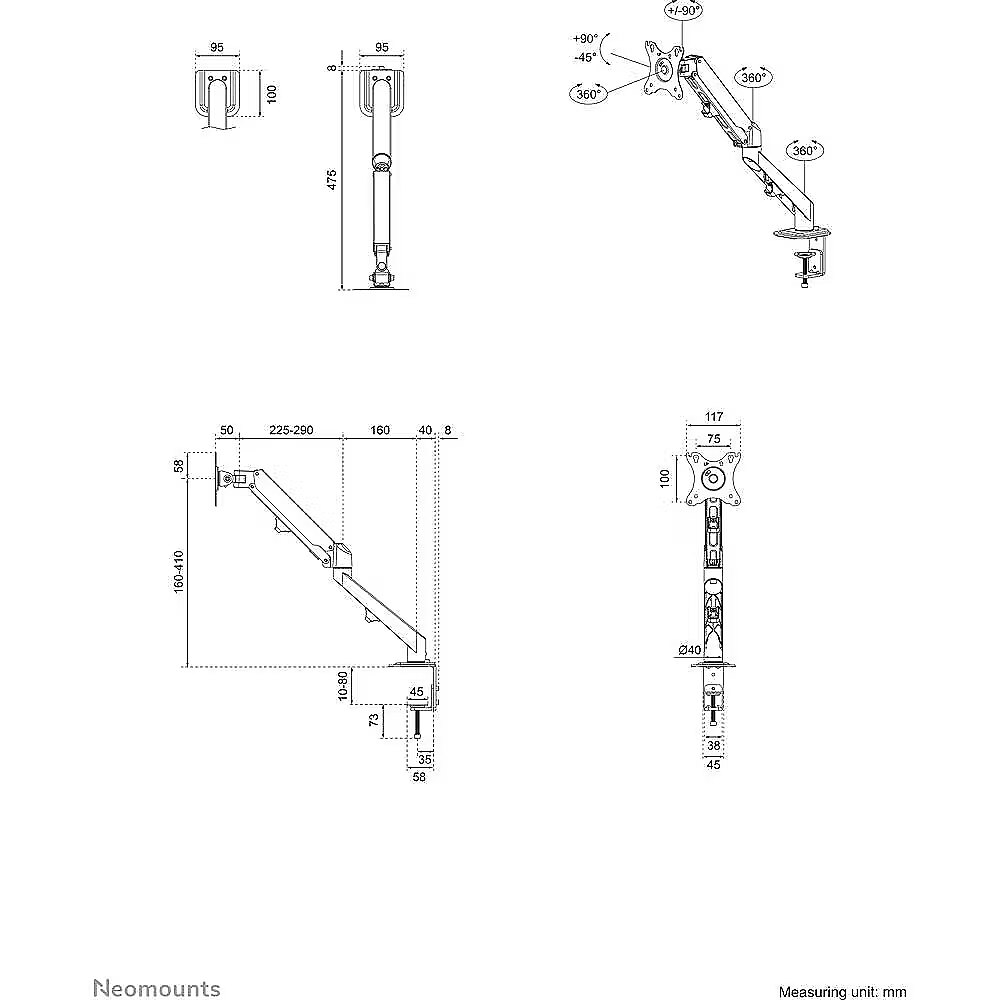

Weight & dimensions - Depth - 542 mm
Weight & dimensions - Height - 566 mm
Weight & dimensions - Width - 117 mm
Wheels - No
Width - 271.000000
