Newstar TV wall mount, 32-55"

75 mm x 75 mm VESA mounting interface - Yes
400 mm x 400 mm VESA mounting interface - Yes
Accessories included -
Brand - Neomounts
BrandPartCode - WL70-550BL14
Category - Monitor Mounts & Stands
Category - Root/Electronics/PC peripherals/Accessories/Grip holders/Wall brackets
Category 1 - Displays
Category 2 - Display Zubehör
Category Code - MAS
Color - Black
Colour - Black
Corner mount - No
Description - NEOMOUNTS BY NEWSTAR WALL MOUNTED GAS SPRING TV MOUNT (3 PIVOTS VESA 400X400)
Description - Neomounts by Newstar WL70-550BL14 is a full size wall mount for flat screens up to 55 with a maximum load capacity of 30 kg.
Description - WL70-550BL14 Neomounts by Newstar tv wall mount Neomounts by Newstar WL70-550BL14 full motion wall mount for 32-55" screens - Black
Design - Housing material - Steel
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 75 mm
dimension height - 500 mm
Dimensions - Height: 45 cm Type of adjustment: gas spring Height adjustment: 0-28,2 cm Width: 45 cm
dimension weight - 5500 g
dimension width - 365 mm
Distance to wall - 56 cm
ean - 8717371449063
EAN - 8717371449063
Eans - 8717371449063
Ergonomics - Angle of rotation - 6°
Ergonomics - Cable management - Yes
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 45 - 327 mm

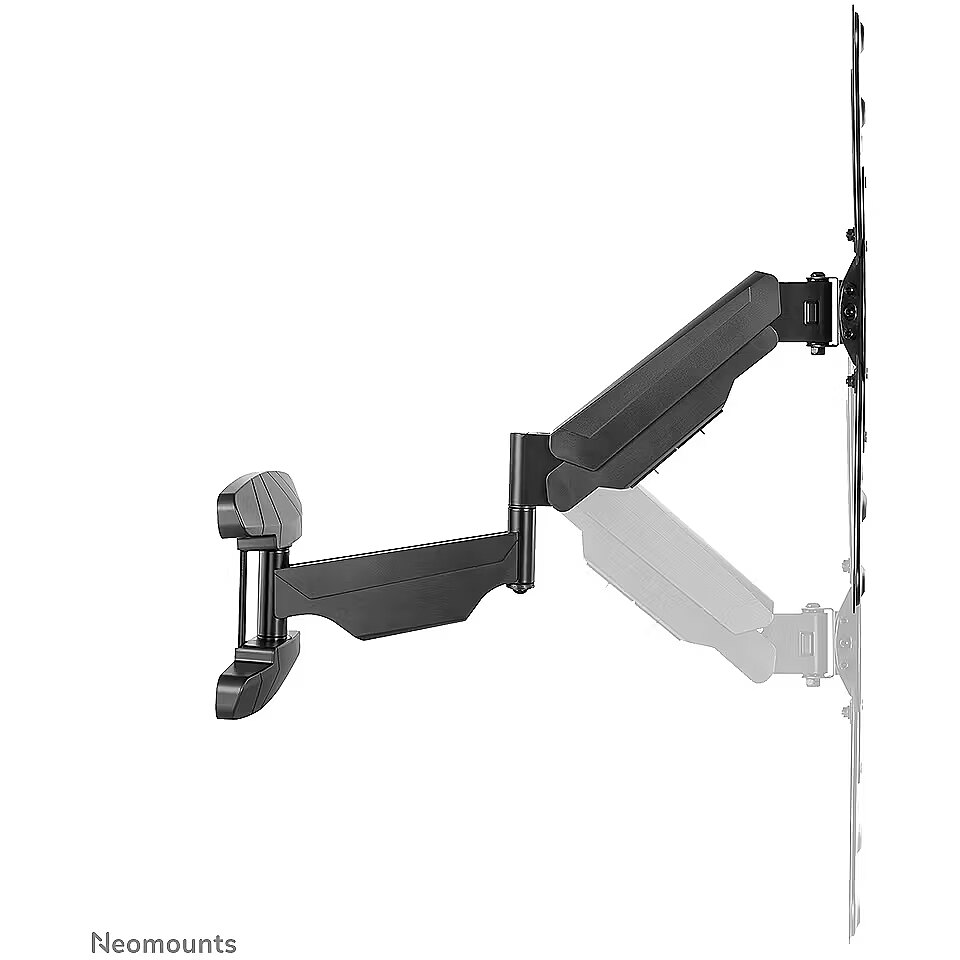

Ergonomics - Height adjustment type - Gas spring
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 180°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -15 - 5°
Fits screens sized - 32-55"
Full Description Line - Max. weight 30 kg|Fits screens sized 32-55"|Distance to wall 56 cm|75 mm x 75 mm|400 mm x 400 mm|Colour Black
GTIN - 8717371449063
guarantee - 60
guarantee_type - normal
Height - 365.000000
Length - 78.000000
Load (max) - 30 kg
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 17.5 kg
Logistics data - Master (outer) case height - 345 mm
Logistics data - Master (outer) case length - 520 mm
Logistics data - Master (outer) case net weight - 13.8 kg
Logistics data - Master (outer) case width - 380 mm
Logistics data - Products per master (outer) case - 3 pc(s)
Logistics data - Products per pallet (EU) - 72 pc(s)
LongDesc - The Neomounts WL70-550BL14 is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 30 kg. The versatile tilt (20°) and swivel (180°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.The WL70-550BL14 has a depth of 6,1-56,5 cm and is suitable for screens that meet VESA hole pattern 75x75 to 400x400 mm. The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.
LongProductName - Neomounts WL70-550BL14 full motion wall mount for 32-55" screens - Black
LongSummaryDescription - Neomounts tv wall mount. Mounting: Screws, Maximum weight capacity: 30 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 400 x 400 mm. Height adjustment, Tilt angle range: -15 - 5°. Product colour: Black
Manufacturer - NEOMOUNTS
Manufacturer - Newstar
ManufacturerPartNumber - WL70-550BL14
Max. weight - 30 kg
Maximum weight (capacity), kg - 30
Mounting - Distance to the wall (max) - 56.5 cm
Mounting - Distance to the wall (min) - 6.1 cm
Mounting - Maximum screen size - 139.7 cm (55")
Mounting - Maximum VESA mount - 400 x 400 mm
Mounting - Maximum weight capacity - 30 kg
Mounting - Minimum screen size - 81.3 cm (32")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting - Screws
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 300,400 x 400
MPN - WL70-550BL14
Name - Neomounts by Newstar WL70-550BL14
Name - Neomounts Wandhalterung, voll beweglich, für 32-55" Bildschirme 30KG WL70-550BL14
name - WL70-550BL14 tv wall mount
Number of screens - 1
Other features -
Other features - Minimum weight - 5 kg
Packaging data - Package depth - 505 mm
Packaging data - Package height - 75 mm
Packaging data - Package net weight - 5.5 kg
Packaging data - Package weight - 5.5 kg
Packaging data - Package width - 365 mm
Packaging data - Quantity per pack - 1 pc(s)
PeriodofWarranty - 5 Y
producer - Neomounts
Producer - Neomounts
ProducerCode - WL70-550BL14
ProductName - Neomounts tv wall mount
Range (max) - 56.5 cm
Range (min) - 6.1 cm
Screen size (max) - 55 ''
Screen size (min) - 32 ''
Shipping Box Depth Shipping/Package Box Dimensions - 50 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 5.45 kg
Shipping Box Width Shipping/Package Box Dimensions - 37 cm
ShortDescription -
Short summary - Neomounts by Newstar WL70-550BL14 full motion wall mount for 32-55" screens - Black
ShortSummaryDescription - Neomounts tv wall mount, Screws, 30 kg, 81.3 cm (32"), 139.7 cm (55"), 400 x 400 mm, Black
Stand/mount type - Wall
Tilt - Yes
Title - Neomounts tv wall mount
Type - Wall
Unit Box Height - 0.08
Unit Box Length - 0.5
Unit Box Width - 0.37
Unit Brutto Volume - 0.0148 cubm
Unit Gross Weight - 5.45 kg
Unit Net Weight - 5.2 kg
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=WL70-550BL14
Usage - Monitors
Vendor Homepage - www.neomounts.com/monitor/wall-mounts/wl70-550bl14-neomounts-by-newstar-tv-wall-mount/
vendpn - WL70-550BL14
VESA - 75 x 75
VESA - 400 x 400
VESA-standard, mm - 400 x 400
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 5.41
Weight - 5.380000
Weight & dimensions - Depth - 565 mm
Weight & dimensions - Height - 450 mm
Weight & dimensions - Width - 450 mm
Wheels - No
Width - 505.000000
