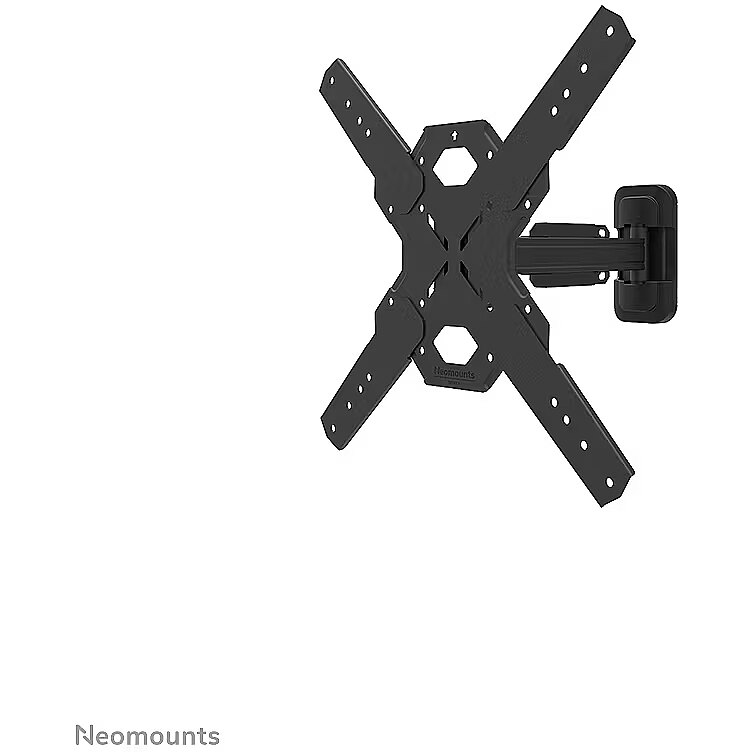

Newstar TV wall mount, 32-65"

100 mm x 100 mm VESA mounting interface - Yes
200 mm x 100 mm VESA mounting interface - Yes
200 mm x 200 mm VESA mounting interface - Yes
300 mm x 200 mm VESA mounting interface - Yes
300 mm x 300 mm VESA mounting interface - Yes
400 mm x 200 mm VESA mounting interface - Yes
400 mm x 300 mm VESA mounting interface - Yes
400 mm x 400 mm VESA mounting interface - Yes
Accessories included -
Brand - Neomounts
BrandPartCode - WL40S-840BL14
Category - TV Mounts & Stands
Category Code - MAS
Color - Black
Colour - Black
Corner mount - No

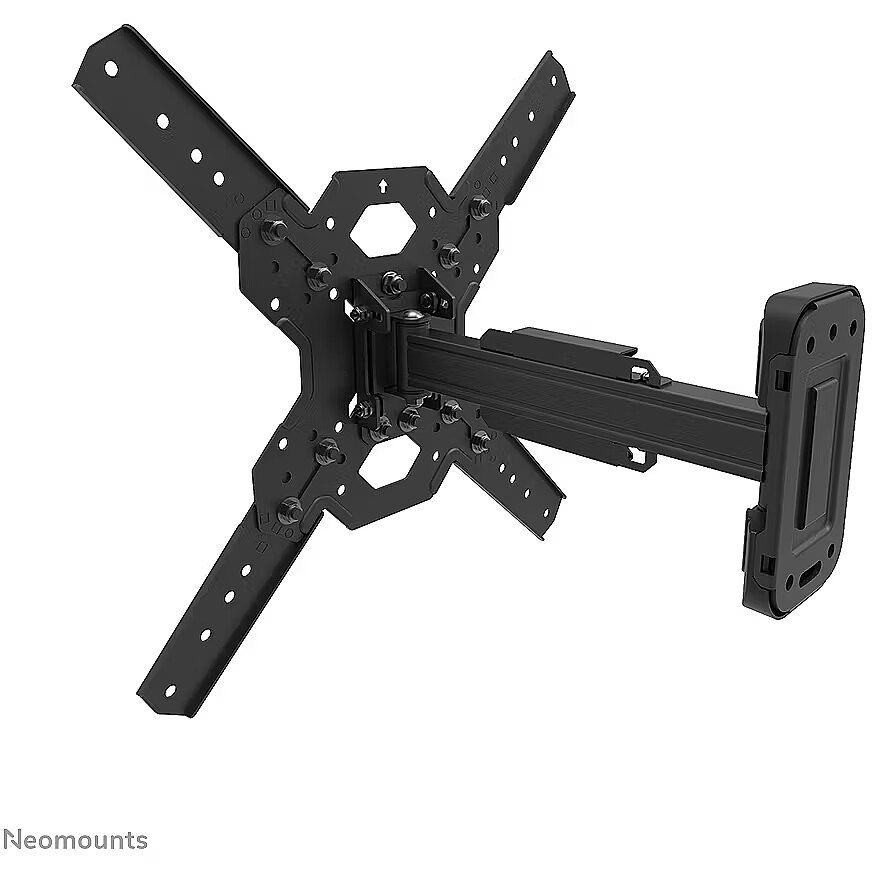

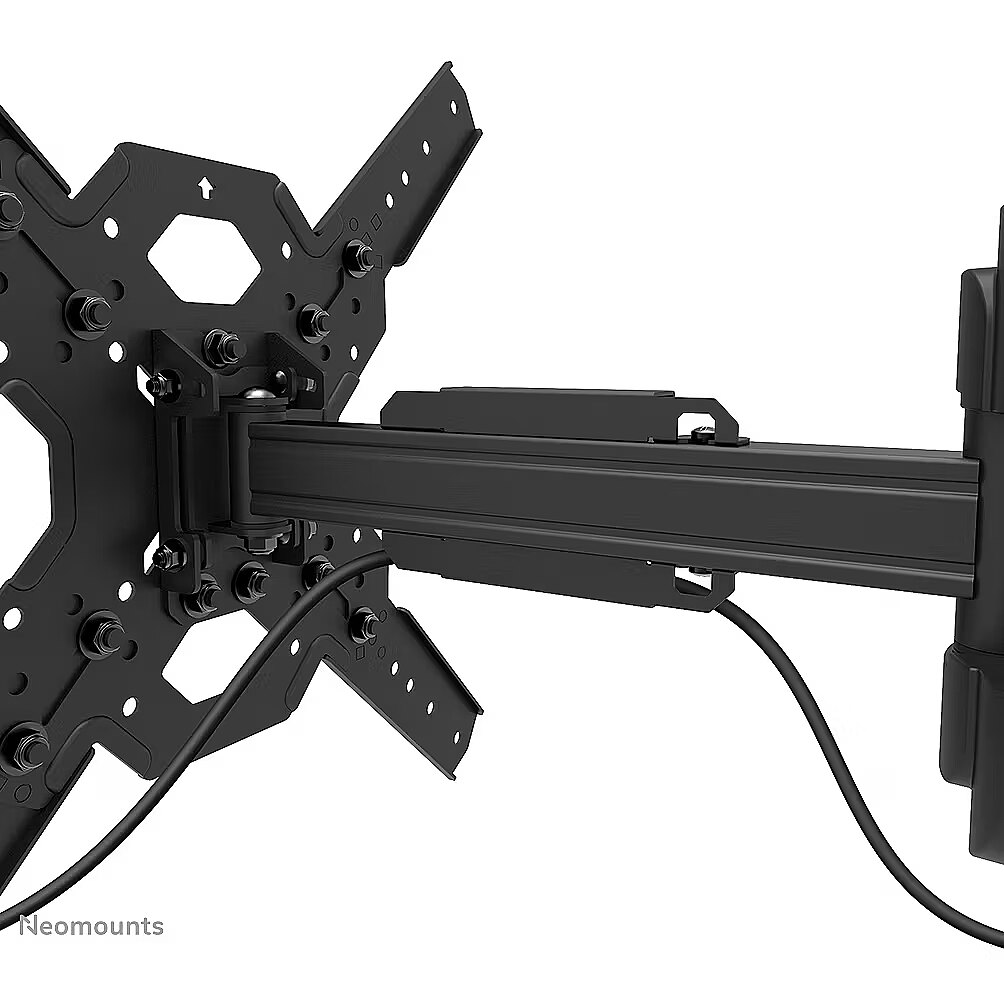

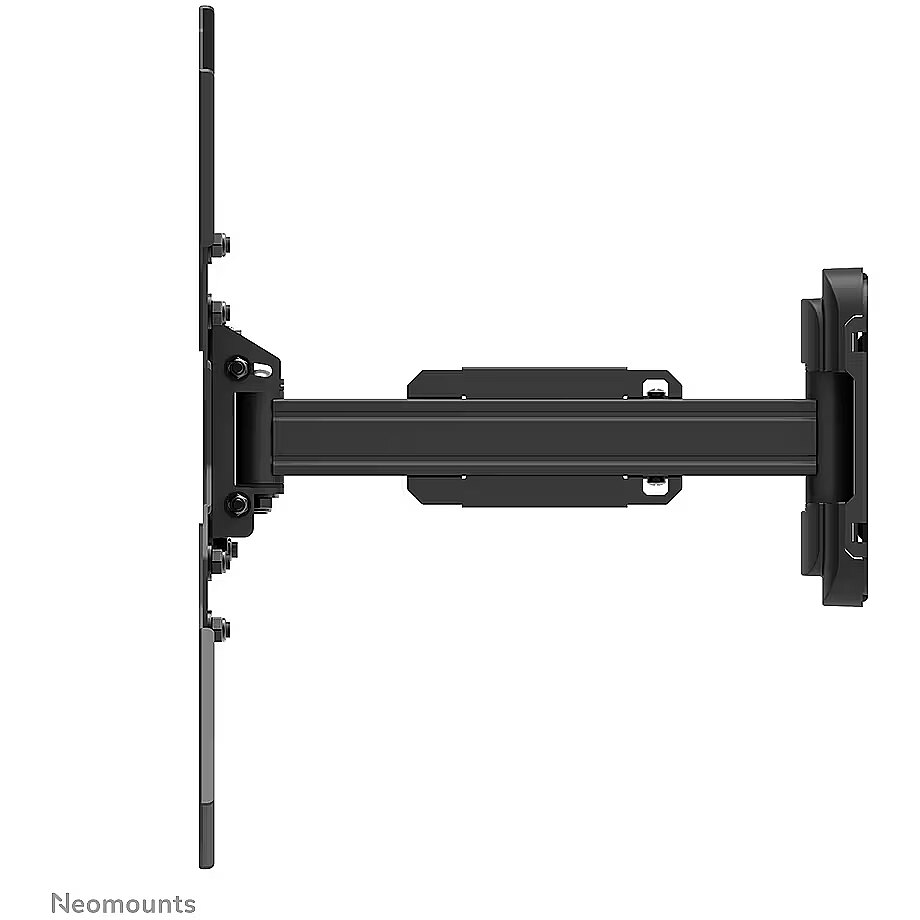

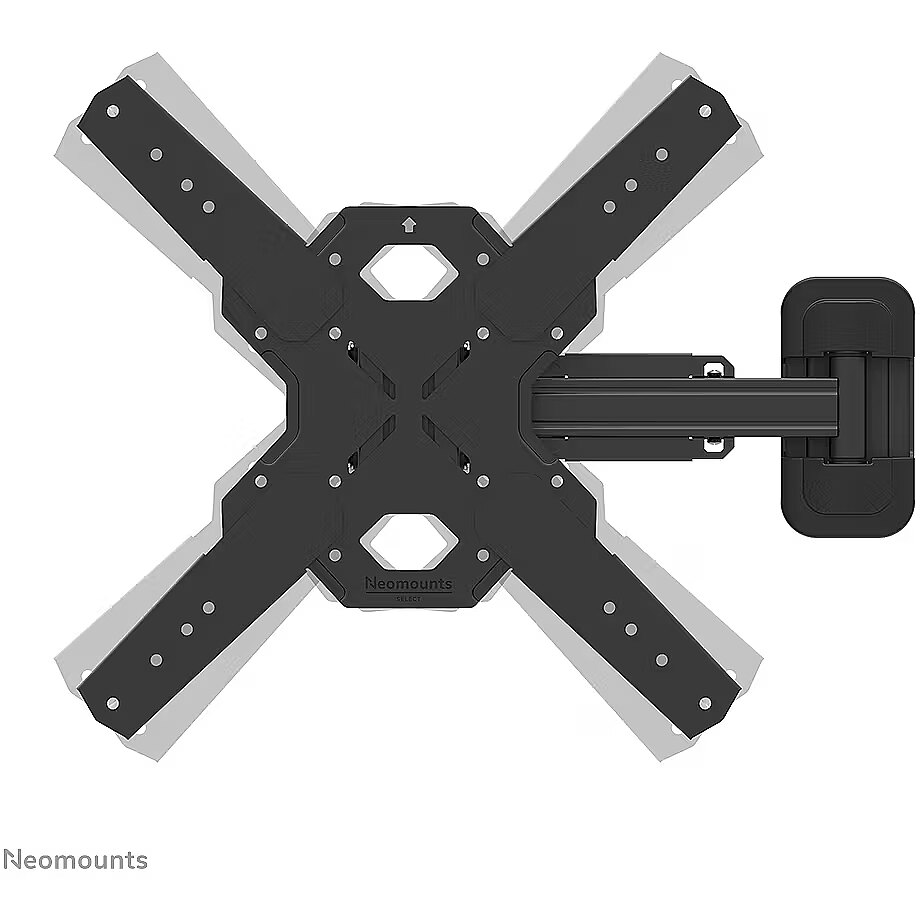

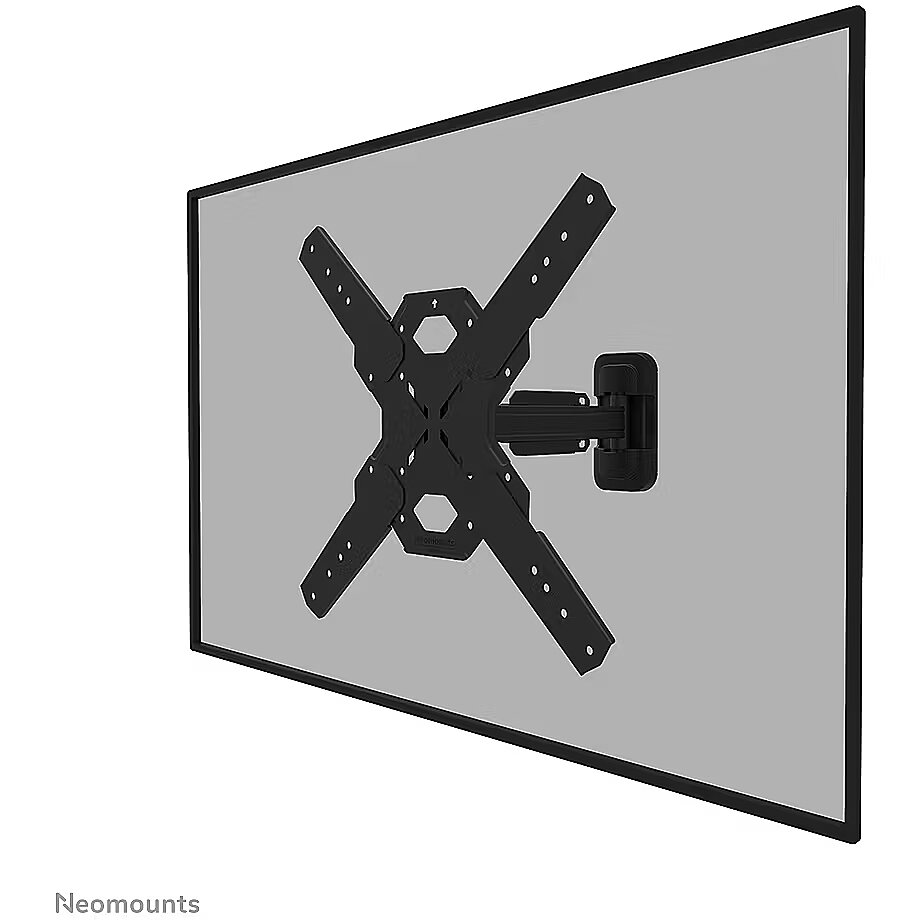

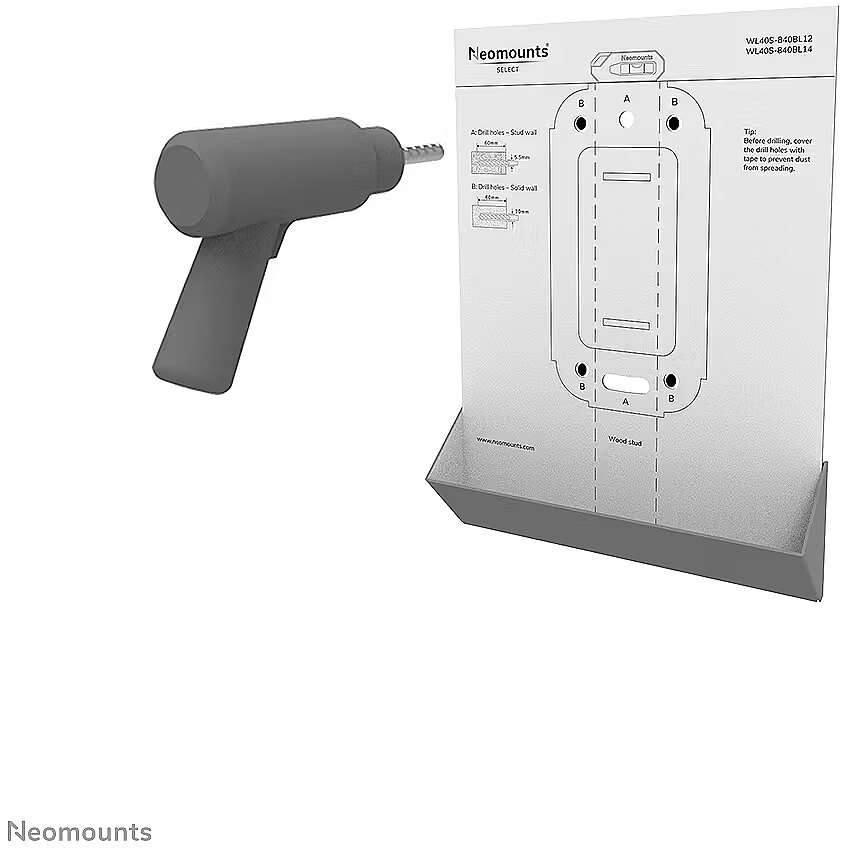

Description - Neomounts by Newstar Select tv wall mount Neomounts by Newstar Select WL40S-840BL14 full motion wall mount for 32-65" screens - Black The Neomounts Select WL40S-840BL14 is a full motion wall mount for flat screens up to 65" with a maximum weight capacity of 40 kg. The versatile tilt (14°) and swivel (25°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation. The WL40S-840BL14 has a depth of 4,9-34,5 cm and is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. The mount features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.
Description - NEOMOUNTS SELECT SCREEN WALL MOUNT (FULL MOTION, 2 PIVOTS, VESA 400X400)
Description - The Neomounts Select WL40S-840BL14 is a full range mount designed for flat screens up to 65" and a maximum weight of 40kg.
Design - Housing material - Steel
Design - Product colour - Black
dimension depth - 65 mm
dimension height - 510 mm
Dimensions - Height: 44.9 cm Width: 44.9 cm
dimension weight - 5023 g
dimension width - 335 mm
Distance to wall - 34.5 cm
ean - 8717371448844
Ergonomics - Angle of rotation - 6°
Ergonomics - Cable management - Yes
Ergonomics - Distance to the wall (max) - 34.5 cm

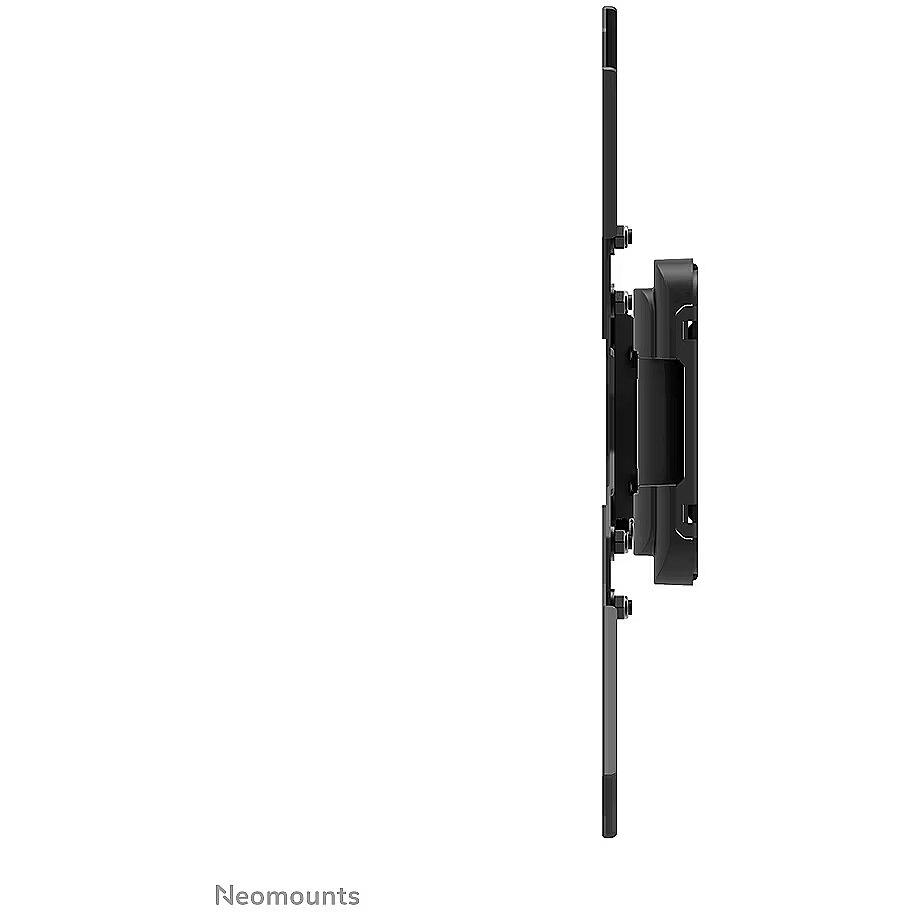

Ergonomics - Distance to the wall (min) - 4.9 cm
Ergonomics - Height adjustment - No
Ergonomics - Pivot angle - -3 - 3°
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 25°
Ergonomics - Swivel angle range - 0 - 25°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -2 - 12°
Ergonomics - Type - Full motion
Fits screens sized - 32-65"
Full Description Line - Max. weight 40 kg|Fits screens sized 32-65"|Distance to wall 34.5 cm|100 mm x 100 mm|200 mm x 100 mm|200 mm x 200 mm|300 mm x 200 mm|300 mm x 300 mm|400 mm x 200 mm|400 mm x 300 mm|400 mm x 400 mm|Colour Black
GTIN - 8717371448844
guarantee - 60
guarantee_type - normal
Height - 332.000000
Length - 65.000000
Load (max) - 40 kg
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 20.4 kg
Logistics data - Master (outer) case height - 355 mm
Logistics data - Master (outer) case length - 267 mm
Logistics data - Master (outer) case net weight - 16.4 kg
Logistics data - Master (outer) case width - 530 mm
Logistics data - Products per master (outer) case - 4 pc(s)
Logistics data - Products per pallet (EU) - 96 pc(s)
LongDesc - The Neomounts WL40S-840BL14 LEVEL is a full motion wall mount for flat screens up to 65" with a maximum weight capacity of 40 kg. The versatile tilt (14°) and swivel (25°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.The LEVEL-850 wall mount has a depth of 4,9-34,5 cm and is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. The WL40S-840BL14 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.
LongProductName - Neomounts WL40S-840BL14 full motion wall mount for 32-65" screens - Black
LongSummaryDescription - Neomounts tv wall mount. Maximum weight capacity: 40 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Tilt angle range: -2 - 12°, Swivel angle range: 0 - 25°, Angle of rotation: 6°, Distance to the wall (min): 4.9 cm, Distance to the wall (max): 34.5 cm. Product colour: Black
Manufacturer - NEOMOUNTS
ManufacturerPartNumber - WL40S-840BL14
Max. weight - 40 kg
Mounting - Maximum screen size - 165.1 cm (65")
Mounting - Maximum VESA mount - 400 x 400 mm
Mounting - Maximum weight capacity - 40 kg
Mounting - Minimum screen size - 81.3 cm (32")
Mounting - Minimum VESA mount - 100 x 100 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 100 x 100,100 x 150,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400
name - WL40S-840BL14
Number of screens - 1
Other features -

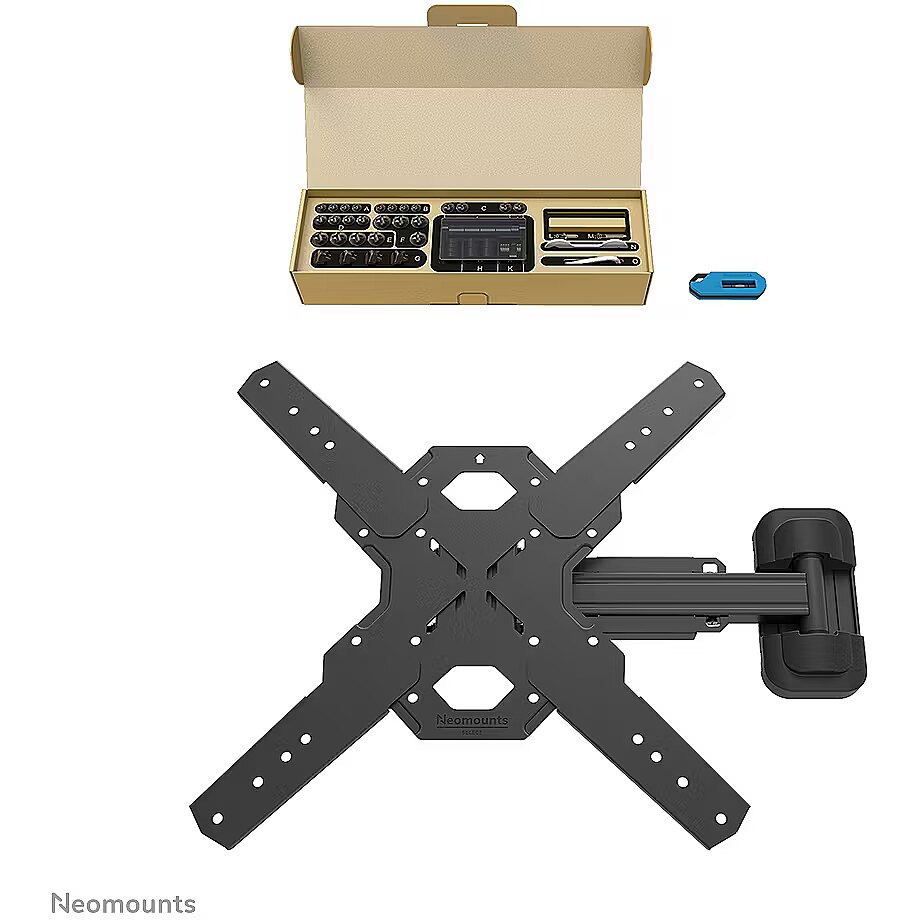

Packaging content - Hex key included - Yes
Packaging content - Mounting kit - Yes
Packaging content - Number of wrenches included - 1
Packaging data - Package depth - 332 mm
Packaging data - Package height - 62 mm
Packaging data - Package width - 511 mm
PeriodofWarranty - 5 Y
producer - Neomounts
ProductName - Neomounts tv wall mount
Range (max) - 34.5 cm
Range (min) - 4.9 cm
Range adjustment - Yes
Screen size (max) - 65 ''
Screen size (min) - 32 ''
Shipping Box Depth Shipping/Package Box Dimensions - 52 cm
Shipping Box Height Shipping/Package Box Dimensions - 33.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 5 kg
Shipping Box Width Shipping/Package Box Dimensions - 6.5 cm
Short summary - Neomounts by Newstar Select WL40S-840BL14 full motion wall mount for 32-65" screens - Black
ShortSummaryDescription - Neomounts tv wall mount, 100 x 100 mm, 400 x 400 mm, -2 - 12°, 0 - 25°, Steel, Black
Stand/mount type - Wall
Technical details - Country of origin - China
Technical details - Lockable - Not lockable
Technical details - Package net weight - 5 kg
Technical details - Quantity per pack - 1 pc(s)
Title - Neomounts tv wall mount
Type - Wall
Unit Box Height - 0.335
Unit Box Length - 0.52
Unit Box Width - 0.065
Unit Brutto Volume - 0.01132 cubm
Unit Gross Weight - 5 kg
Unit Net Weight - 4.1 kg
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=WL40S-840BL14
Usage - Monitors
Vendor Homepage - www.neomounts.com/tv-lfd/wall-mounts/wl40s-840bl14-neomounts-by-newstar-select-tv-wall-mount/
vendpn - WL40S-840BL14
VESA - 100 x 100
VESA - 100 x 150
VESA - 100 x 200
VESA - 200 x 100
VESA - 200 x 200
VESA - 200 x 300
VESA - 200 x 400
VESA - 300 x 200
VESA - 300 x 300
VESA - 400 x 200
VESA - 400 x 300
VESA - 400 x 400
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 5.020000
Weight & dimensions - Depth - 49 mm
Weight & dimensions - Height - 449 mm
Weight & dimensions - Width - 449 mm
Wheels - No
Width - 518.000000
