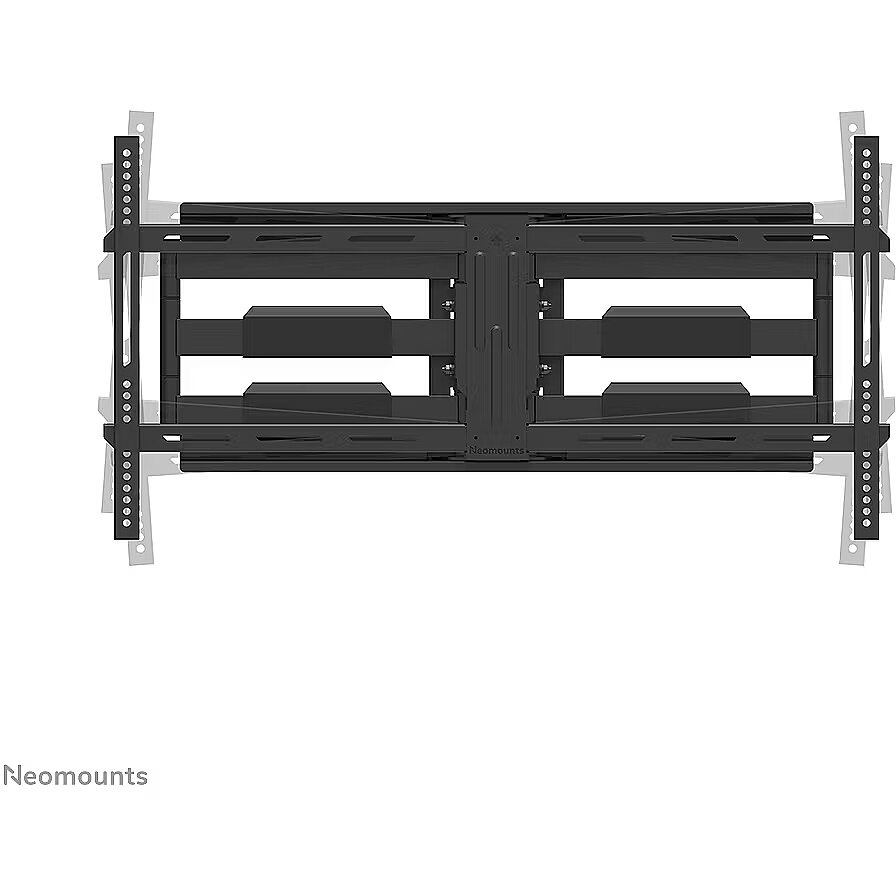

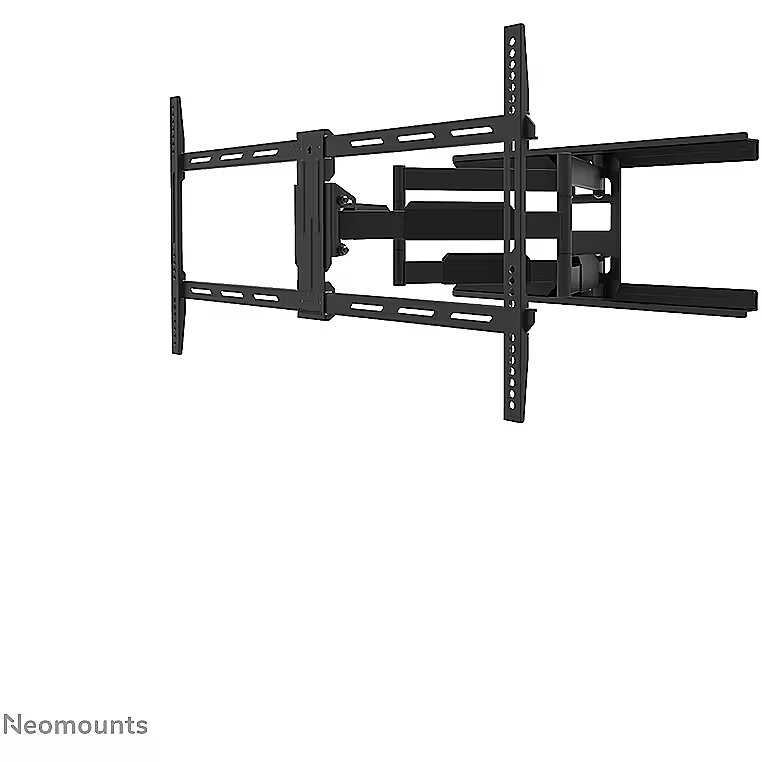

Newstar TV wall mount, 43-75"

100 mm x 100 mm VESA mounting interface - Yes
200 mm x 100 mm VESA mounting interface - Yes
200 mm x 200 mm VESA mounting interface - Yes
300 mm x 200 mm VESA mounting interface - Yes
300 mm x 300 mm VESA mounting interface - Yes
400 mm x 200 mm VESA mounting interface - Yes
400 mm x 300 mm VESA mounting interface - Yes
400 mm x 400 mm VESA mounting interface - Yes
600 mm x 300 mm VESA mounting interface - Yes
600 mm x 400 mm VESA mounting interface - Yes
800 mm x 400 mm VESA mounting interface - Yes
Accessories included -
Brand - Neomounts
BrandPartCode - WL40-550BL18
Category - TV Mounts & Stands
Category Code - MAS
Color - Black
Colour - Black
Corner mount - No
Description - NEOMOUNTS BY NEWSTAR SCREEN WALL MOUNT (FULL MOTION, 3 PIVOTS, VESA 800X400)
Description - Neomounts by Newstar Select tv wall mount Full motion wall mount for 43-75" screens - Black VESA minimum: 100x100 VESA maximum: 800x400
Description - The Neomounts by Newstar WL40-550BL18 is a fully moveable mount for flat screens up to 75 with a maximum weight of 45kg.
Design - Housing material - Steel
Design - Product colour - Black
dimension depth - 65 mm
dimension height - 885 mm
Dimensions -
dimension weight - 12000 g
dimension width - 340 mm
Distance to wall - 61 cm
ean - 8717371448769
Ergonomics - Angle of rotation - 6°
Ergonomics - Cable management - Yes
Ergonomics - Distance to the wall (max) - 71 cm
Ergonomics - Distance to the wall (min) - 5.5 cm
Ergonomics - Height adjustment - No
Ergonomics - Pivot angle - -3 - 3°
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 54°
Ergonomics - Swivel angle range - 0 - 54°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -3 - 15°
Ergonomics - Type - Full motion
Fits screens sized - 43-75"
Full Description Line - Max. weight 45 kg|Fits screens sized 43-75"|Distance to wall 61 cm|100 mm x 100 mm|200 mm x 100 mm|200 mm x 200 mm|300 mm x 200 mm|300 mm x 300 mm|400 mm x 200 mm|400 mm x 300 mm|400 mm x 400 mm|600 mm x 300 mm|600 mm x 400 mm|800 mm x 400 mm|Colour Black
GTIN - 8717371448769
guarantee - 60
guarantee_type - normal
Height - 340.000000
Length - 65.000000
Load (max) - 45 kg
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 24 kg
Logistics data - Master (outer) case height - 360 mm
Logistics data - Master (outer) case length - 145 mm
Logistics data - Master (outer) case net weight - 22.1 kg
Logistics data - Master (outer) case width - 902 mm
Logistics data - Products per master (outer) case - 2 pc(s)
Logistics data - Products per pallet (EU) - 40 pc(s)

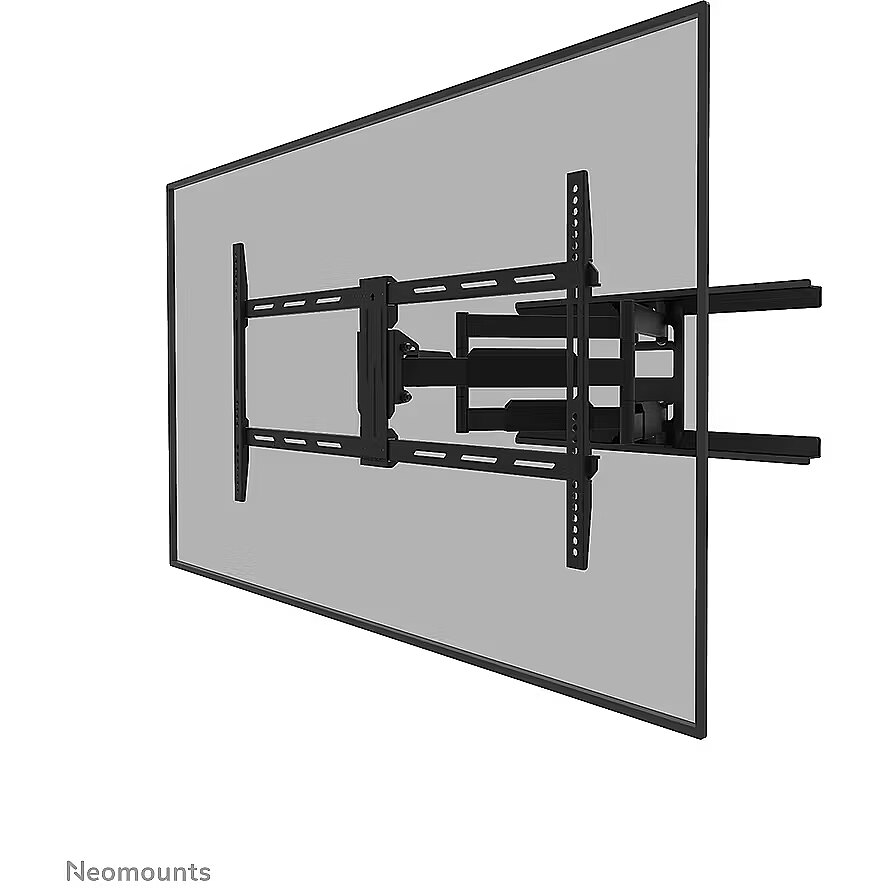

LongDesc - The Neomounts WL40-550BL18 LEVEL is a full motion wall mount for flat screens up to 75" with a maximum weight capacity of 45 kg. The versatile tilt (18°) and swivel (54°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation. The LEVEL-550 wall mount has a depth of 5,5-71 cm and is suitable for screens that meet VESA hole pattern 200x100 to 800x400 mm. The WL40-550BL18 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. The mount is equipped with cable management, to secure any loose cables on the back of the screen.
LongProductName - Neomounts WL40-550BL18 full motion wall mount for 43-75" screens - Black

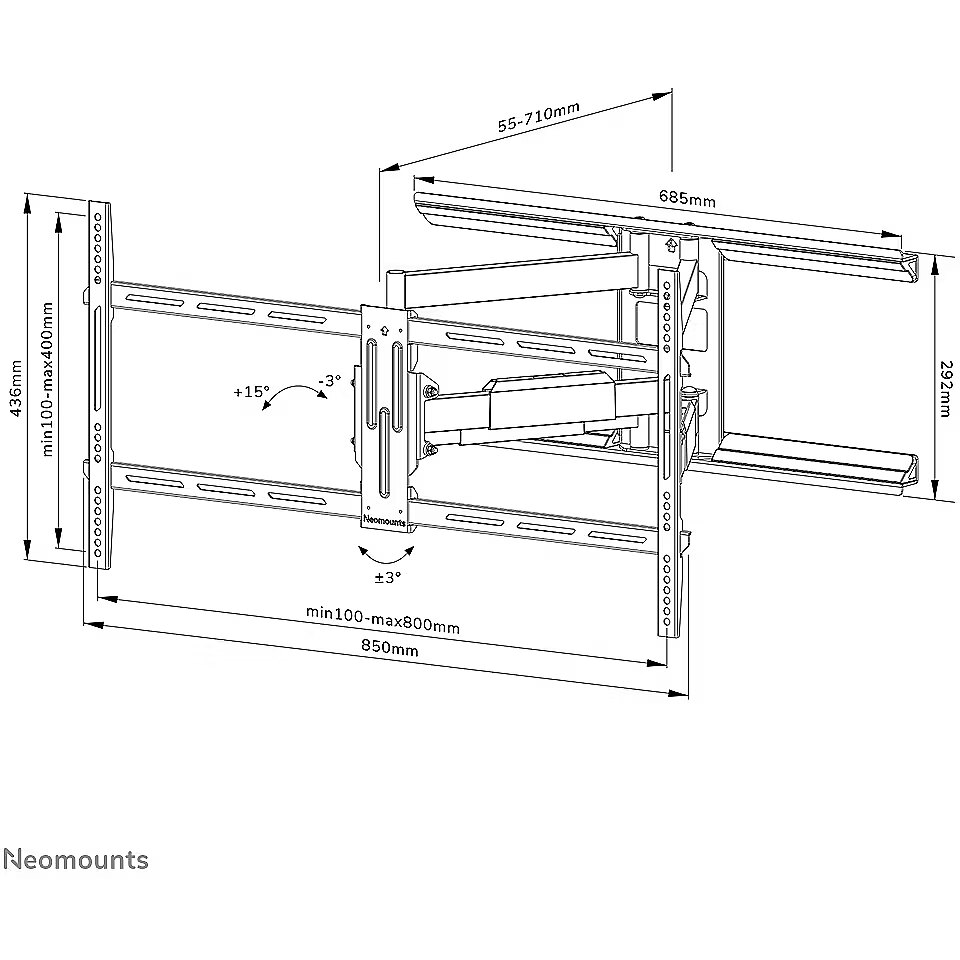

LongSummaryDescription - Neomounts tv wall mount. Maximum weight capacity: 45 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 800 x 400 mm. Tilt angle range: -3 - 15°, Swivel angle range: 0 - 54°, Angle of rotation: 6°, Distance to the wall (min): 5.5 cm, Distance to the wall (max): 71 cm. Product colour: Black
Manufacturer - NEOMOUNTS
ManufacturerPartNumber - WL40-550BL18
Max. weight - 45 kg
Mounting - Maximum screen size - 190.5 cm (75")
Mounting - Maximum VESA mount - 800 x 400 mm
Mounting - Maximum weight capacity - 45 kg
Mounting - Minimum screen size - 109.2 cm (43")
Mounting - Minimum VESA mount - 200 x 100 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400
name - WL40-550BL18
Number of screens - 1
Other features - Height: 43.6 cm Width: 85 cm

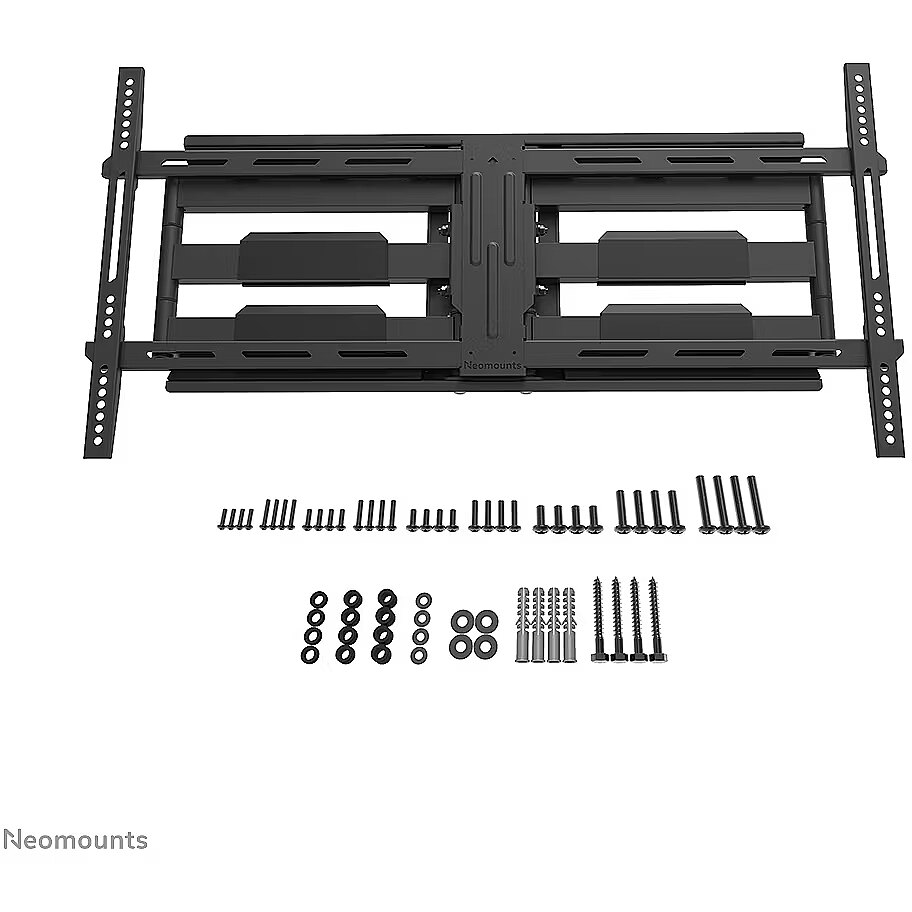

Packaging content - Mounting kit - Yes
Packaging data - Package depth - 340 mm
Packaging data - Package height - 65 mm
Packaging data - Package width - 882 mm
PeriodofWarranty - 5 Y
producer - Neomounts
ProductName - Neomounts tv wall mount
Range (max) - 71 cm
Range (min) - 5.5 cm
Range adjustment - Yes
Screen size (max) - 75 ''
Screen size (min) - 43 ''
Shipping Box Depth Shipping/Package Box Dimensions - 89.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 34 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 12.05 kg
Shipping Box Width Shipping/Package Box Dimensions - 6.5 cm
Short summary - Neomounts by Newstar WL40-550BL18 full motion wall mount for 43-75" screens - Black
ShortSummaryDescription - Neomounts tv wall mount, 200 x 100 mm, 800 x 400 mm, -3 - 15°, 0 - 54°, Steel, Black
Stand/mount type - Wall
Technical details - Country of origin - China
Technical details - Lockable - Not lockable
Technical details - Package net weight - 11.7 kg
Technical details - Quantity per pack - 1 pc(s)
Title - Neomounts tv wall mount
Type - Wall
Unit Box Height - 0.34
Unit Box Length - 0.895
Unit Box Width - 0.065
Unit Brutto Volume - 0.01978 cubm
Unit Gross Weight - 12.1 kg
Unit Net Weight - 11 kg
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=WL40-550BL18
Usage - Monitors
Vendor Homepage - www.neomounts.com/tv-lfd/wall-mounts/wl40-550bl18-neomounts-by-newstar-tv-wall-mount/
vendpn - WL40-550BL18
VESA - 100 x 100
VESA - 100 x 150
VESA - 100 x 200
VESA - 200 x 100
VESA - 200 x 200
VESA - 200 x 300
VESA - 200 x 400
VESA - 300 x 200
VESA - 300 x 300
VESA - 350 x 350
VESA - 400 x 200
VESA - 400 x 300
VESA - 400 x 400
VESA - 440 x 400
VESA - 500 x 400
VESA - 600 x 200
VESA - 600 x 300
VESA - 600 x 400
VESA - 800 x 200
VESA - 800 x 400
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 11.950000
Weight & dimensions - Depth - 55 mm
Weight & dimensions - Height - 436 mm
Weight & dimensions - Width - 850 mm
Wheels - No
Width - 885.000000
