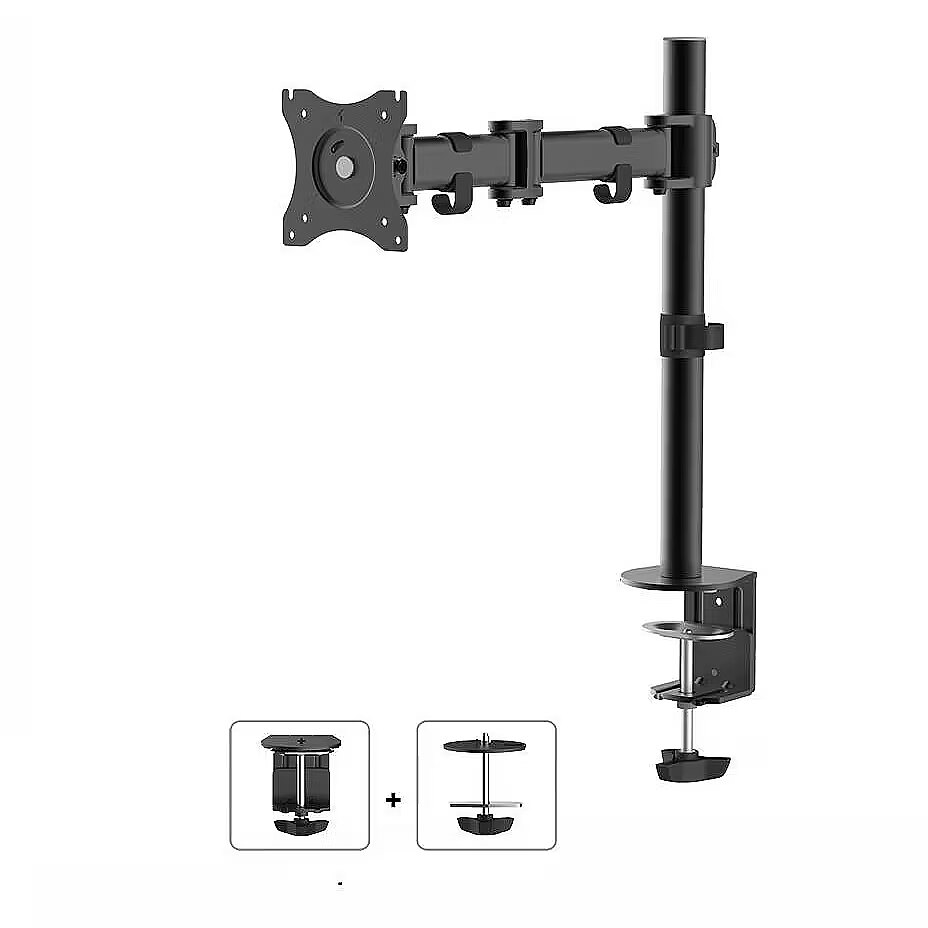

Newstar Full Motion desk monitor arm, 10-27"

75 mm x 75 mm VESA mounting interface - Yes
100 mm x 100 mm VESA mounting interface - Yes
Brand - Neomounts
BrandPartCode - NM-D135BLACK
Category - Monitor Mounts & Stands
Category Code - MAS
CnCode CnCode - 83021000
Colour - Black
Description - NEOMOUNTS FLAT SCREEN DESK MOUNT (10-30") DESK CLAMP/GROMMET

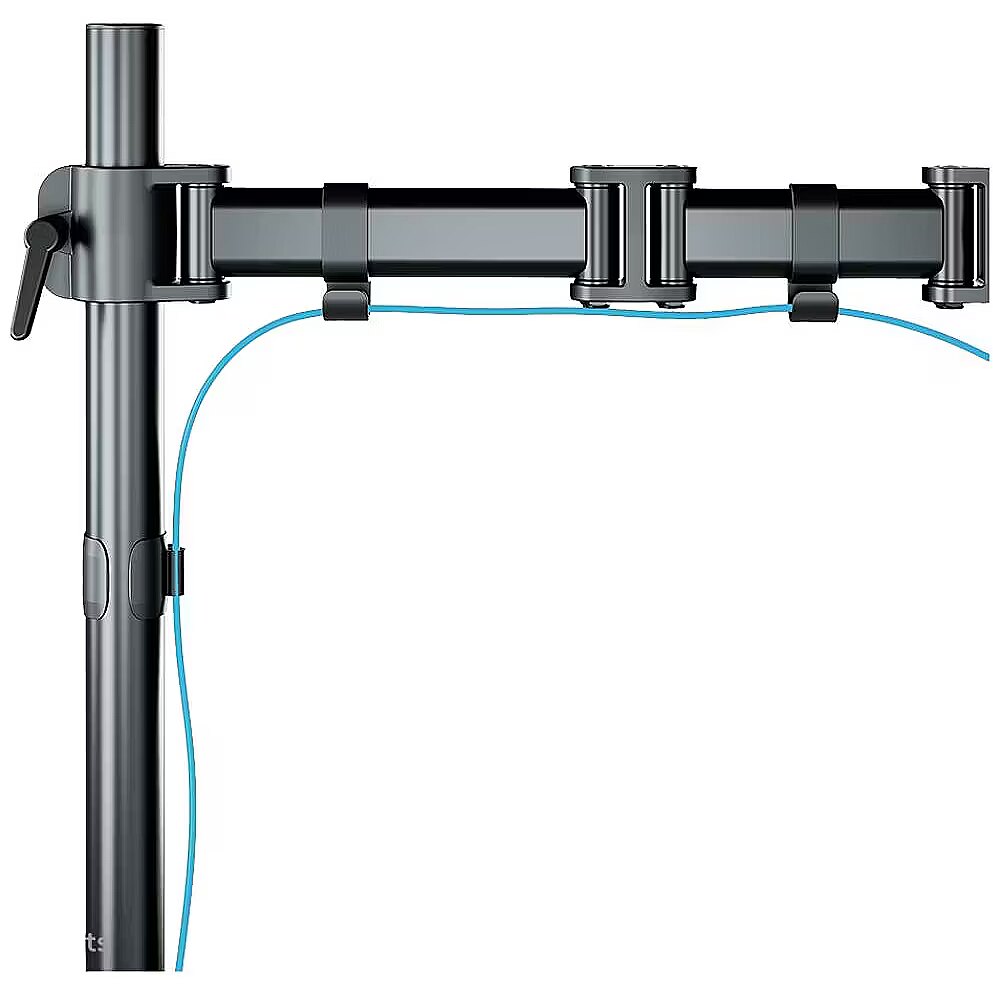

Description - The Neomounts Select desk mount, model NM-D135BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 27?. This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount. Neomounts Select's versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 41 centimetres. Depth adjustable from 4 to 42 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. Neomounts Select NM-D135BLACK has three pivot points and is suitable for screens up to 27". The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts Select VESA adapter plates. By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. All installation material is included with the product. Screen size: 10 - 30" Desk mount: Desk clamp & grommet Depth: 4 - 43 cm Height: 0 - 40 cm Tilt: 90° Rotation: 360° Swivel: 180°
Design - Housing material - Steel
Design - Product colour - Black
Ergonomics - Angle of rotation - 360°
Ergonomics - Depth adjustment range - 0 - 410 mm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 0 - 415 mm
Ergonomics - Height adjustment type - Manual
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 180°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - 0 - 90°
Fits screens sized - 10 - 30"
Full Description Line - Max. weight 8 kg|Fits screens sized 10 - 30"|75 mm x 75 mm|100 mm x 100 mm|Colour Black
GTIN - 5054629994450
GTIN - 8717371445225
Height - 165.000000
Height adjustment - Yes
Length - 111.000000
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 15.8 kg
Logistics data - Master (outer) case height - 240 mm
Logistics data - Master (outer) case length - 340 mm
Logistics data - Master (outer) case net weight - 13.3 kg
Logistics data - Master (outer) case width - 495 mm
Logistics data - Products per master (outer) case - 4 pc(s)
Logistics data - Products per pallet (EU) - 96 pc(s)
LongDesc - The Neomounts desk mount, model NM-D135BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 41,5 centimetres. Depth adjustable from 0 to 41 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.Neomounts NM-D135BLACK has three pivot points and is suitable for screens up to 27". The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.All installation material is included with the product.
LongProductName - Neomounts Full Motion desk monitor arm (clamp & grommet) for 10-27" Monitor Screen, Height Adjustable - Black
LongSummaryDescription - Neomounts desk monitor arm. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: 0 - 90°. Product colour: Black
Manufacturer - NEOMOUNTS
ManufacturerPartNumber - NM-D135BLACK
Max. weight - 8 kg
Maximum weight (capacity), kg - 8
Motorized - No
Mounting - Desk thickness (max) - 9 cm
Mounting - Desk thickness (min) - 1 cm
Mounting - Distance to the wall (max) - 43 cm
Mounting - Distance to the wall (min) - 4 cm
Mounting - Maximum screen size - 68.6 cm (27")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 8 kg
Mounting - Minimum screen size - 25.4 cm (10")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting - Clamp/Grommet
Mounting - Mounting type - Desk
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 75 x 75,100 x 100 mm
Number of screens - 1
Packaging data - Package depth - 110 mm
Packaging data - Package height - 478 mm
Packaging data - Package net weight - 3.33 kg
Packaging data - Package weight - 3.3 kg
Packaging data - Package width - 163 mm
PeriodofWarranty - 5 Y
ProductName - Neomounts desk monitor arm
Shipping Box Depth Shipping/Package Box Dimensions - 48.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 17 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 3.59 kg
Shipping Box Width Shipping/Package Box Dimensions - 11.5 cm
Short summary - Neomounts by Newstar Select Full Motion Desk Mount (clamp & grommet) for 10-27" Monitor Screen, Height Adjustable - Black
ShortSummaryDescription - Neomounts desk monitor arm, Clamp/Grommet, 8 kg, 25.4 cm (10"), 68.6 cm (27"), 100 x 100 mm, Black
Stand/mount type - Table
Tilt - Yes
Title - Neomounts desk monitor arm
Turn - Yes
Unit Brutto Volume - 0.009482 cubm
Unit Gross Weight - 3.59 kg
Unit Net Weight - 3.4 kg
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=NM-D135BLACK
Vendor Homepage - www.neomounts.com/home-office-solutions/monitor-desk-mounts/nm-d135black-neomounts-by-newstar-select-monitor-desk-mount/
VESA-standard, mm - 75 x 75
VESA-standard, mm - 100 x 100
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 3.760000
Weight & dimensions - Depth - 410 mm
Weight & dimensions - Height - 415 mm
Wheels - No
Width - 483.000000
