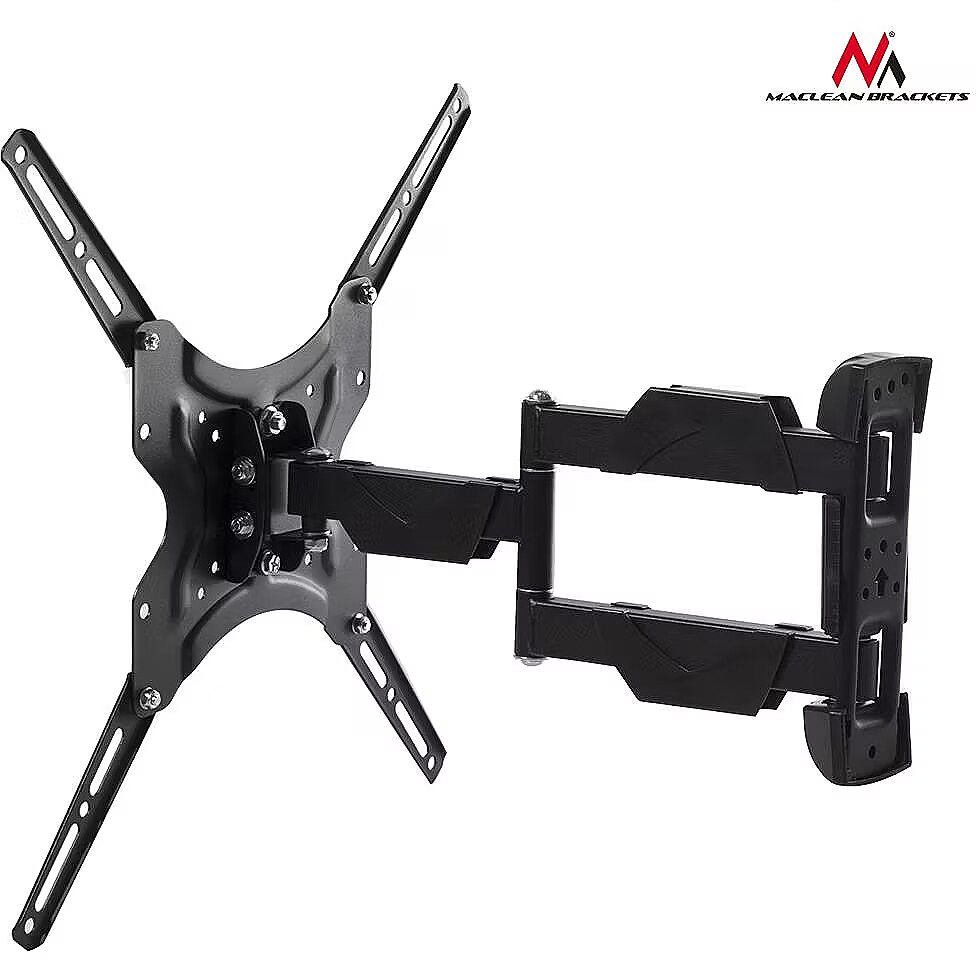

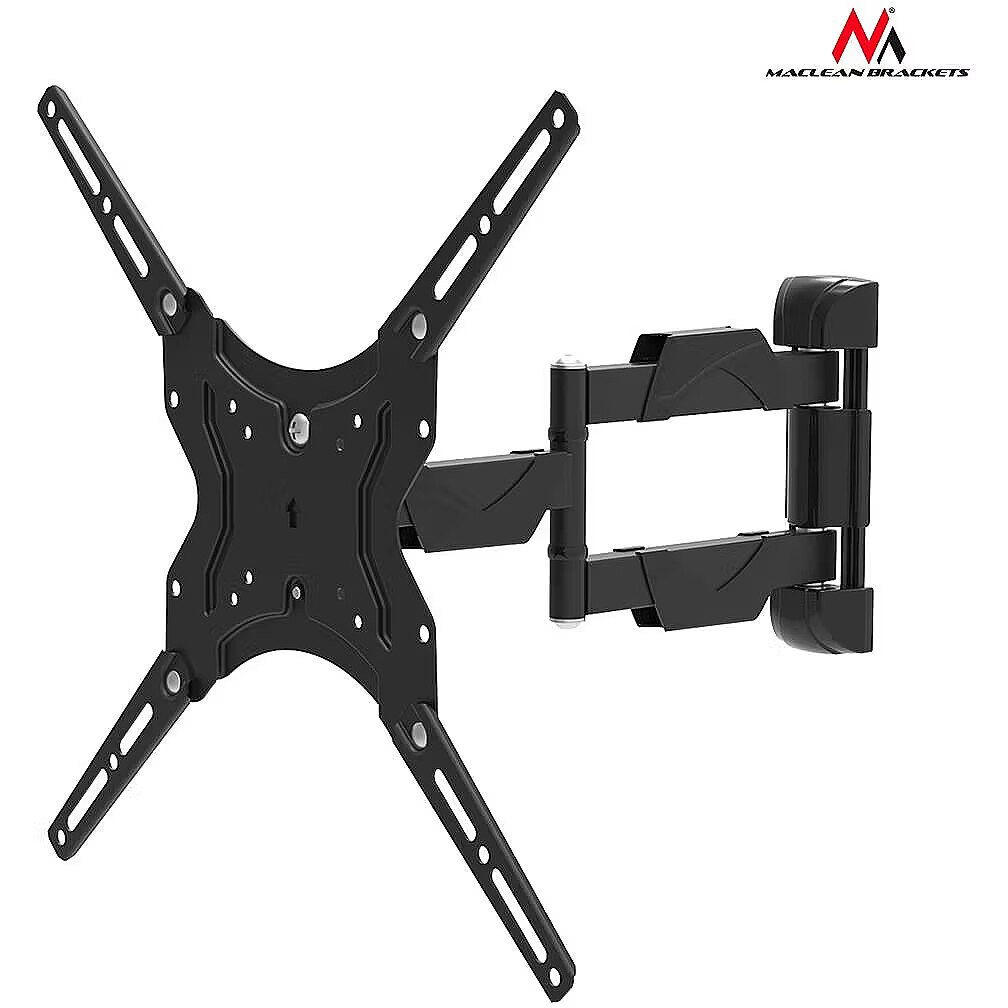

Maclean MC-743, TV or monitor wall mount, 13-65"

Accessories included - Komplet śrub do montażu uchwytu do ściany oraz telewizora do uchwytu Polska instrukcja montażu
Category - Root/Electronics/PC peripherals/Accessories/Grip holders/Wall brackets
Color - Black
Corner mount - No
Description - Handle for TV or monitor 13-65 "Maclean MC-743 30kg
The universal wall mount is designed for mounting LCD, LED and plasma TVs and monitors of up to 30kg and diagonal screens of 13 "to 50". LCD, PLAZMA compatible: Sony, LG, Samsung, Philips, Sharp, Panasonic, Toshiba, Grundig, Pioneer, JVC, Benq, Sanyo, NEC, Hyundai, Hitachi.
VESA compliance
The specified screen size is only a suggestion. A larger TV can be mounted on the handle when it is not exceeding the maximum weight and is within the specified VESA standard. For the bracket, we can easily attach a VESA screen: 75x75, 100x100, 200x100, 200x200, 300x300, 300x400, 400x400.
Complete set
Includes a set of screws to mount the handle to the wall and the TV to the handle. Manual Instructions

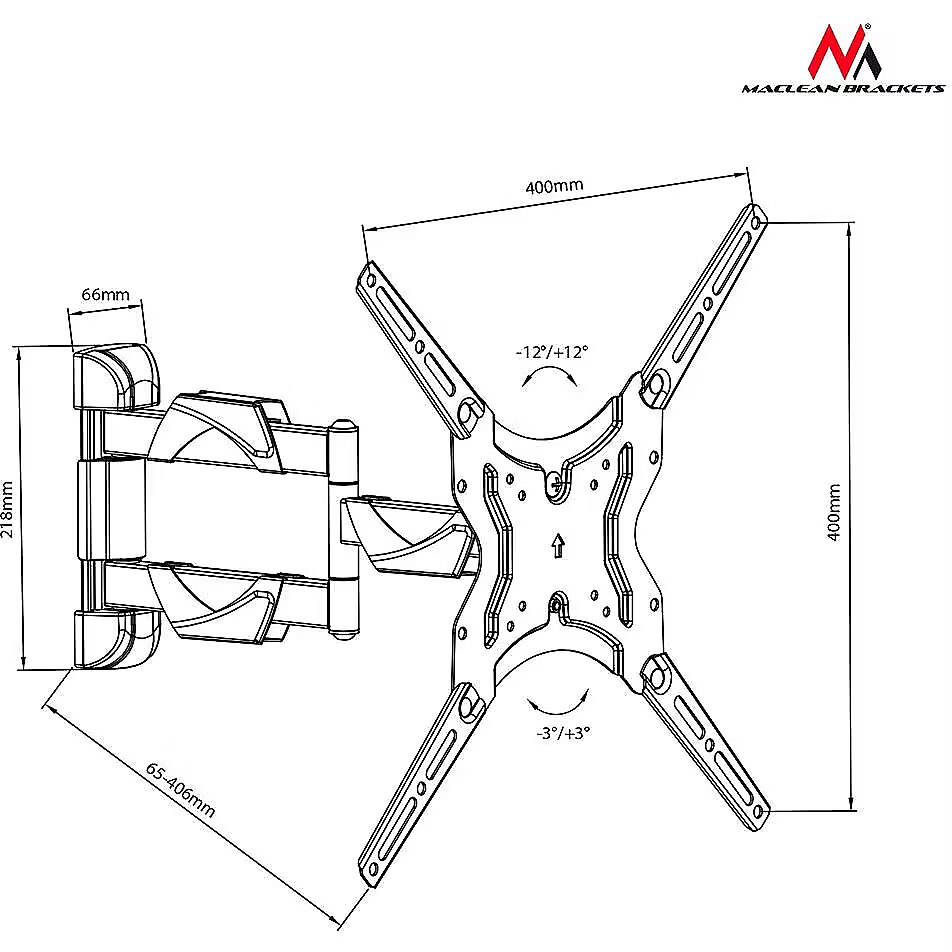

Technical Specifications:
- Maximum load: up to 30 kg
- Adjustable tilt: + 12 ° to -12 °
- Minimum / Maximum horizontal spacing: 75/400 mm
- Minimum / Maximum vertical spacing: 75/400 mm
- Adjustable distance from the wall: 65 - 406 mm
- Robust metal construction, very easy to assemble
- High quality
- Powder coating black
- Designed for TVs 13 "- 65" (or larger if their weight does not exceed 25kg and VESA complies with the grip)
- The set of mounting screws for the wall and the installation of the TV is included
- VESA: 75x75, 100x100, 200x100, 200x200, 300x300, 300x400, 400x400
- Warranty: 2 years
Design - Product colour - Black
dimensionalWeight - 882
dimension depth - 60 mm
dimension height - 290 mm
Dimensions -
dimension weight - 2380 g
dimension width - 225 mm
ean - 5902211105602
Eans - 5902211105602
Ergonomics - Adjustable depth - Yes
Ergonomics - Tilt adjustment - Yes
guarantee - 24
guarantee_type - external
Load (max) - 30 kg
Mounting - Maximum screen size - 165.1 cm (65")
Mounting - Maximum VESA mount - 400 x 400 mm
Mounting - Maximum weight capacity - 30 kg
Mounting - Minimum screen size - 33 cm (13")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 75 x 75 mm
Mounting - Panel mounting interface - 400 x 400 mm
name - Handle for TV or monitor 13-65" MC-743 30kg
Name - Maclean uchwyt TV/LCD MC-743
Other features -
Packaging data - Quantity per pack - 1 pair(s)
producer - Maclean
Producer - Maclean
producerCode - MC-743
ProducerCode - MC-743
productName - Maclean MC-743 TV mount 127 cm (65") Black
productSize - Normal
Range (max) - 406 mm
Range (min) - 65 mm
Range adjustment - Yes
Screen size (max) - 65 ''
Screen size (min) - 13 ''
ShortDescription -
sizeX - 295
sizeY - 230
sizeZ - 65
Type - Wall
Usage - TV
vendpn - MC-743
Vertical adjustment - 12 °
VESA - 75 x 75
VESA - 100 x 100
VESA - 200 x 100
VESA - 200 x 200
VESA - 200 x 300
VESA - 300 x 300
VESA - 300 x 400
VESA - 400 x 400
warrantyLength - 24
warrantyType - F
weight - 2280
