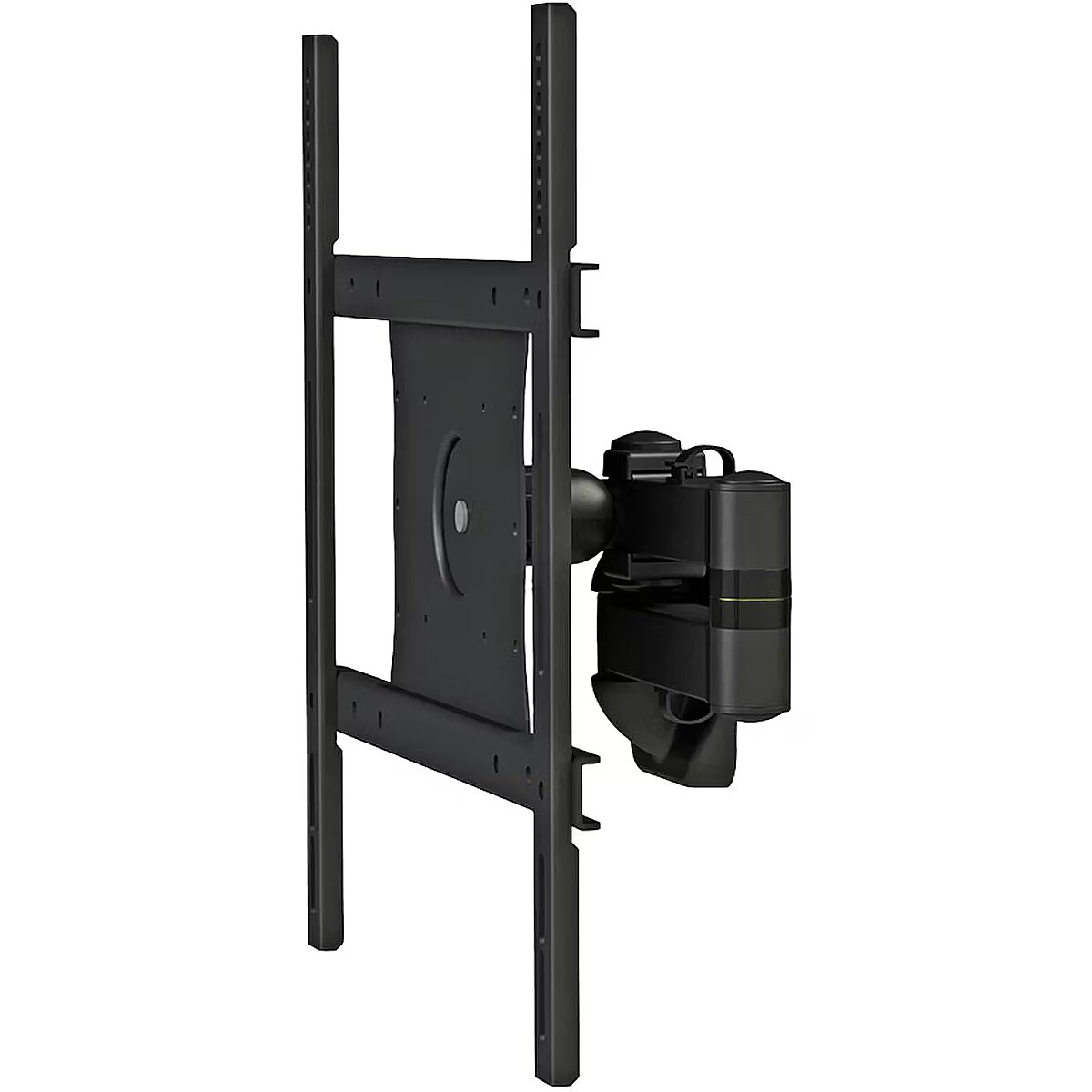

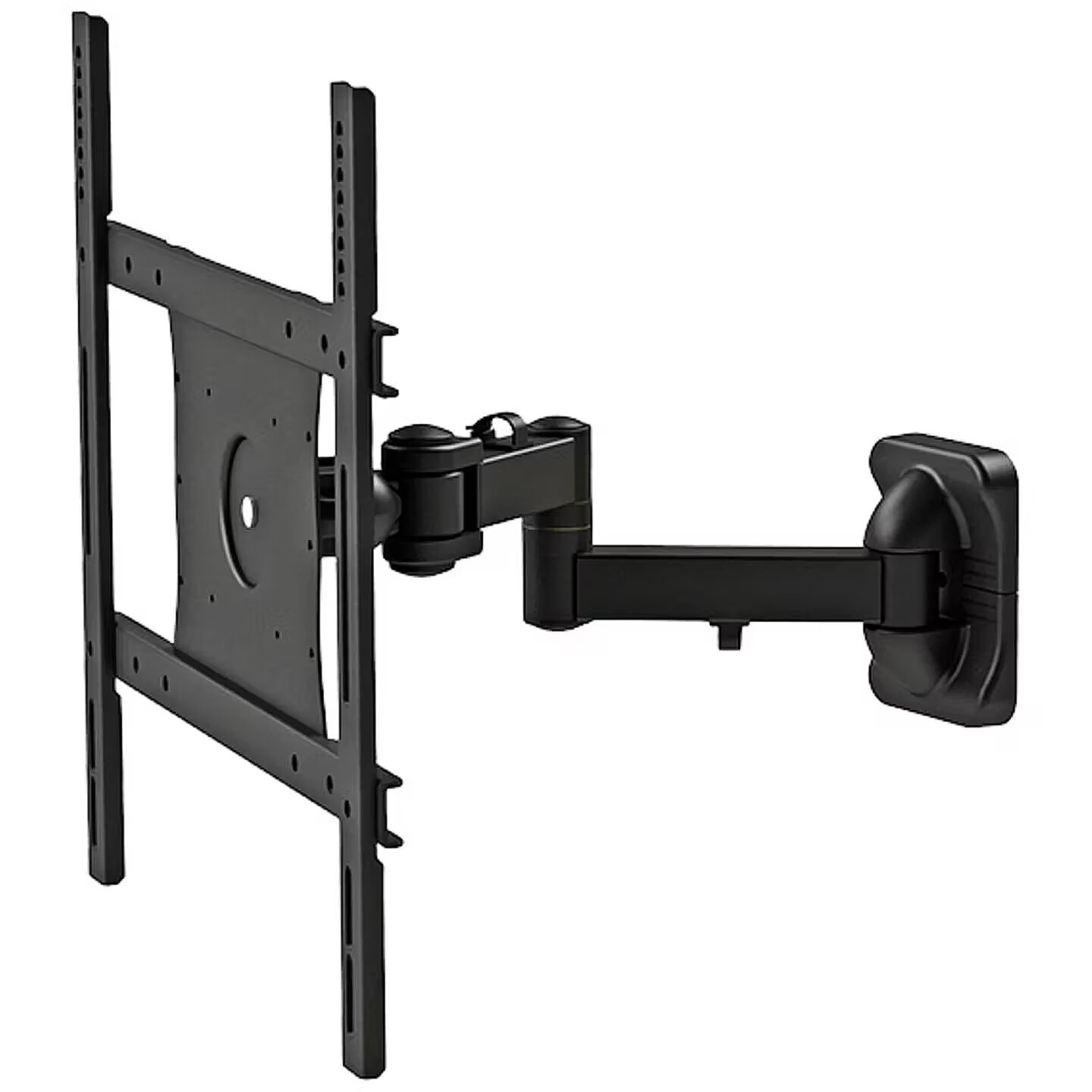

Newstar TV/Monitor Wall Mount, 23-52"

100 mm x 100 mm VESA mounting interface - Yes
400 mm x 400 mm VESA mounting interface - Yes
Accessories included -
Brand - Neomounts
BrandPartCode - FPMA-W960
Category - TV Mounts & Stands
Category Code - MAS
Color - Black
Colour - Black
Description -
Description - NEWSTAR FLAT SCREEN WALL MOUNT (3 PIVOTS & TILTABLE) 23-52" BLACK
Description - The NewStar wall mount, model FPMA-W960 is a tilt-, swivel and rotatable wall mount for flat screens up to 52" (132 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished. NewStars’ tilt (15°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 12 to 43 centimetres. Cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy. NewStar FPMA-W960 has three pivot points and is suitable for screens up to 52" (132 cm). The weight capacity of this product is 25 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. Different hole patterns can be covered using NewStar VESA adapter plates. Tilt : 15° Rotation : 360° Swivel : 180° Distance to wall: 12 - 43 cm
Design - Housing material - Steel
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 240 mm
dimension height - 150 mm
Dimensions -
dimension weight - 3500 g
dimension width - 470 mm
ean - 8717371442736
Ergonomics - Angle of rotation - 360°
Ergonomics - Distance to the wall (max) - 43 cm
Ergonomics - Distance to the wall (min) - 12 cm
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 180°
Ergonomics - Swivel angle range - 0 - 180°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - 0 - 15°
Ergonomics - Type - Full motion
Fits screens sized - 23 - 52"
Full Description Line - Max. weight 25 kg|Fits screens sized 23 - 52"|100 mm x 100 mm|400 mm x 400 mm|Colour Black
GTIN - 8717371442736
guarantee - 60
guarantee_type - normal
Height - 156.000000
Height adjustment - No
Horizontal adjustment - 180 °
Length - 255.000000
Load (max) - 25 kg
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 13.3 kg
Logistics data - Master (outer) case height - 350 mm
Logistics data - Master (outer) case length - 275 mm
Logistics data - Master (outer) case net weight - 12.3 kg
Logistics data - Master (outer) case width - 500 mm
Logistics data - Products per master (outer) case - 2 pc(s)
Logistics data - Products per pallet (EU) - 48 pc(s)
LongDesc - The Neomounts wall mount, model FPMA-W960 is a tilt-, swivel and rotatable wall mount for flat screens up to 52" (132 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished. Neomounts' tilt (15°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 12 to 43 centimetres. Cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy.Neomounts FPMA-W960 has three pivot points and is suitable for screens up to 52" (132 cm). The weight capacity of this product is 25 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm. Different hole patterns can be covered using Neomounts VESA adapter plates.Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema. All installation material is included with the product.
LongProductName - Neomounts TV/Monitor Wall Mount (Full Motion) for 23"-52" Screen - Black
LongSummaryDescription - Neomounts tv wall mount. Maximum weight capacity: 25 kg, Minimum screen size: 58.4 cm (23"), Maximum screen size: 132.1 cm (52"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Tilt angle range: 0 - 15°, Swivel angle range: 0 - 180°, Angle of rotation: 360°, Distance to the wall (min): 12 cm, Distance to the wall (max): 43 cm. Product colour: Black
Manufacturer - NEOMOUNTS
ManufacturerPartNumber - FPMA-W960
Max. weight - 25 kg
Maximum weight (capacity), kg - 25
Motorized - No
Mounting - Maximum screen size - 132.1 cm (52")
Mounting - Maximum VESA mount - 400 x 400 mm
Mounting - Maximum weight capacity - 25 kg
Mounting - Minimum screen size - 58.4 cm (23")
Mounting - Minimum VESA mount - 100 x 100 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400
name - FPMAW960 MONITOR TILT/PIVOT MOUNT
Other features -
Packaging data - Package depth - 248 mm
Packaging data - Package height - 152 mm
Packaging data - Package weight - 5.6 kg
Packaging data - Package width - 479 mm
PeriodofWarranty - 5 Y
producer - Neomounts
ProductName - Neomounts tv wall mount
Range (max) - 43 m
Range (min) - 12 cm
Range adjustment - Yes
Screen size (max) - 52 ''
Screen size (min) - 23 ''
Shipping Box Depth Shipping/Package Box Dimensions - 48 cm
Shipping Box Height Shipping/Package Box Dimensions - 16 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 6.25 kg
Shipping Box Width Shipping/Package Box Dimensions - 25 cm
Short summary - Neomounts by Newstar TV/Monitor Wall Mount (Full Motion) for 23"-52" Screen - Black
ShortSummaryDescription - Neomounts tv wall mount, 100 x 100 mm, 400 x 400 mm, 0 - 15°, 0 - 180°, 360°, Black
Stand/mount type - Wall
Technical details - Country of origin - Taiwan
Technical details - Package net weight - 5.6 kg
Tilt - Yes
Title - Neomounts tv wall mount
Turn - Yes
Type - Wall
Unit Brutto Volume - 0.0192 cubm
Unit Gross Weight - 6.25 kg
Unit Net Weight - 5.5 kg
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-W960
Usage - Monitors
Vendor Homepage - en.newstar.eu/newstar-av-mounts/wall-mounts/newstar-flat-screen-wall-mount-33/?sg=%7BBB8A0FAD-B91B-457C-8245-70E8833C72F8%7D
vendpn - FPMA-W960
Vertical adjustment - 15 °
VESA - 100 x 100
VESA - 400 x 400
VESA-standard, mm - 100 x 100
VESA-standard, mm - 400 x 400
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 6.310000
Wheels - No
Width - 484.000000
