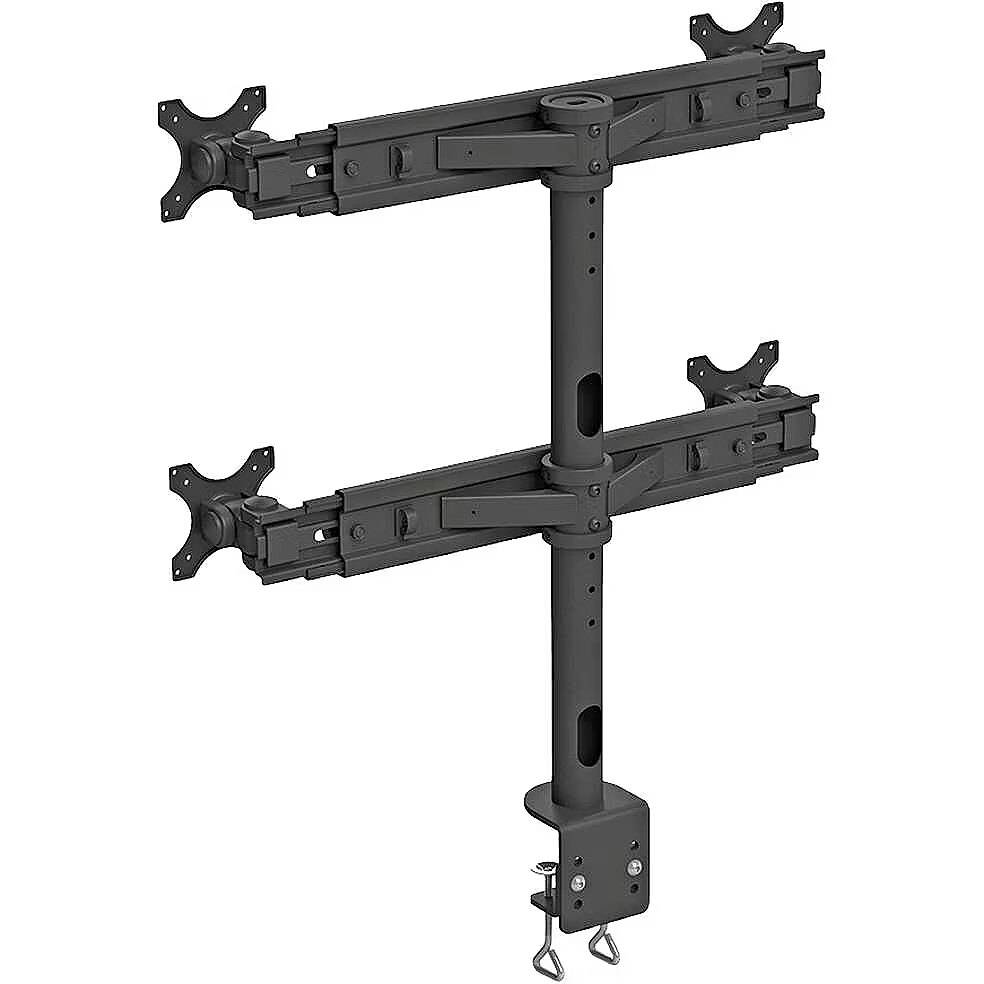

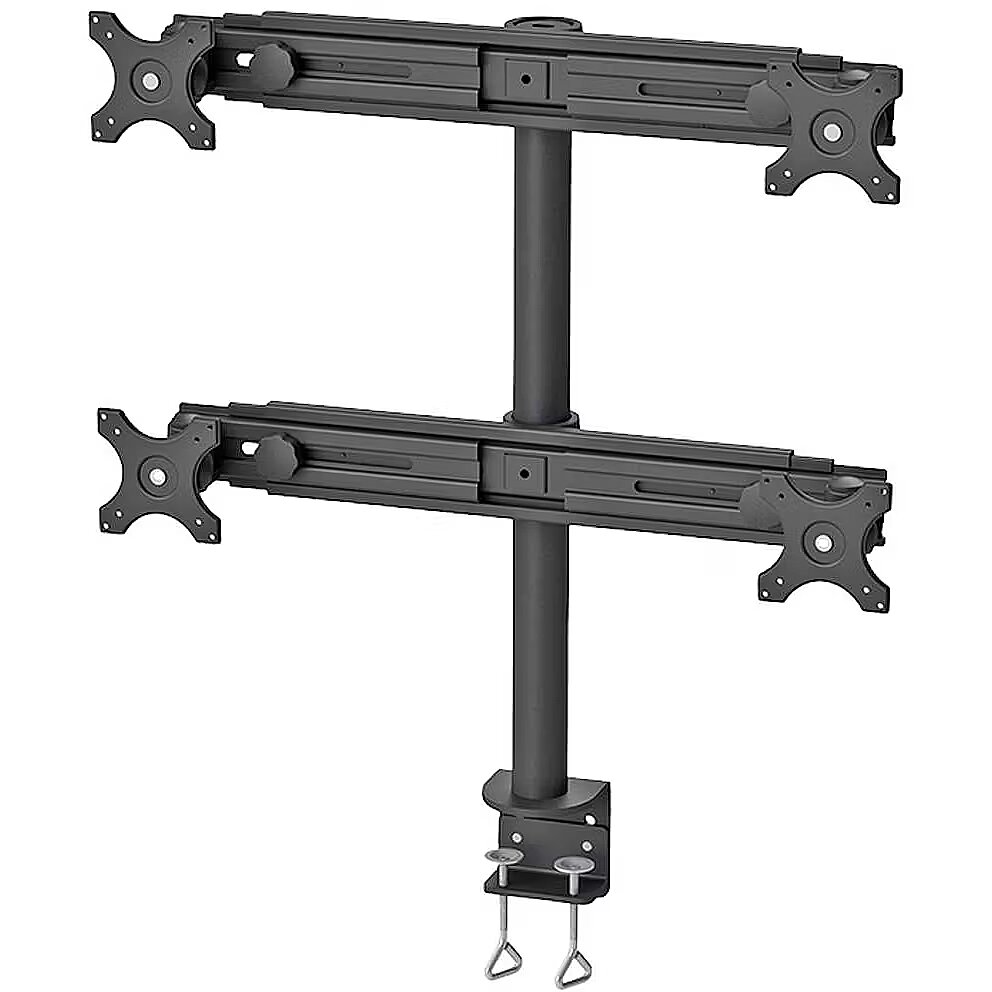

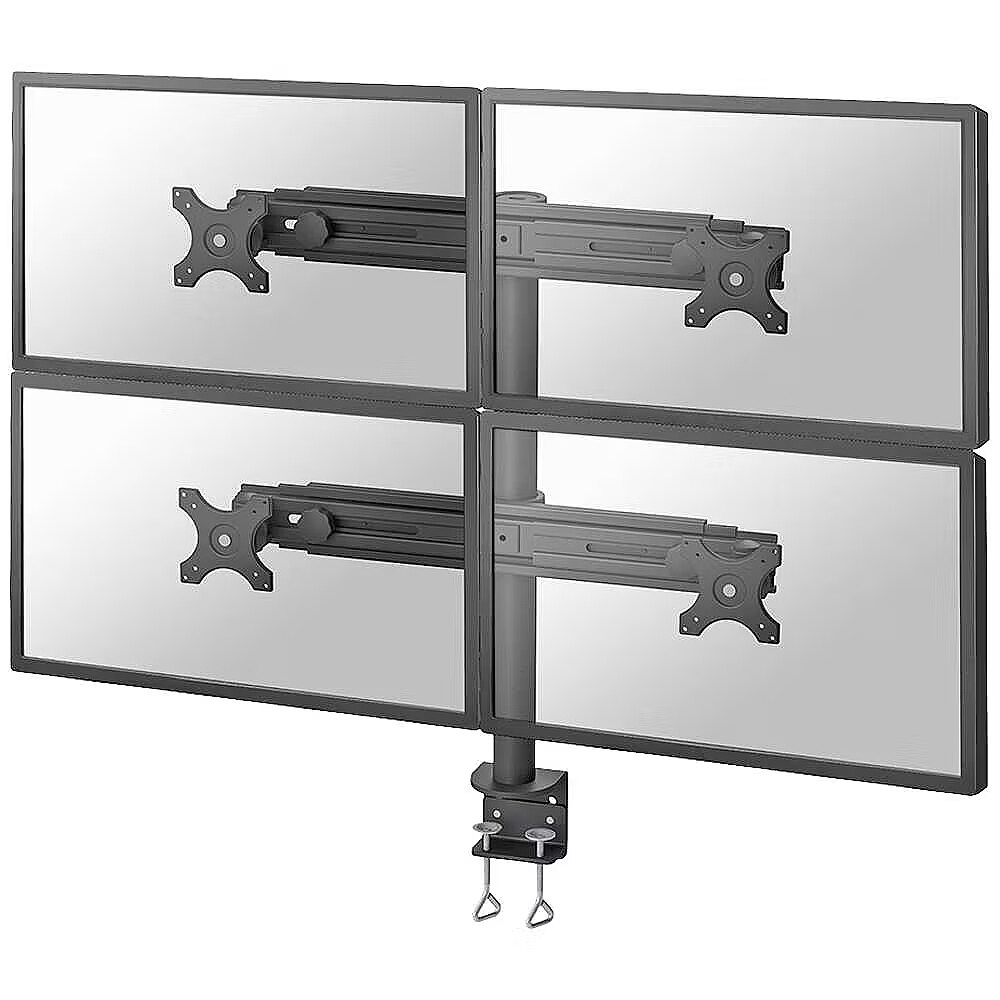

Newstar FPMA-D700D4, Quad desk monitor arm, 19-30"

75 mm x 75 mm VESA mounting interface - Yes
100 mm x 100 mm VESA mounting interface - Yes
Accessories included - Mounting accessories
Brand - Neomounts
BrandPartCode - FPMA-D700D4
Category - Monitor Mounts & Stands
Category Code - MAS
CnCode CnCode - 83021000
Color - Black
Colour - Black
Corner mount - No
Description -
Description - NEWSTAR FLAT SCREEN DESK MOUNT (CLAMP) 10-30" BLACK

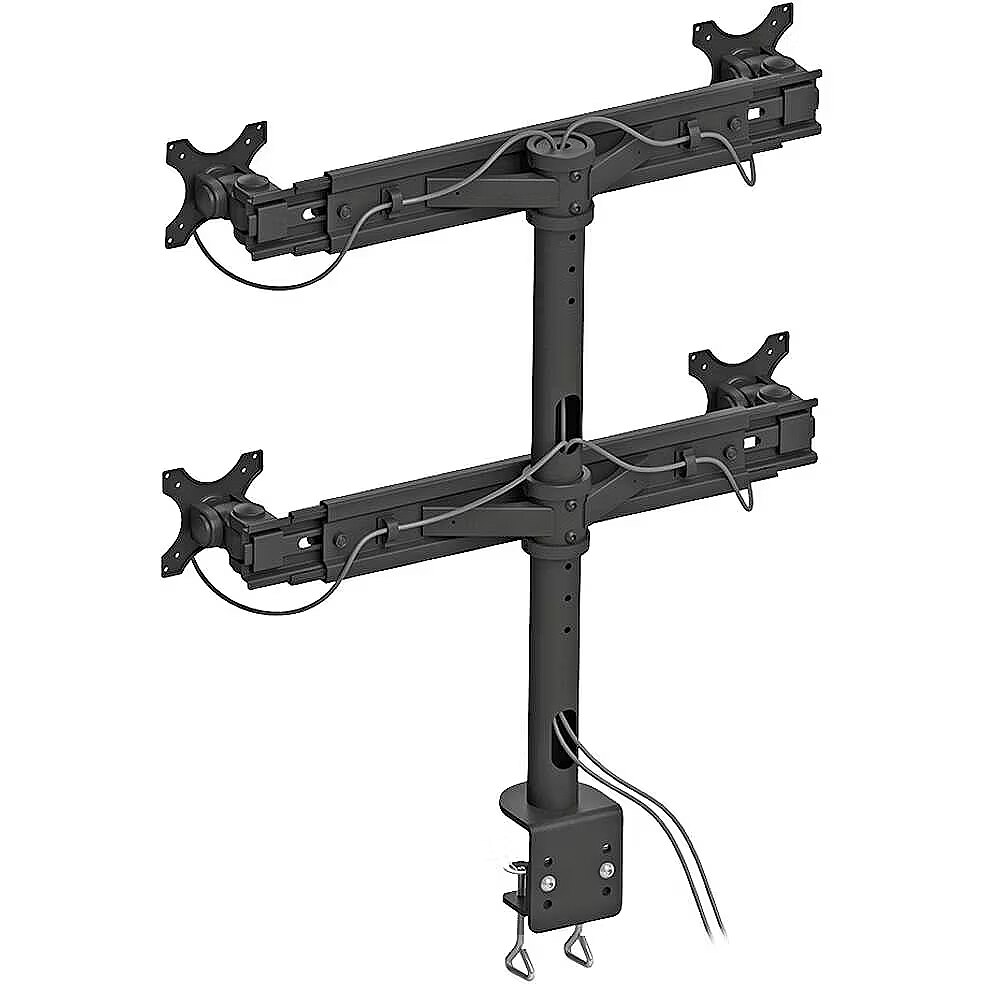

Description - The NewStar desk mount, model FPMA-D700D4 is a tilt-, swivel and rotatable desk mount for 4 flat screens up to 27”. This mount is a great choice for space saving placement on desks using a desk clamp. NewStars’ unique tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 70 centimetres. Depth 15 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. NewStar FPMA-D700D4 has two pivot points and is suitable for screens up to 27" (68 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using NewStar VESA adapter plates. By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. All installation material is included with the product. - Screens: 4 - Screen size: 19-27" - Max. weight: 32 kg - Desk mount: Desk clamp - VESA minimum: 75x75 mm - VESA maximum: 100x100 mm - Depth: 15 cm - Width: 52-83 cm - Height: 0-70 cm - Tilt: 180° - Rotation: 360° - Swivel: 180°
Design - Housing material - Steel
Design - Product colour - Black
dimension depth - 160 mm
dimension height - 835 mm
Dimensions -
dimension weight - 14200 g
dimension width - 560 mm
ean - 8717371442491
Ergonomics - Angle of rotation - 360°
Ergonomics - Depth adjustment range - 0 - 150 mm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 220 - 700 mm
Ergonomics - Height adjustment type - Manual
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 180°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - 0 - 180°
Fits screens sized - 19-27"
Full Description Line - Max. weight 32 kg|Fits screens sized 19-27"|75 mm x 75 mm|100 mm x 100 mm|Colour Black
GTIN - 8717371442491
guarantee - 60
guarantee_type - normal
Height - 165.000000
Height adjustment - Yes
Horizontal adjustment - 180 °
Length - 830.000000
Load (max) - 32 kg
Logistics data - Country of origin - Taiwan
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 14.2 kg
Logistics data - Master (outer) case height - 180 mm
Logistics data - Master (outer) case length - 555 mm
Logistics data - Master (outer) case net weight - 12.6 kg
Logistics data - Master (outer) case width - 830 mm
Logistics data - Products per master (outer) case - 1 pc(s)
Logistics data - Products per pallet (EU) - 14 pc(s)
LongDesc - The Neomounts desk mount, model FPMA-D700D4 is a tilt-, swivel and rotatable desk mount for 4 flat screens up to 30". This mount is a great choice for space saving placement on desks using a desk clamp.Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 70 centimetres. Depth 15 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.Neomounts FPMA-D700D4 has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.All installation material is included with the product.
LongProductName - Neomounts Tilt/Turn/Rotate Quad desk monitor arm (clamp) for four 19-30" Monitor Screens, Height Adjustable - Black
LongSummaryDescription - Neomounts desk monitor arm. Mounting: Clamp, Maximum weight capacity: 8 kg, Minimum screen size: 48.3 cm (19"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: 0 - 180°. Product colour: Black
Manufacturer - NEOMOUNTS
ManufacturerPartNumber - FPMA-D700D4
Max. weight - 32 kg
Maximum weight (capacity), kg - 8
Motorized - No
Mounting - Desk thickness (max) - 9 cm
Mounting - Maximum screen size - 76.2 cm (30")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 8 kg
Mounting - Minimum screen size - 48.3 cm (19")
Mounting - Minimum VESA mount - 75 x 75 mm

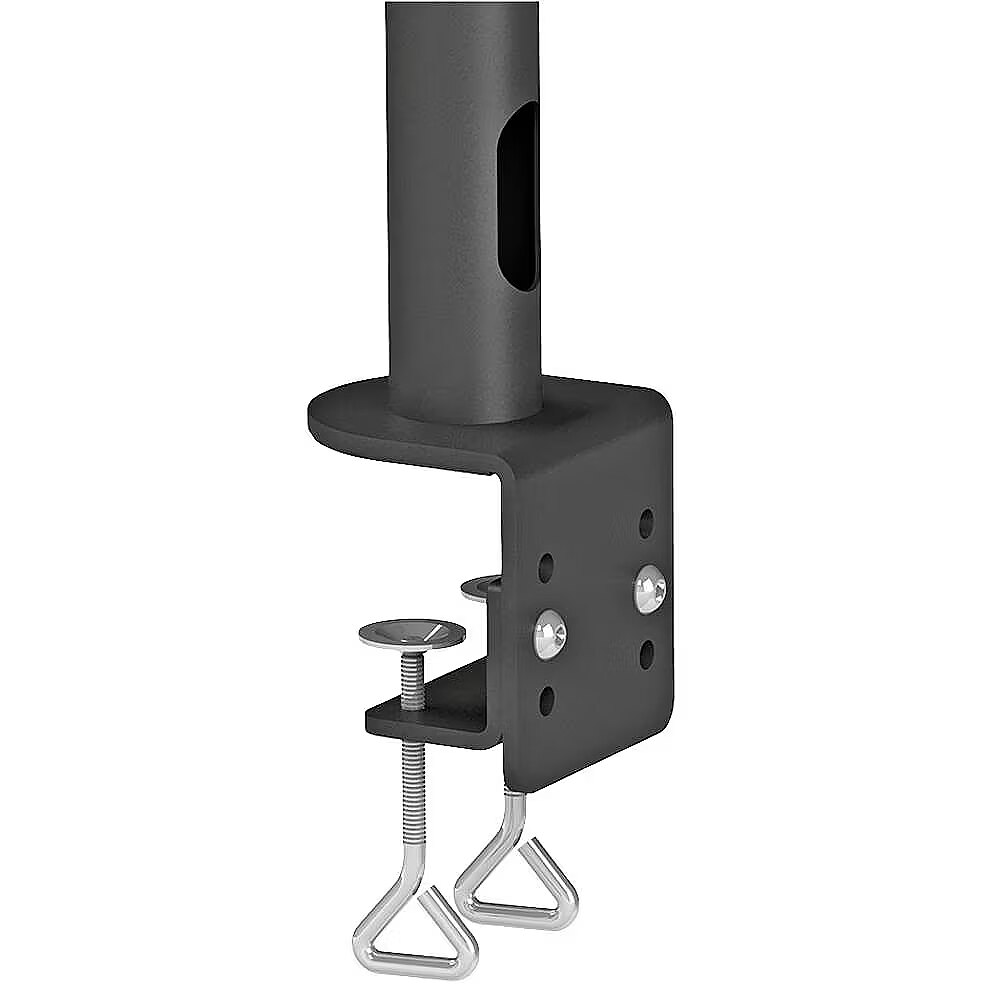

Mounting - Mounting - Clamp
Mounting - Mounting type - Desk
Mounting - Number of displays supported - 4
Mounting - Panel mounting interface - 75 x 75,100 x 100 mm
name - FPMA-D700D4 Desk mount
Other features - Rotation: 360°
Other features - Width adjustment range - 520 - 830 mm
Packaging data - Package depth - 555 mm
Packaging data - Package height - 180 mm
Packaging data - Package width - 830 mm
PeriodofWarranty - 5 Y
producer - Neomounts
ProductName - Neomounts desk monitor arm
Range (max) - 70 cm
Range (min) - 22 cm
Range adjustment - Yes
Screen size (max) - 30 ''
Screen size (min) - 19 ''
Shipping Box Depth Shipping/Package Box Dimensions - 83 cm
Shipping Box Height Shipping/Package Box Dimensions - 16 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 14.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 55.5 cm
Short summary - Neomounts by Newstar Tilt/Turn/Rotate Quad Desk Mount (clamp) for four 19-30" Monitor Screens, Height Adjustable - Black
ShortSummaryDescription - Neomounts desk monitor arm, Clamp, 8 kg, 48.3 cm (19"), 76.2 cm (30"), 100 x 100 mm, Black
Stand/mount type - Table
Tilt - Yes
Title - Neomounts desk monitor arm
Turn - Yes
Type - Desk
Unit Box Height - 0.16
Unit Box Length - 0.83
Unit Box Width - 0.555
Unit Brutto Volume - 0.0737 cubm
Unit Gross Weight - 14.2 kg
Unit Net Weight - 10.5 kg
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-D700D4
Usage - Monitors
Vendor Homepage - http://en.newstar.eu/av-mounts/flat-screen-mounts/desk-mounts/newstar-flat-screen-desk-mount-40/?alstart=0
vendpn - FPMA-D700D4
Vertical adjustment - 180 °
VESA - 75 x 75
VESA - 100 x 100
VESA-standard, mm - 75 x 75
VESA-standard, mm - 100 x 100
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 14.200000
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 700 mm
Weight & dimensions - Width - 830 mm
Wheels - No
Width - 555.000000
