Newstar TV ceiling mount, 37-70"

200 mm x 100 mm VESA mounting interface - Yes
200 mm x 200 mm VESA mounting interface - Yes
300 mm x 300 mm VESA mounting interface - Yes
600 mm x 400 mm VESA mounting interface - Yes
Brand - Neomounts
BrandPartCode - CL35-440BL16L
Category - TV Mounts & Stands
Category 1 - Beamer & Zubehör
Category 2 - Zubehör Beamer
Category Code - MAS
Colour - Black
Description - Neomounts CL35-440BL16L Monitor/TV mount ceiling 37-70" - h 106-156 cm Neomounts CL35-440BL16L Monitor/TV mount ceiling 1 screen - 37-70" - max 50 kg - VESA 200x200-600x400 - h 106-156 cm - black The Neomounts CL35-440BL16L is a full motion ceiling mount for flat screens up to 70". The unique tilt (25°) and swivel (360°) technology allows the mount to change to the optimal viewing angle. Level adjustment is available for the perfect installation. The ceiling mount can be easily adjusted in height from 106 to 156 cm* and has a weight capacity of 50 kg. The CL35-440BL16L is suitable for screens that meet VESA hole pattern 150x200 to 600x400 mm. A practical cable management system conceals and routes cables from ceiling to screen. The mount features an adjustable mounting angle for sloped ceilings and comes with an additional cover for installation on suspended ceilings. * The Neomounts NS-EP100BLACK extension pole can be used as extra extension to the pole included with the ceiling mount. In this way, the height of the mount can be increased with an extra 107,5 cm.
Description - NEOMOUNTS FLAT SCREEN CEILING MOUNT (HEIGHT:106-156 CM) BLACK
Design - Housing material - Steel
Design - Product colour - Black
Dimensions - 178 x 68 x 13.8 cm
Dimensions W x D x H, mm - 680 x 1380 x 1780
EAN - 8717371447878
Ergonomics - Angle of rotation - 3°

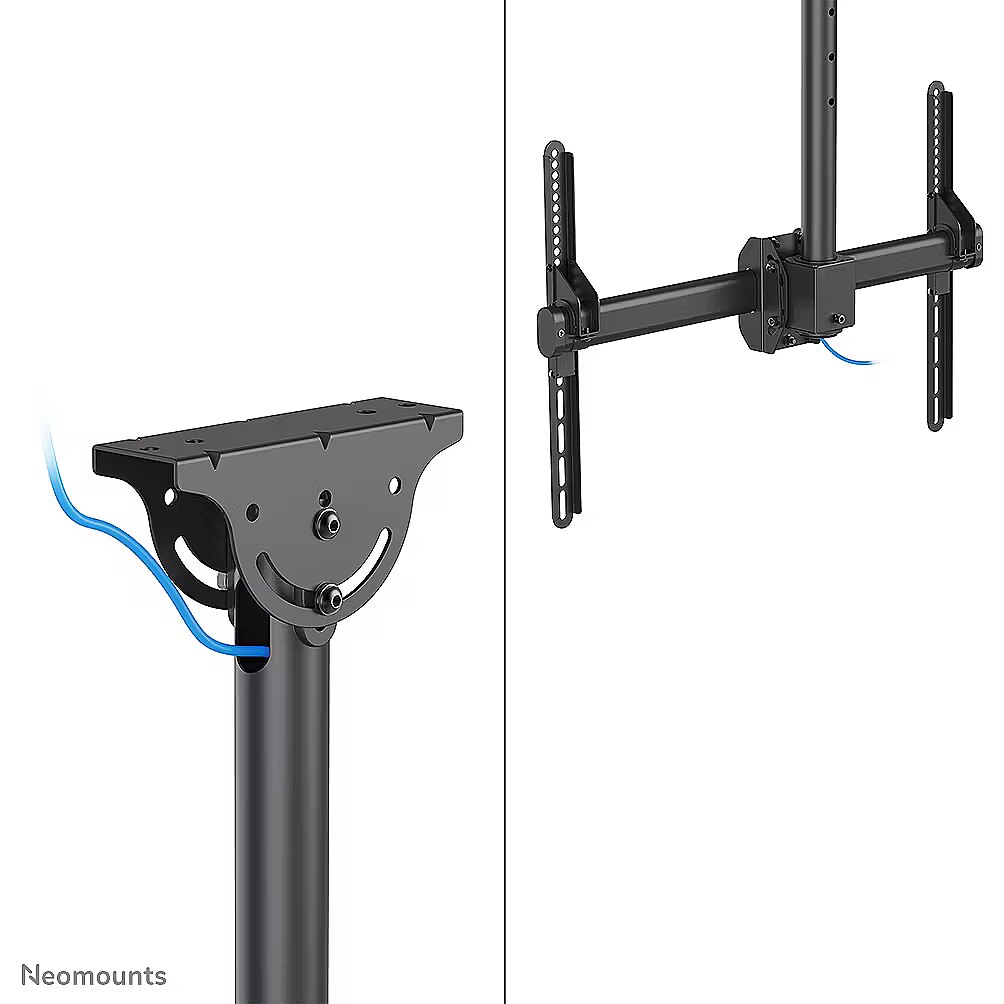

Ergonomics - Cable management - Yes
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 1060 - 1560 mm
Ergonomics - Height adjustment type - Manual
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle range - -180 - 180°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -25 - 0°
Fits screens sized - 37-70"
Full Description Line - Fits screens sized 37-70"|200 mm x 100 mm|200 mm x 200 mm|300 mm x 300 mm|600 mm x 400 mm|Dimensions 178 x 68 x 13.8 cm|Colour Black
GTIN - 8717371447878
Height - 310.000000
Height adjustment - Yes
Height adjustment, mm - 1060-1560
Length - 940.000000
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 166 g
Logistics data - Master (outer) case height - 955 mm
Logistics data - Master (outer) case length - 310 mm
Logistics data - Master (outer) case net weight - 156 g
Logistics data - Master (outer) case width - 330 mm
Logistics data - Products per master (outer) case - 2 pc(s)
Logistics data - Products per pallet (EU) - 20 pc(s)
LongDesc - The Neomounts CL35-440BL16L is a full motion ceiling mount for flat screens up to 70". The unique tilt (25°) and swivel (360°) technology allows the mount to change to the optimal viewing angle. Level adjustment is available for the perfect installation.The ceiling mount can be easily adjusted in height from 106 to 156 cm* and has a weight capacity of 50 kg. The CL35-440BL16L is suitable for screens that meet VESA hole pattern 150x200 to 600x400 mm. A practical cable management system conceals and routes cables from ceiling to screen. The mount features an adjustable mounting angle for sloped ceilings and comes with an additional cover for installation on suspended ceilings.* The Neomounts NS-EP100BLACK extension pole can be used as extra extension to the pole included with the ceiling mount. In this way, the height of the mount can be increased with an extra 107,5 cm.
LongProductName - Neomounts CL35-440BL16L Monitor/TV mount ceiling 1 screen - 37-70" - max 50 kg - VESA 200x200-600x400 - h 106-156 cm - black
LongSummaryDescription - Neomounts CL35-440BL16L Monitor/TV mount ceiling 37-70" - h 106-156 cm. Maximum weight capacity: 50 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 150 x 200 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment range: 1060 - 1560 mm, Tilt angle range: -25 - 0°, Swivel angle range: -180 - 180°, Angle of rotation: 3°. Product colour: Black
Manufacturer - Neomounts
Manufacturer - Newstar
ManufacturerPartNumber - CL35-440BL16L
Maximum weight (capacity), kg - 50
Model - CL35-440BL16L
Motorized - No
Mounting - Maximum screen size - 177.8 cm (70")
Mounting - Maximum VESA mount - 600 x 400 mm
Mounting - Maximum weight capacity - 50 kg
Mounting - Minimum screen size - 94 cm (37")
Mounting - Minimum VESA mount - 150 x 200 mm
Mounting - Mounting type - Ceiling
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,200 x 100,300 x 100,350 x 350,400 x 200,150 x 200,200 x 150
MPN - CL35-440BL16L
Name - Neomounts DEH 37"-70" 1TFT 1Gelenk H:106-156cm Max.50 schwa
Number of screens - 1
Packaging data - Package depth - 145 mm
Packaging data - Package height - 935 mm
Packaging data - Package weight - 7.8 kg
Packaging data - Package width - 310 mm
PeriodofWarranty - 5 Y
ProductName - Neomounts CL35-440BL16L Monitor/TV mount ceiling 37-70" - h 106-156 cm
Product Net Weight - 5 kg
Rotation, ° - +3 -3
Screen size compatibility, " - 37 - 70
Shipping Box Depth Shipping/Package Box Dimensions - 95 cm
Shipping Box Height Shipping/Package Box Dimensions - 31 cm
Shipping Box Weight Shipping/Package Box Dimensions - 16.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 32.5 cm
Short summary - Neomounts CL35-440BL16L Monitor/TV mount ceiling 1 screen - 37-70" - max 50 kg - VESA 200x200-600x400 - h 106-156 cm - black
ShortSummaryDescription - Neomounts CL35-440BL16L Monitor/TV mount ceiling 37-70" - h 106-156 cm, 150 x 200 mm, 600 x 400 mm, -25 - 0°, -180 - 180°, 3°, Black
Stand/mount type - Ceiling
Technical details - Country of origin - China
Technical details - Warranty period - 5 year(s)
Tilt - Yes
Tilt adjustment, ° - +0 -25
Title - Neomounts CL35-440BL16L Monitor/TV mount ceiling 37-70" - h 106-156 cm
Turn - Yes
Turn, ° - +180 -180
Unit Box Height - 0.14
Unit Box Length - 0.94
Unit Box Width - 0.31
Unit Calculated Volume - 0.04786 cubm
Unit Calculated Weight - 8.3 kg
Units per Shipping Box - 2
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=CL35-440BL16L
Vendor Homepage - www.neomounts.com/ceiling/tv-monitor-mounts/cl35-440bl16l-neomounts-cl35-440bl16l-monitor-tv-mount-ceiling-3/
VESA-standard, mm - 200 x 100
VESA-standard, mm - 200 x 200
VESA-standard, mm - 200 x 300
VESA-standard, mm - 200 x 400
VESA-standard, mm - 300 x 100
VESA-standard, mm - 300 x 200
VESA-standard, mm - 300 x 300
VESA-standard, mm - 350 x 350
VESA-standard, mm - 400 x 200
VESA-standard, mm - 400 x 300
VESA-standard, mm - 400 x 400
VESA-standard, mm - 440 x 400
VESA-standard, mm - 500 x 400
VESA-standard, mm - 600 x 200
VESA-standard, mm - 600 x 300
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 7.590000
Weight & dimensions - Depth - 138 mm
Weight & dimensions - Depth (max) - 13.8 cm
Weight & dimensions - Height - 1780 mm
Weight & dimensions - Weight - 6.36 kg
Weight & dimensions - Width - 680 mm
Wheels - No
Width - 145.000000
