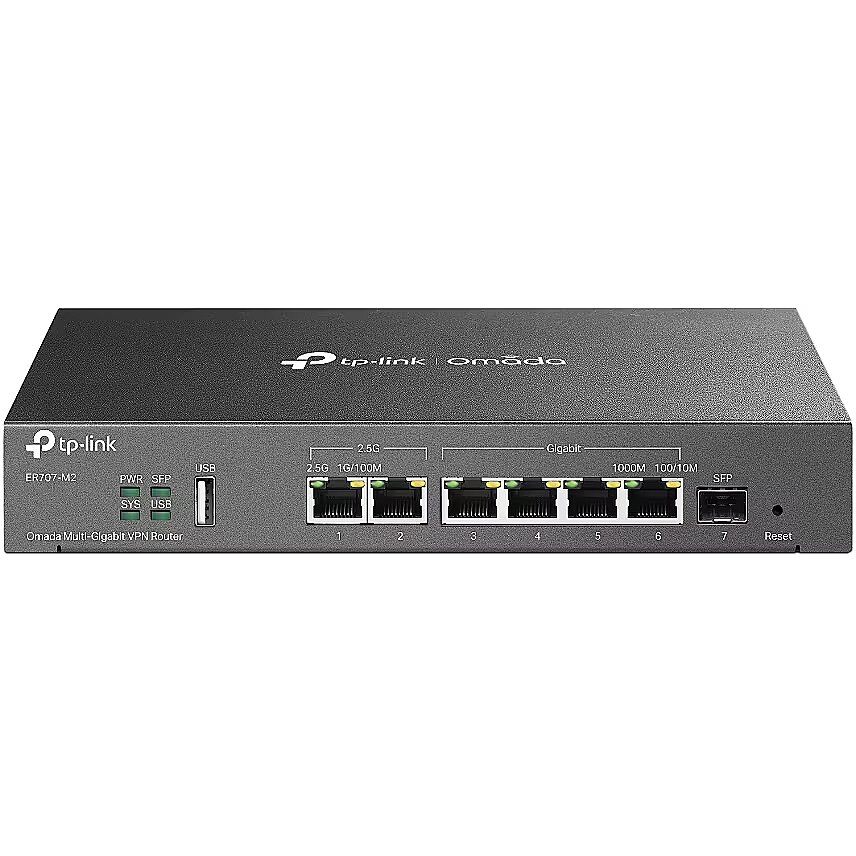

TP-LINK OMADA MULTI-GIGABIT VPN ROUTER 4X GIGABIT RJ45 WAN/LAN PORT

Accessories included - ER707-M2 Charger Quick installation instructions
ARTIKEL1 - OMADA MULTI-GIGABIT VPN ROUTER
ARTIKEL2 - 4X GIGABIT RJ45 WAN/LAN PORT
Brand - TP-Link
BrandPartCode - ER707-M2
Breite - 0
Category - Wired Routers
Certificates -
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS
Certificates - Sustainability compliance - Yes
Code - ER707-M2
Color - Black
Description - ER707-M2 Omada Multi-Gigabit VPN Router Two 2.5G ports: 1× 2.5G WAN port and 1× 2.5G WAN/LAN port ensure high connection speed. Up to 6 WAN ports: 2.5G RJ45, gigabit fiber and bandwidth load-balanced gigabit RJ45 WAN ports enhance multi-broadband capabilities. Secure VPN: Enterprise SSL/IPSec/GER§/PPTP/L2TP VPN and OpenVPN are ideal for multi-branch and WFH. Operation integrated with the Omada SDN platform: Unattended ZTP (Zero-Touch Provisioning) configuration, Central Cloud Management, Intelligent Monitoring and much more. Central management: Access from the Cloud and the Omada application provides convenient management. Reliable security: Firewall, DoS attack protection, IP/MAC/URL filtering, and even more security features.   Two 2.5 Gb/s ports built for harsh environments ER707-M2 provides high data transmission via two 2.5 Gb/s ports. The device is suitable for network environments where many people visit, such as shops, hotels and offices. You can also enjoy a blazing-fast network connection while working from home. 6 WAN ports. 1 USB port for mobile broadband ER707-M2 supports various Internet access sources thanks to 6 WAN ports - RJ45 and SFP. Multi-WAN link balancing distributes data streams based on the bandwidth ratio of each WAN port to scale up the use of multiple broadband links. Connect a 4G/3G modem to a USB 2.0 port for an LTE WAN backup connection. Omada SDN a smarter cloud solution for enterprise networks The ER707-M2 router, fully integrated with the Omada SDN platform, can be managed centrally and remotely from anywhere at any time. There is also a configuration page and a dedicated application to make device management even more convenient. Easy management via the Omada app Network configuration via the application takes only a few minutes. Omada allows you to adjust settings to your preferences, monitor network status and manage connected clients - all from your smartphone or tablet.
Design - Housing material - Steel
Design - LED indicators - LAN, Link, Power, Speed, System, USB, WAN
Design - Product colour - Black
Design - Wall mountable - Yes
dimension depth - 80 mm
dimension height - 240 mm
Dimensions - 226 × 131 × 35 mm
dimension weight - 1400 g
dimension width - 320 mm
EAN - 4895252500738
ean - 4895252500738
EANCode - 4895252500738
Environment requirements -
Features - Flash memory - 128 MB
Features - Internal memory - 1000 MB
Features - Internal memory type - DDR4
Features - Linux operating systems supported - Yes
Features - Mac operating systems supported - Yes
Features - Windows operating systems supported - Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Gewicht - 1.51
GRUPPE1 - Network
GRUPPE2 - Router
GTIN - 0840030705274
GTIN - 840030705274
GTIN - 4895252500738
GTIN - 4895252500745
guarantee - 60
guarantee_type - normal
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - ER707-M2
I/O ports - 1 x 10/100/1000/2500 RJ-45 port
I/O ports - 1 x 10/100/1000/2500 RJ-45 port (WAN)
I/O ports - 1 x SFP
I/O ports - 1 x USB 2.0
I/O ports - 4 x 10/100/1000 Mbit/s
Laenge - 0
LongDesc - Dual 2.5 Gbps Ports, Engineered for Dense EnvironmentsDelivering high-speed transmissions through dual 2.5 Gbps ports, ER707-M2 is designed for multi-person environments such as retail stores, hotels, and offices. Enjoy a blazing-fast network experience while working from home.6× WAN Ports & 1 USB WAN for Mobile BroadbandEmpowered with up to 6× WAN SFP and RJ45 ports, ER707-M2 supports various internet access.△ Multi-WAN Load Balancing distributes data streams based on the bandwidth proportion of every WAN port to increase the utilization rate of multi-line broadband.Connect a 4G/3G modem to the USB 2.0 port for a LTE WAN backup.High-Security VPNPass-through traffic and a variety of VPN protocols, such as SSL, GRE§, IPSec, PPTP, and L2TP, are available on ER707-M2, giving consumers versatile options. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.* The router also features a built-in hardware engine to boost VPN performance.Internet Access Management StrategyStandardize users’ online behavior and easily specify the internet access rights and strategies of employees via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.Omada SDN—The Smarter Cloud Solution for Business NetworkingAs the router that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER707-M2 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.Easy Management with the Omada AppFollow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
LongProductName - Omada Multi-Gigabit VPN Router, 1 x 2.5G RJ45 WAN, 1 x 2.5G RJ45 WAN/LAN, 1 x Gigabit SFP WAN/LAN, 4 x Gigabit RJ45 WAN/LAN, 1 x USB 2.0
LongSummaryDescription - TP-Link Omada Multi-Gigabit VPN Router. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP. Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SNMP, SNMPv2, SNMPv3. Compliance certificates: CE, Federal Communications Commission (FCC), RoHS. Flash memory: 128 MB, Internal memory: 1000 MB, Internal memory type: DDR4
Management, monitoring, configuration - Automatic device detection Intelligent network status monitoring Warnings of abnormal events Unified configuration process Restart scheduler Personalised network login page ZTP (Zero-Touch Provisioning) Omada cloud-based controller Omada Controller Hardware (OC300) Omada Controller Hardware (OC200) Omada Software Controller
Management features - Reset button - Yes
Management features - Universal Plug and Play (UPnP) - Yes
Management features - Web-based management - Yes
Model - ER707-M2
name - Router Multi-Gigabit VPN ER707-M2
Name - TP-LINK ER707-M2 Omada Multi-Gigabit VPN Router
Network - Ethernet interface type - 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Network - Ethernet LAN data rates - 10,100,1000,2500 Mbit/s
Network - Networking standards - IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x
Network - Policy-based routing - Yes
Network - Static route - Yes
Network - Throughput - 1.44 Gbit/s
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 323.00 mm
Package features > Gross height (mm) - 73.00 mm
Package features > Gross width (mm) - 242.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 303 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 323 mm
Packaging data - Package height - 73 mm
Packaging data - Package weight - 1.1 kg
Packaging data - Package width - 242 mm
Ports & interfaces - Ethernet LAN (RJ-45) ports - 6
Ports & interfaces - Installed SFP modules quantity - 1
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - USB version - 2.0
Ports & interfaces - WAN/Ethernet LAN ports quantity - 6
Ports & interfaces - WAN ports quantity - 1
Power - Output current - 1.5 A
Power - Output voltage - 12 V
Power - Power source type - DC
Power supply - 12V/1.5A power supply
producer - TP-LINK
ProductName - Multi-Gigabit VPN Router
Protocols - DHCP client - Yes
Protocols - DHCP server - Yes
Protocols - DMZ support - Yes
Protocols - Supported network protocols - TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Security - Filtration WEB§ group filtering URL filtering Network security Protection against ARP attacks Sending GARP§ packets ARP Scanning§ IP and MAC address binding§ Protection against network attacks TCP/UDP/ICMP Flood Defense TCP Scan Blocking (Stealth FIN/Xmas/Null) Blocking the reception of ping packets from the WAN network Access control Access control based on source/destination IP address
Security - Access Control List (ACL) - Yes
Security - ICMP attack prevention - Yes
Security - Network address translation (NAT) - Yes
Security - Security algorithms - 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SNMP, SNMPv2, SNMPv3
Security - System event log - Yes
Security - URL filtering - Yes
Security - VPN tunnels quantity - 66
ShortSummaryDescription - TP-Link Omada Multi-Gigabit VPN Router, Ethernet WAN, 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Black
Software -
Special functions -
Standards - 802.3ab
Standards - 802.3q
Standards - 802.3u
Standards - 802.3x
Standards - 802.3z
Stck_Kart - 8
Stck_Pal - 0
Storno - Y
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Unix
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported operating systems - Windows 98 SE
Supported operating systems - Windows 2000
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
System Requirements -
Technical details > Gross weight - 1.59 kg
Technical details > Net weight - 1.39 kg
Technical details > Producer - TP-LINK
Title - TP-Link Omada Multi-Gigabit VPN Router
Type - xDSL
URL - https://www.tp-link.com/uk/business-networking/omada-sdn-router/er707-m2/
vendpn - ER707-M2
WAN connection - Ethernet WAN - Yes
WAN connection - SFP WAN - Yes
Warranty - 60
Warranty - 60 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 131 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 226 mm
