10Base-T / 100Base-TX Ports - 1
brand - MikroTik
Built-in management - Yes
category - MikroTik > Komutatori > Cloud Router Switch 10G
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Code - CRS504-4XQ-IN

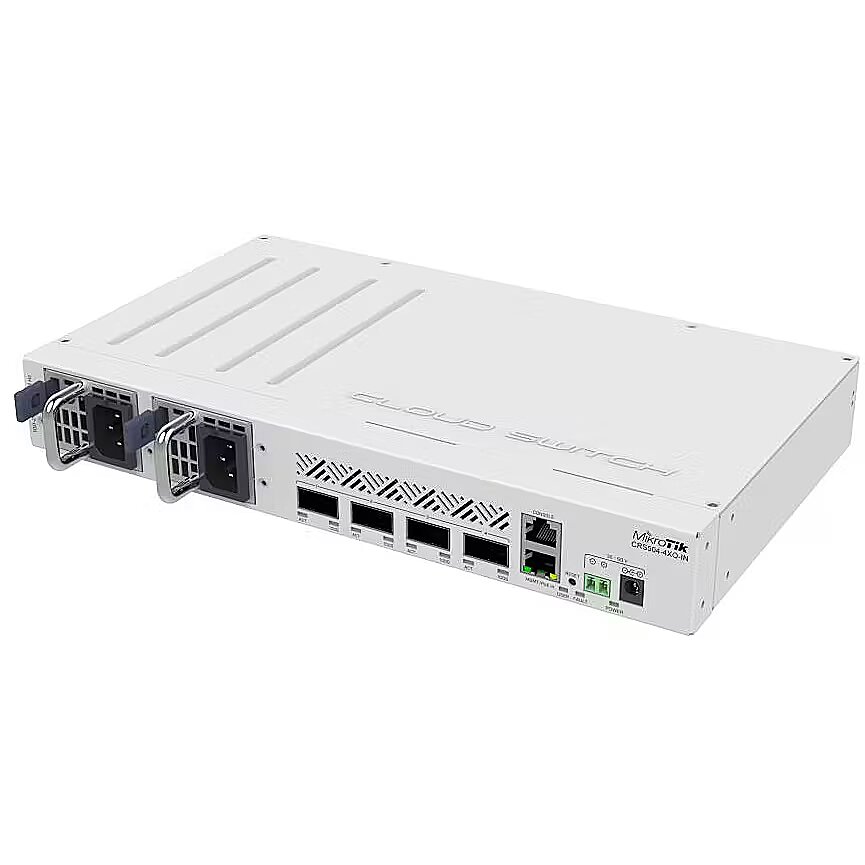

Description - Our 100 Gigabit family keeps expanding – you’ve already seen the incredible CCR2216 100 Gigabit router. Now it’s time for a matching switch – the CRS504-4XQ-IN. The small size combined with the low power consumption (25W without attachments!) is perfect to start expanding 100 Gigabit networking in everyday setups. This speed is no longer limited to data centers, ISPs, and large offices. You too can upgrade your 10 or 25 Gigabit network and join the one hundred club! There are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices: each port is connected to four 25 Gigabit lines, allowing you to connect 16 x 25 Gigabit devices. In fact, you can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4x25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. Obviously, there is an Ethernet port for management purposes as well. We’ve been using this switch for quite some time now in the Genomics Data Network project. A high-capacity data network for our local scientists working on ground-breaking cancer treatments. Genome data can take up a lot of space, so you need exceptionally fast connections there. Also, with these devices, Latvia became the first Baltic country to establish a 100 Gigabit connection to the pan-European research network. With multiple powering options and the ability to be mounted on the wall, this switch will make any system administrator happy.
Design > Form factor - Wall Mountable
EAN - 4752224007407
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - No
Full Description Line - Rack 1U|Built-in management|1x10Base-T / 100Base-TX|4xQSFP28|Switching capacity 800 Gbps|Power supply Inbuilt|Software included RouterOS level 5|Included Accessories Rackmount ears|Unit Net Weight 1 kg
height - 0.10 m
Included Accessories - Rackmount ears
length - 0.38 m
Management features > Switch type - Router Switch
Manufacturer - MikroTik
Model name - CRS504-4XQ-IN
mpn - CRS504-4XQ-IN
MPN - CRS504-4XQ-IN
Name - 16P+4 Mikrotik CRS504-4XQ-IN QSFP28 M RM
Name - MikroTik | Cloud Router Switch | CRS504-4XQ-IN | Router Switch | Wall Mountable | Mesh Support No | MU-MiMO No | No mobile broadband | SFP+ ports quantity 4
Networking > PoE in - 802.3 bt
Operational conditions > Operating temperature (T-T) - -40°C to 70°C °C
Other features > Ethernet LAN (RJ-45) ports - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 495.00 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross width (mm) - 381.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 57 pc(s)
Package features > Paper/Pasteboard - 180.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.02 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance > Ethernet LAN data rates - 10/100 Mbit/s
Ports & interfaces > SFP+ ports quantity - 4
Power > Power consumption (max) - 41 W
Power > Voltage - 36-57 V
Power supply - Inbuilt
Primary port count - 4
Producer product family - Cloud Router Switch
Producer product name - CRS504-4XQ-IN
QSFP28 Ports - 4
Rack 1U Mounting Type - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 38 cm
Shipping Box Height Shipping/Package Box Dimensions - 31.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.438 kg
Shipping Box Width Shipping/Package Box Dimensions - 8 cm
Software > Operating system installed - RouterOS v7
Software included - RouterOS level 5
Switching capacity - 800 Gbps
Technical details > Gross weight - 3.60 kg
Technical details > Net weight - 3.40 kg
Technical details > Producer - MikroTik
Technical details > Software type - RouterOS v7
title - MikroTik CRS504-4XQ-IN
Unit Box Height - 0.315
Unit Box Length - 0.38
Unit Box Width - 0.08
Unit Brutto Volume - 0.009576 cubm
Unit Gross Weight - 2.44 kg
Unit Net Weight - 1 kg
Vendor Homepage - mikrotik.com/product/crs504_4xq_in
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
Weight - 2.4
weight - 2.62 kg
width - 0.31 m
Wireless LAN features > Wi-Fi band - No Wi-Fi
