10/100/1000M LAN Ports - 5
Accessories included -
brand - MikroTik
category - MikroTik > Ethernet rūteri > hEX
Category - Root/Electronics/Networks and communication/Routers
Category 1 - Netzwerk
Category 2 - Router
Category Code - ROU
Certificates > Certification - CE, EAC, ROHS
Code - RB960PGS
Color - White

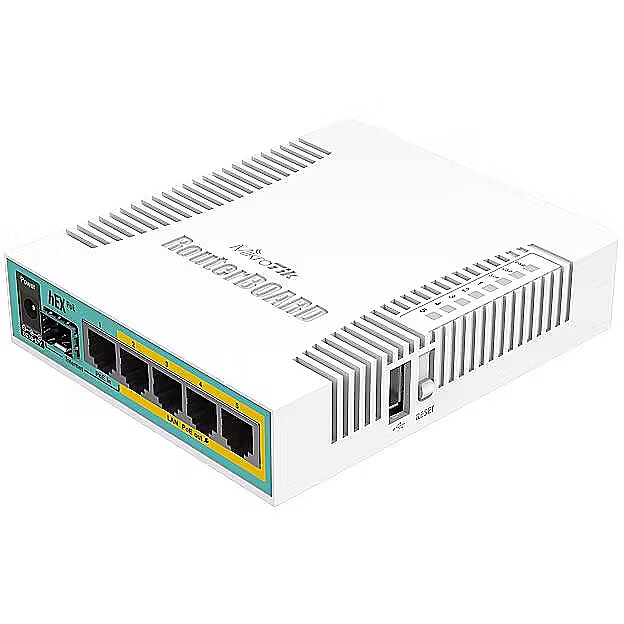

Description - hEX PoE is a five port gigabit ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
Description - hEX PoE to pięcioportowy router Gigabit Ethernet przeznaczony do lokalizacji, w których łączność bezprzewodowa nie jest wymagana. Urządzenie posiada port USB 2.0 i port SFP do obsługi połączeń światłowodowych. Porty 2-5 mogą zasilać inne urządzenia obsługujące PoE tym samym napięciem, co urządzenie.
Jest niedrogi, mały i łatwy w użyciu, ale jednocześnie jest wyposażony w bardzo wydajny procesor 800 MHz, zdolny do wszystkich zaawansowanych konfiguracji obsługiwanych przez RouterOS. Mniej zasilaczy i kabli, o które trzeba się martwić! Maksymalny prąd to 1A na port, porty Ethernet są ekranowane.
Obsługuje również pasywne wejście PoE i wyjście pasywne lub 802.3af/at PoE. Porty Ethernet od 2 do 5 mogą zasilać inne urządzenia obsługujące PoE tym samym napięciem, co urządzenie. Mniej zasilaczy i kabli, o które trzeba się martwić! Może zasilać urządzenia kompatybilne z trybem at/af B (4,5+)(7,8-), jeśli używane jest napięcie wejściowe 48-57.
Design - Product colour - White
dimensionalWeight - 436
dimension depth - 70 mm
dimension height - 150 mm
Dimensions -
dimension weight - 630 g
dimension width - 220 mm
EAN - 4752224003294
ean - 4752224003294
Eans - 4752224003294
Features - Built-in processor - Yes
Features - Flash memory - 16 MB
Features - Internal memory - 128 MB
Features - Processor cores - 1
Features - Processor frequency - 800 MHz
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - No
Full Description Line - Network Device Type Router|5x10/100/1000M|1xSFP|1xUSB 2.0|Memory (RAM) 128MB
Gross weight - 0.7 kg
guarantee - 12
guarantee_type - normal
Hard drive > Storage capacity - 16 MB
height - 0.086 m
I/O ports - 1 x USB 2.0 Type A
I/O ports - 5 x 10/100/1000 Mbit/s
length - 0.225 m
Link - https://mikrotik.com/product/RB960PGS#fndtn-specifications
Link - https://wiki.mikrotik.com/wiki/MikroTik_SFP_module_compatibility_table
Logistics data - Harmonized System (HS) code - 85176990
Management, monitoring, configuration -
Management features - Web-based management - Yes
Manufacturer - MikroTik
Memory (RAM) - 128MB
Model - RB960PGS
mpn - RB960PGS
MPN - RB960PGS
Name - MikroTik RB960PGS
Name - MIKROTIK RB960PGS hEX PoE
name - MikroTik Router xDSL 1xWAN 4xLAN SFP RB960PG
Name - Mikrotik Wired Ethernet Router RB960PGS, hEX PoE, CPU 800MHz, 128MB RAM, 16MB, 1xSFP, 5xGigabit LAN, 1xUSB, Power Output On ports 2-5, Ourput: 1A max per port; 2A max total, RouterOS L4 | hEX PoE Router | RB960PGS | No Wi-Fi | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 5 | Mesh Support No | MU-MiMO No | No mobile broadband | 1xUSB | 12 month(s)
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000
Network - Networking standards - IEEE 802.3at
Network architecture - GigabitEthernet
Network Device Type - Router
Networking > PoE in - Passive PoE
Operational conditions > Operating temperature (T-T) - -40°C to 60°C °C
Other features - Architektura: MIPSBE Procesor: QCA9557 Liczba rdzeni procesora: 1 Częstotliwość nominalna procesora: 800 MHz Licencja RouterOS: 4 System operacyjny: RouterOS Rozmiar pamięci RAM: 128 MB Rozmiar pamięci: 16 MB Typ pamięci: FLASH MTBF: około 100 000 godzin w 25C
Other features > Ethernet LAN (RJ-45) ports - 5
Other features > USB ports quantity - 1xUSB
Other features > Wi-Fi - No
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 75.00 mm
Package features > Gross height (mm) - 220.00 mm
Package features > Gross width (mm) - 145.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 361 pc(s)
Package features > Paper/Pasteboard - 180 g
Package features > Plastic (No PET) - 20 g
Package features > Tare weight (kg) - 0.2 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content > AC adapter included - Yes (24V 2.5A power adapter)
Packaging content > Memory card included - Yes
Packaging data - AC adapter included - Yes
PDF - http://www.blobs.lt/products/8/2/7/1/9/1/b8c1b8ef4c400327f84457af38dcd0e6/original.pdf
PDF - http://www.blobs.lt/products/8/2/7/1/9/1/f0d952650c48abd8e1fdde6a17039473/original.pdf
Performance > Data transfer rate (max) - 1 Gbit/s
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Performance > Internal memory - 128 MB
Performance > Memory type - Flash
Performance > Processor cores - 1
Performance > Processor frequency - 800 MHz
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 5
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - USB version - 2.0
Power - Output current - 1 A
Power - Power source type - DC
Power - Power supply - 9 W
Power > Power consumption (max) - 54 W
Power > Voltage - (PoE in input Voltage) 12-57 V
Power supply - Porty PoE-out: Ether2-Ether5 Wyjście PoE: 802.3af/at Maks. wyjście na port (wejście 18-30 V): 1 A Maks. wyjście na port (wejście 30-57 V): 450 mA Maksymalna suma wyjściowa (A): 2 A
Processor > Processor model - QCA9557
producer - Mikrotik
Producer - MikroTik
producerCode - RB960PGS
ProducerCode - RB960PGS
Producer product family - hEX PoE Router
Producer product name - RB960PGS
productName - Mikrotik hEX PoE wired router White
productSize - Normal
Protocols - DHCP client - Yes
Protocols - DHCP server - Yes
Security -
Security - Firewall - Yes
SFP Ports - 1
Shipping Box Depth Shipping/Package Box Dimensions - 21.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 7.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.76 kg
Shipping Box Width Shipping/Package Box Dimensions - 14.5 cm
ShortDescription -
sizeX - 215
sizeY - 70
sizeZ - 145
Software -
Special functions -
Standards - 802.3af
Standards - 802.3at
System Requirements -
Technical details > Net weight - 0.50 kg
Technical details > Other features - hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded. It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.
Technical details > Producer - MikroTik
Technical details > Warranty - 12 month(s)
title - MikroTik hEX PoE
Type - xDSL
Unit Brutto Volume - 0.002338 cubm
Unit Gross Weight - 0.76 kg
Unit Net Weight - 0.4 kg
USB 2.0 Ports - 1
Vendor Homepage - routerboard.com/RB960PGS
vendpn - RB960PGS
Warranty - 12
Warranty - 12 months
warrantyLength - 12
warrantyType - G
weight - 0.8 kg
Weight - 0.76
weight - 755
Weight & dimensions - Depth - 137 mm
Weight & dimensions - Height - 29 mm
Weight & dimensions - Width - 114 mm
width - 0.145 m
Wireless LAN features > Wi-Fi band - No Wi-Fi
