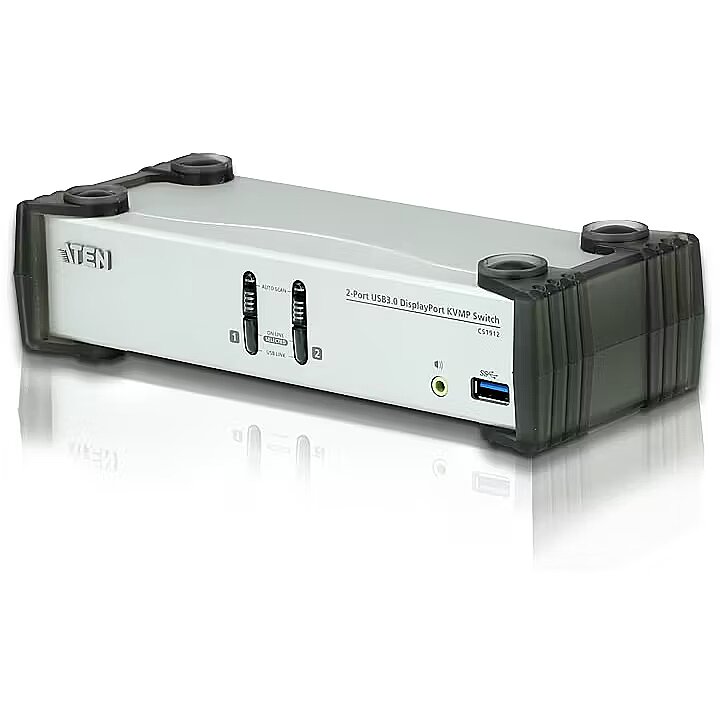

Incase CS1912 2-Port USB 3.0 DisplayPort KVMP™ Switch (Cables included)

Brand - ATEN
BrandPartCode - CS1912-AT-G
Category - KVM Switches
Code - CS1912-AT-G
Design - Hot keys - Yes
Design - Housing material - Metal, Plastic
Design - LED indicators - Yes
Design - Product colour - Black, Grey
Design - Push button - Yes
Design - Rack mounting - No
Design > Material - Metal, Plastic
Display - Built-in display - No
EAN - 4719264645037
GTIN - 4719264645037
Logistics data - Harmonized System (HS) code - 85176200
Logistics data - Master (outer) case gross weight - 9.35 kg
Logistics data - Master (outer) case height - 194 mm
Logistics data - Master (outer) case length - 517 mm
Logistics data - Master (outer) case net weight - 6.8 kg
Logistics data - Master (outer) case width - 292 mm
Logistics data - Products per master (outer) case - 5 pc(s)
LongDesc - The ATEN CS1912 2-Port USB 3.0 DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1912 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.1 x CS1912 2-Port USB 3.0 DisplayPort KVMP™ Switch2 x LIN5-20K1-K14G DisplayPort Cables2 x LIN6-11C1-E12G USB 3.0 Cables2 x LIN5-0205-21CG Audio Cables1 x 0AD8-8005-40MG Power Adapter1 x User Instructions
LongProductName - 2-Port USB 3.1 Gen 1 DisplayPort 1.1 KVMP™ Switch with Speaker (KVM cables included)
LongSummaryDescription - ATEN 2-Port USB 3.1 Gen 1 DisplayPort 1.1 KVMP™ Switch with Speaker (KVM cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 30 Hz. Product colour: Black, Grey, Housing material: Metal, Plastic. Power source: DC, Output voltage: 5 V, Power consumption (typical): 2 W. Compliance certificates: RoHS
Name - Aten CS1912 2-Port USB 3.0 DisplayPort KVMP™ Switch (Cables included) | Aten | 2-Port USB 3.0 DisplayPort KVMP Switch (Cables included) | CS1912
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Operational conditions > Temperature range (T-T) - 0-50˚C °C
Other features > I/O ports - Console Ports: 2 x USB Type A Female (Black), 1 x DisplayPort Female (Black), 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear); KVM (Computer) Ports: 2 x USB 3.1 Gen1 Type B Female (Blue), 2 x DisplayPort Female (Black), 2 x 3.5mm Audio Jack Female (Green)
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 100 mm
Package features > Gross depth master carton - 565 mm
Package features > Gross height (mm) - 173 mm
Package features > Gross height master carton - 260 mm
Package features > Gross width (mm) - 283 mm
Package features > Gross width master carton - 387 mm
Package features > Net weight master carton - 8.022 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 353 pc(s)
Package features > Paper/Pasteboard - 900.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.91 kg
Package features > Tare weight master carton - 0.966 kg
Package features > Volume (m3) - 0.0048959 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package depth - 283 mm
Packaging data - Package height - 173 mm
Packaging data - Package weight - 1.77 kg
Packaging data - Package width - 100 mm
Performance - Automatic switching - Yes
Performance - HDCP - Yes
Performance - HD type - 4K Ultra HD
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Scan interval - 1,99 s
Performance - Video bandwidth - 30 Hz
Ports & interfaces - Audio connections - Yes
Ports & interfaces - Console ports - DisplayPort, USB A
Ports & interfaces - Console USB ports quantity - 2
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - Headphone outputs - 4
Ports & interfaces - Keyboard port type - USB
Ports & interfaces - Mouse port type - USB
Ports & interfaces - Number of computers controlled - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity - 2
Ports & interfaces - USB connector type - USB Type-A, USB Type-B
Ports & interfaces - USB hub - Yes
Ports & interfaces - Video port type - DisplayPort
Power - External power adapter - Yes
Power - Output voltage - 5 V
Power - Power consumption (typical) - 2 W
Power - Power source - DC
Producer product family - 2-Port USB 3.0 DisplayPort KVMP Switch (Cables included)
Producer product name - CS1912
ProductName - 2-Port USB 3.1 Gen 1 DisplayPort 1.1 KVMP™ Switch with Speaker (KVM cables included)
ShortSummaryDescription - ATEN 2-Port USB 3.1 Gen 1 DisplayPort 1.1 KVMP™ Switch with Speaker (KVM cables included), 3840 x 2160 pixels, 4K Ultra HD, 2 W, Black, Grey
Sustainability - Compliance certificates - RoHS
Technical details > Gross weight - 1.784 kg
Technical details > Net weight - 0.874 kg
Technical details > Other features - Supports superior video quality – up to 3840 x 2160 @ 30 Hz. Computer selection via front panel pushbuttons, hotkeys and mouse. 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates. DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter
Technical details > Producer - Aten
Title - ATEN 2-Port USB 3.1 Gen 1 DisplayPort 1.1 KVMP™ Switch with Speaker (KVM cables included)
URL - https://www.atten.eu/
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 210 mm
Weight & dimensions - Height - 55.5 mm
Weight & dimensions - Weight - 1.36 kg
Weight & dimensions - Width - 88 mm
