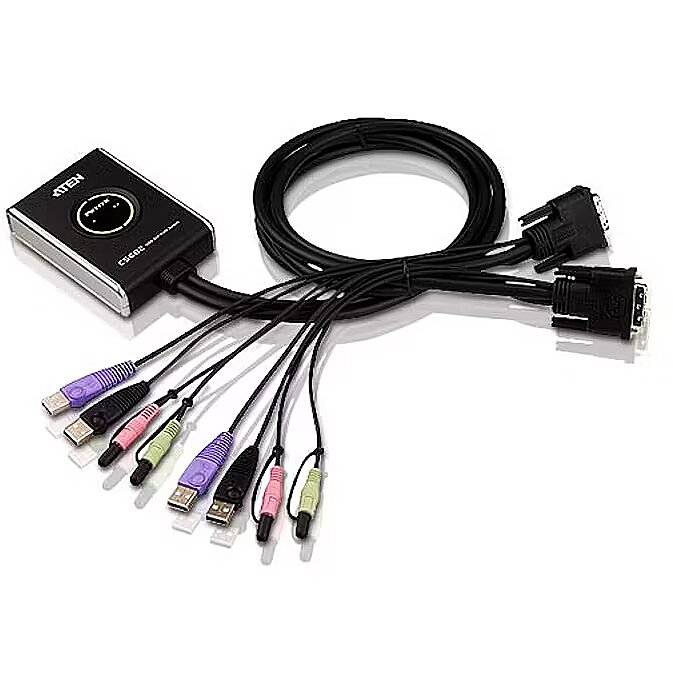

Incase 2-Port USB DVI/Audio Cable KVM Switch with Remote Port Selector

Brand - ATEN
BrandPartCode - CS682-AT
Category - KVM Switches
Code - CS682-AT
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
Display - Built-in display - No
EAN - 4710423775909
Features > Cable length - 2 x 1.2 m m
GTIN - 0115971584241
GTIN - 115971584241
GTIN - 0132018255766
GTIN - 132018255766
GTIN - 0163121389345
GTIN - 163121389345
GTIN - 0172304247754
GTIN - 172304247754
GTIN - 0521227116201
GTIN - 521227116201
GTIN - 0523160899371
GTIN - 523160899371
GTIN - 0616268720897
GTIN - 616268720897
GTIN - 0617407439823
GTIN - 617407439823
GTIN - 0672792110559
GTIN - 672792110559
GTIN - 0723856179460
GTIN - 723856179460
GTIN - 0763615832373
GTIN - 763615832373
GTIN - 0797045611888
GTIN - 797045611888
GTIN - 0809185331356
GTIN - 809185331356
GTIN - 0809385180389
GTIN - 809385180389
GTIN - 0869175258575
GTIN - 869175258575
GTIN - 0999992485592
GTIN - 999992485592
GTIN - 4014619674589
GTIN - 4710423775909
GTIN - 5054484276647
GTIN - 5054533276642
GTIN - 5054814449987
GTIN - 5055851124257
GTIN - 6727921105594
Logistics data - Harmonized System (HS) code - 85176200
Logistics data - Master (outer) case gross weight - 6.61 kg
Logistics data - Master (outer) case height - 182 mm
Logistics data - Master (outer) case length - 405 mm
Logistics data - Master (outer) case net weight - 4.6 kg
Logistics data - Master (outer) case width - 395 mm
Logistics data - Products per master (outer) case - 10 pc(s)

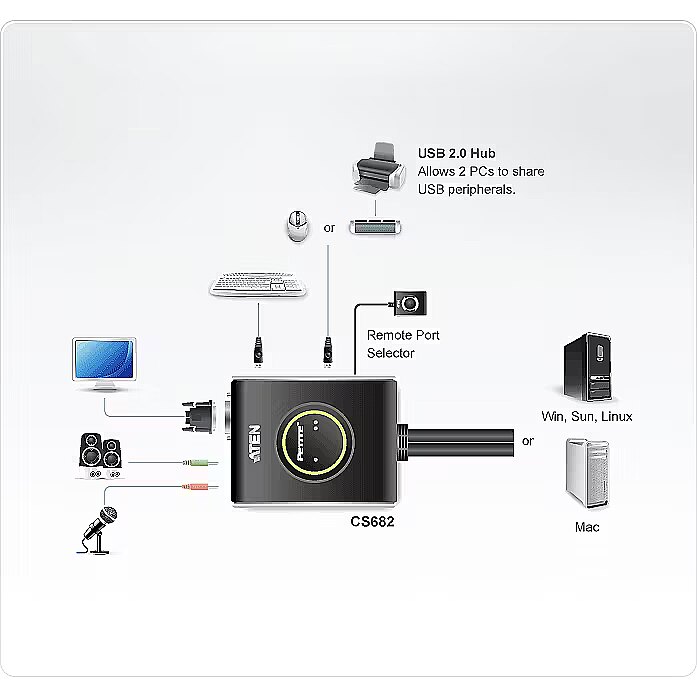

LongDesc - The CS682 takes a giant step forward from prior models in the Petite series, by offering DVI functionality, USB 2.0 peripheral sharing, and a rich bass experience for 2.1 surround systems. Another new feature of the CS682 is the implementation of a remote port selector. This means that you can now control port switching from the desktop while the switch itself can be placed in a convenient, out of the way, location.1x CS682 2-Port USB 2.0 DVI KVM Switch1x Remote Port Selector1x User Instructions
LongProductName - 2-Port USB DVI KVM Switch with Audio
LongSummaryDescription - ATEN 2-Port USB DVI KVM Switch with Audio. Keyboard port type: USB, Mouse port type: USB, Video port type: DVI-D. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black. Power source: DC, Input voltage: 5 V, Power consumption (typical): 1.9 W. Width: 111.5 mm, Depth: 78 mm, Height: 24 mm
Name - Aten 2-Port USB DVI/Audio Cable KVM Switch with Remote Port Selector | Aten | 2-Port USB DVI/Audio Cable KVM Switch with Remote Port Selector
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 80%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Operational conditions > Temperature range (T-T) - 0 - 50°C °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 164 mm
Package features > Gross depth master carton - 415 mm
Package features > Gross height (mm) - 195 mm
Package features > Gross height master carton - 190 mm
Package features > Gross weight - 0.591 kg
Package features > Gross width (mm) - 72 mm
Package features > Gross width master carton - 400 mm
Package features > Net weight master carton - 5.91 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 540 pc(s)
Package features > Paper/Pasteboard - 100 g
Package features > Plastic (No PET) - 9 g
Package features > Tare weight (kg) - 0.11 kg
Package features > Tare weight master carton - 0.536 kg
Package features > Volume (m3) - 0.00230256 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Manual - Yes
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 163 mm
Packaging data - Package height - 235 mm
Packaging data - Package weight - 590 g
Packaging data - Package width - 70 mm
Performance - HD type - WUXGA
Performance - Maximum resolution - 1920 x 1200 pixels
Performance - Scan interval - 3,5,10,20 s
Performance - Video bandwidth - 60 Hz
Ports & interfaces - Audio connections - Yes
Ports & interfaces - Console ports - 3.5mm headphone, 3.5mm mic, DVI-D, USB A
Ports & interfaces - Console USB ports quantity - 2
Ports & interfaces - DVI-D ports quantity - 2
Ports & interfaces - Headphone outputs - 3
Ports & interfaces - Keyboard port type - USB
Ports & interfaces - Mouse port type - USB
Ports & interfaces - Number of computers controlled - 2
Ports & interfaces - Number of microphone inputs - 3
Ports & interfaces - USB 2.0 Type-A hub ports quantity - 4
Ports & interfaces - USB connector type - USB Type-A, USB Type-B
Ports & interfaces - Video port type - DVI-D
Power - Input voltage - 5 V
Power - Power consumption (typical) - 1.9 W
Power - Power source - DC
Producer product name - 2-Port USB DVI/Audio Cable KVM Switch with Remote Port Selector
ProductName - 2-Port USB DVI KVM Switch with Audio
ShortSummaryDescription - ATEN 2-Port USB DVI KVM Switch with Audio, 1920 x 1200 pixels, WUXGA, 1.9 W, Black
Technical details > Net weight - 0.482 kg
Technical details > Other features - Superior video quality - up to 1920 x 1200 @ 60 Hz. Computer selection via a remote port selector, hotkeys, and USB mouse. Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus. Built-in all-in-one cables (2 x 1.2 m) and bus-powered design. Console ports- 1 x DVI-D Female (White); 2 x USB Type A Female; 1 x 3.5mm Audio Jack Female (Green); 1 x 3.5mm Audio Jack Female (Pink); KVM Ports-2 x DVI-D Male (Black); 2 x USB Type A Male (Purple); 2 x USB Type A Male (Black); 2 x 3.5mm Audio Jack Female (Green); 2 x 3.5mm Audio Jack Female (Pink). Remote Port Selector-1 x 2.5mm Audio Jack Female
Technical details > Producer - Aten
Title - ATEN 2-Port USB DVI KVM Switch with Audio
URL - https://www.aten.com/eu/en/products/kvm/cable-kvm-switches/cs682/
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 78 mm
Weight & dimensions - Height - 24 mm
Weight & dimensions - Weight - 460 g
Weight & dimensions - Width - 111.5 mm
