Incase 4-Port PS/2-USB VGA KVM Switch

Brand - ATEN
BrandPartCode - CS84U-AT
Category - KVM Switches
Code - CS84U-AT
Design - Hot keys - Yes
Design - Housing material - Metal
Design - LED indicators - Yes
Design - Product colour - Black, Grey
Design - Push button - Yes
Design - Rack mounting - No
Display - Built-in display - No
EAN - 4710423777019
GTIN - 0151903044063
GTIN - 151903044063
GTIN - 0168141484049
GTIN - 168141484049
GTIN - 0191120037714
GTIN - 191120037714
GTIN - 0617407439878
GTIN - 617407439878
GTIN - 0672792002052
GTIN - 672792002052
GTIN - 0672792800146
GTIN - 672792800146
GTIN - 0971471757529
GTIN - 971471757529
GTIN - 4014619348077
GTIN - 4710423777019
GTIN - 5055309618611
GTIN - 6727920020522
GTIN - 6727928001462
Logistics data - Harmonized System (HS) code - 85176200
Logistics data - Master (outer) case gross weight - 8.98 kg
Logistics data - Master (outer) case height - 194 mm
Logistics data - Master (outer) case length - 517 mm
Logistics data - Master (outer) case net weight - 7.57 kg
Logistics data - Master (outer) case width - 292 mm
Logistics data - Products per master (outer) case - 5 pc(s)
LongDesc - The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.1x CS84U PS/2-USB KVM Switch2x 2L-5301UP PS/2-USB KVM Cables 2x 2L-5302UP PS/2-USB KVM Cables1x User Instructions
LongProductName - 4-Port USB - PS/2 VGA KVM Switch (KVM Cables included)
LongSummaryDescription - ATEN 4-Port USB - PS/2 VGA KVM Switch (KVM Cables included). Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Video bandwidth: 60 Hz. Product colour: Black, Grey, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.45 W. Width: 210 mm, Depth: 88 mm, Height: 55.5 mm
Name - Aten 4-Port PS/2-USB VGA KVM Switch | Aten | 4-Port PS/2-USB VGA KVM Switch
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 80%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Operational conditions > Temperature range (T-T) - 0 - 50°C °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 283 mm
Package features > Gross depth master carton - 520 mm
Package features > Gross height (mm) - 174 mm
Package features > Gross height master carton - 205 mm
Package features > Gross weight - 1.7 kg
Package features > Gross width (mm) - 100 mm
Package features > Gross width master carton - 300 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Net weight master carton - 8.5 kg
Package features > Packing quantity - 5 pc(s)
Package features > Palette Qty - 270 pc(s)
Package features > Paper/Pasteboard - 245 g
Package features > Plastic (No PET) - 87 g
Package features > Tare weight (kg) - 0.332 kg
Package features > Tare weight master carton - 0.544 kg
Package features > Volume (m3) - 0.0049242 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Manual - Yes
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 283 mm
Packaging data - Package height - 173 mm
Packaging data - Package weight - 1.69 kg
Packaging data - Package width - 100 mm
Performance - DDC2B support - Yes
Performance - HD type - QXGA
Performance - Maximum resolution - 2048 x 1536 pixels
Performance - Scan interval - 3,5,10,20 s
Performance - Video bandwidth - 60 Hz
Ports & interfaces - Console ports - USB A, VGA (D-Sub)
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Keyboard port type - USB
Ports & interfaces - Mouse port type - USB
Ports & interfaces - Number of computers controlled - 4
Ports & interfaces - USB 2.0 Type-A hub ports quantity - 2
Ports & interfaces - USB connector type - USB Type-A
Ports & interfaces - VGA (D-Sub) ports quantity - 4
Ports & interfaces - Video port type - VGA
Power - Input voltage - 5 V
Power - Power consumption (typical) - 0.45 W
Power - Power source - DC
Producer product name - 4-Port PS/2-USB VGA KVM Switch
ProductName - 4-Port USB - PS/2 VGA KVM Switch (KVM Cables included)
ShortSummaryDescription - ATEN 4-Port USB - PS/2 VGA KVM Switch (KVM Cables included), 2048 x 1536 pixels, QXGA, 0.45 W, Black, Grey
Technical details > Net weight - 1.368 kg

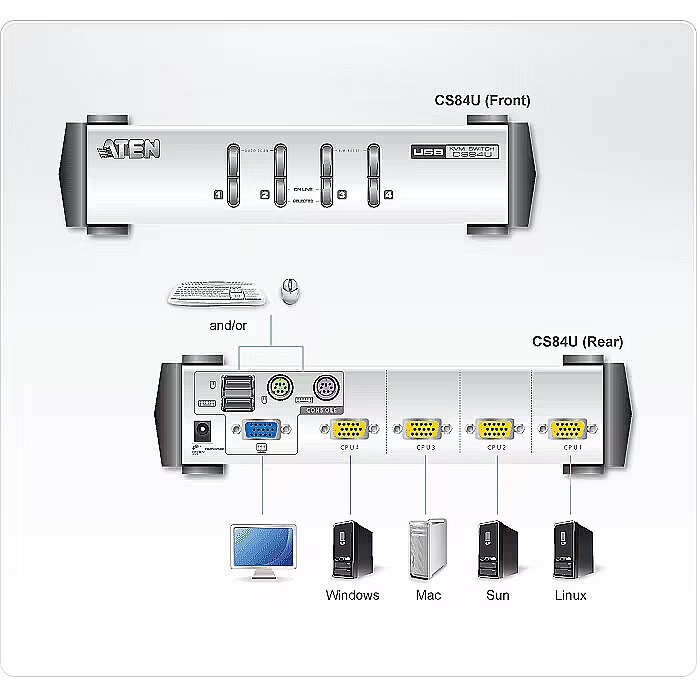

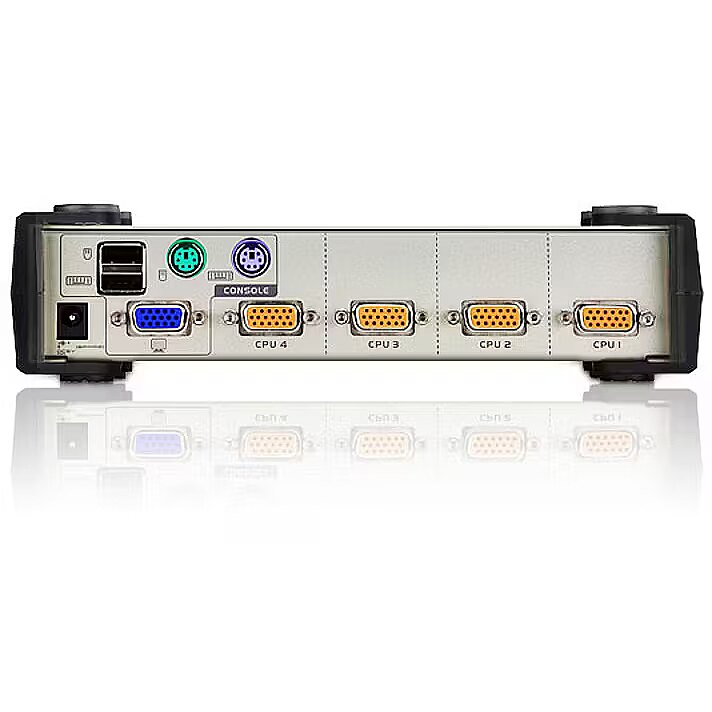

Technical details > Other features - Superior video quality - 2048 x 1536; DDC2B. Computer selection via front panel pushbuttons, hotkeys, and mouse. Dual Interface - supports computers with PS/2 or USB keyboards and mice. Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports. Console Ports- 1 x HDB-15 Female (Blue),2 x USB Type A Female,1 x 6-pin Mini-DIN Female (Purple),1 x 6-pin Mini-DIN Female (Green). KVM Ports-4 x SPHD-18 Female (Yellow). Power-1 x DC Jack
Technical details > Producer - Aten
Title - ATEN 4-Port USB - PS/2 VGA KVM Switch (KVM Cables included)
URL - https://www.atten.eu/
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 88 mm
Weight & dimensions - Height - 55.5 mm
Weight & dimensions - Weight - 1.51 kg
Weight & dimensions - Width - 210 mm
