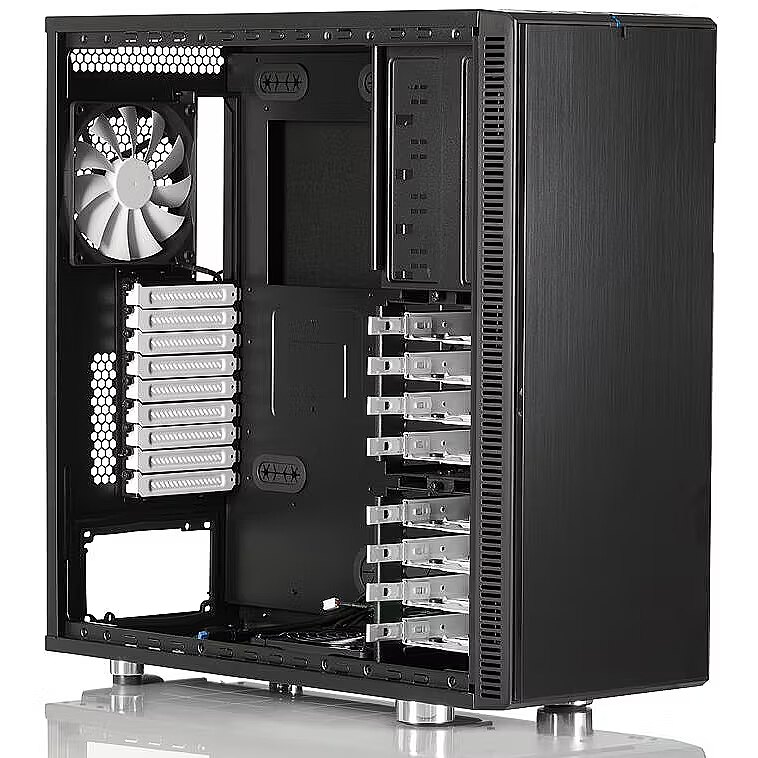

Fractal Design Define XL R2, Black Pearl

Category_1 - Computer Cases and Cooling
Category_2 - Computer Cases
Chassis type - Big Tower
Code - FD-CA-DEF-XL-R2-BL
Color - Black
Cooling > Bottom fans diameters supported - 140 mm
Cooling > Bottom fans installed - 1x 140 mm
Cooling > Front fans diameters supported - 120,140 mm
Cooling > Front fans installed - 1x 140 mm
Cooling > Liquid cooling capability - Yes
Cooling > Maximum bottom fans - 1
Cooling > Maximum front fans - 2
Cooling > Maximum rear fans - 1
Cooling > Maximum side fans - 1
Cooling > Maximum top fans - 2
Cooling > Rear fans diameters supported - 140 mm
Cooling > Rear fans installed - 1x 140 mm
Cooling > Side fans diameters supported - 140 mm
Cooling > Top fans diameters supported - 120,140 mm
Design > Built-in speaker(s) - No
Design > Colour of product - Black
Design > Cooling type - Front: 1 - 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed); 1 - 120/140mm fan (not included)Rear: 1 - 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed)Top: 2 - 120/140mm fans (not included) – positions also support 240/280mm slim radiatorsBottom: 1 - 120/140mm fan (included is a hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed)Side: 1 - 120/140mm fan (not included)Fan controller: 1 - Integrated fan controller for up to 3 fans (included)Water cooling compatibility:Front – 240mm radiator when HDD cages are removed or repositionedTop – 240 and 280mm when using slim radiatorsBottom – 120mm radiatorsRear – 120 and 140mm radiators
Design > Form factor - E-ATX
Design > Maximum graphics card length - 33 cm
Design > Maximum PSU length - 19 cm
Design > Number of 3.5" bays - 8
Design > Number of 5.25" bays - 4
Design > Number of expansion slots - 9
Design > Side window - No
Design > Suitable for - Home/Office
Design > Supported motherboard form factors - ATX, Micro ATX, mini-ITX, E-ATX and XL-ATX
Design > Type - PC
dimensionalWeight - 25792
dimension depth - 320 mm
dimension height - 635 mm
Dimensions - 55.9 x 23.2 x 56 cm
dimension weight - 18260 g
dimension width - 620 mm
Drive bays 3.5'' extern. - 0
Drive bays 3.5'' intern. - 8
Drive bays 5.25'' extern. - 4
EAN - 7350041081005
ean - 7350041081005
EAN_code - 7350041081005
Ergonomics > Reset button - Yes
Fan - 14 cm
Form-factor - ATX
Form-factor - E-ATX
Form-factor - Micro ATX
Form-factor - Mini ITX
Form-factor - XL-ATX
Front panel connectors - 1 x headphones
Front panel connectors - 1x microphone
Front panel connectors - 2 x USB 2.0
Front panel connectors - 2 x USB 3.0
Gross weight - 17.414 kg
guarantee - 24
guarantee_type - normal
Link - http://www.fractal-design.com/?view=product&category=2&prod=111
Manufacturer - Fractal Design
Manufacturer_code - FD-CA-DEF-XL-R2-BL
name - Define XL R2 Black Pearl 3.5'HDD ATX/uATX/mITX/eATX/xlATX
Name - Fractal Design Define XL R2 Black, E-ATX, Power supply included No | Fractal Design | Define XL R2 | Black | E-ATX | Power supply included No
Name - Fractal Design Define XL R2 Black Pearl
No. of drive bays - 12
Other features -
Other features > Box contents - Define XL R2 computer caseAccessory boxUser manual
Other features > Dimensions (WxDxH) - 232 x 559 x 560mm mm
Other features > Package dimensions (WxDxH) - 322 x 655 x 637 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 635 mm
Package features > Gross height (mm) - 660 mm
Package features > Gross width (mm) - 322 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 12 pc(s)
Package features > Paper/Pasteboard - 1387.00 g
Package features > Plastic (No PET) - 27.00 g
Package features > Tare weight (kg) - 1.414 kg
Package features > Volume (m3) - 0.1349502 m³
Package features > WEEE tax - No
Packaging data > Manual - Yes
Packaging data > Package weight - 19 oz
Ports & interfaces > Audio input - Yes
Ports & interfaces > Audio output - Yes
Ports & interfaces > Interface - 2 - USB 3.0, 2 - USB 2.0Audio in/outPower button with LED (blue)Reset buttonFan controller (behind door)
Ports & interfaces > USB 2.0 ports quantity - 2
Ports & interfaces > USB 3.0 (3.1 Gen 1) Type-A ports quantity - 2
Power supply > Power supply included - No
Power supply > Power supply location - Bottom
producer - Fractal Design
producerCode - FD-CA-DEF-XL-R2-BL
Producer product name - Define XL R2
productName - Fractal Design Define XL R2 Black, E-ATX, Power supply included No Fractal Design | Define XL R2 | Black | E-ATX | Power supply included No
productSize - Normal
sizeX - 640
sizeY - 325
sizeZ - 620
Storage > Card reader integrated - No
Storage > Hot-swap - Yes
Storage > Supported hard disk drive sizes - 2.5,3.5 mm
Technical details > Net weight - 16.00 kg
Technical details > Other features - ATX, Micro ATX, mini-ITX, E-ATX and XL-ATX motherboard compatibility4 - 5.25" bays8 - 3.5" HDD trays - all compatible with SSDsA total of 9 expansion slots3 - ModuVent™ plates – two in the top and one in the side7 - Fan positions (3 fans included)Filtered fan slots in front and bottomCPU coolers up to 170 mm tall (when no fan is installed in the side panel)PSU compatibility: ATX PSUs up to 190 mm deep when using the bottom fan location; when not using this fan location longer PSUs (up to 345 mm deep) can be usedGraphics card compatibility: Graphics cards up to 330mm in length with the top HDD cage installed - With the top cage removed, graphics cards up to 480mm in length may be installed26 mm of space for cable routing behind the motherboard plateThick rubber grommets on all holes on the motherboard plate
Technical details > Producer - Fractal Design
Technical details > Warranty - 24 month(s)
Technical_details - Fractal Design builds on the success of its awarding-winning Define XL computer case with the Define XL R2. This updated chassis carries on the family tradition of providing superb cooling and ventilation capabilities with exceptional expandability, in a sleek and stylish Scandinavian form. The Define XL R2, which includes Fractal Design’s innovative ModuVent™ Features, has an updated internal layout that offers greater expandability, modularity and flexibility, including capacity for 9 PCI cards and two HDD cages that can be repositioned to provide more space for water cooling radiators. - High density noise-reducing material for an optimal silent case.
- Patented ModuVent design allowing the user to choose between optimal silence or maximum airflow.
- With a new internal layout and additional PCI expansion slots, it can harbor the most powerful enthusiast systems.
- Both HDD cages can be removed or repositioned - Top HDD cage can be removed or repositioned for increased airflow whereas bottom HDD cage can be repositioned further into the case to allow for front radiator mount.
- The case can fit water cooling equipment in the front, top, rear and bottom without major modifications.
- Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans.
- Three Silent Series R2 fans are included, featuring hydraulic bearings which contribute to a longer life expectancy – Silent Series R2 retail fans now come standard in all cases.
- New tool-less front fan holder makes switching front fans a breeze. Format E-ATX, XL-ATX Maximum graphics card lenght 330 mm Maximum CPU-Cooler Height 170 mm Special Featuress Öffnung in der Mainboardwand zum einfachen Austausch eines CPU-Kühlers; with verbessertem Geräusche absorbierenden Material; aufklappbare Frontklappe; two 140-mm- or 120-mm-Fan an der Oberseite einbaubar; ein 140-mm Silent Series R2-Fan included; ein 140-mm-Fan im Seitenteil einbaubar; Fansteuerung for three Fan Power Supply Slot Design ATX Drive Bays external 5,25 inches 4 internal 3,5 inches 8 Fans Included 3x 140 mm Installable 4x 140 mm Front-Side Special Featuress Reset-button befindet sich hinter einer aufklappbaren Frontklappe; ein 140-mm Silent Serie R2-Fan; ein weiterer 140-mm-Fan or 120-mm-Fan einbaubar Ports USB 2.0 2 USB 3.0 2 Audio 1 Back-Side Slots Full-Size 9 Product dimensions 232 x 559 x 560 mm Weight 16.4 kg
vendpn - FD-CA-DEF-XL-R2-BL
Warranty - 24
warrantyLength - 12
warrantyType - G
Weight - 18,20
weight - 18000
Weight & dimensions > Depth - 56 cm
Weight & dimensions > Height - 55.9 cm
Weight & dimensions > Weight - 16.4 oz
Weight & dimensions > Width - 23.2 cm
