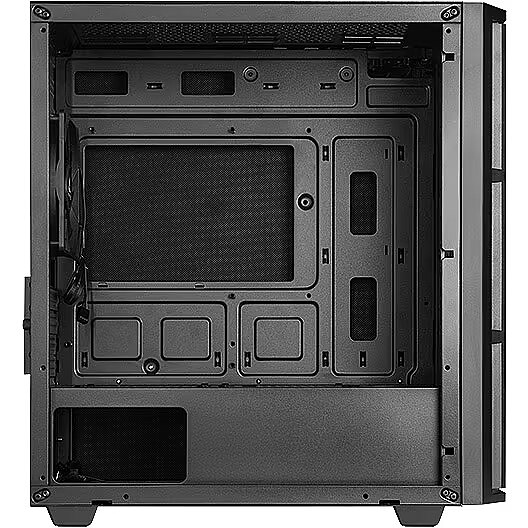

Chieftec Pro Mini, Solid, Black

Accessories included - Zestaw śrub Instrukcja obsługi Wentylator PWM 120 mm zainstalowany fabrycznie z tyłu
Brand - Chieftec
BrandPartCode - AZ-01B-OP
Category - Computer Cases
Category - Root/Electronics/PC parts/Computer casings
Category 1 - Gehäuse
Category 2 - Midi-/Mini-Tower
Chassis type - Mini Tower
Color - Black
Computer case backlight - No
Cooling - Front fans diameters supported - 120,140 mm
Cooling - Front radiator sizes supported - 240,280,360 mm
Cooling - Liquid cooling capability - Yes
Cooling - Number of front fans supported (max) - 3
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of top fans supported (max) - 2
Cooling - Rear fans diameters supported - 120 mm
Cooling - Rear fans installed - 1x 120 mm
Cooling - Top fans diameters supported - 120,140 mm
Cooling - Top radiator sizes supported - 240,280 mm
Description - Obudowa PRO MINI AZ-01B-OP mATX CHIEFTEC Pro Mini prezentuje nowoczesną obudowę m-ATX Mini-Tower PC z ponadczasowo elegancką, szczotkowaną przednią panelu, uzupełnioną przez wnętrze zaprojektowane z myślą o optymalnej kompatybilności sprzętowej i chłodzeniu. CHIEFTEC Pro Mini posiada dodatkowy materiał tłumiący dźwięki na bocznych i przednich panelach, zapewniający optymalny poziom hałasu, podczas gdy łącznie 8 możliwych punktów montażu wentylatorów umożliwia elastyczne konfiguracje chłodzenia. Pro Mini jest gotowy dostarczyć klientom idealną kombinację wydajności, poziomu hałasu i wysokiej jakości designu. Elegancki i nowoczesny design Materiał tłumiący dźwięki Wentylator PWM 120 mm zainstalowany fabrycznie
Design - Anti-dust filter - Yes
Design - Form factor - Mini Tower
Design - Full-Height expansion slots - 4
Design - Illumination - No
Design - Maximum CPU cooler height - 16.5 cm
Design - Maximum graphics card length - 33 cm
Design - Maximum PSU length - 18 cm
Design - Number of 2.5" bays - 2
Design - Number of 3.5" bays - 1
Design - Number of expansion slots - 4
Design - Number of internal 3.5" bays - 1
Design - Number of storage drives supported - 3
Design - On/off button - Yes
Design - Product colour - Black
Design - Reset button - Yes
Design - Side window - No
Design - Supported motherboard form factors - micro ATX, Mini-ITX, uATX
Design - Tempered glass panel(s) - No
Design - Type - PC
dimension depth - 280 mm
dimension height - 470 mm
Dimensions - 420 x 212 x 360 mm
dimension weight - 6000 g
dimension width - 480 mm
Drive bays 2.5'' extern. - 0
Drive bays 2.5'' intern. - 2
Drive bays 3.5'' extern. - 0
Drive bays 3.5'' intern. - 1
Drive bays 5.25'' extern. - 0
Drive bays 5.25'' intern. - 0
ean - 0753263078674
EAN - 0753263078674
Eans - 0753263078674
Fans installed - 1 x 120 mm (back)
Form-factor - Micro ATX
Form-factor - Mini ITX
Front panel connectors - 1 x headphones
Front panel connectors - 1 x USB 2.0
Front panel connectors - 1 x USB 3.0
Front panel connectors - 1 x USB Typ C
Front panel connectors - 1x microphone
GTIN - 0753263078674
GTIN - 753263078674
guarantee - 24
guarantee_type - normal
LongDesc - The CHIEFTEC Pro Mini presents a modern m-ATX mini tower PC case with a timelessly elegant, brushed front panel, complemented by an interior designed with a modern layout for optimal hardware and cooling compatibility. The CHIEFTEC Pro Mini features added sound-absorbing material on the side and front panels to provide an optimized noise level, while a total of 8 possible fan mounts provides flexible cooling configurations. The Pro Mini is ready to deliver customers an ideal combination of performance, noise and quality design.
LongProductName - Chieftec Pro Mini | AZ-01B-OP | mATX Tower Case with Noise Insulation
LongSummaryDescription - Chieftec AZ-01B-OP. Form factor: Mini Tower, Type: PC, Product colour: Black. Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 212 mm, Depth: 360 mm, Height: 420 mm. Package weight: 6 kg
Manufacturer - Chieftec
Maximum CPU cooling height - 165 mm
Maximum length of the graphics card - 330 mm
Maximum length of the power supply - 180 mm
Maximum number of fans - 8
MPN - AZ-01B-OP
Name - Chieftec AZ-01B-OP
Name - Mini Chieftec Vita Serie AZ-01B-OP
name - PC case PRO MINI AZ-01B-OP mATX
No. of drive bays - 3
Number of fans installed - 1
Number of slots for expansion cards - 4
Ooptional water cooling - 1 x 240 mm (front)
Ooptional water cooling - 1 x 240 mm (góra)
Ooptional water cooling - 1 x 280 mm (front)
Ooptional water cooling - 1 x 280 mm (góra)
Ooptional water cooling - 1 x 360 mm (front)
Optional fans - 1 x 120 mm (back)
Optional fans - 2 x 120 mm (power supply cover)
Optional fans - 2 x 120/140 mm (top)
Optional fans - 3 x 120 mm (front)
Other features -
Packaging data - Package weight - 6 kg
Ports & interfaces - Audio input - Yes
Ports & interfaces - Audio output - Yes
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - USB Type-C ports quantity - 1
Power supply - Failure
Power supply - Power supply included - No
producer - Chieftec
Producer - Chieftec
ProducerCode - AZ-01B-OP
ProductName - AZ-01B-OP
ShortDescription - Micro Tower | czarna | bez zasilacza | 1x USB Type C, 1x USB3.0, 1x USB2.0 |360mm x 212mm x 420mm |
ShortSummaryDescription - Chieftec AZ-01B-OP, Mini Tower, PC, Black, micro ATX, Mini-ITX, uATX, 16.5 cm, 33 cm
Side panel - SPCC
Storage - Supported HDD sizes - 2.5,3.5"
Title - Chieftec AZ-01B-OP computer case Mini Tower Black
URL - https://www.chieftec.eu/products-detail/587/AZ-01B-OP
vendpn - AZ-01B-OP
WarrantyInfo - 24 Months
Weight - 5.15 kg
Weight - 6
Weight & dimensions - Depth - 360 mm
Weight & dimensions - Height - 420 mm
Weight & dimensions - Material thickness - 0.6 mm
Weight & dimensions - Weight - 5.15 kg
Weight & dimensions - Width - 212 mm
