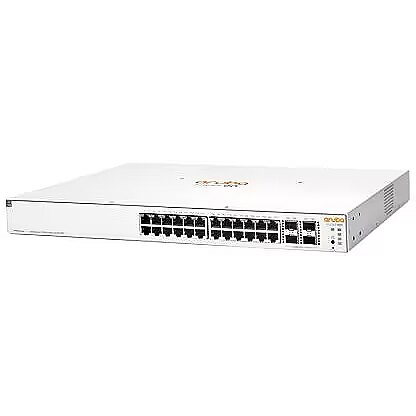

Hewlett Packard ARUBA ION 1930 24G 4SFP+

10/100/1000/2500 Mbps ports - None
Accessories included -
Application - Medium and large companies
ARTIKEL1 - ARUBA ION 1930 24G 4SFP+ STOCK
ARTIKEL2 - SW
Breite - 0
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates -
Chassis type - Rack
Console port - No
DataBuffer - 1.5 MB
DataTransferRate -

100 Mb Latency: < 4.7 µs

1000 Mb Latency: < 2.4 µs

10000 Mb Latency: < 1.3 µs

Throughput: up to 95.23 Mpps

Switching capacity 128 Gbps

Routing table size: 32 entries

Depth - 264.7 mm
Description - JL683B Aruba IOn 1930 24G 4SFP+ 195W Switch The Aruba IOn 1930 24G 4SFP+ 195W Switch (JL683B) is part of the Aruba Instant On switch series, designed for small and medium-sized enterprises that need reliable, easy-to-manage and affordable networking solutions. This model offers 24 Gigabit Ethernet ports that enable fast and effective data transmission within the company network. Additionally, 4 SFP+ ports provide the flexibility of high-bandwidth fiber or Ethernet connections, perfect for connecting to mainstream networks or NAS devices. The 195W output power allows you to power multiple devices via Ethernet (PoE), such as access points, IP cameras or VoIP phones, which makes it a comprehensive network management solution. Management via an intuitive web interface makes it easy to configure and monitor the network, making it an ideal solution for companies without specialized IT staff.
Designation - CE+WEEE
dimension depth - 410 mm
dimension height - 495 mm
Dimensions - 43.9 x 442.5 x 264.7 mm
dimension weight - 4900 g
dimension width - 110 mm
Duplex - Half / Full
ean - 190017592893
EAN - 0190017592893
EANCode - 0190017592893
EAN_code - 0190017592893
Environment requirements -
EthernetType - 10 Gigabit Ethernet
Fan - No
FormFactor - Rack
Forwarding rate - 95.23 Mpps
Gewicht - 5.12
GrossWeight - 5.250 kg
Gross Weight Kg - 3,8
GRUPPE1 - Network
GRUPPE2 - Switches Managed
guarantee - -1
guarantee_type - external
Height - 43.9 mm
HERSTELLER - HPE
Hoehe - 0
HSTNUMMER - JL683B
Interface -

24x RJ-45 autosensing 10/100/1000 Class 4 PoE ports

4x SFP+ 1/10GbE ports

L2 features -
L3 features -
Laenge - 0
Layers - 2
LED - -
LongDesc -
MACAddressTable - 16 K
Manage - Smart
Management, monitoring, configuration -
Manufacturer - Hewlett Packard Enterprise
Manufacturer - HP Enterprise
Manufacturer Code - JL683B
Manufacturer Name - Hewlett Packard
Manufacturer_code - JL683B
MANUFDATASHEET - https://www.arubainstanton.com/files/DS_AIO_1930SwitchSeries.pdf
Mirroring - -
MPN - JL683B#ABB
Name - 24+4P HP Enterprise Instant On 1930 M RM PoE 195W 4SFP+
Name - Hewlett Packard Enterprise Aruba Instant On 1930 24G 195W PoE 4SFP+, Switch
name - Switch JL683B ARUBA Instant On PoE
Network architecture - GigabitEthernet
NetworkCables - -
NetworkPorts - 24
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 24
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - 24
Number of SFP+ ports - 4
Number of SFP56 ports - None
Number of SFP ports - None
Other features -
Other functions -
PackageContents - -
Packet buffer - 1.5 MB
PoE - 195 W
Power -

Voltage: 100-127 / 200-240 VAC (50/60 Hz)

Current: 2.8/1.4 A

Power: 19.7 W (idle) / 248.7W (max)

Power consumption - 195 W
Power supply - 100 - 127 / 200 - 240 VAC
ProdDesc - Networking Instant On 1930 24G 4SFP+ 195W Sw EU en
producer - Hewlett Packard Enterprise
ProductPicture - http://www.tdbaltic.ee/images/ds4/JL683B-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
QoS -
Security -
Security - -
Short description - HPE Aruba Switch 1930 24G 24xGBit/4xSFP+ PoE 195W JL683B Aruba Instant On
Stackability - No
Standard -

IEEE 802.3 Type 10BASE-T

IEEE 802.3u Type 100BASETX

IEEE 802.3ab Type 1000BASE-T

Stck_Kart - 1
Stck_Pal - 44
Storno - Y
Supported protocols and standards -
Support for Jumbo frames - No
Switch class - Managed
SystemRequirements - -
Throughput - 128 Gb/s
Type - Aruba Instant On 1930 Series
UplinkType - SFP+
vendpn - JL683B
VLAN -
VLAN - -
Warranty - -
Weight - 3.49 kg
Weight - 3.490 kg
Weight - 5,00
Weight - 5.06
Width - 442.5 mm
