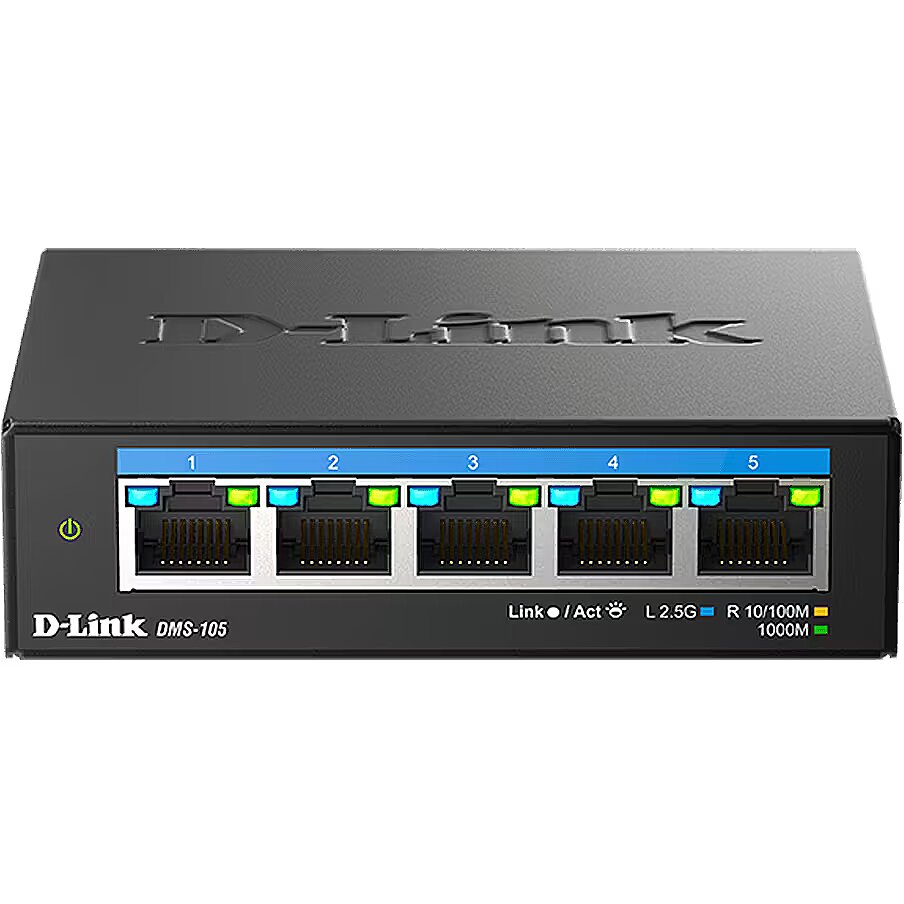

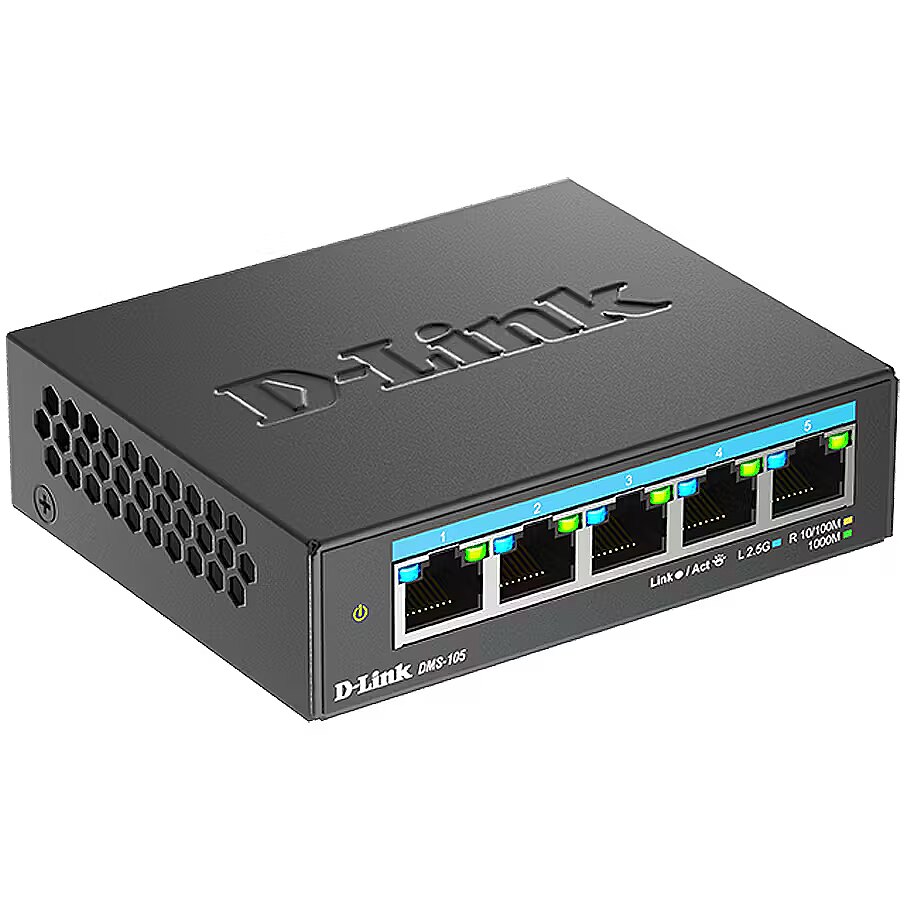

D-Link DMS-105 5x 2.5Gbit/s

10/100/1000/2500 Mbps ports - 5
Accessories included -
Application - Home and small office
ARTIKEL1 - 5-PORT MULTI-GB UNM. SWITCH 5X
ARTIKEL2 - 100 / 1000MBPS / 25GBPS TP
Brand - D-Link
BrandPartCode - DMS-105/E
Breite - 0
Category - Network Switches
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - CE Class B, RCM Class B, FCC Class B, VCCI Class B, IC Class B, BSMI Class B
Certificates - Compliance certificates - BSMI, CE, Low Voltage Directive (LVD), RoHS
Chassis type - Desktop
Console port - No
Data transmission - Forwarding rate - 18.6 Mpps
Data transmission - MAC address table - 4000 entries
Data transmission - Packet buffer memory - 8.1 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 25 Gbit/s
Description -
Design - LED indicators - Activity, Link, Power
Design - Product colour - Black
Design - Stackable - Yes
Designation - CE+WEEE
dimension depth - 20 mm
dimension height - 110 mm
Dimensions - 100.5 x 82 x 28 mm
dimension weight - 400 g
dimension width - 110 mm
ean - 790069469305
EANCode - 0790069469305
EAN_code - 0790069469305
Environment requirements -
Fan - No
Forwarding mode - Store-and-forward
Forwarding rate - 18.6 Mpps
Gewicht - 0
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0790069469305
GTIN - 790069469305
GTIN - 0790069470554
GTIN - 790069470554
guarantee - 24
guarantee_type - normal
HERSTELLER - D-LINK
Hoehe - 0
HSTNUMMER - DMS-105/E
L2 features -
L3 features -
Laenge - 0
LongDesc - Small switch. Multi-Gigabit Ethernet.Maximise network throughput with 2.5Gbps Multi-Gigabit Ethernet on each port of this compact 5-port switch. Whether it’s to connect to your core or create a network between devices, now you can easily start sharing an internet connection, files, music, and video, or for gaming without bottlenecks.2.5 Gigabit EthernetSave time transferring large files and improve sharing and productivityEffortless multi-Gigabit networkingEasily upgrade or extend your home or small business networkCompact Metal HousingSturdy, compact metal housing with fanless design for silent operationEnergy Efficient DesignAutomatic power saving features to reduce power usagePlug-and-pay convenience.The DMS-105 is a plug-and-play device that requires no configuration to get started. Plug-and-play makes it easy to instantly create a network without any technical knowledge.Effortless traffic optimisation.With 2.5 Gigabit transfer speeds from every port, you can rapidly transfer files between connected servers and network attached storage (NAS) to computers. The Quality of Service (QoS), and Flow Control features automatically prioritises important data for efficient delivery. And the IGMP Snooping function reduces unwanted multicast traffic so you can enjoy seamless video streaming and IPTV viewing experiences.Designed for life, built to last.The DMS-105 has a sturdy and compact metal housing to ensure the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.Energy Saving.The DMS-105 is designed with energy efficiency in mind. The fanless design eliminates a common point of failure and means the switch can be placed virtually anywhere and operate silently. The Link Status detection feature of the switch saves power by automatically powering down ports that are inactive or not connected, and it supports the IEEE 802.3az Energy-Efficient Ethernet standard.Ready for Wi-Fi 6.You can add a Wi-Fi 6 Access Point to your network to any of the 2.5 Gbps ports to maximise throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, allowing your network to take full advantage of the efficiency and speeds provided by Wi-Fi 6.
LongProductName - 5-Port 2.5G Multi-Gigabit Desktop Switch
LongSummaryDescription - D-Link 5-Port 2.5G Multi-Gigabit Desktop Switch. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 4000 entries, Switching capacity: 25 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V
MAC address table size - 4000
Management, monitoring, configuration -
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Unmanaged
Manufacturer - D-Link
Manufacturer_code - DMS-105/E
Mean time between failures (MTBF) - 765190.81 h
Multicast features - Multicast support - Yes
Name - D-Link D-Link DMS-105/E, switch
name - Switch DMS-105 5x2.5GE Multigigabit
Network - 10G support - No
Network - Auto MDI/MDI-X - Yes
Network - Flow control support - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - None
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE++ ports - 1
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - None
Operational conditions - Heat dissipation - 16.78 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -10 - 70 °C
Other features -
Other functions -
Performance - Fanless - Yes
Performance - Mean time between failures (MTBF) - 765190 h
Ports & interfaces - 2.5G Ethernet (copper) ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - 2.5G Ethernet (100/1000/2500)
Power - DC input voltage - 12 V
Power - Input current - 1 A
Power - Power consumption (typical) - 4.918 W
Power - Power source - DC
Power - Power supply included - Yes
Power consumption - 4.918 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power supply - 12 V/1 A
Power supply - Internal
producer - D-Link
ProductName - 5-Port 2.5G Multi-Gigabit Desktop Switch
QoS -
Security -
Security - IGMP snooping - Yes
ShortSummaryDescription - D-Link 5-Port 2.5G Multi-Gigabit Desktop Switch, Unmanaged, L2, 2.5G Ethernet (100/1000/2500)
Stackability - No
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Supported protocols and standards -
Support for Jumbo frames - No
Sustainability - Sustainability compliance - Yes
Switch class - Unmanaged
Throughput - 25 Gb/s
Title - D-Link 5-Port 2.5G Multi-Gigabit Desktop Switch
URL - https://www.dlink.com/en/products/dms-105-5-port-multi-gigabit-unmanaged-switch
vendpn - DMS-105/E
VLAN -
WarrantyInfo - 5 Years
Weight - 0,40
Weight - 238.6 g
Weight & dimensions - Depth - 82 mm
Weight & dimensions - Height - 28 mm
Weight & dimensions - Weight - 238.6 g
Weight & dimensions - Width - 100.5 mm
