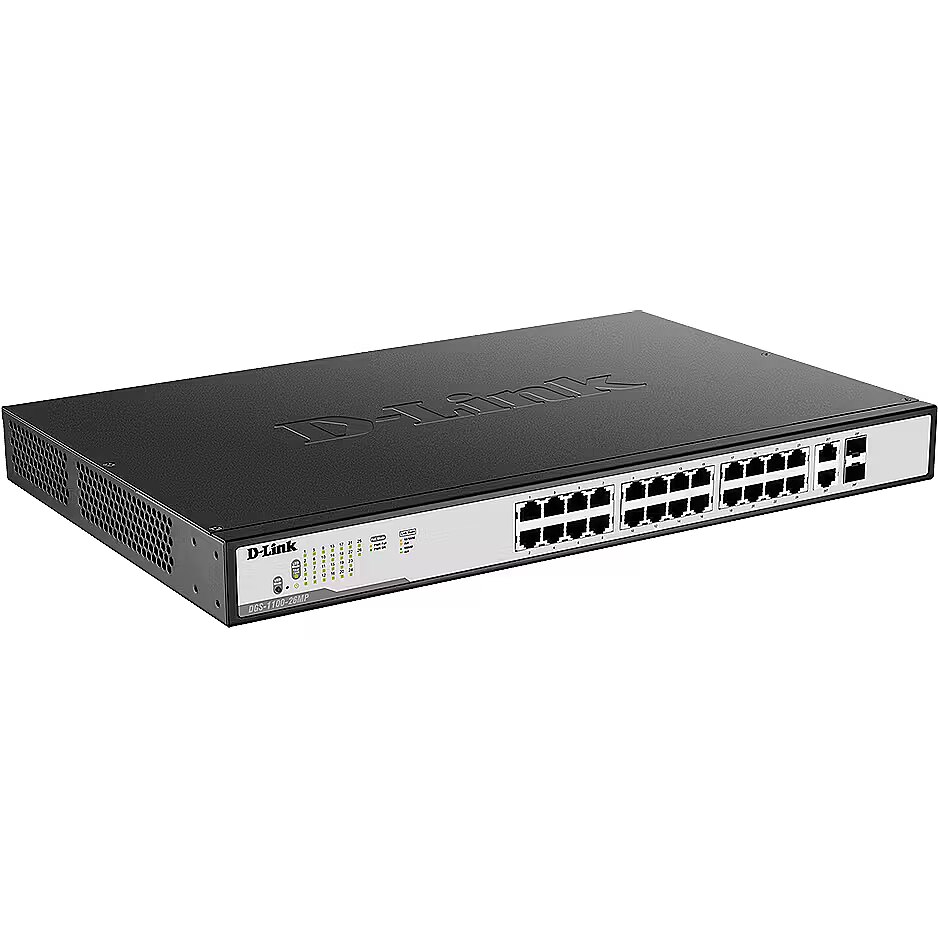

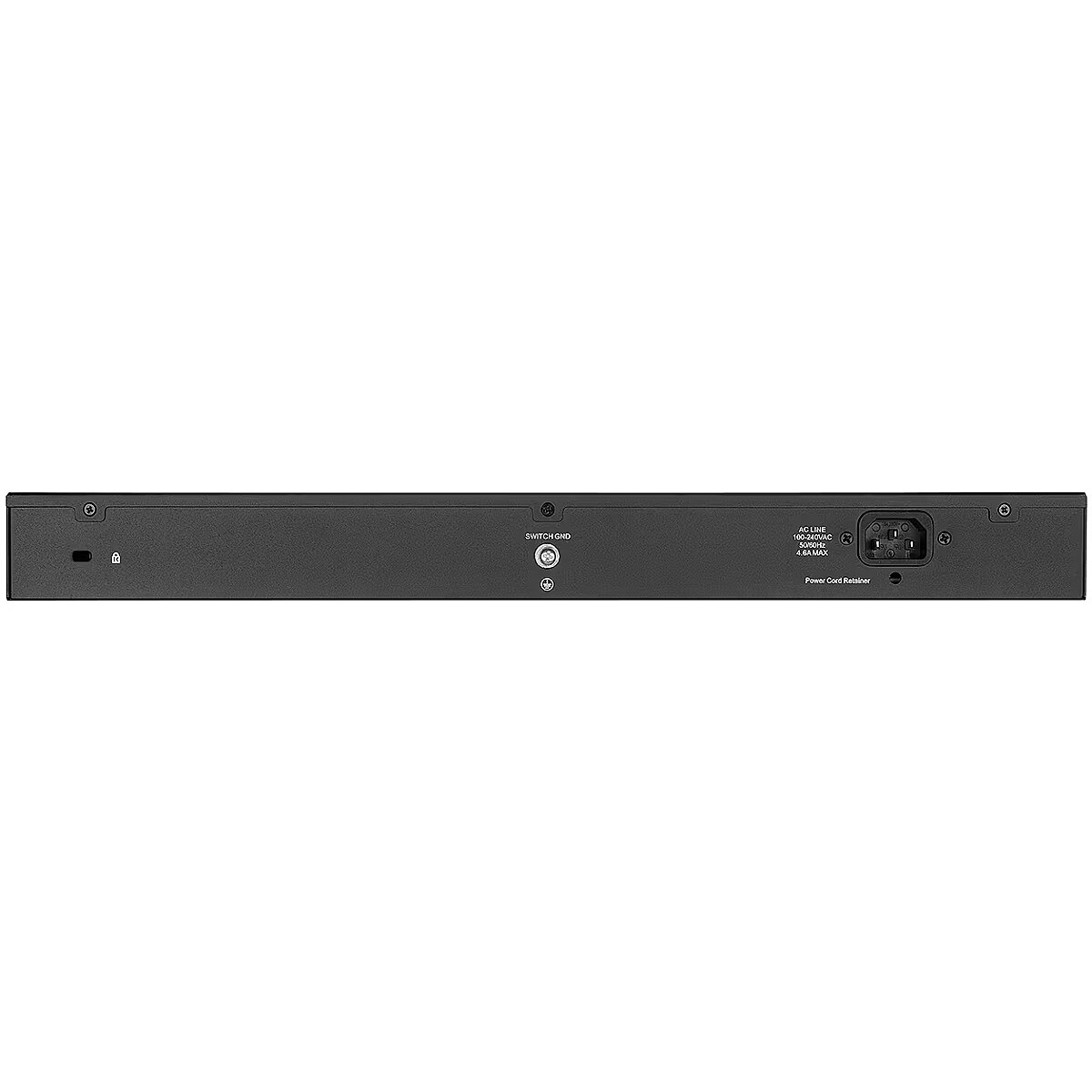

D-Link DGS-1100-26MPV2 24xGBit/2xSFP 19" Managed PoE+ (370W) Switch

Изображение может отличаться от реального товара, могут быть аксессуары и детали, не поставляемые с реальным товаром.
ID: 966513 Код товара: DGS-1100-26MPV2
В наличии 6 шт.
Гарантия: 2 лет
439,63 €
Варианты доставки О доставке
  • Доставка на Smartpost бесплатно: 19.11.2024
  • Доставка на пакомат Omniva бесплатно: в 19.11.2024
  • Доставка в DPD Pickup Packet Locker бесплатно: 19.11.2024
  • Доставка в почтовое отделение Латвии, камеру хранения посылок или Circle K бесплатно: 19.11.2024.
  • Доставка по Риге 3,99 €: в 19.11.2024
  • Доставка по Латвии 6,99 €: в 19.11.2024
  • Доставка в пункт выдачи посылок Dateks.lv на улице Земитана, 9: в четверг, 14.11.2024 после 15:00
Основные параметры продукции Все параметры
  • Количество портов Base T: 26
  • Скорость Base T: 10/100/1000
Места подключения и оснащение
Количество портов Base T : 26
Порты PoE : 24
Порты SFP : 2
Скорость Base T : 10/100/1000
Спецификация
Вес (г) : 3830 g
Количество фанатов : 2
Общий Бюджет Питания PoE : 370 W
Поддержка PoE : Ir
PoE Бюджет питания на порт : 30 W
Более подробная спецификация
Brand - D-Link
BrandPartCode - DGS-1100-26MPV2
Category - Network Switches
Data transmission - Forwarding rate - 38.69 Mpps
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Switching capacity - 52 Gbit/s
Design - Housing material - Metal
Design - Product colour - Black
Design - Rack mounting - Yes
dimensionalWeight - 3488
EAN - 0790069453342
Gross Weight Kg - 4
GTIN - 0790069453342
GTIN - 790069453342
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Smart Web UIThe DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.Easy to Deploy and ManageD-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.PoE and Poe+, with budgets up to 370WThe DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.Easy TroubleshootingThe DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.Green TechnologyD-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).Surveillance ModeSelect Surveillance Mode in the Web UI to take advantage of easy‑to‑use surveillance features which also enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.
LongProductName - 26-Port Smart Managed Switch with 24 PoE+ and 2 Combo RJ45/SFP ports. PoE budget 370W
LongSummaryDescription - D-Link DGS-1100-26MPV2. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting
Management features - ARP inspection - Yes
Management features - MIB support - • RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Web-based management - Yes
Manufacturer Code - DGS-1100-26MPV2
Manufacturer Name - D-Link
Multicast features - IPv4 multicast entries - 1
Multicast features - IPv6 multicast entries - 1
Multicast features - Multicast support - Yes
Multicast features - Number of multicast groups filtered - 1
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Broadcast storm control - Yes
Network - Copper ethernet cabling technology - 10GBASE-T
Network - Copper ethernet cabling technology - 10GBASE-T, 1000BASE-T
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - Head-of-line (HOL) blocking - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1D
Network - Networking standards - IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at
Network - Networking standards - IEEE 802.1w
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - Port-based VLAN
Network - Virtual LAN features - Port-based VLAN, Voice VLAN
Network - Virtual LAN features - Voice VLAN
Network - VLAN support - Yes
Operational conditions - Heat dissipation - 287 BTU/h
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -10 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Performance - Fanless - Yes
Performance - Flash memory - 16 MB
Performance - MTBF (PoE) - 317.777 h
Performance - Noise level - 50.5 dB
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Combo SFP ports quantity - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 454.1 W
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 24
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 24
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 370 W
producerCode - DGS-1100-26MPV2
productName - D-Link DGS-1100-26MPV2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
ProductName - DGS-1100-26MPV2
productSize - Normal
Protocols - IPv4 & IPv6 features - IPv4 FIB
Security - DHCP features - DHCP client
Security - IGMP snooping - Yes
Security - MAC address filtering - Yes
Security - Security algorithms - SSL/TLS
Security - Static port security - Yes
Short description - D-Link Switch DGS-1100-26MPV2 24xGBit/2xSFP 19" Managed PoE+ (370W)
ShortSummaryDescription - D-Link DGS-1100-26MPV2, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
sizeX - 510
sizeY - 380
sizeZ - 90
Title - D-Link DGS-1100-26MPV2 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
URL - https://eu.dlink.com/uk/en/products/dgs-1100-series-gigabit-smart-switches
WarrantyInfo -
warrantyLength - 24
warrantyType - G
weight - 4000
Weight & dimensions - Depth - 208 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 2.8 kg
Weight & dimensions - Width - 440 mm
