10/100/1000/2500 Mbps ports - None
Accessories included - GS108 switch Charger Instruction
Application - Home and small office
Category - Root/Electronics/Networks and communication/Switchers
Chassis type - Desktop
Console port - No

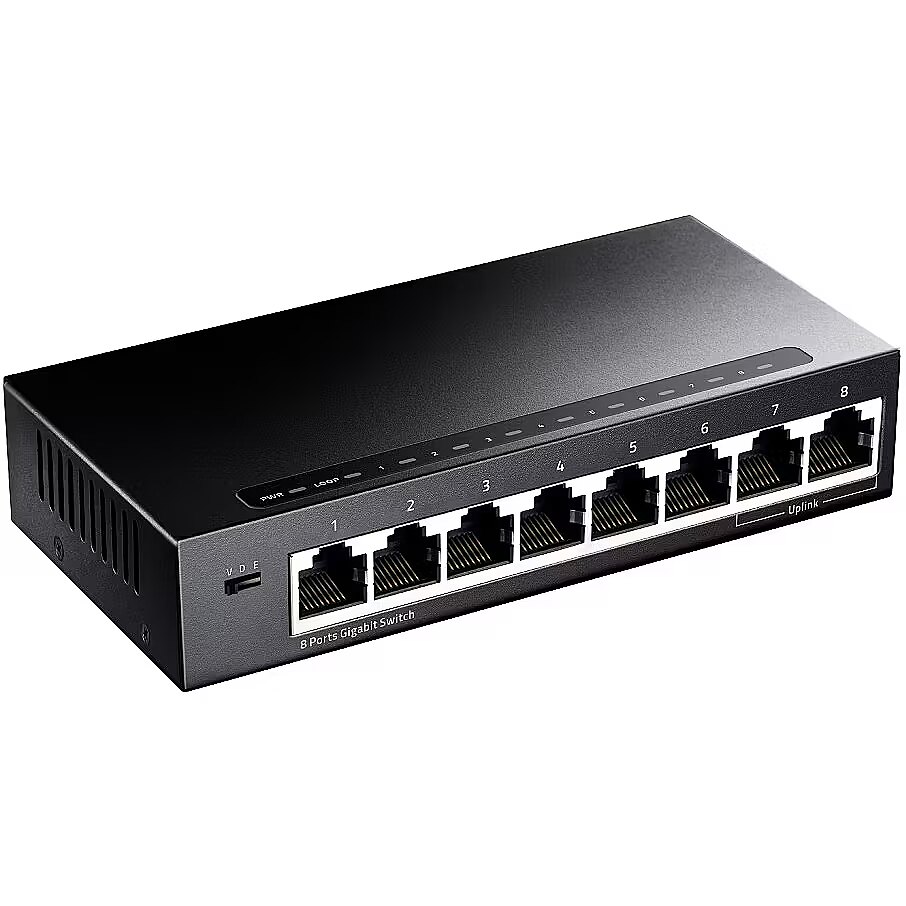

Description - GS108 8-Port Gigabit switch Super-Fast Gigabit
Eight 10/100/1000 Mbps non-blocking Ethernet ports enable instant transferring of data without mutual interference. Extra Transmission Distance
170 meters of Gigabit transmission adding 70% longer distance compared to a standard switch, simplifies wiring for larger premises. Saves Power
Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities. Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios. Robust Metal. Compact Size.
Compact enough to fit in most home network distribution boxes. Metal casing delivers simplicity and protection for your network hub.
dimension depth - 123 mm
dimension height - 180 mm
Dimensions - 138 x 78 x 25 mm
dimension weight - 421 g
dimension width - 65 mm
ean - 6971690790554
Eans - 6971690790554
Environment requirements - Operating temperature: 0~40°C Storage temperature :-40~70°C Operating humidity: 10% ~ 90%, non-condensing Storage temperature: 5% ~ 90%, non-condensing
Fan - No
Forwarding rate - 11.904 Mpps
guarantee - 24
guarantee_type - normal
Jumbo frame size - 15 KB
L2 features - IGMP Snooping Loop Prevention
L3 features -
MAC address table size - 8192
Management, monitoring, configuration -
Name - Cudy GS108
name - Switch GS108 8xGE Metal Case
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 8
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - None
Other features -
Other functions -
Power supply - DC 5V 0.55A
Power supply - External
producer - Cudy
Producer - Cudy
ProducerCode - GS108
QoS -
Security -
ShortDescription -
Stackability - No
Supported protocols and standards - 802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-T 802.3ab 1000BASE-T
Support for Jumbo frames - Yes
Switch class - Unmanaged
Throughput - 16 Gb/s
vendpn - GS108
VLAN -
Weight - 211 g
