10/100/1000/2500 Mbps ports - None
Accessories included - Switch Charger Instruction Warranty Card
Application - Home and small office
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Chassis type - Desktop
Console port - No

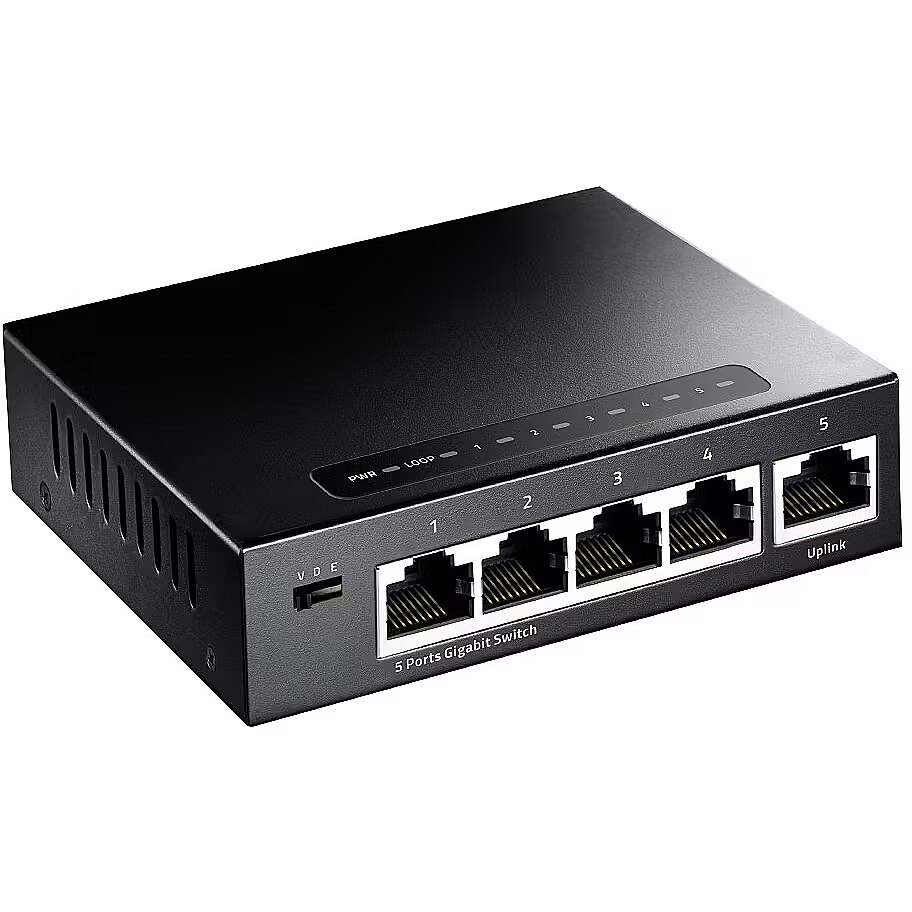

Description - GS105 5-Port Gigabit Desktop Switch Compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards 5 x 10/100/1000Mbps auto-negotiation ports, Auto-MDI/MDIX for intelligent switching between 10Mbps, 100Mbps and 1000Mbps Store-and-Forward
dimension depth - 75 mm
dimension height - 125 mm
Dimensions - 100 x 70 x 26 mm
dimension weight - 310 g
dimension width - 180 mm
ean - 6971690790431
EAN - 6971690790431
Eans - 6971690790431
Environment requirements - Operating temperature: -10~50°C Storage temperature -40~70°C Operating humidity: 10% ~ 90%, non-condensing Storage temperature: 5% ~ 90%, non-condensing
Fan - No
Forwarding mode - Store-and-forward
Forwarding rate - 7.44 Mpps
guarantee - 24
guarantee_type - normal
Jumbo frame size - 2 KB
L2 features -
L3 features -
MAC address table size - 1000
Management, monitoring, configuration - It supports three modes: VLAN, Default, Extend
Manufacturer - Cudy
Mean time between failures (MTBF) - 100000 h
MPN - GS105
Name - 5P Cudy GS105
Name - Cudy GS105
name - Switch GS105 5xGE Metal Case
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 5
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - None
Other features -
Other functions -
Packet buffer - 1 MB

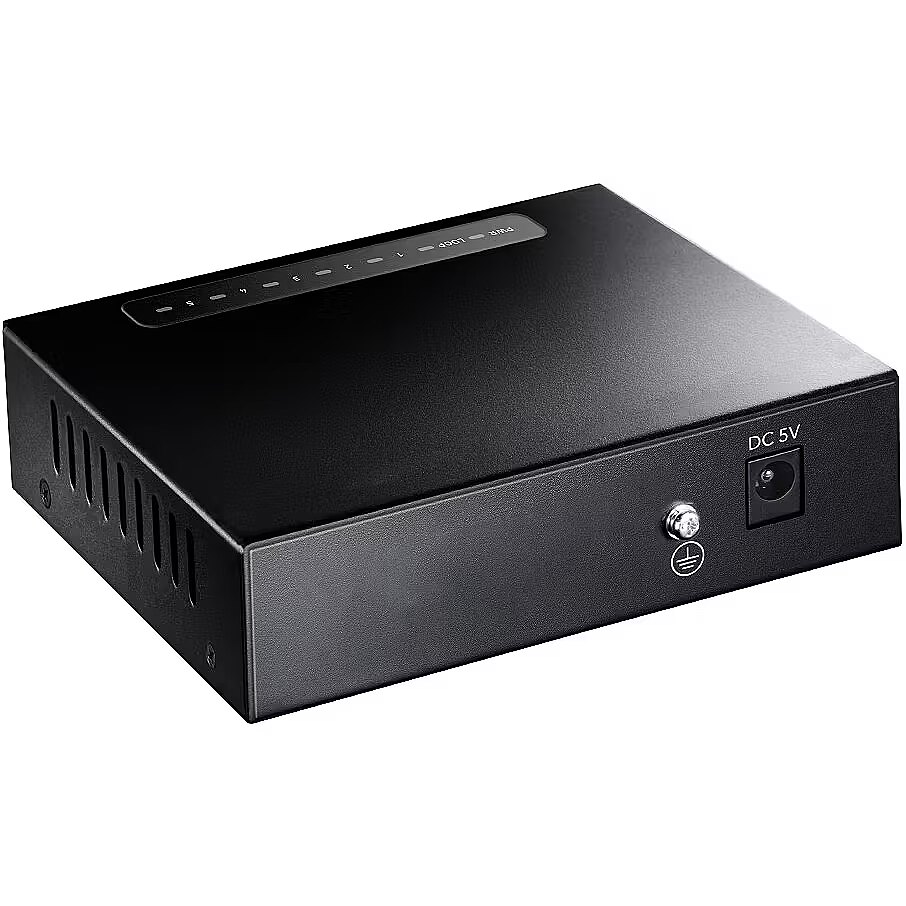

Power supply - Powers external DC 5V
Power supply - External
producer - Cudy
Producer - Cudy
ProducerCode - GS105
QoS -
Security -
ShortDescription -
Stackability - No
Supported protocols and standards - IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control)
Support for Jumbo frames - Yes
Switch class - Unmanaged
Throughput - 10 Gb/s
vendpn - GS105
VLAN - Port isolation, ports 1-4 are isolated from each other, all communicate with uplink port 5
Weight - 0.2
Weight - 200 g
