Teltonika TSW210, 8x1Gb 2SFP

Изображение может отличаться от реального товара, могут быть аксессуары и детали, не поставляемые с реальным товаром.
ID: 905725 Код товара: TSW210000000
В наличии 6 шт.
Гарантия: 2 лет
88,15 €
Готов к отправке
в пятницу, 16.05.2025
начиная с 0 €
Варианты доставки
  • Получение товаров в офисе Dateks
    0,00 €
  • Пункт выдачи посылок DPD Pickup Parcel Cabinet
    В течение 1-2 рабочих дней
    0,00 €
  • Пункт выдачи посылок
    В течение 1-2 рабочих дней
    0,00 €
  • Почтовое отделение
    В течение 1-2 рабочих дней
    0,00 €
  • Почтомат Omniva
    В течение 1-2 рабочих дней
    0,00 €
  • Почтомат Itella
    В течение 1-2 рабочих дней
    0,00 €
  • Доставка в Ригу
    4,99 €
  • Доставка по всей Латвии.
    В течение 1-2 рабочих дней
    4,99 €
Основные параметры продукции Все параметры
  • Количество портов Base T: 8
  • Скорость Base T: 10/100/1000
Места подключения и оснащение
Количество портов Base T : 8
Порты PoE : N/A
Порты SFP : 2
Скорость Base T : 10/100/1000
Спецификация
Вес (г) : 500 g
Количество фанатов : Fanless
Общий Бюджет Питания PoE : N/A
Поддержка PoE : Nav
PoE Бюджет питания на порт : N/A
Сетевые карты
Более подробная спецификация
10Base-T / 100Base-TX / 1000Base-T Ports - 8
Accessories included - TSW210 Quick start guide
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Certificates -
Chassis type - Desktop
Chassis type - Rack
Code - TSW210000010
Console port - No
Data transmission - Jumbo frames - 9216
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 2000 entries
Data transmission - Packet buffer memory - 0.128 MB
Data transmission > Jumbo frames - 9216 bytes

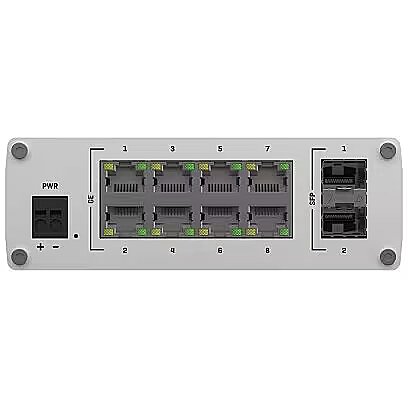

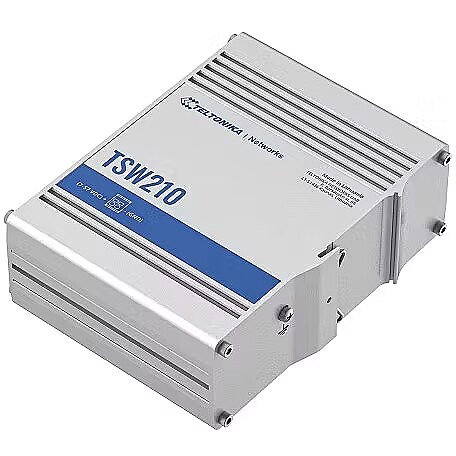

Description - The TSW210 is an industrial unmanaged switch for centralizing your resources. Equipped with 2 SFP ports for long-range fiberoptic communication and 8 Gigabit Ethernet ports with of up to 1000 Mbps download/upload speed. Durable, rugged aluminum housing with DIN rail and surface mounting options make the TSW210 perfect for industrial settings. 2-pin industrial DC power socket with an input voltage range of 7-57 VDC.
Description - TSW210 switch The TSW210 is an unmanaged industrial switch. Equipped with 2 SFP ports for long-range fiber optic communication and 8 Gigabit Ethernet ports with download/upload speeds up to 1000 Mb/s. A durable, rugged aluminum housing with DIN rail and surface mount options make the TSW210 ideal for industrial environments. 2-pin industrial DC power socket with an input voltage range of 7-57 VDC.

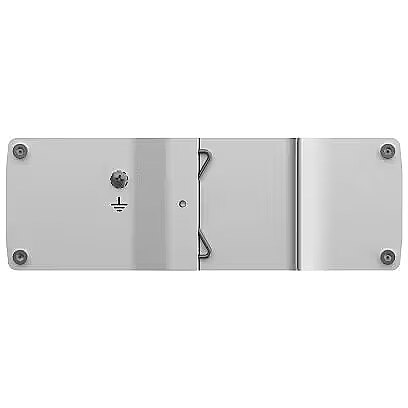

Design - DIN rail mounting - Yes
Design - Housing material - Aluminium
Design - International Protection (IP) code - IP30
Design - LED indicators - LAN
Design - LED indicators - Power
Design - LED indicators - Status
Design - Product colour - Aluminium
Design - Rack mounting - Yes
Design - Stackable - Yes
Design - Wall mountable - Yes
Design > Form factor - Wall mountable
Design > Housing material - Aluminium
Design > LED indicators - Yes
dimensionalWeight - 367
dimension depth - 70 mm
dimension height - 175 mm
Dimensions - 132 x 44.2 x 95.1 mm
dimension weight - 605 g
dimension width - 150 mm
EAN - 4779051840243
ean - ABEAN-NU69916
Eans - 4779051840243
Environment requirements - Operating temperature: -40°C to 75°C Humidity during operation: 10% to 90% non-condensing
Fan - No
Full Description Line - 8x10Base-T / 100Base-TX / 1000Base-T|2xSFP|IEEE 802.3|IEEE 802.3az|IEEE 802.3u|Switching capacity 20 Gbps|Dimensions 132 x 44.2 x 95.1 mm|Product Net Weight 0.5 kg
guarantee - 24
guarantee_type - normal
IEEE 802.3 Network standard - Yes
IEEE 802.3az Network standard - Yes
IEEE 802.3u Network standard - Yes
Jumbo frame size - 9.216 KB
L2 features -
L3 features -
Link - https://teltonika-networks.com/product/tsw210/
MAC address table size - 2000
Management, monitoring, configuration -
Management features - Switch type - Unmanaged
Management features > Switch type - Unmanaged
Manufacturer - Teltonika
Model name - TSW210
MPN - TSW210000010
Name - 8+2P Teltonika TSW210 Industrial GSwitch 2x SFP
name - Switch TSW210 2xSFP 8xGbE
Name - Teltonika TSW210
Name - Teltonika | Switch | TSW210 | Unmanaged | Wall mountable | Gigabit Ethernet (copper) ports quantity 8 | SFP ports quantity 2 | 24 month(s)
Network - Auto MDI/MDI-X - Yes
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3az
Network - Networking standards - IEEE 802.3u
Network architecture - GigabitEthernet
Number of 10/100/1000 Mbps ports - 8
Number of SFP ports - 2
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -40 - 75 °C
Operational conditions > Operating relative humidity (H-H) - 10 % to 90 % non-condensing %
Operational conditions > Operating temperature (T-T) - -40 C to 75 C °C
Other features - IP30 protection
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 140.00 mm
Package features > Gross height (mm) - 120.00 mm
Package features > Gross width (mm) - 60.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 857 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.12 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packet buffer - 128 KB
Performance > Buffer size - 128 KB
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Installed SFP modules quantity - 2
Ports & interfaces > Gigabit Ethernet (copper) ports quantity - 8
Ports & interfaces > POE - No
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Ports & interfaces > SFP ports quantity - 2
Power - DC input voltage - 7 - 57 V
Power - Power consumption (max) - 3.71 W
Power - Power consumption (typical) - 1.03 W
Power - Power source - DC
Power - Power supply included - No
Power > Input voltage - 7-57 VDC V
Power consumption - 3.71 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power supply - 2-pin socket 7-57 VDC
producer - TELTONIKA
Producer - Teltonika
ProducerCode - TSW210
producerCode - TSW210000010
Producer product family - Switch
Producer product name - TSW210
productName - Teltonika TSW210 Unmanaged Gigabit Ethernet (10/100/1000) Aluminium
Product Net Weight - 0.5 kg
productSize - Normal
QoS -
Security -
SFP Ports - 2
Shipping Box Depth Shipping/Package Box Dimensions - 17 cm
Shipping Box Height Shipping/Package Box Dimensions - 14.8 cm
Shipping Box Weight Shipping/Package Box Dimensions - 0.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 7 cm
ShortDescription - Teltonika TSW210 Switch przemysłowy, 8x Gigabit RJ45, 2x SFP, aluminiowa obudowa
sizeX - 175
sizeY - 150
sizeZ - 70
Stackability - No
Supported protocols and standards - IEEE 802.3 IEEE 802.3u 802.3az
Support for Jumbo frames - Yes
Switch class - Unmanaged
Switching capacity - 20 Gbps
Technical details > Gross weight - 0.58 kg
Technical details > Net weight - 0.46 kg
Technical details > Producer - Teltonika
Technical details > Warranty - 24 month(s)
Throughput - 20 Gb/s
Unit Box Height - 0.148
Unit Box Length - 0.17
Unit Box Width - 0.07
Unit Calculated Volume - 0.001761 cubm
Unit Calculated Weight - 0.6 kg
Units per Shipping Box - 1
Vendor Homepage - teltonika-networks.com/product/tsw210/
vendpn - TSW210 000000
VLAN -
Warranty - 24
Warranty - 24 months
warrantyLength - 24
warrantyType - G
Weight - 0.62
Weight - 500 g
weight - 610
Weight & dimensions - Depth - 95.1 mm
Weight & dimensions - Height - 44.2 mm
Weight & dimensions - Weight - 500 g
Weight & dimensions - Width - 132 mm
