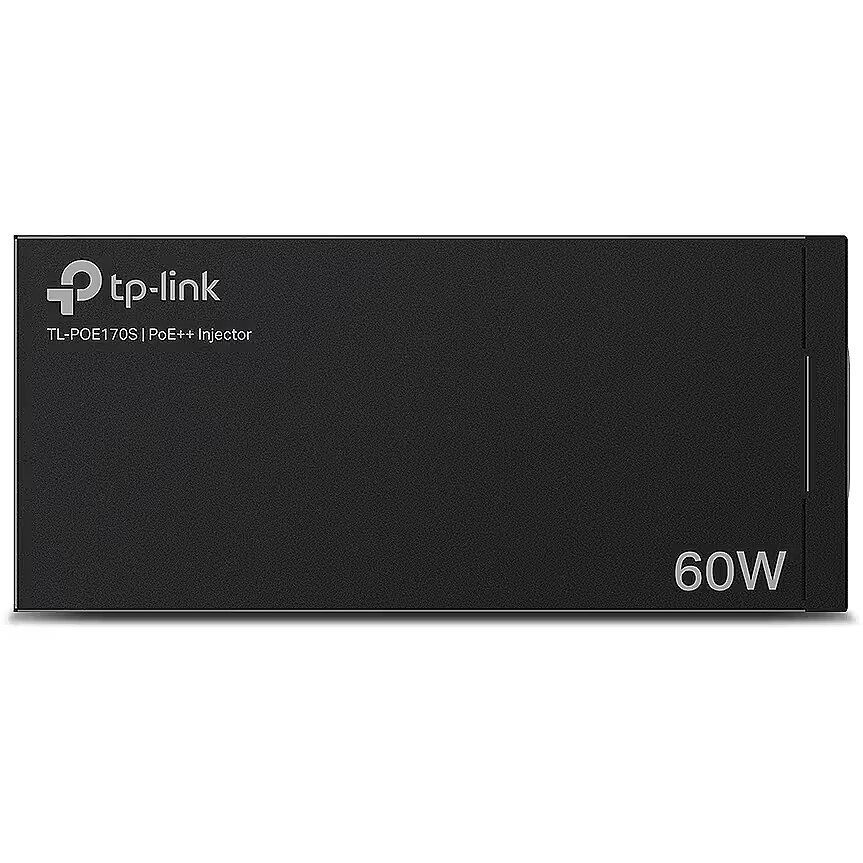

TP-LINK TL-POE170S

Accessories included - Installation Guide Power cable RJ45 cable
ARTIKEL1 - POE++ GIGABIT POE INJECTOR
ARTIKEL2 - 802.3BT/AT/AF 60 W POE POWER
Brand - TP-Link
BrandPartCode - TL-POE170S
Breite - 0
Category - PoE Adapters
Category Code - POE
Certificates - Certification - FCC, CE, RoHS
Depth - 70 mm
Description - - 2 Gigabit ports ensure faster transmission - Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W - Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable - Automatically determines and supplies the exact power to meet the device's need - Wall-mounting and desktop design accommodates most installation scenarios - Plug & Play installation, requires no configuration - Integrated power supply - Durable metal casing
Description - PoE++ Injector 2 Gigabit ports ensure fast data transmission Compliance with IEEE802.3af/at/bt standards and the ability to deliver up to 60 W of power Reduction of infrastructure costs by transmitting data and power over one Ethernet cable Automatically adjusts the power supply to the requirements of the connected device Can be mounted on a wall and on a desk "Plug & Play" installation, no configuration required Integrated power supply Durable metal housing
dimensionalWeight - 902
dimension depth - 95 mm
dimension height - 250 mm
Dimensions - 155 x 70 x 42 mm
dimension weight - 950 g
dimension width - 190 mm
ean - 4897098683897
EAN - 4897098683897
EANCode - 4897098683897
Features - Certification - FCC, CE, RoHS
Features - Housing material - Metal
Features - Plug and Play - Yes
Features - Product colour - Black
Features - Wall mountable - Yes
Full Description Line - 2xRJ45|Dimensions 155 x 70 x 42 mm
Gewicht - 0
Gross Weight Kg - 0,46
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
GTIN - 0840030703898
GTIN - 840030703898
GTIN - 4897098681756
GTIN - 4897098683897
guarantee - 60
guarantee_type - normal
Height - 42 mm
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - POE170S
I/O ports - 1 x 10/100/1000 Mbit/s
I/O ports - 1 x 10/100/1000 Mbit/s PoE
IEEE 802.3ab Network standard - Yes
IEEE 802.3af Network standard - Yes
IEEE 802.3at Network standard - Yes
IEEE 802.3i Network standard - Yes
IEEE 802.3u Network standard - Yes
Laenge - 0
Logistics data - Harmonized System (HS) code - 85044095
LongDesc - What This Product DoesThe PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power lines or outlets, where you wish to fix devices such as PTZ IP Cameras, LED, etc.
LongProductName - RJ-45, 100-240 V, 50/60 Hz, 155x70x42 mm
LongSummaryDescription - TP-Link TL-POE170S. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: Black, Housing material: Metal. Output power: 60 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Certification: FCC, CE, RoHS. Width: 155 mm, Depth: 70 mm, Height: 42 mm
Manufacturer Code - POE170S
Manufacturer Name - TP-LINK
Model - TL-POE170S
name - POE170S PoE++ Injector
Network - Cable types supported - Cat3
Network - Cable types supported - Cat3, Cat4, Cat5, Cat5e, Cat6
Network - Cable types supported - Cat4
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Cable types supported - Cat6
Network - Cabling technology - 10/100/1000
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3bt
Network - Networking standards - IEEE 802.3i
Network - Networking standards - IEEE 802.3u
Network - Power over Ethernet (PoE) - Yes
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - The algorithm allows power delivery in accordance with 802.3af/at/bt (PD) Automatic determination of required power parameters Can be mounted on a wall and on a desk Plug-and-Play
Packaging content - Number of products included - 1 pc(s)
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 250 mm
Packaging data - Package height - 95 mm
Packaging data - Package type - Box
Packaging data - Package weight - 920 g
Packaging data - Package width - 190 mm
Ports & interfaces - RJ-45 input ports - 1
Ports & interfaces - RJ-45 output ports - 1
Power - AC adapter frequency - 50/60 Hz
Power - AC adapter input voltage - 100 - 240 V
Power - Output power - 60 W
producer - TP-LINK
producerCode - TL-POE170S
ProductName - TL-POE170S
productName - TP-Link TL-POE170S PoE adapter Gigabit Ethernet
productSize - Normal
RJ45 Input/Output connectors - 2
Shipping Box Depth Shipping/Package Box Dimensions - 25 cm
Shipping Box Height Shipping/Package Box Dimensions - 10 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.96 kg
Shipping Box Width Shipping/Package Box Dimensions - 19 cm
Short description - TP-LINK PoE++ Injektor TL-POE170S 60W PoE Power 1x Gigabit PoE Port, 1x Gigabit Non-PoE Port
ShortSummaryDescription - TP-Link TL-POE170S, Gigabit Ethernet, 10,100,1000 Mbit/s, 10/100/1000, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, Cat3, Cat4, Cat5, Cat5e, Cat6, Black
sizeX - 95
sizeY - 250
sizeZ - 190
Stck_Kart - 12
Stck_Pal - 12
Storno - Y
Title - TP-Link TL-POE170S PoE adapter Gigabit Ethernet
Unit Box Height - 0.1
Unit Box Length - 0.25
Unit Box Width - 0.19
Unit Brutto Volume - 0.00475 cubm
Unit Gross Weight - 0.96 kg
Unit Net Weight - 0.8 kg
URL - https://www.tp-link.com/au/business-networking/accessory/tl-poe170s/
Vendor Homepage - www.tp-link.com/us/business-networking/accessory/tl-poe170s/
vendpn - POE170S
Warranty - 24 months
WarrantyInfo -
warrantyLength - 60
warrantyType - G
weight - 952
Weight & dimensions - Depth - 70 mm
Weight & dimensions - Height - 42 mm
Weight & dimensions - Width - 155 mm
Width - 155 mm
