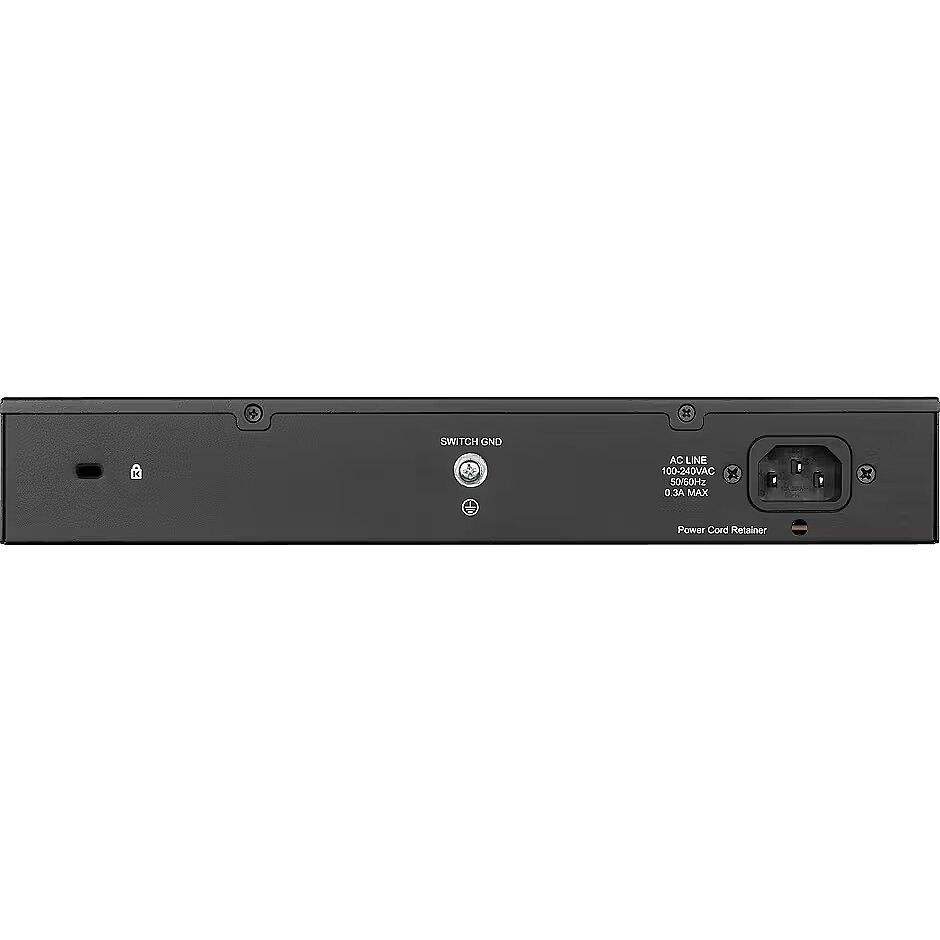

D-Link DGS-1100-24V2 Smart Managed Switch [24x Gigabit Ethernet]

10/100/1000/2500 Mbps ports - None
Accessories included -
Application - Medium and large companies
ARTIKEL1 - 24-PORT SMART GIGABIT SWITCH
ARTIKEL2 - LAYER2
Brand - D-Link
BrandPartCode - DGS-1100-24V2/E
Breite - 0.34
Category - Network Switches
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - EMI: FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI, CCC Safety: cUL, CE LVD, CB, BSMI, CCC
Certificates - Certification - FCC, CE, VCCI, C-Tick, BSMI, CCC
Certificates - Compliance certificates - BSMI, CB, CCC, cUL
Chassis type - Desktop
Chassis type - Rack
Console port - No
Data transmission - Forwarding rate - 35.71 Mpps
Data transmission - Jumbo frames - 9216
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 4.1 MB
Data transmission - Switching capacity - 48 Gbit/s
Description - Gigabitowe zarządzalne przełączniki Smart Seria DGS-1100 Proste zarządzanie warstwy 2 Graficzny interfejs użytkownika w przeglądarce Dożywotnia gwarancja Lifetime-Limited po rejestracji Prosty. Łatwo. Smart.
Rodzina przełączników DGS-1100 to przystępne cenowo rozwiązanie dla firm z segmentu SOHO oraz SMB, jak też do wdrożeń w filiach biur, salach konferencyjnych dużych przedsiębiorstw, wszędzie tam, gdzie wymagane są podstawowe funkcje zarządzania. Intuicyjny graficzny interfejs użytkownika
Graficzny interfejs użytkownika DGS-1100 umożliwia łatwe zarządzanie funkcjami warstwy 2, takimi jak sieci VLAN, Spanning Tree Protocol (STP) i agregacją linków (statyczną). Z potężnymi funkcjami zabezpieczeń w postaci narzędzi IGMP snooping, Static MAC oraz Storm Control, przełączniki rodziny DGS-1100 to wszechstronne narzędzie dla środowisk wymagających nieskomplikowanego wdrożenia i łatwego rozwiązań konfiguracyjnych bez zbędnej złożoności. Łatwe wdrożenie i zarządzanie
Bezpłatny system Network Assistant (DNA) D-Linka dostarcza informacji o wszystkich podłączonych urządzeniach i przyspiesza pierwszą konfigurację. Bezpłatny system zarządzania siecią D-View 7 jest dostarczany z licencją na 25 węzłów i 2 sondy oraz pełnym dostępem do narzędzi do zarządzania. Opcjonalna aktualizacja licencji umożliwia rozszerzenie sieci i możliwości analizy. Łatwe rozwiązywanie problemów
Dzięki funkcjom wykrywania pętli i diagnostyce połączeń kablowych rodzina przełączników DGS-1100 skutecznie wspiera administratorów w rozwiązywaniu problemów z siecią. Funkcja wykrywania pętli wykrywa powstanie pętli na porcie i automatyczne go zamyka.
Natomiast diagnostyka połączeń kablowych umożliwia przetestowanie jakości kabli miedzianych, rozpoznanie rodzaju kabli oraz wykrycie błędów.
Design - Built-in fan - No
Design - Case type - Desktop / RACK (brackets included)
Design - Form factor - 1U
Design - LED indicators - Yes
Design - Product colour - Black
Design - Product colour - Black, Grey
Design - Rack mounting - Yes
dimensionalWeight - 2567
dimension depth - 105 mm
dimension height - 330 mm
Dimensions - 280 x 180 x 44 mm
dimension weight - 2140 g
dimension width - 360 mm
ean - 790069467844
EAN - 0790069467844
EANCode - 0790069467844
EAN_code - 0790069467844
Environment requirements - Temperatura pracy: -5 do 50 °C (23 do 122 °F) Temperatura przechowywania: -40 do 70 °C (-40 do 158°F) Wilgotność robocza: 0% do 95% bez kondensacji Wilgotność przechowywania: 0% do 95% bez kondensacji
Fan - No
Forwarding rate - 35.71 Mpps
Gewicht - 2.14
Gross Weight Kg - 2,4
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0790069467844
GTIN - 790069467844
GTIN - 5704174940265
guarantee - 0
guarantee_type - perpetual
HERSTELLER - D-LINK
Hoehe - 0.1
HSTNUMMER - DGS-1100-24V2/E
Jumbo frame size - 10 KB
L2 features - Flow Control 802.3x Flow Control HOL Blocking Prevention Jumbo frames up to 10,000 Bytes IGMP Snooping IGMP Snooping V1/V2/V3 awareness Supports 128 Groups IGMP Snooping Querier 802.3ad Link Aggregation: Support max 8 groups per device and 8 ports per group Loopback Detection Cable diagnostics LLDP Port Mirroring One-to-One Many-to-One Statistics Tx Ok Tx Error Rx Ok Rx Error Spanning Tree Protocol 802.1D STP 802.1w RSTP
L3 features -
Laenge - 0.37
LongSummaryDescription - D-Link DGS-1100-24V2. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x. Rack mounting, Form factor: 1U
MAC address table size - 8000
Management, monitoring, configuration - Web-based GUI (supports IPv4/IPv6)  Client-based D-Link Network Assistant (DNA
Management features - Auto MDI/MDI-X - Yes
Management features - Electrostatic Discharge (ESD) protection - Yes
Management features - IGMP snooping - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - SSH/SSL support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Web-based management - Yes
Manufacturer - D-Link
Manufacturer Code - DGS-1100-24V2/E
Manufacturer Name - D-Link
Manufacturer_code - DGS-1100-24V2/E
Mean time between failures (MTBF) - 424762 h
Name - D-Link DGS-1100-24V2/E, switch (black/grey)
name - Switch DGS-1100-24V2 Smart 24xGE
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Broadcast storm control - Yes
Network - DoS attack prevention - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - Head-of-line (HOL) blocking - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
Network - Networking standards - IEEE 802.3ad
Network - Networking standards - IEEE 802.3az
Network - Networking standards - IEEE 802.3x
Network - Number of VLANs - 128
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - Port-based VLAN
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 24
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP ports - None
Number of VLAN groups - 128
Operational conditions - Heat dissipation - 54.3 BTU/h
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -5 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other functions -
Packaging content - AC adapter included - Yes
Packet buffer - 4.1 MB
Performance - Flash memory - 16 MB
Performance - Mean time between failures (MTBF) - 424762 h
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Number of power supply units - 1
Power - Power consumption (max) - 15.9 W
Power - Power requirements - 100 - 240V AC
Power - Power source - AC
Power - Power supply included - Yes
Power consumption - 15.9 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power supply - 100 to 240 V AC, 50 to 60 Hz internal power supply
Power supply - Internal
producer - D-Link
producerCode - DGS-1100-24V2/E
productName - D-Link DGS-1100-24V2/E 24-port Gigabit managed switch
ProductName - DGS-1100-24V2
productSize - Normal
QoS - 802.1p Quality of Service 8 queues per port Queue handling: Strict / Weighted Round Robin (WRR) Port-based bandwidth control (rate limiting): Ingress: 16 Kbps / Egress: 16 Kbps
Security - D-Link Safeguard Traffic segmentation Broadcast/Multicast/Unknown Unicast Storm Control DoS attack prevention SSL
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Short description - D-Link Switch DGS-1100-24V2/E 24xGBit 19" Managed
ShortSummaryDescription - D-Link DGS-1100-24V2, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
sizeX - 335
sizeY - 365
sizeZ - 105
Stackability - No
Stck_Kart - 3
Stck_Pal - 12
Storno - N
Supported protocols and standards - IEEE 802.3 for Ethernet IEEE 802.3u for Fast Ethernet IEEE 802.3ab for Gigabit Ethernet IEEE 802.3z for Gigabit fiber IEEE 802.3af/at (DGS-1100-24PV2 ports 1 to 12 only) IEEE 802.3az compliant Auto-negotiation Auto MDI/MDIX IEEE 802.3x Flow Control supports full-duplex mode Supports half/full-duplex operation (full/half at 10/100 Mbps, full at 1000 Mbps)
Support for Jumbo frames - Yes
Sustainability - Sustainability compliance - Yes
Switch class - SMART
Switch layer - L2
Throughput - 48 Gb/s
Title - D-Link DGS-1100-24V2 Managed L2 Gigabit Ethernet (10/100/1000) 1U Black, Grey
vendpn - DGS-1100-24V2/E
VLAN - Port-based VLAN 802.1Q tagged VLAN Auto Surveillance VLAN Voice VLAN Management VLAN Asymmetric VLAN VLAN Group Supports 128 static VLAN groups Max. 4094 VIDs
warrantyLength - 24
warrantyType - G
Weight - 1,42
Weight - 1.32 kg
weight - 2140
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 1.32 kg
Weight & dimensions - Weight - 1.47 kg
Weight & dimensions - Width - 280 mm
