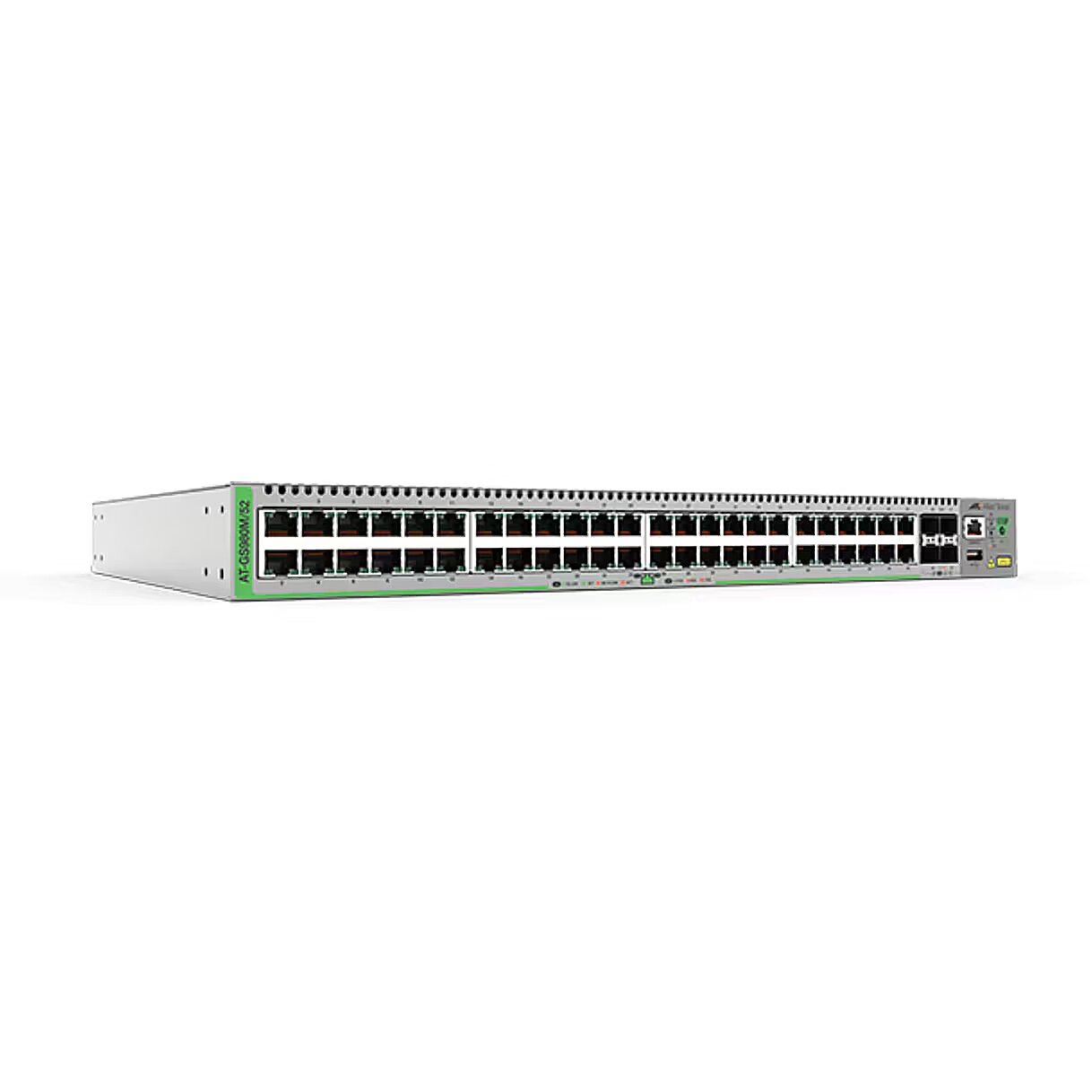

Allied Telesis AT-GS980M/52-50 48-PORT

ARTIKEL1 - GIGABIT MANAGED SWITCH 48-PORT
ARTIKEL2 - 4-PORT 100/1000X SFP EU PC IN
Brand - Allied Telesis
BrandPartCode - 990-005904-50
Category - Network Switches
Certificates - Certification - UL60950-1, CAN/CSA-C22.2 No.
60950-1-03, EN60950-1, EN60825-1, AS/NZS
60950.1
UL, cUL, UL-EU
RoHS
Data transmission - Forwarding rate - 77.4 Mpps
Data transmission - Jumbo frames - 10000
Data transmission - Jumbo frames support - Yes
Data transmission - Latency (1 Gbps) - 2.6 µs
Data transmission - Latency (10-100 Mbps) - 5.5 µs
Data transmission - MAC address table - 16000 entries
Data transmission - Packet buffer memory - 1.5 MB
Data transmission - Static route - Yes
Data transmission - Switching capacity - 104 Gbit/s
Design - Electromagnetic compatibility - EN55024
Design - LED indicators - Yes
Design - Product colour - Grey
Design - Rack mounting - Yes
Design - Wall mountable - Yes
EANCode - 0767035212388
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0767035212388
GTIN - 767035212388
HERSTELLER - ALLIED TELESIS
HSTNUMMER - AT-GS980M/52-50
Logistics data - Harmonized System (HS) code - 8517.62.0050
LongDesc - The Allied Telesis CentreCOM GS980M/52 managed switch features 48 x 10/100/1000T copper ports and 4 x 100/1000X SFP uplinks. A comprehensive feature-set, and built in security, make it ideal for high-density user and device connectivity at the network edge.OverviewAllied Telesis GS980M Series switches provide an excellent access solution for today’s networks, supporting Gigabit to the desktop for maximum performance. Deploying the GS980M as an AMF edge node when an AMF Master switch is available in the network, helps reduce network running costs by automating and simplifying many day-to-day administration tasks. 48 Gigabit ports and 4 SFP uplinks enable high-density and secure connectivity at the network edge, and the PoE+ model can supply up to 30 Watts to powered end-points.
LongProductName - 48-port 10/100/1000T, 4-port 100/1000X SFP Gigabit Ethernet Managed switch, 1 Fixed AC power supply, EU Power Cord
LongSummaryDescription - Allied Telesis AT-GS980M/52-50. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Switching optical modules type: 100 Gigabit Ethernet. Installed SFP modules quantity: 4. Full duplex. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE.... Wall mountable, Rack mounting
Management features - Configuring Location Settings (CLI) - Yes
Management features - MIB support - SNMP MIB
Management features - Quality of Service (QoS) support - Yes
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Web-based management - Yes
Multicast features - Multicast support - Yes
Network - 10G support - Yes
Network - Broadcast storm control - Yes
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-T, 1000BASE-T
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - IP routing - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Network - Number of VLANs - 4094
Network - Port mirroring - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Network - VLAN support - Yes
Operational conditions - Heat dissipation - 160 BTU/h
Operational conditions - Non-operating altitude - 0 - 4000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 5 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -25 - 70 °C
Optical fiber - Fiber ethernet cabling technology - 100BASE-X, 1000BASE-X
Optical fiber - Switching optical modules type - 100 Gigabit Ethernet
Packaging data - Package depth - 445 mm
Packaging data - Package height - 150 mm
Packaging data - Package weight - 6.4 kg
Packaging data - Package width - 575 mm
Performance - Flash memory - 64 MB
Performance - Internal memory - 256 MB
Performance - Memory type - DDR-SDRAM
Performance - Noise level - 39 dB
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 48
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Fiber optic connector - SFP
Ports & interfaces - Installed SFP modules quantity - 4
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 1.0 A
Power - Power consumption (typical) - 47 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
ProductName - AT-GS980M/52-50
Protocols - Management protocols - SNMP
Protocols - Routing protocols - RIP, RIP-2
Security - Access Control List (ACL) - Yes
Security - Authentication - MAC-based authentication, Port-based authentication, Web-based authentication
Security - Authentication type - AAA, IEEE 802.1x, Network Access Control (NAC), RADIUS
Security - BPDU filtering/protection - Yes
Security - DHCP features - DHCP client, DHCP snooping
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Security - MAC address filtering - Yes
Security - Password protection - Yes
Security - Security algorithms - 3DES, AES, MD5, PEAP, RSA, SHA-1, SHA-2, SSH, SSH-2, SSL/TLS, TTLS
Security - SSH/SSL support - Yes
ShortSummaryDescription - Allied Telesis AT-GS980M/52-50, Managed, Gigabit Ethernet (10/100/1000), 100 Gigabit Ethernet, Full duplex, Rack mounting, Wall mountable
Stck_Kart - 1
Stck_Pal - 4
Storno - Y
Title - Allied Telesis AT-GS980M/52-50 Managed Gigabit Ethernet (10/100/1000) Grey
URL - https://www.alliedtelesis.com/product/switches/gs980M-52
WarrantyInfo - 5 year
Weight & dimensions - Depth - 323 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 4.5 kg
Weight & dimensions - Width - 441 mm
