Accessories included - Przełącznik M4250-16XF (XSM4216F) Przewody zasilające Kable Console USB typu C i RJ45-DB9 Standardowe wsporniki do montażu w szafie typu Rack Dłuższe wsporniki do montażu wpuszczanego Gumowe podkładki pod stopy do montażu na stole Podręcznik instalacji
Application - Home and small office
ARTIKEL1 - M4250 16-PORT AV LINE SWITCH
ARTIKEL2 - 16X1G/10G FIBER SFP+ MANAGED
Brand - NETGEAR
BrandPartCode - XSM4216F-100EUS
Category - Network Switches
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Chassis type - Rack
Console port - Yes
Data transmission - Jumbo frames - 12000
Data transmission - Jumbo frames support - Yes
Data transmission - Latency (1 Gbps) - 1.274 µs
Data transmission - Latency (10 Gbps) - 0.811 µs
Data transmission - MAC address table - 16000 entries
Data transmission - Number of queues - 8
Data transmission - Packet buffer memory - 16 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 320 Gbit/s
Data transmission - Throughput - 238.08 Mpps
Description - Przełącznik zarządzalny 16x1G/10G Fibre SFP+ Przełączanie zaprojektowane dla 1G AV over IP z portami skierowanymi do tyłu, zapewniającymi czystą integrację w szafach AV. Wstępnie skonfigurowany do działania po wyjęciu z pudełka! Wstępnie skonfigurowany do natychmiastowego użycia
Funkcja NETGEAR IGMP PlusTM umożliwia natychmiastowe rozsyłanie grupowe w większości instalacji AV over IP Dedykowany internetowy interfejs graficzny AV
Unikalny interfejs zaprojektowany dla profesjonalistów z branży audiowizualnej z kolorowymi profilami opartymi na portach Profile typowych protokołów audio
Szybkie przypisywanie profili do portów w konfiguracjach audio Dante, AES67 i AVB. AVB wymaga osobnej licencji Wbudowane profile wideo
Profile specjalne dla profili wizyjnych NVX, SVSI, Q-SYS i Dante można w razie potrzeby łatwo przypisać do portów Agregacja łączy z wieloma przełącznikami
Porty światłowodowe 16xSFP+ 1G/10G do agregacji 1G/10G w gwiazdce M4250 topologie (kręgosłup i liść) Przełączanie warstwy 2/warstwy 3
Wspólny mechanizm przełączania warstwy 2 i 3 dla wszystkich Modele M4250 Metody kontroli są obfite
Wbudowany GRAFICZNY interfejs UŻYTKOWNIKA, konsola, telnet i SSH zgodny z innymi seriami NETGEAR M4xxx Standardowe funkcje sieciowe
Zestaw funkcji obejmuje routing statyczny, RIP i PIM, serwer DHCP i PTPv2 Wszechstronność montażu w szafie serwerowej
Montaż w szafie rack 1U o głębokości 200 mm ze wszystkimi portami zasilania i Ethernet z tyłu Możliwość odwrócenia montażu
Możliwy montaż odwrócony z portami z przodu wraz z zagłębieniem montaż w celu zabezpieczenia kabli Dostępność uniwersalnego montażu
Montaż na zewnątrz szafy możliwy dzięki gwintowanym otworom dolnym M5 i przednim M10 Regulowana funkcjonalność wentylatora
Tryb cichy z 56,7 dB przy 25C (wszystkie porty są używane), tryb bez wentylatora z maks. 25C otoczenia, wewnętrzny czujnik 75C i 8 porty SFP+ używane
Design - Form factor - 1U
Design - LED indicators - PoE
Design - LED indicators - PoE, Power, Status
Design - LED indicators - Power
Design - LED indicators - Status
Design - Product colour - Black
Design - Rack mounting - Yes
dimensionalWeight - 3434
dimension depth - 120 mm
dimension height - 530 mm
Dimensions - 440 x 200 x 43,2 mm
dimension weight - 4500 g
dimension width - 260 mm
ean - 606449149708
EANCode - 0606449149708
EAN_code - 0606449149708
Fan - No
Forwarding mode - Store-and-forward
Forwarding rate - 238.08 Mpps
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 606449149708
GTIN - 0606449149708
GTIN - 10606449149705
guarantee - 0
guarantee_type - perpetual
HERSTELLER - NETGEAR
HSTNUMMER - XSM4216F-100EUS
Jumbo frame size - 12 KB
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.M4250 Support for Audio Video Bridging (AVB)One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
LongProductName - 320 Gbps, 16x 1G/10G SFP+, 440x100x43.2 mm
LongSummaryDescription - NETGEAR M4250-16XF. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45/USB Type-C. Full duplex. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U
MAC address table size - 16000
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2/L3
Management features - Switch type - Managed
Manufacturer - Netgear
Manufacturer_code - XSM4216F-100EUS
Multicast features - IPv4 multicast entries - 2000
Multicast features - IPv6 multicast entries - 2000
Multicast features - Multicast support - Yes
Name - Netgear M4250-16xF XG/SFP+/Man/16 XSM4216F
name - Switch M4250-16XF 16SFP+
Network - 10G support - Yes
Network - Broadcast storm control - Yes
Network - Full duplex - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1ab
Network - Networking standards - IEEE 802.1D
Network - Networking standards - IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Network - Networking standards - IEEE 802.1Q
Network - Networking standards - IEEE 802.1s
Network - Networking standards - IEEE 802.1w
Network - Networking standards - IEEE 802.1x
Network - Networking standards - IEEE 802.3ad
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3bt
Network - Networking standards - IEEE 802.3x
Network - Number of VLANs - 4093
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - MAC address-based VLAN
Network - Virtual LAN features - MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Network - Virtual LAN features - Private VLAN
Network - Virtual LAN features - Protocol-based VLAN
Network - Virtual LAN features - Tagged VLAN
Network - Virtual LAN features - Voice VLAN
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - None
Number of 10Gb ports - 1
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of SFP+ ports - 16
Number of SFP ports - None
Number of VLAN groups - 4093
Operational conditions - Heat dissipation - 163.33 BTU/h
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other features - Obsługa IGMP : Rozszerzony (NETGEAR IGMP Plus) Poziom hałasu : Bez wentylatora lub 56,7 dB przy 25C
Packet buffer - 16 MB
Performance - Built-in processor - Yes
Performance - Internal memory - 2048 MB
Performance - Mean time between failures (MTBF) - 778769 h
Performance - Noise level - 56.7 dB
Performance - Processor frequency - 1250 MHz
Performance - Processor model - ARM Cortex-A9
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - No
Ports & interfaces - Console port - RJ-45/USB Type-C
Ports & interfaces - SFP+ module slots quantity - 16
Power - Power consumption (typical) - 47.84 W
Power consumption - 47.84 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power supply - Internal
producer - Netgear
producerCode - XSM4216F-100EUS

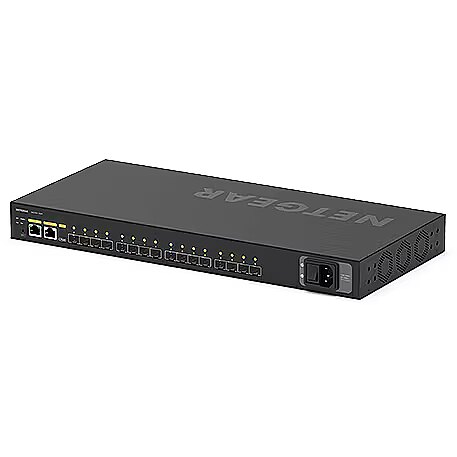

ProductName - M4250-16XF
productName - NETGEAR M4250-16XF Managed L2/L3 1U Black
productSize - Normal
Security - Successive Tiering (DOT1X; MAB; Captive Portal) DHCP Snooping Dynamic ARP Inspection IP Source Guard
Security - Access Control List (ACL) - Yes
Security - Authentication - MAC-based authentication
Security - Authentication type - RADIUS
Security - BPDU filtering/protection - Yes
Security - DHCP features - DHCP Option 82
Security - DHCP features - DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Security - DHCP features - DHCP relay
Security - DHCP features - DHCP server
Security - DHCP features - DHCP snooping
Security - DHCP features - DHCPv6 client
Security - DHCP features - DHCPv6 relay
Security - DHCP features - DHCPv6 server
Security - DHCP features - DHCPv6 snooping
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Security - SSH/SSL support - Yes
ShortSummaryDescription - NETGEAR M4250-16XF, Managed, L2/L3, Full duplex, Rack mounting, 1U
sizeX - 530
sizeY - 270
sizeZ - 120
Stck_Kart - 3
Stck_Pal - 12
Storno - Y
Supported protocols and standards -
Support for Jumbo frames - Yes
Switch class - Managed
Switch layer - L3
Throughput - 320 GB/s
Title - NETGEAR M4250-16XF Managed L2/L3 1U Black
URL - https://www.netgear.com/business/products/switches/managed/xsm4216f.aspx
vendpn - XSM4216F-100EUS
VLAN -
WarrantyInfo -
warrantyType - W
Weight - 2.8 kg
Weight - 4,50
weight - 4590
Weight & dimensions - Depth - 100 mm
Weight & dimensions - Height - 43.2 mm
Weight & dimensions - Weight - 1.74 kg
Weight & dimensions - Width - 440 mm
