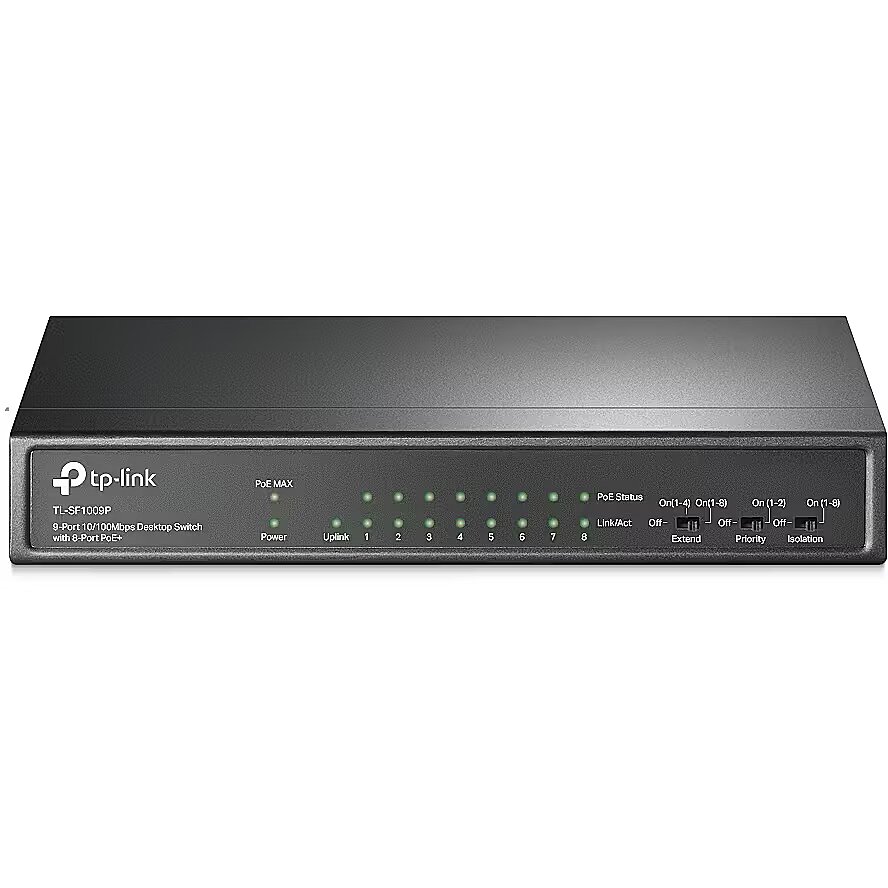

TP-LINK TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

10Base-T / 100Base-TX Ports - 9
ARTIKEL1 - 8-PORT POE+ FE DESKTOP SWITCH
ARTIKEL2 - .
Brand - TP-Link
BrandPartCode - TL-SF1009P
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category Code - SWI
Certificates - Certification - FCC, CE, RoHS
Certificates - Compliance certificates - Federal Communications Commission (FCC), CE, RoHS
Code - TL-SF1009P
Data transmission - Forwarding rate - 1.3392 Mpps
Data transmission - MAC address table - 2000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 1.6 Gbit/s
Description - - 9× 10/100 Mbps RJ45 ports - 8× PoE+ ports transfer data and power on individual cables - Works with IEEE 802.3af/at compliant PDs - Up to 250 m data and power transmitting range under Extend Mode** - Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application - Supports PoE Power up to 30 W for each PoE port - Supports PoE Power up to 65 W for 8 PoE ports* - Plug and play with no configuration required
Design - Certification - FCC, CE, RoHS
Design - Housing material - Metal
Design - LED indicators - Activity
Design - LED indicators - Activity, Link, PoE, Power
Design - LED indicators - Link
Design - LED indicators - PoE
Design - LED indicators - Power
Design - Product colour - Black
Design - Rack mounting - No
Design - Stackable - No
Design - Wall mountable - Yes
Design > Form factor - Desktop
Desktop/pedestal Mounting Type - Yes
dimensionalWeight - 856
Dimensions - 171 × 98 × 27 mm
EAN - 6935364052966
EANCode - 6935364052966
Eans - 6935364052966
Forwarding rate - 1.3392 Mpps
Full Description Line - Desktop/pedestal|9x10Base-T / 100Base-TX|PoE+ ports 8|Switching capacity 1.8 Gbps|Forwarding rate 1.3392 Mpps|Switching method Store-and-forward|Power supply External|Dimensions 171 × 98 × 27 mm|Unit Net Weight 0.4 kg
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
GTIN - 0845973099909
GTIN - 845973099909
GTIN - 6935364052966
GTIN - 6935364052973
HERSTELLER - TP-LINK
HSTNUMMER - TL-SF1009P
Link - https://www.tp-link.com/sa/business-networking/poe-switch/tl-sf1009p/
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Professional 9-Port Unmanaged Switch with 8 PoE+ PortsPlug and Play, with PoE Transmission for Surveillance up to 250 mProfessional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous ApplicationsCompliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.Ideal for IP Surveillance—Up to 250 m TransmissionsWith extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.Ideal for IP Surveillance—Higher Performance and SecurityPriority Mode and Isolation Mode make surveillance smoother and safer.Intelligent Power ManagementWhen total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.Durable Metal CasingThe interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.
LongProductName - 9x 10/100 Mbps RJ-45, PoE, 1.8 Gbps, 171x98x27 mm
LongSummaryDescription - TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 9. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
Management features - Switch type - Unmanaged
Management features > Switch type - Unmanaged
Material > Case material - Steel
Model name - TL-SF1009P
Name - TP-Link TL-SF1009P
Name - TP-LINK | Switch | TL-SF1009P | Unmanaged | Desktop | 10/100 Mbps (RJ-45) ports quantity 9 | PoE+ ports quantity 8 | Power supply type External
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3
Network - Cable types supported - Cat3, Cat4, Cat5, Cat5e
Network - Cable types supported - Cat4
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - MAC address auto-aging supported - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3i
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Operational conditions - Heat dissipation - 262.84 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features > Power supply type - External
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 280 mm
Package features > Gross depth master carton - 575 mm
Package features > Gross height (mm) - 220 mm
Package features > Gross height master carton - 225 mm
Package features > Gross weight - 0.982 kg
Package features > Gross width (mm) - 67 mm
Package features > Gross width master carton - 470 mm
Package features > Net weight master carton - 11.784 kg
Package features > Packing quantity - 12 pc(s)
Package features > Palette Qty - 336 pc(s)
Package features > Paper/Pasteboard - 256.00 g
Package features > Plastic (No PET) - 64.00 g
Package features > Tare weight (kg) - 0.32 kg
Package features > Tare weight master carton - 1.034 kg
Package features > Volume (m3) - 0.0041272 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - User guide - Yes
Packaging data - AC adapter included - Yes
Packaging data - Package depth - 280 mm
Packaging data - Package height - 68 mm
Packaging data - Package type - Box
Packaging data - Package weight - 980 g
Packaging data - Package width - 223 mm
Packaging data - User guide - Yes
Performance - Fanless - Yes
PoE+ ports - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 9
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces - Fast Ethernet (copper) ports quantity - 9
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces > 10/100 Mbps (RJ-45) ports quantity - 9
Ports & interfaces > POE - PoE 802.3 af and PoE+ 802.3 at
Ports & interfaces > PoE+ ports quantity - 8
Ports & interfaces > Predominant port type - 10/100 Mbps (RJ-45)
Power - AC input frequency - 50 Hz
Power - AC input voltage - 220 V
Power - DC input voltage - 53.5 V
Power - Input current - 1.31 A
Power - Power consumption (max) - 77.08 W
Power - Power source - DC/PoE
Power - Power supply included - No
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 8
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 65 W
Power over Ethernet (PoE) > Power over Ethernet (PoE) power per port - 30 W
Power supply - External
Primary port count - 9
Producer - TP-Link
producerCode - TL-SF1009P
ProducerCode - TL-SF1009P
Producer product family - Switch
Producer product name - TL-SF1009P
ProductName - 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
productName - TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 28 cm
Shipping Box Height Shipping/Package Box Dimensions - 22.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.973 kg
Shipping Box Width Shipping/Package Box Dimensions - 7 cm
ShortDescription -
ShortSummaryDescription - TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+, Unmanaged, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE), Wall mountable
sizeX - 280
sizeY - 68
sizeZ - 225
Stck_Kart - 12
Stck_Pal - 0
Storno - Y
Sustainability - Sustainability certificates - CE
Sustainability - Sustainability certificates - Federal Communications Commission (FCC)
Sustainability - Sustainability certificates - RoHS
Sustainability - Sustainability compliance - Yes
Switching capacity - 1.8 Gbps
Switching method - Store-and-forward
Technical details > Net weight - 0.662 kg
Technical details > Producer - TP-LINK
Title - TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
Unit Box Height - 0.225
Unit Box Length - 0.28
Unit Box Width - 0.07
Unit Brutto Volume - 0.00441 cubm
Unit Gross Weight - 0.973 kg
Unit Net Weight - 0.4 kg
URL - https://www.tp-link.com/uk/business-networking/unmanaged-switch/tl-sf1009p/
Vendor Homepage - www.tp-link.com/sa/business-networking/poe-switch/tl-sf1009p/
Warranty - 60
Warranty - 60 month(s)
Warranty - 60 months
WarrantyInfo -
warrantyLength - 60
warrantyType - G
weight - 1000
Weight & dimensions - Depth - 98 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Width - 171 mm
