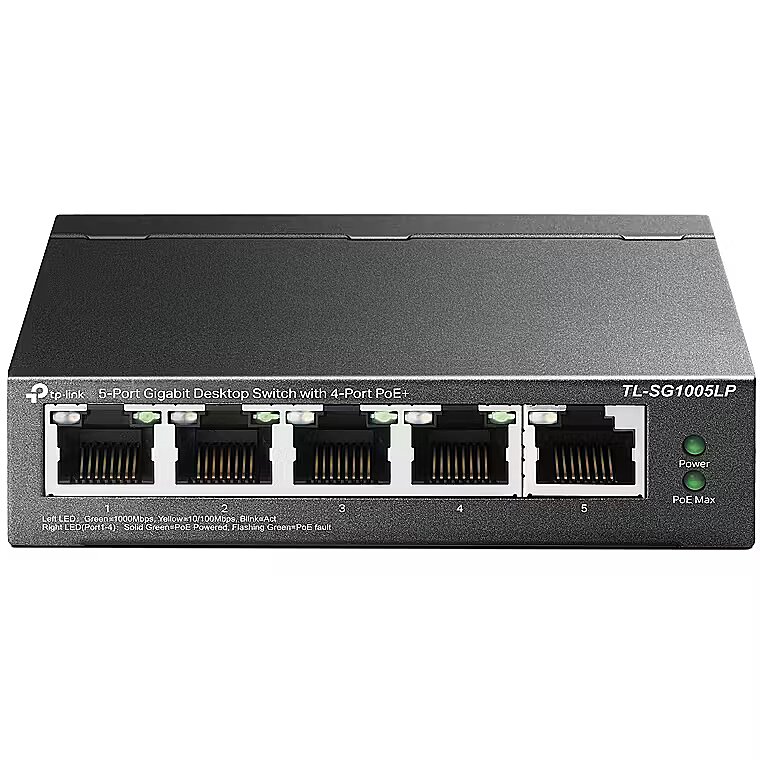

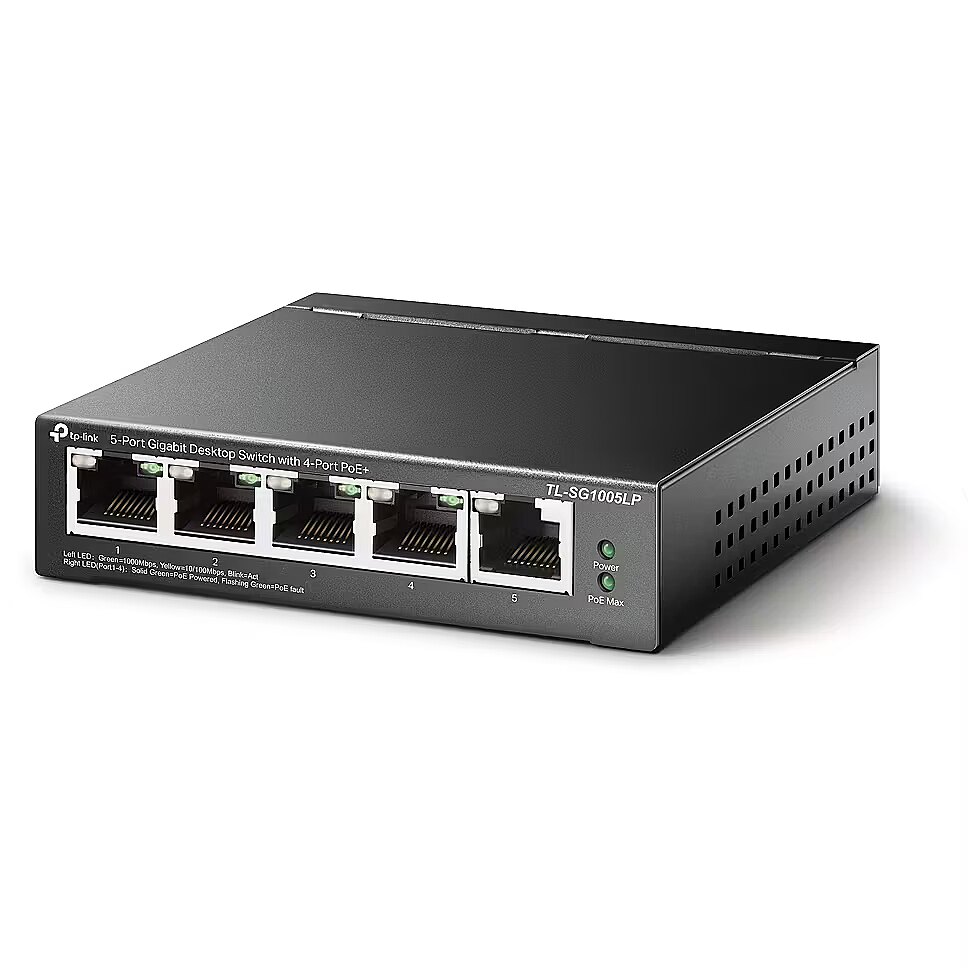

TP-LINK TL-SG1005LP 5-Port Gigabit Desktop PoE Switch with 4-Port PoE+

10Base-T / 100Base-TX / 1000Base-T Ports - 5
Accessories included - Zasilacz Instrukcja Instalacji
Application - Home and small office
ARTIKEL1 - 5-PORT GIGABIT DESKTOP SWITCH
ARTIKEL2 - WITH 4-PORT POE+
Brand - TP-Link
BrandPartCode - TL-SG1005LP
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category Code - SWI
Certificates - Certification - FCC, CE, RoHS
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS
Chassis type - Desktop
Code - TL-SG1005LP
Data transmission - Forwarding rate - 7.44 Mpps
Data transmission - Jumbo frames - 16000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 2000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 10 Gbit/s
Description - - 5× 10/100/1000 Mbps RJ45 ports - With four PoE+ ports, transfers data and power on one single cable - Works with IEEE 802.3af/at compliant PDs - 802.1p/DSCP QoS enable smooth latency-sensitive traffic - Supports PoE Power up to 30 W for each PoE port - Supports PoE Power up to 40 W for all PoE ports* - Plug and play, no configuration and installation required
Description - Przełącznik typu desktop TP-Link SG1005LP
Profesjonalny, 5-portowy przełącznik Gigabitowy z 4 portami PoE+ Przełącznik stworzony do wielu zastosowań
4 porty PoE+ o łącznej mocy 40 W
Zgodność ze standardem 802.3af/at PoE+ zapewnia możliwość oferowania do 30 W mocy na każdym porcie PoE. 40 W łącznej mocy zasilania PoE* przełącznika wyposażonego w 4 porty PoE to rozwiązanie idealne m.in. dla systemów monitoringu, biur, akademików i małych firm. Urządzenie jest w pełni zgodne z kamerami IP, punktami dostępowymi, telefonami IP, komputerami, drukarkami, itd. Inteligentne zarządzanie zużyciem energii
Gdy całkowity pobór mocy przekracza 40 W, funkcja inteligentnego zarządzania zużyciem energii wyłącza zasilanie portu o najniższym priorytecie, aby zapewnić zasilanie portów o wyższych priorytetach i tym samym chronić urządzenie przed przeciążeniem. Funkcja ta umożliwia także automatyczne wykrywanie wymaganej przez dane urządzenie mocy PoE i chroni urządzenia PoE jak również nieobsługujących PoE przed uszkodzeniem. Wytrzymała metalowa obudowa
Ochronę dla wrażliwych komponentów przełącznika stanowi wytrzymała obudowa, wykonana z metalu wysokiej jakości. Tak solidne zabezpieczenie gwarantuje wieloletnią i stabilną pracę urządzenia. TL-SG1005LP to produkt niezawodny, co potwierdzają liczne testy bazujące na rygorystycznych standardach.
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
Design - Stackable - No
Design - Wall mountable - Yes
Design > Form factor - Desktop
Desktop/pedestal Mounting Type - Yes
dimension depth - 120 mm
dimension height - 130 mm
Dimensions - 99.8 × 98 × 25 mm
Dimensions - 99.8×98×25 mm
dimension weight - 800 g
dimension width - 195 mm
EAN - 6935364052720
ean - 6935364052720
EANCode - 6935364052720
Eans - 6935364052720
Forwarding mode - Store-and-forward
Forwarding rate - 7.44 Mpps
Forwarding rate - 7.44 Mpps
Full Description Line - Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|IEEE 802.3af|IEEE 802.3at|PoE ports 1|Switching capacity 10 Gbps|Forwarding rate 7.44 Mpps|Switching method Store-and-forward|Dimensions 99.8×98×25 mm|Unit Net Weight 0.4 kg
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
GTIN - 6935364052720
GTIN - 6935364052737
guarantee - 60
guarantee_type - normal
HERSTELLER - TP-LINK
HSTNUMMER - TL-SG1005LP
IEEE 802.3af Network standard - Yes
IEEE 802.3at Network standard - Yes
Jumbo frame size - 16 KB
L2 features -
L3 features -
Link - https://www.tp-link.com/uk/business-networking/poe-switch/tl-sg1005lp/
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Professional 5-Port Gigabit Switch with 4 PoE+ PortsPlug and Play, with PoE power supply which meets the needs of diverse devices.Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous ApplicationsCompliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.Intelligent Power ManagementWhen total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.Advanced Functions for Higher PerformanceAdministrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.Durable Metal CasingThe interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
LongProductName - 5x 1G RJ-45, 10 Gbps, 7.44 Mpps, PoE, 99.8×98×25 mm
LongSummaryDescription - TP-Link TL-SG1005LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable
MAC address table size - 2000
Management, monitoring, configuration -
Management features - Quality of Service (QoS) support - Yes
Management features - Switch type - Unmanaged
Management features > Switch type - Unmanaged
Model name - TL-SG1005LP
name - SG1005LP Switch 5x1Gb (4xPoE+)
Name - TP-Link SG1005LP
Name - TP-LINK | Switch | TL-SG1005LP | Unmanaged | Desktop | PoE+ ports quantity 4 | Power supply type External
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3, Cat4, Cat5, Cat5e, Cat6
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Flow control support - Yes
Network - MAC address auto-aging supported - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Network architecture - GigabitEthernet
Number of 10/100/1000 Mbps ports - 5
Number of PoE+ ports - 4
Operational conditions - Heat dissipation - 161.98 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other features > Ethernet LAN (RJ-45) ports - 5
Other features > Power supply type - External
Other functions - Zgodność z urządzeniami zasilanymi PoE (PD) działającymi w standardzie IEEE 802.3af/at Automatyczne zapamiętywanie i wygaszanie adresów Mac Kontrola przepływu EEE802.3x QoS 802.1p/DSCP IGMP Snooping
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 121.00 mm
Package features > Gross depth master carton - 288 mm
Package features > Gross height (mm) - 131.00 mm
Package features > Gross height master carton - 390 mm
Package features > Gross weight - 0.741 kg
Package features > Gross width (mm) - 197 mm
Package features > Gross width master carton - 414 mm
Package features > Net weight master carton - 8.892 kg
Package features > Packing quantity - 12 pc(s)
Package features > Palette Qty - 444 pc(s)
Package features > Paper/Pasteboard - 184.00 g
Package features > Plastic (No PET) - 46.00 g
Package features > Tare weight (kg) - 0.23 kg
Package features > Tare weight master carton - 0.791 kg
Package features > Volume (m3) - 0.003122647 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - User guide - Yes
Packaging data - Package depth - 196 mm
Packaging data - Package height - 121 mm
Packaging data - Package type - Box
Packaging data - Package weight - 730 g
Packaging data - Package width - 131 mm
Performance - Fanless - Yes
Performance - Maximum cable length - 100 m
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
PoE ports - 1
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 5
Ports & interfaces > POE - PoE 802.3 af and PoE+ 802.3 at
Ports & interfaces > PoE+ ports quantity - 4
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - DC input voltage - 53.5 V
Power - Input current - 0.81 A
Power - Power consumption (max) - 47.5 W
Power - Power source - DC/PoE
Power - Power supply included - Yes
Power consumption - 4.12 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 4
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 40 W
Power over Ethernet (PoE) > Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) > Power over Ethernet (PoE) power per port - 30 W
Power supply - 53.5 VDC / 0.81 A
Power supply - External
Primary port count - 5
producer - TP-LINK
Producer - TP-Link
ProducerCode - SG1005LP
Producer product family - Switch
Producer product name - TL-SG1005LP
ProductName - TL-SG1005LP
QoS -
Security -
Security - IGMP snooping - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 19.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 13 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.74 kg
Shipping Box Width Shipping/Package Box Dimensions - 12 cm
ShortDescription -
ShortSummaryDescription - TP-Link TL-SG1005LP, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
Stck_Kart - 12
Stck_Pal - 0
Storno - Y
Supported protocols and standards -
Support for Jumbo frames - Yes
Sustainability - Sustainability compliance - Yes
Switch class - Unmanaged
Switching capacity - 10 Gbps
Switching method - Store-and-forward
Technical details > Net weight - 0.511 kg
Technical details > Producer - TP-LINK
Throughput - 10 Gb/s
Title - TP-Link TL-SG1005LP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Unit Box Height - 0.13
Unit Box Length - 0.195
Unit Box Width - 0.12
Unit Brutto Volume - 0.003042 cubm
Unit Gross Weight - 0.74 kg
Unit Net Weight - 0.4 kg
URL - https://www.tp-link.com/uk/business-networking/poe-switch/tl-sg1005lp/
Vendor Homepage - www.tp-link.com/uk/business-networking/poe-switch/tl-sg1005lp/
vendpn - TL-SG1005LP
VLAN -
Warranty - 60
Warranty - 60 month(s)
Warranty - 60 months
WarrantyInfo -
Weight & dimensions - Depth - 98 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Width - 99.8 mm
