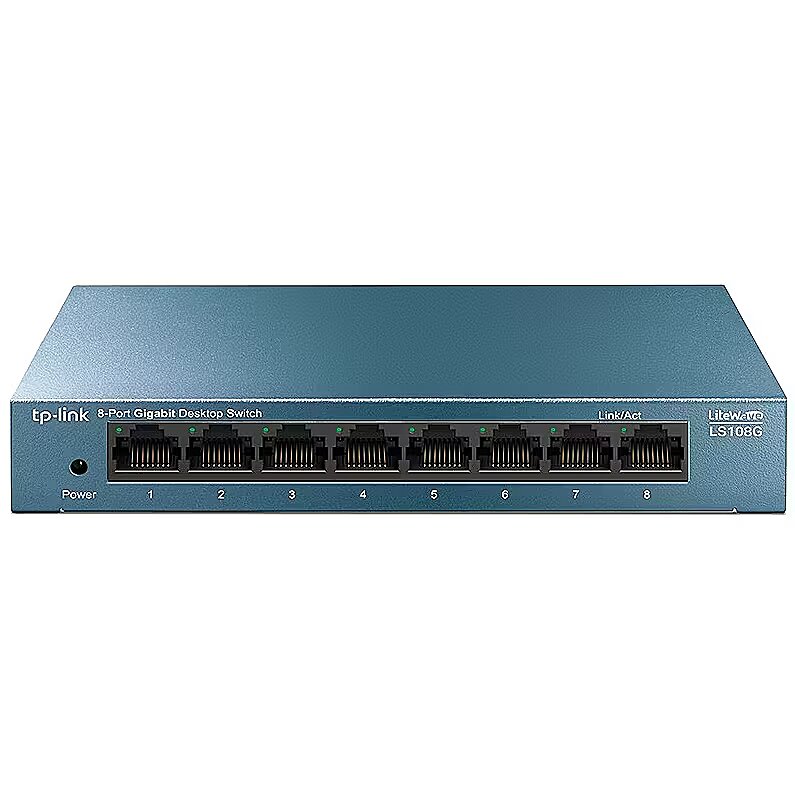

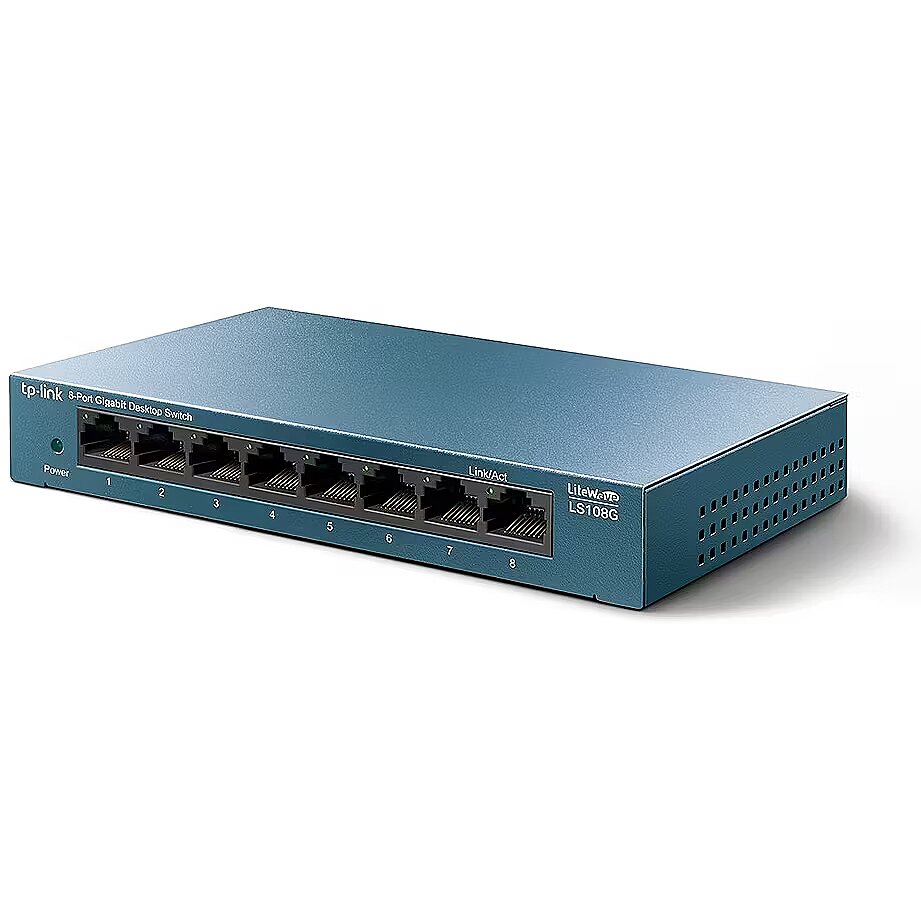

TP-LINK LiteWave LS108G

10Base-T / 100Base-TX / 1000Base-T Ports - 8
Accessories included - LS108G unmanaged switch Power Supply Installation Guide
Application - Home and small office
ARTIKEL1 - LITEWAVE 8-P.GB DESKTOP SWITCH
ARTIKEL2 - .
Brand - TP-Link
BrandPartCode - LS108G V1
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category Code - SWI
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - Certification - CE, FCC, RoHS
Chassis type - Desktop
Code - LS108G
Console port - No
Data transmission - Forwarding rate - 11.9 Mpps
Data transmission - Jumbo frames - 16000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 4000 entries
Data transmission - Packet buffer memory - 1.5 MB
Data transmission - Switching capacity - 16 Gbit/s
Description - The unmanaged switches of the LiteWave series use energy saving technology. The devices automatically adjust the required power consumption depending on the connection condition and cable length, enabling the use of high-bandwidth networks with high energy savings. By taking care of the planet, you will also take care of your own wallet, saving on electricity bills!
Description - TP-LINK LS108G 8-Port 10/100/1000Mbps Desktop Switch + 10/100/1000Mbos Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX + Green Ethernet technology saves power + IEEE 802.3X flow control provides reliable data transfer + Steel housing, desktop or wall-mounting design + Support 802.1p/DSCP QoS function + Plug and play, no configuration needed
Design - LED indicators - Activity, LAN, Power
Design - Product colour - Blue
Design - Rack mounting - No
Design > Case design - Metal
Design > Form factor - Desktop
dimension depth - 90 mm
dimension height - 130 mm
Dimensions - 158 x 99,1x 25 mm
Dimensions - 158 x 99.1x 25 mm
dimension weight - 490 g
dimension width - 190 mm
EAN - 6935364085452
ean - 6935364085452
EANCode - 6935364085452
Eans - 6935364085452
EAN_code - 6935364085452
Fan - No
Forwarding mode - Store-and-forward
Forwarding rate - 11.9 Mpps
Full Description Line - 8x10Base-T / 100Base-TX / 1000Base-T|IEEE 802.1p|IEEE 802.3ab|IEEE 802.3i|IEEE 802.3u|IEEE 802.3x|Forwarding rate 11.9 Mpps|Power supply External|Dimensions 158 x 99.1x 25 mm|Unit Net Weight 0.4 kg
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 6935364085452
GTIN - 6935364085490
GTIN - 8592978176075
guarantee - 36
guarantee_type - normal
HERSTELLER - TP-LINK
Hoehe - 0.09
HSTNUMMER - LS108G
IEEE 802.1p Network standard - Yes
IEEE 802.3ab Network standard - Yes
IEEE 802.3i Network standard - Yes
IEEE 802.3u Network standard - Yes
IEEE 802.3x Network standard - Yes
Jumbo frame size - 16 KB
L2 features -
L3 features -
Laenge - 0.19
Link - https://www.tp-link.com/uk/business-networking/unmanaged-switch/ls108g/
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Increase Your Network Speed and Save EnergyLet LiteWave Bring You Lighter Network LifeThe TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.Go Green with Your EthernetThe LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!Durable Metal CasingThe interior components of LS108G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, LS108G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.Use Where You Need, However You NeedThe LS108G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
LongProductName - 8-Port 10/100/1000Mbps Desktop Switch
LongSummaryDescription - TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
MAC address table size - 4000
Management, monitoring, configuration -
Management features - Quality of Service (QoS) support - Yes
Management features - Switch type - Unmanaged
Management features > Switch type - Unmanaged
Manufacturer - TP-Link
Manufacturer_code - LS108G
Model name - LS108G
name - LS108G switch 8x1GbE LiteWave
Name - TP-Link LiteWave LS108G, Switch (blue)
Name - TP-Link LS108G
Name - TP-LINK | 8-Port 10/100/1000Mbps Desktop Network Switch | LS108G | Unmanaged | Desktop | Power supply type External
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Flow control support - Yes
Network - Networking standards - IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 8
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP ports - None
Operational conditions - Heat dissipation - 12.617 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other features > Power supply type - External
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 190 mm
Package features > Gross depth master carton - 595 mm
Package features > Gross height (mm) - 132 mm
Package features > Gross height master carton - 400 mm
Package features > Gross width (mm) - 92 mm
Package features > Gross width master carton - 414 mm
Package features > Net weight master carton - 17.208 kg
Package features > Packing quantity - 36 pc(s)
Package features > Palette Qty - 612 pc(s)
Package features > Paper/Pasteboard - 6.00 g
Package features > Plastic (No PET) - 144.00 g
Package features > Tare weight (kg) - 0.15 kg
Package features > Tare weight master carton - 1.675 kg
Package features > Volume (m3) - 0.00230736 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 191 mm
Packaging data - Package height - 92 mm
Packaging data - Package weight - 470 g
Packaging data - Package width - 130 mm
Packet buffer - 1.5 MB
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 8
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces > Ethernet LAN (RJ-45) ports - 8
Ports & interfaces > POE - No
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Power - Input current - 0.6 A
Power - Input voltage - 5 V
Power - Power consumption (max) - 3.7 W
Power - Power source - DC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power supply -
Power supply - External
Power supply - External
Primary port count - 8
producer - TP-LINK
Producer - TP-Link
ProducerCode - LS108G
Producer product family - 8-Port 10/100/1000Mbps Desktop Network Switch
Producer product name - LS108G
ProductName - 8-Port 10/100/1000Mbps Desktop Network Switch
QoS -
Security -
Shipping Box Depth Shipping/Package Box Dimensions - 19.3 cm
Shipping Box Height Shipping/Package Box Dimensions - 13 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.49 kg
Shipping Box Width Shipping/Package Box Dimensions - 9 cm
ShortDescription -
ShortSummaryDescription - TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch, Unmanaged, Gigabit Ethernet (10/100/1000)
Stackability - No
Stck_Kart - 0
Stck_Pal - 0
Storno - N
Supported protocols and standards - IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Support for Jumbo frames - Yes
Switch class - Unmanaged
Switch layer - L2
Technical details > Gross weight - 0.478 kg
Technical details > Net weight - 0.328 kg
Technical details > Producer - TP-LINK
Title - TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch
Unit Box Height - 0.13
Unit Box Length - 0.193
Unit Box Width - 0.09
Unit Brutto Volume - 0.002258 cubm
Unit Gross Weight - 0.49 kg
Unit Net Weight - 0.4 kg
URL - https://www.tp-link.com/pe/business-networking/unmanaged-switch/ls108g/#overview
Vendor Homepage - www.tp-link.com/uk/business-networking/unmanaged-switch/ls108g/#specifications
vendpn - LS108G
VLAN -
Warranty - 60
Warranty - 60 month(s)
Warranty - 60 months
WarrantyInfo -
Weight - 0,49
Weight & dimensions - Depth - 99 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Width - 158 mm
