Brand - TP-Link
BrandPartCode - TL-SG1005D V4
Category - Network Switches
Data transmission - Jumbo frames - 15000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 10 Gbit/s

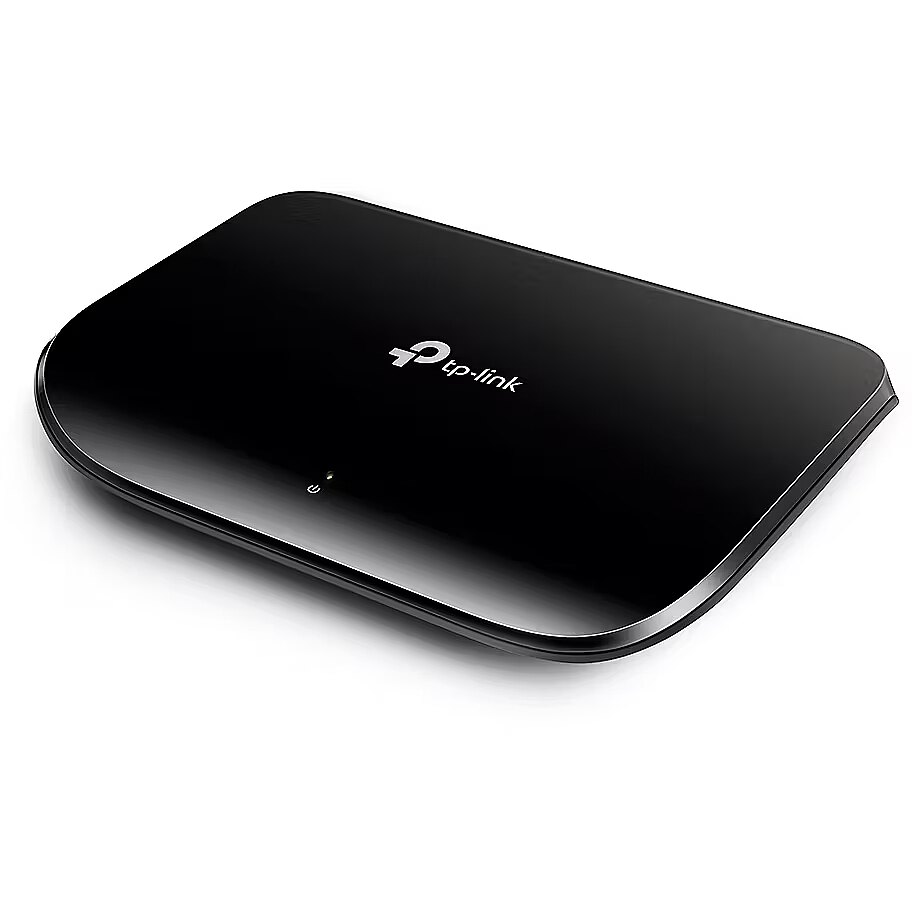

Design - LED indicators - Yes
Design - Number of fans - 0 fan(s)
Design - Product colour - Black
Design - Rack mounting - No
Design - Stackable - No
GTIN - 0845973020255
GTIN - 845973020255
GTIN - 6935364091798
GTIN - 8592978038939
GTIN - 9789800359785
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - What This Product DoesThe TP-Link 5-Port Gigabit desktop switch TL-SG1005D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1005D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1005D can save power consumption, making it an eco-friendly solution for your home or office network.Gigabit SwitchFeatured with 5 10/100/1000Mbps ports, TL-SG1005D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.Go Green With Your EthernetYou now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1005D 5-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.Power down Idle PortsWhen a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1005D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.Power Budget According to Cable LengthIdeally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.Easy to UseThe auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
LongProductName - 5 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX, 140 x 88 x 23 mm, 220V/50Hz
LongSummaryDescription - TP-Link 5-Port Gigabit Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
Management features - Switch type - Unmanaged
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - MAC address auto-aging supported - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Operational conditions - Heat dissipation - 8.22 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 145 mm
Packaging data - Package height - 85 mm
Packaging data - Package weight - 180 g
Packaging data - Package width - 108 mm
Performance - Compatible operating systems - Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10, MacOS, NetWare, UNIX, Linux
Performance - Fanless - Yes
Performance - Maximum cable length - 100 m

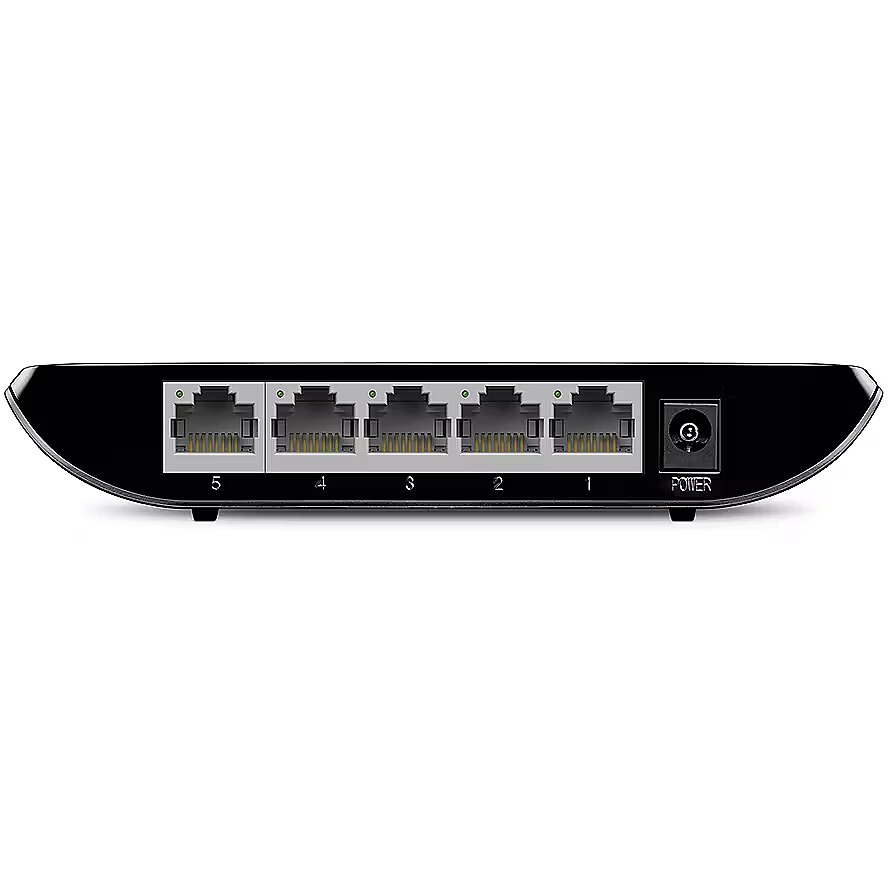

Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 5
Ports & interfaces - Power connector - DC-in jack
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 0.6 A
Power - Input voltage - 9 V
Power - Power consumption (max) - 2.47 W
Power - Power source - DC
Power - Power supply included - No
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
ProductName - 5-Port Gigabit Desktop Network Switch
ShortSummaryDescription - TP-Link 5-Port Gigabit Desktop Network Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex
Title - TP-Link 5-Port Gigabit Desktop Network Switch
URL - https://www.tp-link.com/uk/service-provider/unmanaged-switch/tl-sg1005d/
WarrantyInfo -
Weight & dimensions - Depth - 108 mm
Weight & dimensions - Height - 28 mm
Weight & dimensions - Width - 165 mm
