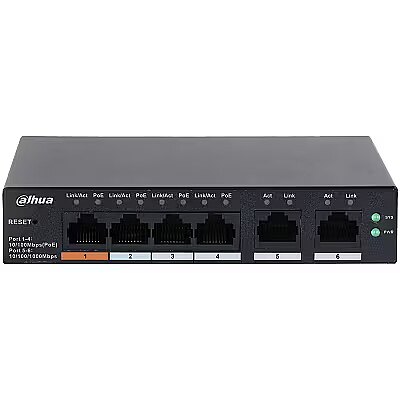

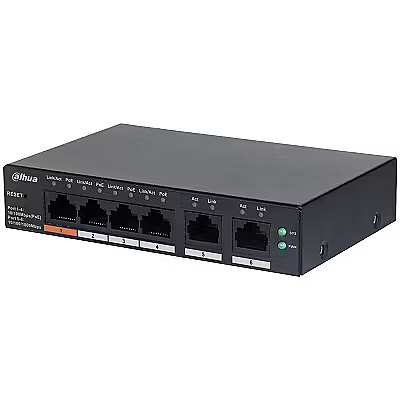

Dahua CS4006-4ET-60

Brand - Dahua Technology
BrandPartCode - DH-CS4006-4ET-60
Category - Network Switches
Category Code - SWI
Data transmission - Forwarding rate - 3.57 Mpps
Data transmission - Jumbo frames - 9216
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 4 MB
Data transmission - Switching capacity - 4.8 Gbit/s
Description - "6-Port Cloud Managed Desktop Switch with 4-Port PoE > Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards. > Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE power supply standards. > Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE. > A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof."
Design - Housing material - Metal
Design - LED indicators - Uplink
Design - Product colour - Black
Design - Rack mounting - No
Design - Wall mountable - Yes
Desktop/pedestal Mounting Type - Yes
Dimensions - 130 × 90 × 26 mm
Forwarding rate - 3.57 Mpps
Full Description Line - Type L2|Desktop/pedestal|IEEE 802.3|IEEE 802.3ab|IEEE 802.3af|IEEE 802.3at|IEEE 802.3u|IEEE 802.3x|PoE ports 4|Switching capacity 4.8 Gbps|Forwarding rate 3.57 Mpps|Power supply External|Dimensions 130 × 90 × 26 mm|Unit Net Weight 0.28 kg
GTIN - 6923172571175
IEEE 802.3 Network standard - Yes
IEEE 802.3ab Network standard - Yes
IEEE 802.3af Network standard - Yes
IEEE 802.3at Network standard - Yes
IEEE 802.3u Network standard - Yes
IEEE 802.3x Network standard - Yes
LongDesc - Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series SmartManaged Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensurethe network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.Cloud ManagementDevices can be managed through the DoLynk Care app and performs real-time monitoring of the network. The app also displays the status of devices, triggers alarms for errors in real time and sendsnotifications.Network Topology ManagementSupports the LLDP protocol and is able to generate and display the network topology, so that you can quickly identify issues, and perform operation and maintenance remotely on devices that are in thetopology.Long Distance PoEThe transmission distance of a PoE port can be up to 250 m, meeting the requirement of wired transmission (bandwidth reduced to 10 Mbps).PoE WatchdogAdopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing/turning on the WEB page switch. It enables the switch to automatically detect port status and restart the failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its true sense and effectively reduces manual maintenance costs.Loop ProtectionWhen a loop is detected, the loop alarm will be triggered and the elimination mechanism will activate to prevent broadcast storms from occurring.Hi-PoE 60W (Orange Port)In addition to the IEEE802.3af and IEEE802.3at standards, orange port also supports a maximum power output of 60W for powering highpower devices.
LongProductName - 6-Port Cloud Managed Desktop Switch with 4-Port PoE
LongSummaryDescription - Dahua Technology DH-CS4226-24ET-375. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 8000 entries, Switching capacity: 4.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Web-based management - Yes
Model name - CS4006-4ET-60
Network - 10G support - No
Network - Networking standards - IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x
Network - Number of VLANs - 32
Network - VLAN support - Yes
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Ethernet interface type - Fast Ethernet, Gigabit Ethernet
Packaging data - Package depth - 265 mm
Packaging data - Package height - 76 mm
Packaging data - Package weight - 920 g
Packaging data - Package width - 238 mm
Performance - Mean time between failures (MTBF) - 2039105 h
PoE ports - 4
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 6
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Fast Ethernet (copper) ports quantity - 4
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 2
Power - Power consumption (max) - 65 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 60 W
Power supply - External
Primary port count - 6
ProductName - DH-CS4226-24ET-375
Security - DHCP features - DHCP client
Shipping Box Depth Shipping/Package Box Dimensions - 26.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.96 kg
Shipping Box Width Shipping/Package Box Dimensions - 24 cm
ShortSummaryDescription - Dahua Technology DH-CS4226-24ET-375, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
Switching capacity - 4.8 Gbps
Switch type - L2
Title - Dahua Technology DH-CS4226-24ET-375 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Unit Box Height - 0.08
Unit Box Length - 0.265
Unit Box Width - 0.24
Unit Brutto Volume - 0.005088 cubm
Unit Gross Weight - 0.96 kg
Unit Net Weight - 0.28 kg
URL - https://www.dahuasecurity.com/products/All-Products/Transmission/Cloud-Managed-Switches/CS4006-4ET-60
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Transmission/Cloud-Managed-Switches/CS4006-4ET-60
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 90 mm
Weight & dimensions - Height - 26 mm
Weight & dimensions - Weight - 280 g
Weight & dimensions - Width - 130 mm
