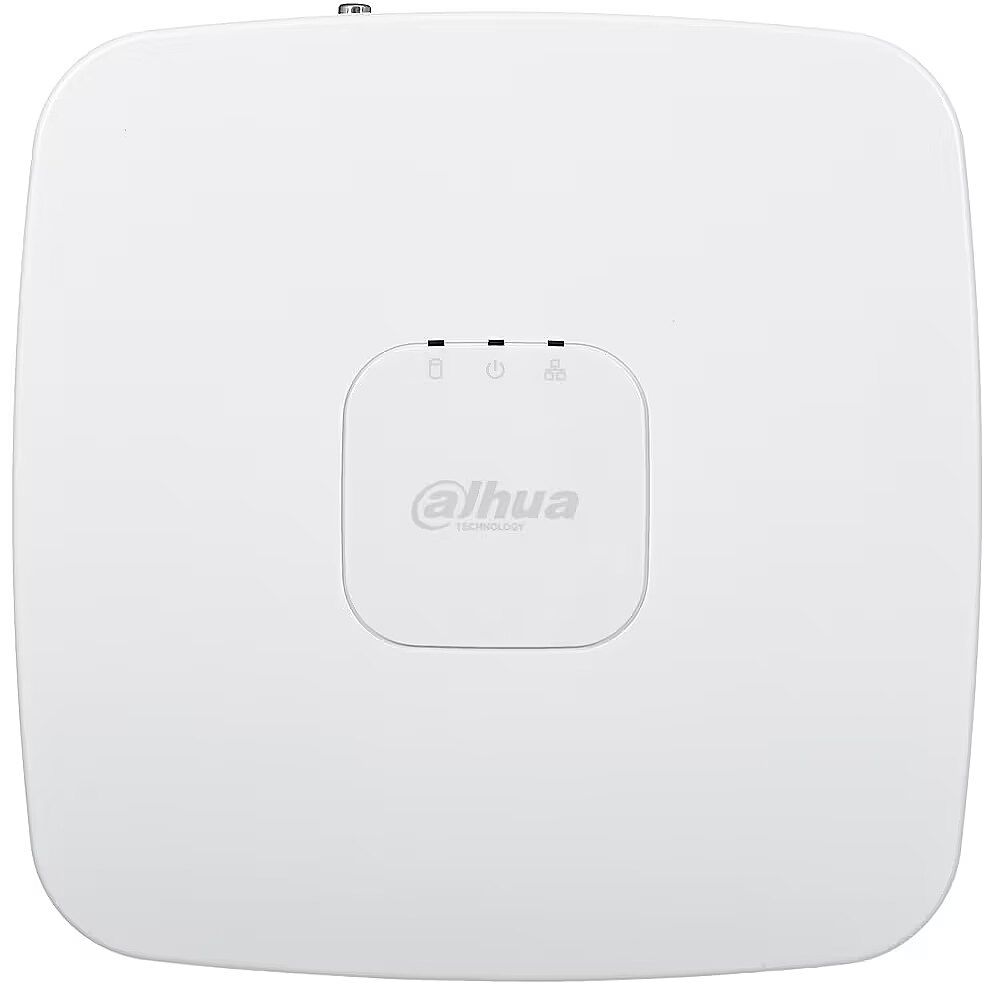

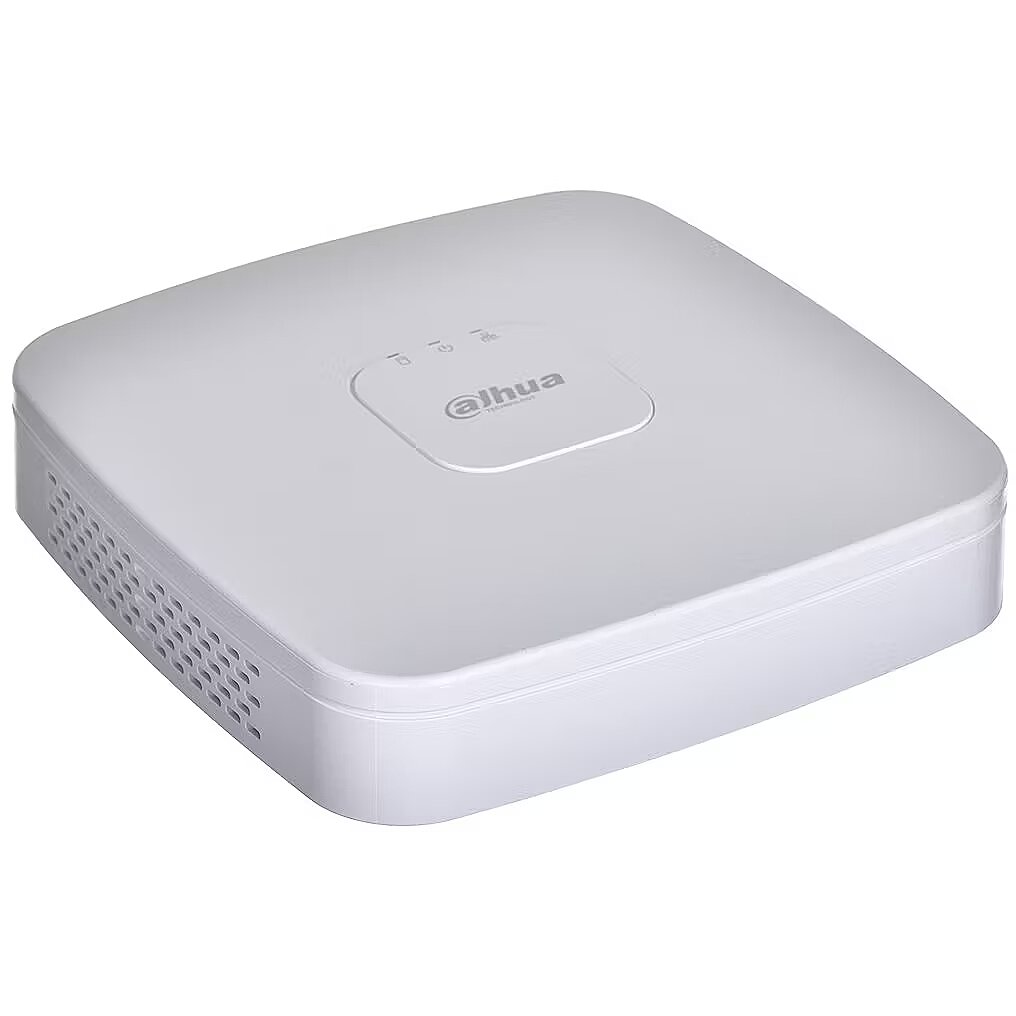

Dahua Technology Lite NVR2104-P-S3 1U White

Brand - Dahua Technology
BrandPartCode - DHI-NVR2104-P-S3
Category - Network Video Recorders (NVR)
dimensionalWeight - 1824
Features - LED indicators - Yes
Features - Product colour - White
Features - Rack capacity - 1U
Features - Rack mounting - Yes
GTIN - 6923172533210
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 16 TB
Hard drive - Number of HDDs installed - 1
LongDesc - Dahua Lite series NVR is easy to install, cost effective and compatiblewith a wide variety of third-party devices, providing a great solutionfor small and medium surveillance systems. It is ideal for home safety,supermarkets, warehouses, educational institutions, and financialinstitutions.Perimeter Protection by CameraAutomatically filters out false alarms caused by animals, rustling leaves,bright lights, etc. Enables system to act secondary recognition for thetargets. Improves alarm accuracy.SMD Plus by CameraWith intelligent algorithm, Dahua Smart Motion Detection technologycan categorize the targets that trigger motion detection and filter themotion detection alarm triggered by non-concerned targets to realizeeffective and accurate alarm.AI SearchWith AI search, operators can search for videos by the attributes oftargets and event types, which helps them to quickly and efficientlyinvestigate where and when targets appeared and events took place.
LongProductName - 4 Channel Smart 1U 1HDD 4PoE Network Video Recorder
LongSummaryDescription - Dahua Technology Lite NVR2104-P-S3. Video input channels: 4 channels, Audio formats supported: G.711 A-law, G.711 μ-law, G.726, PCM, Operating system installed: Embedded LINUX. Maximum storage capacity: 16 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server;.... Rack capacity: 1U, Product colour: White. Output current: 1.25 A, Output voltage: 48/53 V
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Performance - Audio codecs - PCM; G711A; G711U; G726
Performance - Audio formats supported - G.711 A-law
Performance - Audio formats supported - G.711 A-law, G.711 μ-law, G.726, PCM
Performance - Audio formats supported - G.711 μ-law
Performance - Audio formats supported - G.726
Performance - Audio formats supported - PCM
Performance - Backup function - Yes
Performance - Input bandwidth - 80 Mbit/s
Performance - Maximum frame rate - 30 fps
Performance - Multi-screen - Yes
Performance - Operating system installed - Embedded LINUX
Performance - Output bandwidth - 60 Mbit/s
Performance - Playback modes - Pause, Play, Stop
Performance - Video codecs - Smart H.265; H.265; Smart H.264; H.264
Performance - Video input channels - 4 channels
Performance - Video motion detection - Yes
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10
Ports & interfaces - Ethernet LAN data rates - 10,100 Mbit/s
Ports & interfaces - Ethernet LAN data rates - 100 Mbit/s
Ports & interfaces - HDMI output - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Power over Ethernet (PoE) - Yes
Ports & interfaces - Power over Ethernet (PoE) ports quantity - 4
Ports & interfaces - Supported network protocols - HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 1.25 A
Power - Output voltage - 48/53 V
Processor - Built-in processor - Yes
producerCode - NVR2104-P-S3
productName - Dahua Technology Lite NVR2104-P-S3 1U White
ProductName - NVR2104-P-S3
productSize - Normal
ShortSummaryDescription - Dahua Technology Lite NVR2104-P-S3, 4 channels, G.711 A-law, G.711 μ-law, G.726, PCM, Embedded LINUX, Smart H.265; H.265; Smart H.264; H.264, PCM; G711A; G711U; G726, Pause, Play, Stop
sizeX - 364
sizeY - 96
sizeZ - 261
System requirements - Browser supported - Chrome; IE9 or later; Firefox
System requirements - Mobile operating systems supported - Android
System requirements - Mobile operating systems supported - Android, iOS
System requirements - Mobile operating systems supported - iOS
Title - Dahua Technology Lite NVR2104-P-S3 1U White
URL - https://www.dahuasecurity.com/ceen/products/
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 1340
Weight & dimensions - Depth - 206.4 mm
Weight & dimensions - Height - 45.6 mm
Weight & dimensions - Package depth - 364 mm
Weight & dimensions - Package height - 261 mm
Weight & dimensions - Package weight - 1.37 kg
Weight & dimensions - Package width - 96 mm
Weight & dimensions - Weight - 480 g
Weight & dimensions - Width - 204.6 mm
