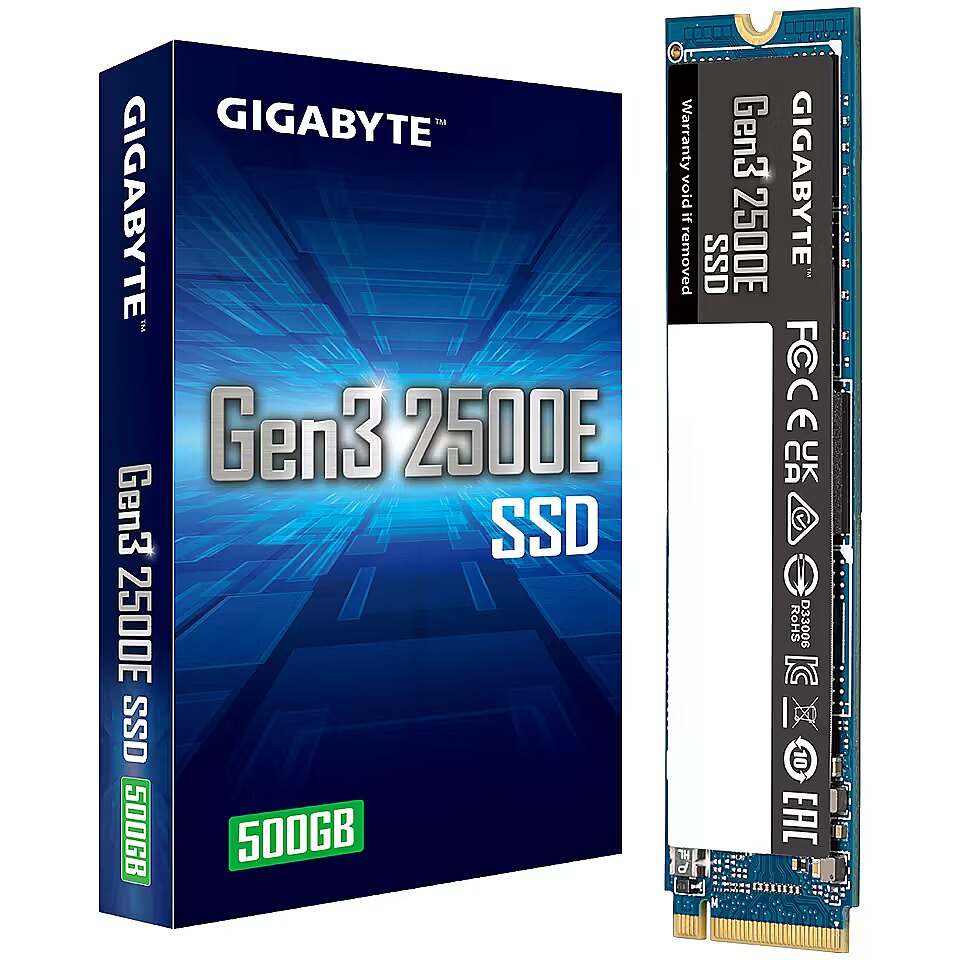

Brand - GIGABYTE
BrandPartCode - G325E500G
Category - Internal Solid State Drives
Category Code - SSU
Code - G325E500G
Depth - 2.3 mm
Description - - Form Factor: M.2 2280 - Interface: PCI-Express 3.0 x4, NVMe 1.3 - HMB (Host Memory Buffer) supported - TRIM & S.M.A.R.T support - Energy-Efficient
Description - A worthy choice for PC upgrade The GIGABYTE Gen3 2500E SSD uses a Phison controller and high-quality 3D NAND memory, providing sequential read performance up to 2300 MB/s and sequential write performance up to 1500 MB/s. Using host memory buffer technology, the SSD controller can access host DRAM without performance loss. Moreover, GIGABYTE Gen3 2500E SSD supports TRIM, SMART and Over-Provision to secure your data and ensure stable operation. Outstanding performance The GIGABYTE Gen3 2500E SSD delivers performance for everyday tasks, boast the best controller and 3D NAND flash memory. Sequential reading speeds up to 2300 MB/s Sequential write speeds up to 1500 MB/s GIGABYTE Gen3 2500E SSD provides a faster data transfer experience compared to 2.5-inch SATA SSD disk drive. Host Memory Buffer (HMB) The Host Memory Buffer (HMB) feature uses PCI Express DMA (Direct Memory Access) to allow SSDs to use some of the DRAM in the PC system, rather than requiring the SSD to use its own DRAM. Saving energy while working Compared with a regular PCIe 3.0 x4 SSD, the GIGABYTE Gen3 2500E SSD reduces approximately 40%+ power during operation. The power consumption of GIGABYTE Gen3 2500E SSD has been significantly improved. SSD toolbox The newly updated SSD Tool Box is a software that gives users an overview of the SSD drive status and various aspects such as model name, firmware version, health status and sensor temperature. Moreover, users can Clear All Data using Secure Erase Feature. You can download SSD Toolbox from the link. Reliability you can trust - 3-year limited warranty The GIGABYTE Gen3 2500E SSD features both high data transfer speeds and enhanced durability, delivering a 1.5 million hour MTBF and a 3-year/120 TBW limited warranty.
dimension depth - 20 mm
dimension height - 150 mm
Dimensions - 22 x 2.3 x 80 mm
dimension weight - 32 g
dimension width - 100 mm
Disk type - SSD
Drive thickness - 2.3mm
Drive type - Internal
EAN - 4719331844370
ean - 4719331844370
Features - Component for - PC/Laptop
Features - Interface - PCI Express 3.0
Features - NVMe - Yes
Features - NVMe version - 1.3
Features - Random read (4KB) - 60000 IOPS
Features - Random write (4KB) - 240000 IOPS
Features - Read speed - 2300 MB/s
Features - SSD capacity - 500 GB
Features - SSD form factor - M.2
Features - TBW rating - 120
Features - Write speed - 1500 MB/s
Form Factor - M.2
Form factor (width) - M.2 2280
Full Description Line - SSD series Gen3 2500E|500GB|Form Factor M.2|PCIE|NVMe|Write speed 1500 MBytes/sec|Read speed 2300 MBytes/sec|Drive thickness 2.3mm|MTBF 1500000 hours
GTIN - 4719331844370
guarantee - 60
guarantee_type - normal
HDD capacity - 500 GB
HDD interface - NVMe
HDD interface - PCI-Express
Height - 22 mm
Link - https://www.gigabyte.com/SSD/GIGABYTE-Gen3-2500E-SSD-500GB#kf
LongDesc - A worthy choice for your PC upgradeGIGABYTE Gen3 2500E SSD adopts Phison’s controller and high-quality 3D NAND, delivers up to 2300 MB/s sequential read and 1500 MB/s sequential write performance. By utilizing Host Memory Buffer technology, the SSD controller can access the host DRAM without performance loss. Furthermore, GIGABYTE Gen3 2500E SSD features TRIM, SMART, and Over-Provision support to secure your data and perform stably.Breaking the Barriers of SATA Limitations (500GB)Outstanding performanceGIGABYTE Gen3 2500E SSD provides performance for your daily computing tasks, boast of best controller & 3D NAND flash.Sequential read speeds up to 2300 MB/sSequential write speeds up to 1500 MB/sGIGABYTE Gen3 2500E SSD gives you faster data transferring experience compared to 2.5" SATA solid state drive.Host Memory Buffer (HMB)The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.Power Saving While OperatingComparing with regular PCIe 3.0 x4 SSD, GIGABYTE Gen3 2500E SSD reduces about 30% power while operating. Power consumption of the GIGABYTE Gen3 2500E SSD is notably improved.SSD Tool BoxThe newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.
LongProductName - PCIe 3.0x4, NVMe1.3, M.2 2280, 500GB
LongSummaryDescription - GIGABYTE Gen3 2500E SSD 500GB. SSD capacity: 500 GB, SSD form factor: M.2, Read speed: 2300 MB/s, Write speed: 1500 MB/s, Component for: PC/Laptop
Model - G325E500G
Model - GIGABYTE Gen3 2500E
MTBF - 1.5e+006 hours
Name - Gigabyte SSD | G325E500G | 500 GB | Solid-state drive interface PCIe 3.0x4, NVMe1.3 | Read speed 2300 MB/s | Write speed 1500 MB/s
name - SSD 2500E NVMe Gen3 500GB M.2 2280 2300/1500MB/s
NVMe - Yes
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 30.00 mm
Package features > Gross height (mm) - 88.00 mm
Package features > Gross width (mm) - 4.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 3333 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging data - Package type - Box
PCIE Interface - Yes
Performance > Read speed - 2300 MB/s
Performance > Solid-state drive capacity - 500 GB
Performance > Solid-state drive interface - PCIe 3.0x4, NVMe1.3
Performance > Write speed - 1500 MB/s
producer - Gigabyte
ProductName - Gen3 2500E SSD 500GB
Random read IOPS (max) - 60000 K
Random write IOPS (max) - 240000 K
Reading speed - 2300 MB/s
Read speed - 2300 MBytes/sec
Shipping Box Depth Shipping/Package Box Dimensions - 43 cm
Shipping Box Height Shipping/Package Box Dimensions - 23 cm
Shipping box quantity - 50
Shipping Box Weight Shipping/Package Box Dimensions - 2.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 21 cm
ShortSummaryDescription - GIGABYTE Gen3 2500E SSD 500GB, 500 GB, M.2, 2300 MB/s
SSD Capacity - 500GB
SSD series - Gen3 2500E
Technical details > Gross weight - 0.30 kg
Technical details > Net weight - 0.20 kg
Technical details > Producer - Gigabyte
Technical details > Producer product family - SSD
Technical details > Producer product name - G325E500G
Title - GIGABYTE Gen3 2500E SSD 500GB M.2 PCI Express 3.0 NVMe
Unit Box Height - 0.02
Unit Box Length - 0.145
Unit Box Width - 0.084
Unit Brutto Volume - 0.0004154 cubm
Unit Gross Weight - 0.046 kg
Unit Net Weight - 0.01 kg
URL - https://www.gigabyte.com/SSD/GIGABYTE-Gen3-2500E-SSD-500GB/sp#sp
Vendor Homepage - www.gigabyte.com/SSD/GIGABYTE-Gen3-2500E-SSD-500GB#kf
vendpn - G325E500G
Warranty - 36
Warranty - 36 month(s)
Warranty - 36L months
WarrantyInfo - 3 year
Weight & dimensions - Depth - 23 mm
Weight & dimensions - Height - 22 mm
Weight & dimensions - Width - 80 mm
Width - 80 mm
Write speed - 1500 MBytes/sec
Writing speed - 1500 MB/s
