ARTIKEL1 - 16GB DDR4-3200MHZ ECC CL22
ARTIKEL2 - SODIMM 2RX8 HYNIX D
Brand - Kingston Technology
BrandPartCode - KSM32SED8/16HD
CAS Latency - CL22
Category - Memory Modules
Category_1 - Computer Memory
Category_2 - DDR4-3000+
Description - Server memory 16 GB DDR4 3200MT/s ECC Unbuffered SODIMM CL22 2RX8 1.2V 260-pin 8Gbit Hynix D
Designation - CE+WEEE
dimension depth - 5 mm
dimension height - 100 mm
dimension weight - 30 g
dimension width - 45 mm
ean - 740617312164
EANCode - 0740617312164
EAN_code - 0740617312164
ECC support - Yes
Features - Buffered memory type - Unregistered (unbuffered)
Features - CAS latency - 22
Features - Component for - PC/Server
Features - ECC - Yes
Features - Internal memory - 16 GB
Features - Internal memory type - DDR4
Features - JEDEC standard - Yes
Features - Memory clock speed - 3200 MHz
Features - Memory form factor - 260-pin SO-DIMM
Features - Memory ranking - 2
Features - Memory voltage - 1.2 V
Features - Programming power voltage (VPP) - 2.5 V
Features - Refresh row cycle time - 350 ns
Features - Row active time - 32 ns
Features - Row cycle time - 45.75 ns
Features - SPD profile - Yes
GRUPPE1 - Memory & Processors
GRUPPE2 - Generic Memory
GTIN - 0740617312164
GTIN - 740617312164
guarantee - 0
guarantee_type - perpetual
HERSTELLER - KINGSTON
HSTNUMMER - KSM32SED8/16HD
Logistics data - Harmonized System (HS) code - 84733020

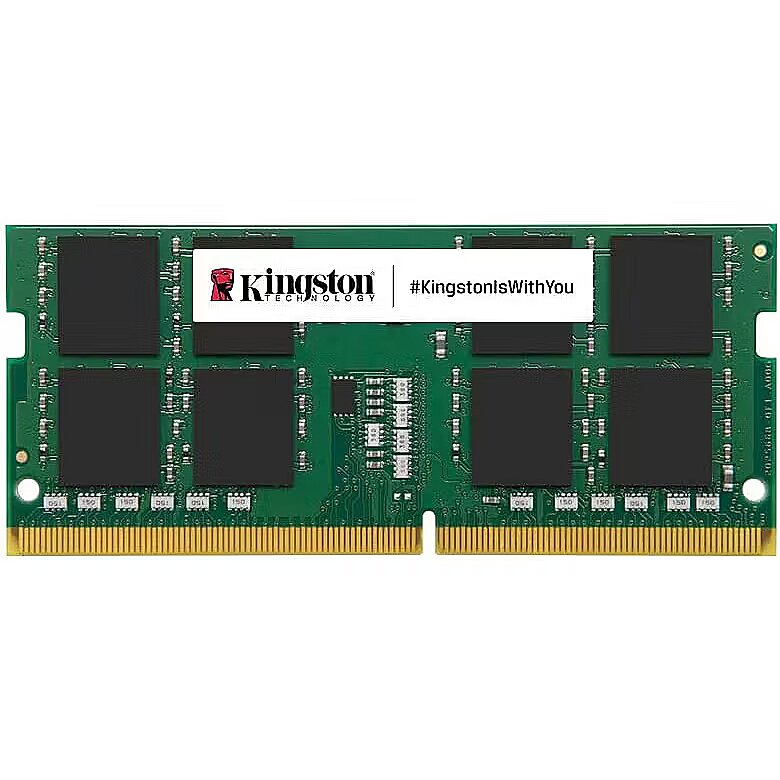

LongDesc - Kingston's KSM32SED8/16HD is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) w/ parity, 2Rx8, ECC, memory module, based on eighteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 260-pin SODIMM uses gold contact fingers.
LongProductName - 16GB, DDR4 3200MHz, ECC, Unbuffered, SODIMM, CL22, 2Rx8, 1.2V, 260-pin, 8Gbit, Hynix D (N/A)
LongSummaryDescription - Kingston Technology KSM32SED8/16HD. Component for: PC/Server, Internal memory: 16 GB, Internal memory type: DDR4, Memory clock speed: 3200 MHz, Memory form factor: 260-pin SO-DIMM, CAS latency: 22, ECC
Manufacturer - Kingston
Manufacturer_code - KSM32SED8/16HD
Memory bus frequency - 3200 MHz
Memory type - SODIMM DDR4
Name - Kingston DDR4 16GB -3200 - CL - 22 - Single-Kit - SO-DIMM - KSM32SED8/16HD, Server Premier - green
name - Memory DDR4 16GB/3200 ECC CL22 SODIMM 2Rx8 HynixD
Number of memory cards in set - 1
Operational conditions - Operating temperature (T-T) - 0 - 85 °C
Operational conditions - Storage temperature (T-T) - -55 - 100 °C
Other features -
Other features - Supported data transfer rates - PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
producer - Kingston
ProductName - KSM32SED8/16HD
Radiator - No
ShortSummaryDescription - Kingston Technology KSM32SED8/16HD, 16 GB, DDR4, 3200 MHz, 260-pin SO-DIMM
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
Technical_details - Type: SDRAM DDR4 Color green EAN: 0740617312164 Manufacturer No.: KSM32SED8/16HD Series: Server Premier Capacity: 16GB Quantity: 1 piece Design: SO-DIMM Connector: 260 pin Voltage: 1.2 volts Default: DDR4-3200 (PC4-25600) Physical clock : 1600 MHz Timing: 22 : 22 : 22 Note: HYNIX (D-DIE) Features: ECC More information: DDR4 is the further development of DDR3 and offers a number of innovations and advantages compared to its predecessor, such as up to 40% lower energy consumption, higher speeds, higher data density (enables memory modules with a capacity of up to 128 GB, in the future up to 512 GB) as well as improved operational stability through advanced error correction techniques such as CRC (Cyclic Redundancy Check), CMD/ADD (On-chip parity detection) and "Per DRAM addressability".
Title - Kingston Technology KSM32SED8/16HD memory module 16 GB DDR4 3200 MHz ECC
Total memory capacity - 16 GB
URL - https://www.kingston.com/belgium/us/memory/server-premier/ddr4-3200mhz-ecc-unbuffered-sodimm
vendpn - KSM32SED8/16HD
WarrantyInfo -
Weight - 0,02
