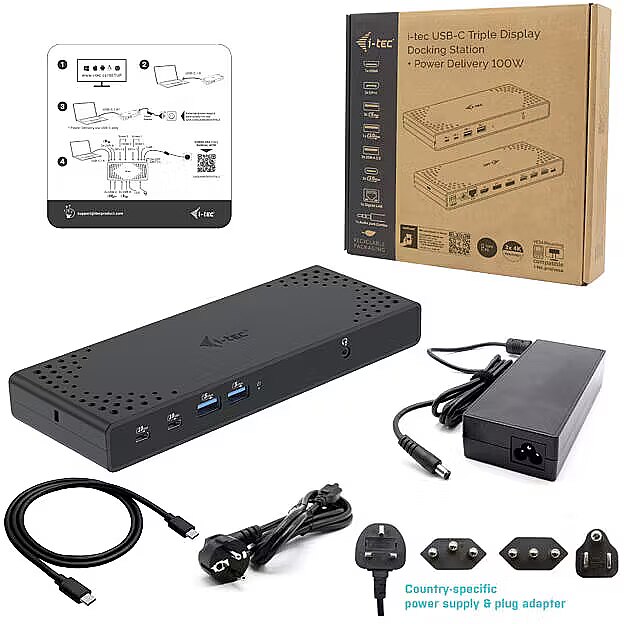

Accessories included - Product USB Type-C to Type-C cable (100 cm) Charger User manual
ARTIKEL1 - USB-C TRIPLE DISPLAY DOCKING
ARTIKEL2 - STATION GEN 2 PD 100W
Brand - i-tec
BrandPartCode - C31TRIPLE4KDOCKPD
Breite - 0
Category - Laptop Docks & Port Replicators
Category - Root/Accessories | Exploitation/Cables and adapters/Docking stations and port replicators
Color - Black
Compatible with -

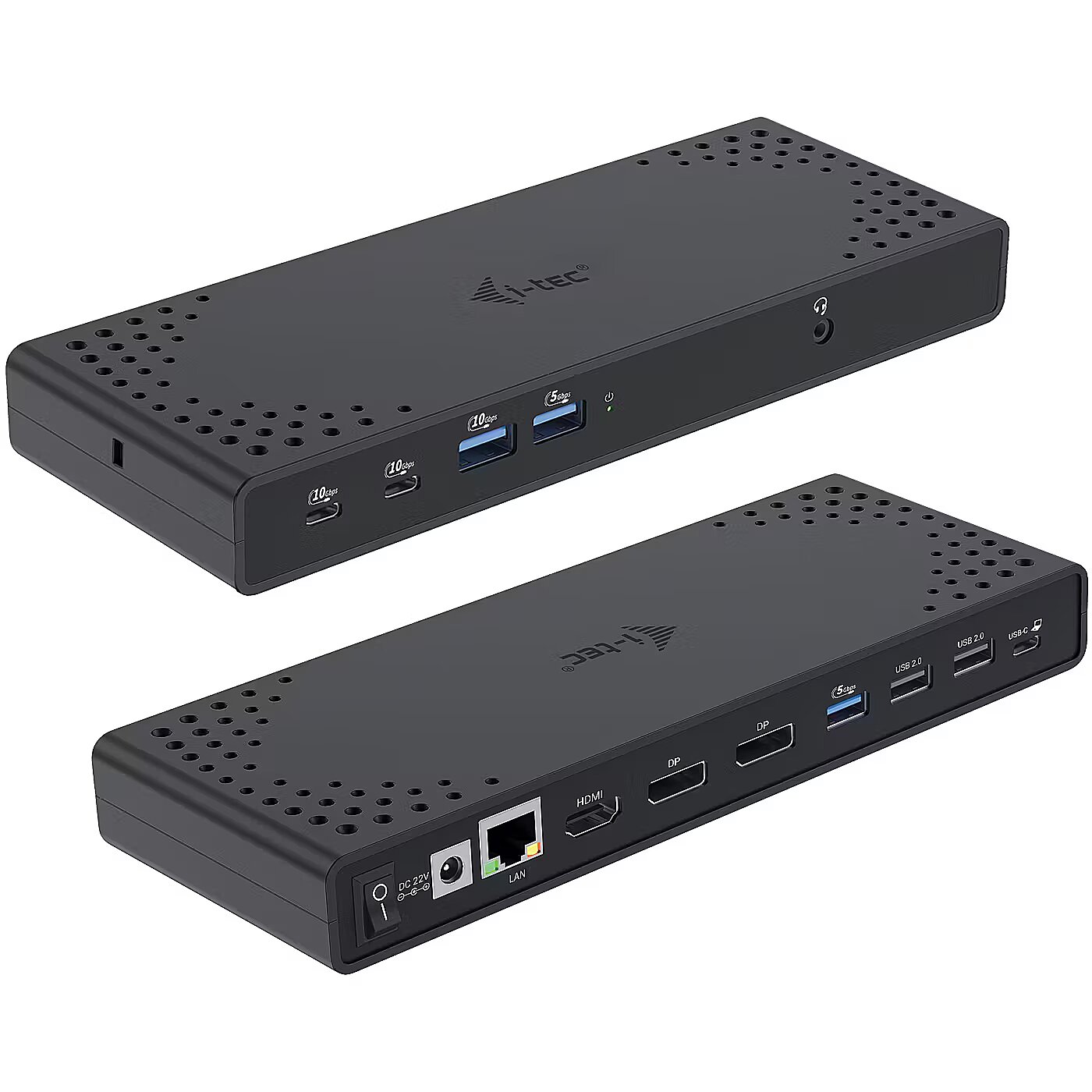

Description - Next-generation, high-performance USB-C docking station that supports output to up to three external monitors at up to 4K high resolution. The docking station can be used with virtually all notebooks equipped with USB-C, USB4 and Thunderbolt 3/4 ports, while supporting all currently popular operating systems. A multitude of USB ports (including those supporting Gen 2 at speeds of up to 10 Gb/s), a reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind a monitor make this docking station the ideal companion for true professionals. Of course, it supports charging a laptop or tablet up to 100 W. Possibility to connect up to 3 external monitors in resolution up to 4K* Power delivery: up to 100 W 2 DisplayPort and 1 HDMI port available 7 USB ports: 2x USB-C (10 Gb/s) supporting BC 1.2 fast charging and 5x USB-A (1x Gen 2 (10 Gb/s) supporting BC 1.2 fast charging, 2x Gen 1 (5 Gb/s) supporting fast charging BC 1.2 and 2x USB 2.0) Gigabit Ethernet RJ-45 provides reliable, solid and fast Internet connectivity with support for 10/100/1000 Mbps speeds Combo jack for audio and microphone The Kensington lock provides protection against theft, especially in shared office spaces or public places The docking station's power switch allows for maximum energy savings The dock supports VESA mounting for convenient vertical installation behind a VESA-enabled monitor Supports Windows 10/11, macOS, iPadOS, Android, Chrome OS and Linux (with latest updates) * macOS does not support Multi Stream Transport (MST). Connecting two or more monitors to the macOS station will cause all monitors to display the same image.
dimension depth - 50 mm
dimension height - 250 mm
Dimensions - 224 x 88 x 27 mm
dimension weight - 1169 g
dimension width - 250 mm
Docking connector - No
ean - 8595611706585
EANCode - 8595611706585
Eans - 8595611706585
GRUPPE1 - Accessories
GRUPPE2 - Port
GTIN - 8595611706585
guarantee - 24
guarantee_type - normal
HERSTELLER - I-TEC
Hoehe - 0
HSTNUMMER - C31TRIPLE4KDOCKPD

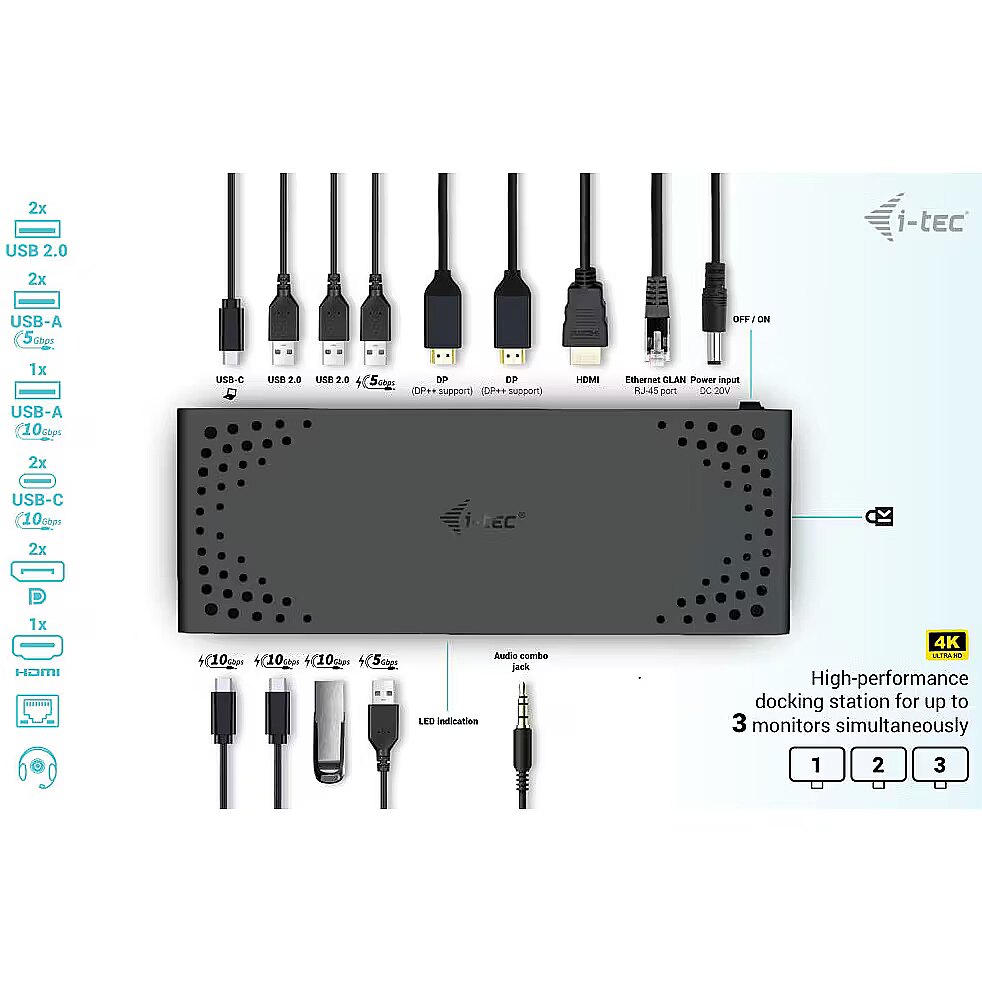

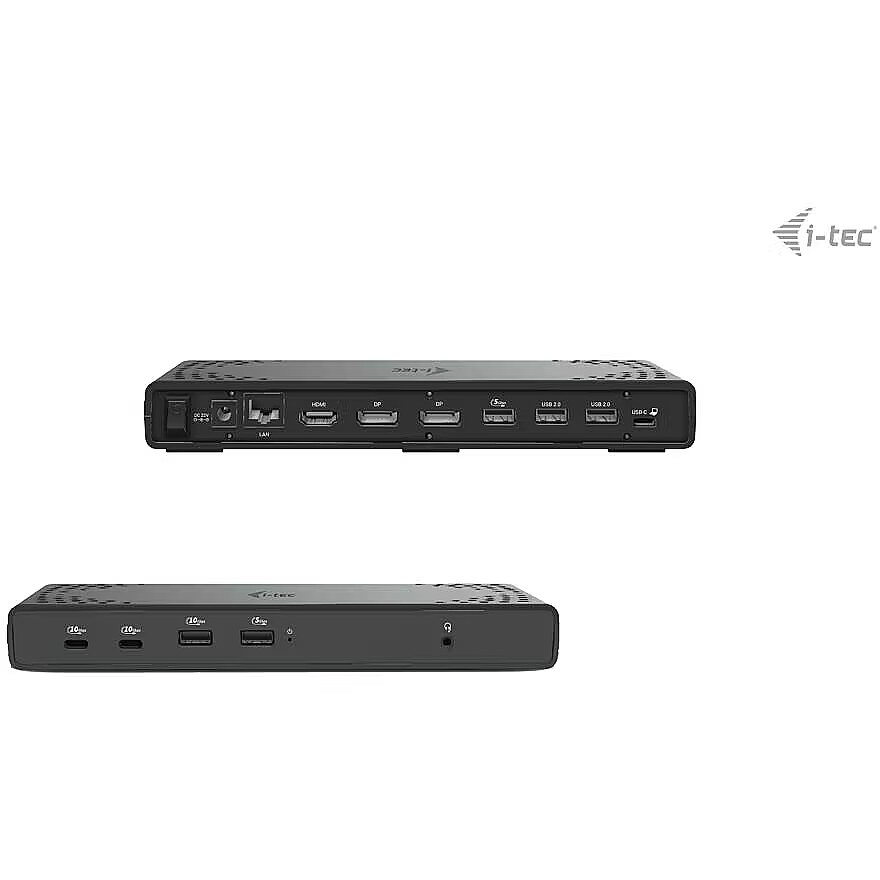

I/O ports - 1 x 3,5 mm minijack (Combo)
I/O ports - 1 x HDMI Type A
I/O ports - 1 x RJ-45 (LAN)
I/O ports - 1 x Thunderbolt
I/O ports - 1 x USB 3.1 Type A
I/O ports - 2 x DisplayPort
I/O ports - 2 x USB 2.0 Type A
I/O ports - 2 x USB 3.0 Type A
I/O ports - 2 x USB 3.1 Type C
Laenge - 0
LongDesc - A high-performance, new generation USB-C docking station that supports output to up to three external monitors in up to 4K high resolution. The dock can be used with virtually all notebooks equipped with USB-C, USB4 and Thunderbolt” 3/4 ports, while supporting all common current operating systems.Plenty of USB ports (including those support Gen 2 speeds of up to 10 Gb/s), reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind the monitor all make this docking station the ideal companion for true professionals. Of course, it supports charging of your laptop or tablet, up to 100 W.- Connect to 3 external monitors in resolutions up to 4K*- Power delivery: up to 100 W- 2 DisplayPort and 1 HDMI port available- 7 USB ports: 2x USB-C (10 Gb/s) supporting BC 1.2 fast charging and 5x USB-A (1x Gen 2 (10 Gb/s) supporting BC 1.2 fast charging, 2x Gen 1 (5 Gb/s) supporting BC 1.2 fast charging and 2x USB 2.0)- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed internet connectivity with support for 10/100/1000 Mbps speeds- Combo jack for audio and microphone- Kensington lock provides anti-theft protection, especially in shared office environments or public areas- Docking station power switch allows for maximum power savings- Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor- Supports Windows 10/11, macOS, iPadOS, Android, Chrome OS and Linux (with latest updates)* macOS does not support Multi Stream Transport (MST). Connecting two or more monitors to a macOS station will cause all monitors to display the same image.
LongProductName - USB-C Triple Display Docking Station Gen 2 + Power Delivery 100W
LongSummaryDescription - i-tec USB-C Triple Display Docking Station Gen 2 + Power Delivery 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Data transfer rate: 10 Gbit/s, Maximum refresh rate: 60 Hz. Output voltage: 22 V, Output current: 5.9 A, Compatible power plug types: EU. Other operating systems supported: Android, ChromeOS
name - i-tec USB-C Triple 4K D ock G2 PD100
Name - i-tec USB-C Triple Display Docking Station Gen 2 + Power Delivery 100W
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Other features -
Packaging content - AC adapter included - Yes
Packaging content - Cables included - USB Type-C
Packaging content - Manual - Yes
Packaging data - Package depth - 250 mm
Packaging data - Package height - 50 mm
Packaging data - Package weight - 503 g
Packaging data - Package width - 250 mm
Performance - Cable lock slot - Yes
Performance - Cable lock slot type - Kensington
Performance - Card reader integrated - No
Performance - Data transfer rate - 10 Gbit/s
Performance - Maximum refresh rate - 60 Hz

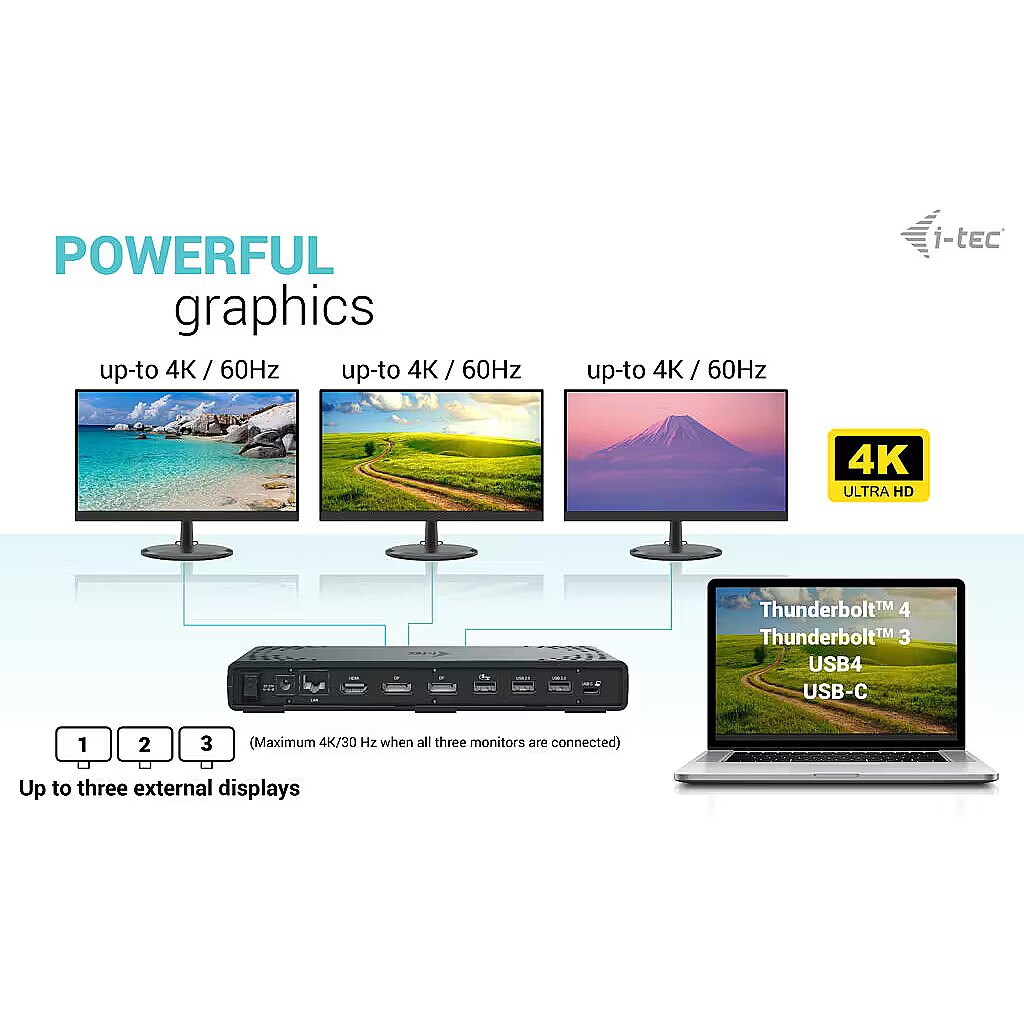

Performance - Number of displays supported - 3
Performance - Product colour - Black

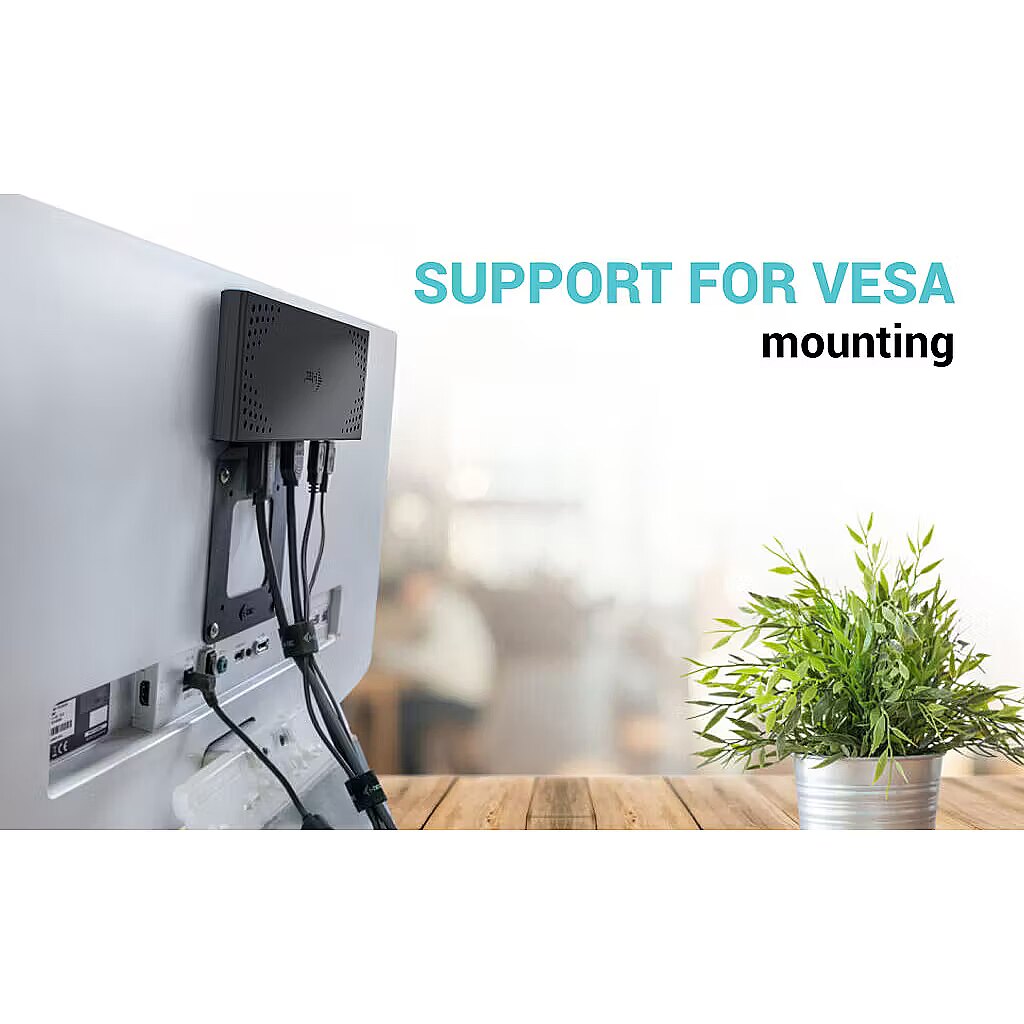

Performance - VESA mounting - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Host interface - USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ports & interfaces - Microphone in - Yes
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
Ports & interfaces - USB Power Delivery - Yes

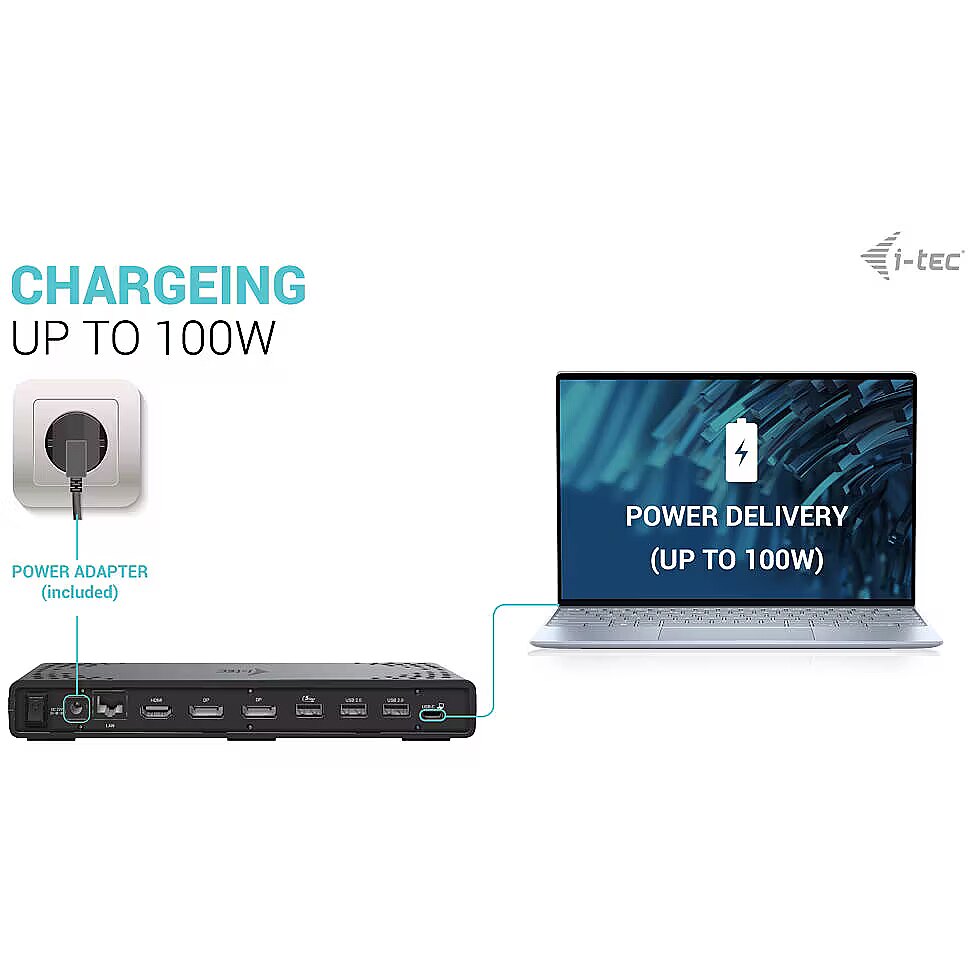

Ports & interfaces - USB Power Delivery up to - 100 W
Power - Compatible power plug types - EU
Power - Output current - 5.9 A
Power - Output voltage - 22 V
Power - USB cable length - 1 m
producer - i-tec
Producer - i-tec
ProducerCode - C31TRIPLE4KDOCKPD
ProductName - USB-C Triple Display Docking Station Gen 2 + Power Delivery 100W
ShortDescription -
ShortSummaryDescription - i-tec USB-C Triple Display Docking Station Gen 2 + Power Delivery 100W, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 3.5 mm, 10,100,1000 Mbit/s, Black
Software - Linux operating systems supported - Yes
Software - Mac operating systems supported - Yes
Software - Other operating systems supported - Android, ChromeOS
Software - Windows operating systems supported - Yes
Stck_Kart - 10
Stck_Pal - 20
Storno - Y
System Requirements - Device with a free USB-C, USB4 or Thunderbolt 3/4 port Power requirements: Device with a free USB-C, USB4 or Thunderbolt 3/4 port with Power Delivery support Video output requirements: Device with a free USB-C or USB4 port with DisplayPort Alt Mode support or a Thunderbolt 3/4 port Operating system: Windows 10/11, macOS*, iPadOS**, Android**, Chrome OS and Linux with the latest updates * macOS does not support Multi Stream Transport (MST). Connecting two monitors to the macOS station will cause both monitors to display the same image. ** iPadOS, Android do not support MST (multi-screen image transport technology) or extended screen options. This means that when connected to an external monitor, only the mirror screen will be displayed. (Does not apply to Android devices with DEX and Easy Projection extensions).
Title - i-tec USB-C Triple Display Docking Station Gen 2 + Power Delivery 100W
URL - https://i-tec.pro/en/produkt/c31triple4kdockpd-2/
vendpn - C31TRIPLE4KDOCKPD
WarrantyInfo -
Weight - 330 g
Weight & dimensions - Depth - 88 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Weight - 330 g
Weight & dimensions - Width - 224 mm
